Manufacturer:
Zumtobel

LED high bay light 840, white, CR2PL L50k 42187640

EAN/GTIN: 9010299357878
Manufacturer: Zumtobel
Manufacturer no.: CR2PL L50k #42187640
Manufact.-SKU: 42187640
Customs tariff no.: 94051190
Illuminants: included
Similar top items: Show now & compare
851,77 USD Price incl. VAT (0,00 USD)
plus shipping
Delivery time:
14-15 days [US] Items to be procured that can be ordered (no central warehouse item) - live request to the central warehouse directly in the cart or click the link below the price >Quantity available?<
pce

We always deliver the latest available article version.

Note:
The installation of electrical devices may only be carried out by an approved electrician and, in the case of high-voltage systems (> = 400V and country-specific nominal power), only with the consent of the respective electricity network operator.

Details

Accessory
bought
Useful
Interesting

Mounting method = Other, Lamp type = LED not exchangeable, With light source = yes, Suitable for number of light sources = 1, Lamp holder = None, Housing material = Aluminium, Housing colour = White, Voltage type = AC, Nominal voltage = 220..240 V, Type of control gear = LED operating device current-controlled, Exchangeable control gear = yes, With control gear = yes, Dimming 0-10 V = no, Dimming 1-10 V = no, Dimming DALI = yes, Dimming DMX = no, Dimming DSI = no, Dimming phase cut-off = no, Dimming phase cut-on = no, Dimming potentiometer (integrated) = no, Dimming LineSwitch = no, Dimming manufacturer´s proprietary system = no, Dimming mains voltage modulation = no, Dimming programmable = no, Dimming RF = no, Dimming Sine Wave Reduction = no, Dimming Touch and Dim = no, Dimming Zigbee = no, Dimming with push-button = no, No dim function = no, Light sharing = Symmetric, Reflector = None, Energy efficiency class of the light source according to EU regulation 2019/2015 = D, Beam angle = Wide beam 41-80°, Colour consistency (McAdam ellipse) = SDCM2, Rated life time L70/B50 at 25 °C = 100000 h, Lumen maintenance at median useful life of 50,000 h at 25 °C ambient (tq) = 90 %, Lumen maintenance at median useful life of 100,000 h at 25 °C ambient (tq) = 80 %, Degree of protection (IP) = IP66, Impact strength = IK08, Ball-proof = no, Protection class = I, Luminaire with limited surface temperature, sign ´´D¿ according to EN 60598-2-24 = yes, Rated ambient temperature according to IEC 62722-2-1 = -40..45 °C, Suitable for emergency lighting = no, Filament test according to IEC 60695-2-11 = 650 °C - 30 s, Max. system power = 334,69999999 W, Rated luminous flux according to IEC 62722-2-1 = 51490 lm, Luminaire efficacy = 154 lm/W, Colour of light = White, Colour temperature = 4000 K, Colour rendering index CRI = 80-89, Total harmonic distortion = 7,85, Power factor = 0,98, Constant light output (CLO) = no, Colour of light adjustable = No, Beam angle adjustable = No, Luminous flux adjustable = Continuously variable, Width = 414 mm, Height/depth = 109 mm, Length = 1025 mm, Type of wiring = Ending, Conductor cross section = 1 mm², Connection type = Other, Operation by Bluetooth = no

More product images:

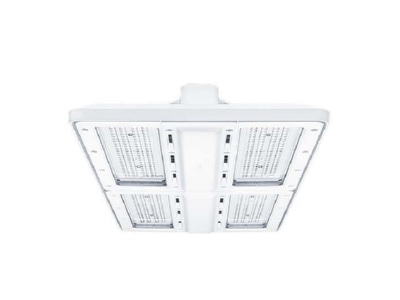

Product image Zumtobel CR2PL L50k  42187640 High bay luminaire IP66 CR2PL L50k 42187640
Product image

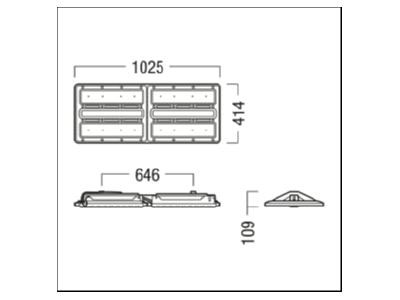

Dimensional drawing Zumtobel CR2PL L50k  42187640 High bay luminaire IP66 CR2PL L50k 42187640
Dimensional drawing
