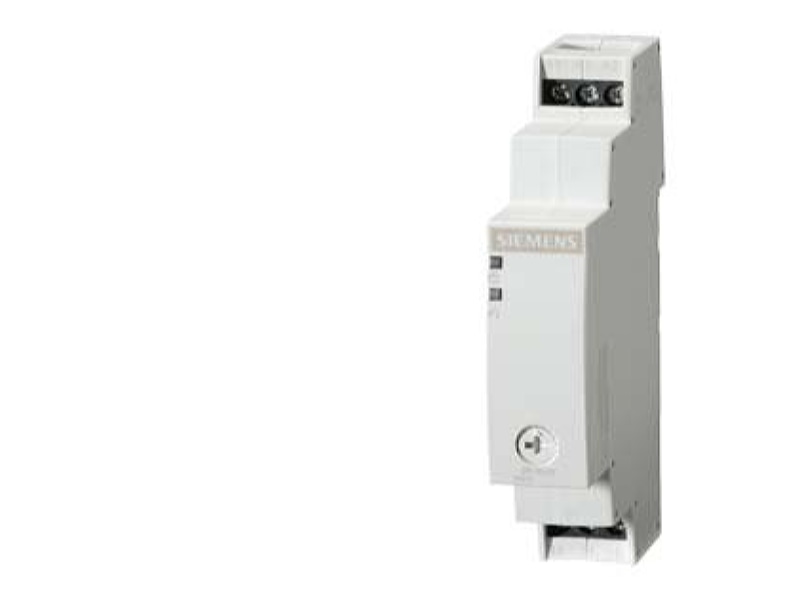

Time relay, 7PV1513-1AQ30
Source photo:
SIEMENS
(fig. might be different or similar)

Time relay, 7PV1513-1AQ30

EAN/GTIN: 4011209777347
Manufacturer: SIEMENS
Manufacturer no.: 7PV1513-1AQ30
Manufact.-SKU: 7PV15131AQ30
Customs tariff no.: 85364900
Similar top items: Show now & compare
29,41 USD Price incl. VAT (0,00 USD)
plus shipping
Delivery time:
14-15 days [US] Items to be procured that can be ordered (no central warehouse item) - live request to the central warehouse directly in the cart or click the link below the price >Quantity available?<
pce

We always deliver the latest available article version.

Note:
The installation of electrical devices may only be carried out by an approved electrician and, in the case of high-voltage systems (> = 400V and country-specific nominal power), only with the consent of the respective electricity network operator.

Details

Accessory
bought
Useful
Interesting

Type of electric connection = Screw connection, Complete with socket = no, Suitable for DIN rail (top hat rail) mounting = yes, Suitable for front mounting = no, Pluggable on auxiliary contact block = no, Function delay-on energization = yes, Function delay on de-energization = no, Function floating contact on energization = no, Function floating contact on de-energization = no, Function star-delta = no, Function pulse shaping = no, Function flashing, starting with pause, fixed time = no, Function flashing, starting with pulse, fixed time = no, Clock function, starting with pause, variable = no, Clock function, starting with pulse, variable = no, Time range = 5..100 s, Remote operation possible = no, Suitable as remote control = no, Rated control supply voltage AC 50 Hz = 100..127 V, Rated control supply voltage AC 60 Hz = 100..127 V, Rated control supply voltage DC = 24 V, Voltage type for actuating = AC/DC, Number of outputs, delayed, change-over contact = 1, Outputs, reversible delayed/undelayed = no, With semiconductor output = no, Width = 17,5 mm, Height = 90 mm, Depth = 66,7 mm

More product images:

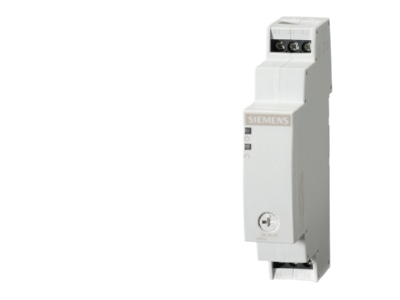

Product image 1 Siemens 7PV1513 1AQ30 Timer relay 5   100s AC 100   127V
Product image 1

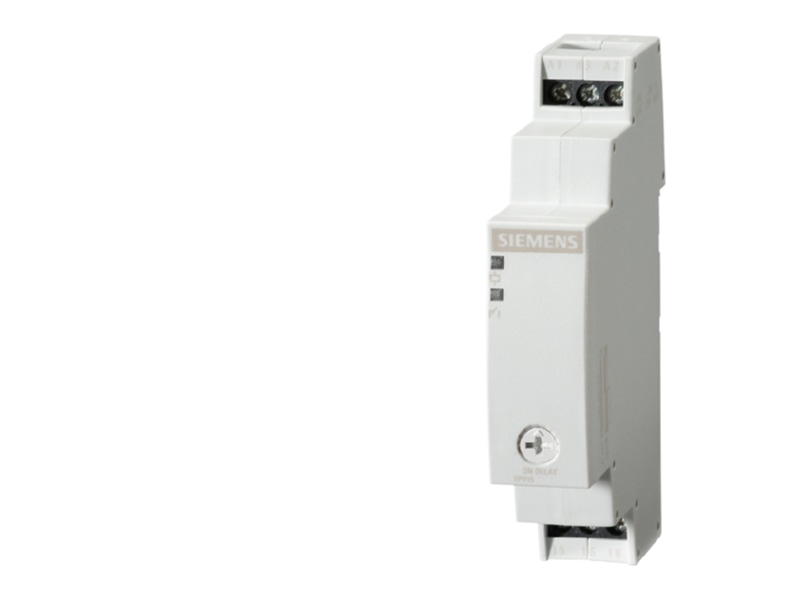

Product image 2 Siemens 7PV1513 1AQ30 Timer relay 5   100s AC 100   127V
Product image 2
