DC-power supply 100...240V/24...28V 240W QUINT4-PS 2904616
Source photo:
Phoenix
(fig. might be different or similar)

DC-power supply 100...240V/24...28V 240W QUINT4-PS 2904616

EAN/GTIN: 4063151023478
WEEE: DE 50738265
Manufacturer: Phoenix
Manufacturer no.: QUINT4-PS #2904616
Manufact.-SKU: 2904616
Customs tariff no.: 85044095
Similar top items: Show now & compare
264,81 USD Price incl. VAT (0,00 USD)
plus shipping
Delivery time:
14-15 days [US] Items to be procured that can be ordered (no central warehouse item) - live request to the central warehouse directly in the cart or click the link below the price >Quantity available?<
pce

We always deliver the latest available article version.

Note:
The installation of electrical devices may only be carried out by an approved electrician and, in the case of high-voltage systems (> = 400V and country-specific nominal power), only with the consent of the respective electricity network operator.

Details

Accessory
bought
Useful
Interesting

DC-power supply 100...240V/24...28V 240W Voltage type of supply voltage AC, 1st secondary output voltage 24 ... 28V, Max. output current 1 20A, Nominal value output voltage 1 24V, Nominal value output current 1 10A, Short-circuit-proof, Rated supply voltage at AC 50 Hz 100 ... 240V, Rated supply voltage at AC 60 Hz 100 ... 240V, Rated supply voltage at DC 110 ... 250V, Power consumption 274VA, Power output 240W, Type of electric connection Screw connection, Rail mounting possible, Built-in height 130mm, Width 50mm, Height 130mm, Depth 125mm, Suitable for safety functions, SIL according to IEC 61508 None, Degree of protection (IP) IP20

More product images:

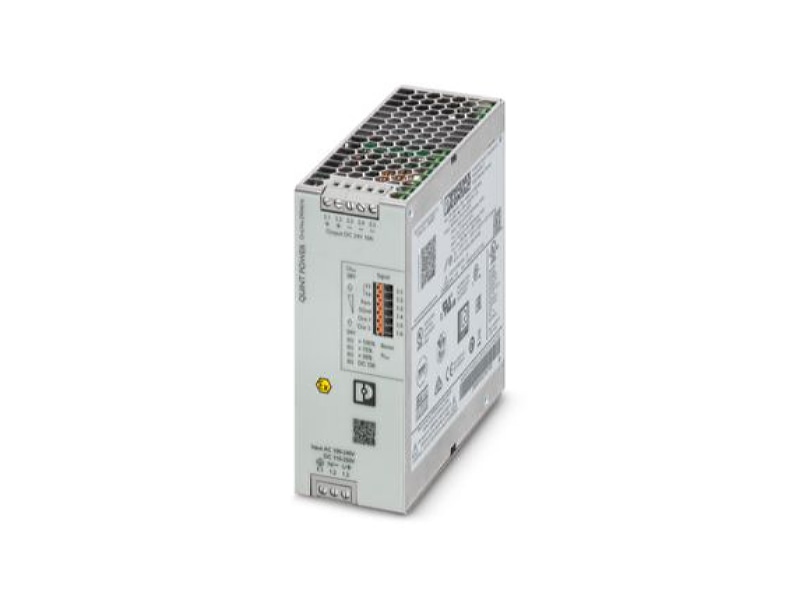

Product image Phoenix QUINT4 PS  2904616 DC power supply 100   240V 24   28V 240W QUINT4 PS 2904616
Product image

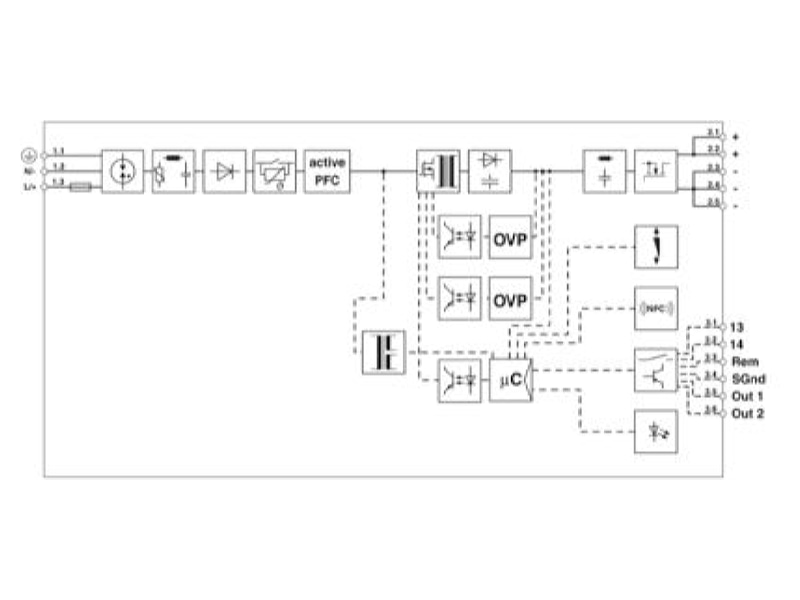

Circuit diagram Phoenix QUINT4 PS  2904616 DC power supply 100   240V 24   28V 240W QUINT4 PS 2904616
Circuit diagram
