Voltage monitoring relay 195...400V AC DUW-C12 3x230V

EAN/GTIN: 4250184120964
WEEE: DE 87494433
Manufacturer: Metz
Manufacturer no.: DUW-C12 3x230V
Manufact.-SKU: 110271
Customs tariff no.: 85364900
Similar top items: Show now & compare
28,57 USD Price incl. VAT (0,00 USD)
plus shipping
Delivery time:
4-5 days [US] Central warehouse item (regularly available) - live request to the central warehouse directly in the cart or click the link below the price >Quantity available?<
pce

We always deliver the latest available article version.

Note:
The installation of electrical devices may only be carried out by an approved electrician and, in the case of high-voltage systems (> = 400V and country-specific nominal power), only with the consent of the respective electricity network operator.

Details

Accessory
bought
Useful
Interesting

Voltage monitoring relay 195...400V AC Type of electric connection Screw connection, Single-phase under voltage possible, Three-phase under voltage possible, Voltage measurement range 1 195 ... 400V, Type of voltage measurement range AC, Rated control supply voltage Us at AC 50HZ 230 ... 400V, Response value voltage 195 ... 195V, Number of contacts as normally closed contact 0, Number of contacts as normally open contact 0, Number of contacts as change-over contact 2, Width 30mm, Height 71mm, Depth 65mm

More product images:

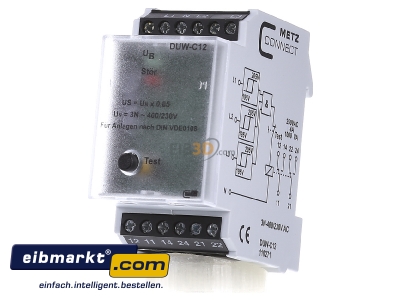

Front view Metz Connect DUW-C12 3x230V Voltage monitoring relay 195...400V AC -
Front view

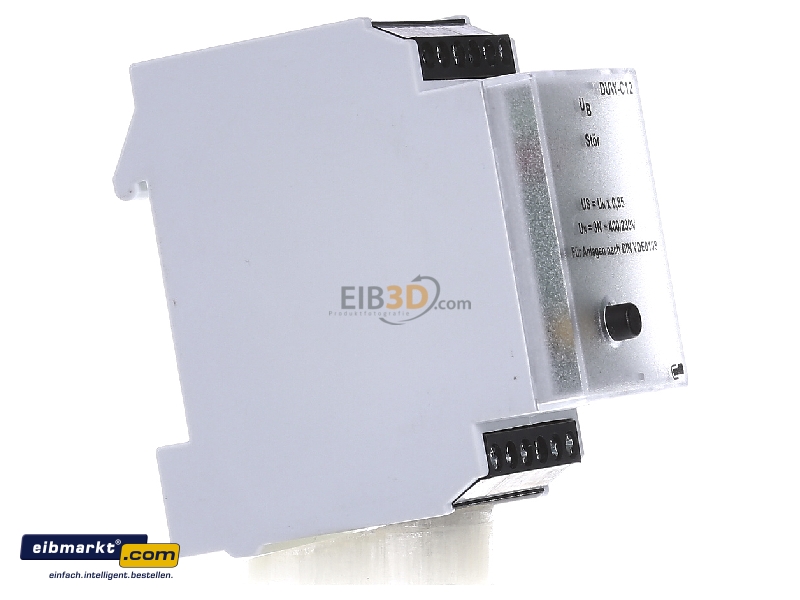

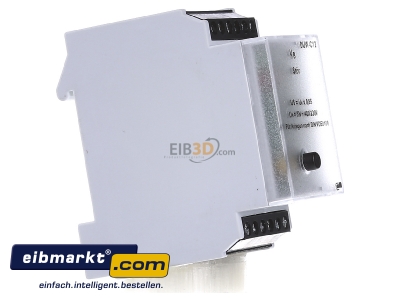

View on the left Metz Connect DUW-C12 3x230V Voltage monitoring relay 195...400V AC -
View on the left

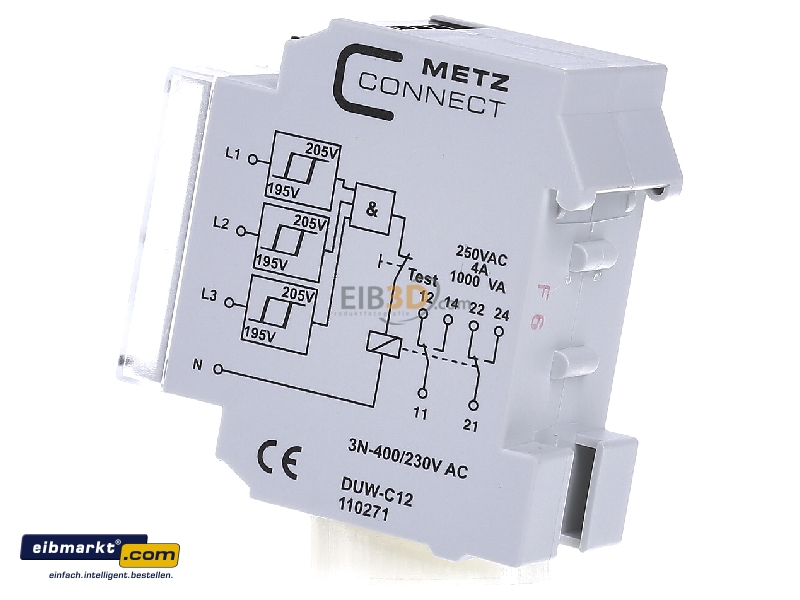

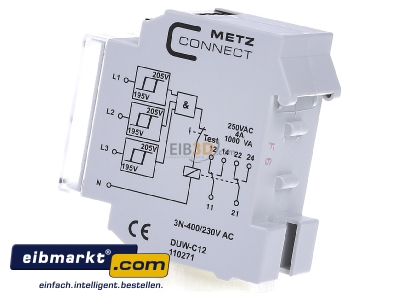

View on the right Metz Connect DUW-C12 3x230V Voltage monitoring relay 195...400V AC -
View on the right

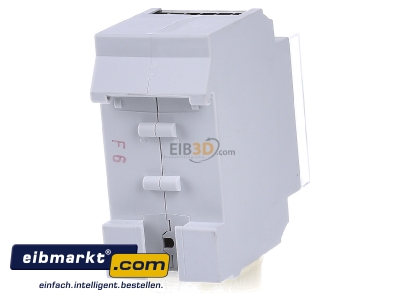

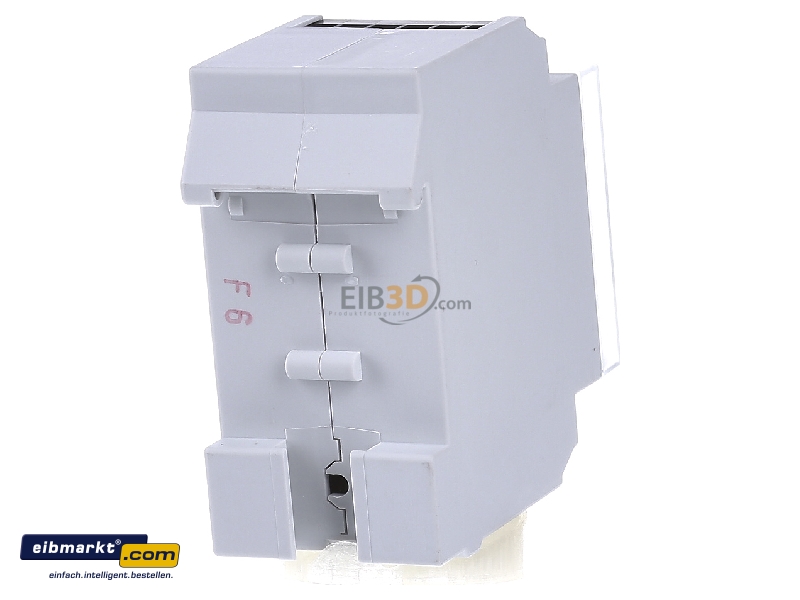

Back view Metz Connect DUW-C12 3x230V Voltage monitoring relay 195...400V AC -
Back view

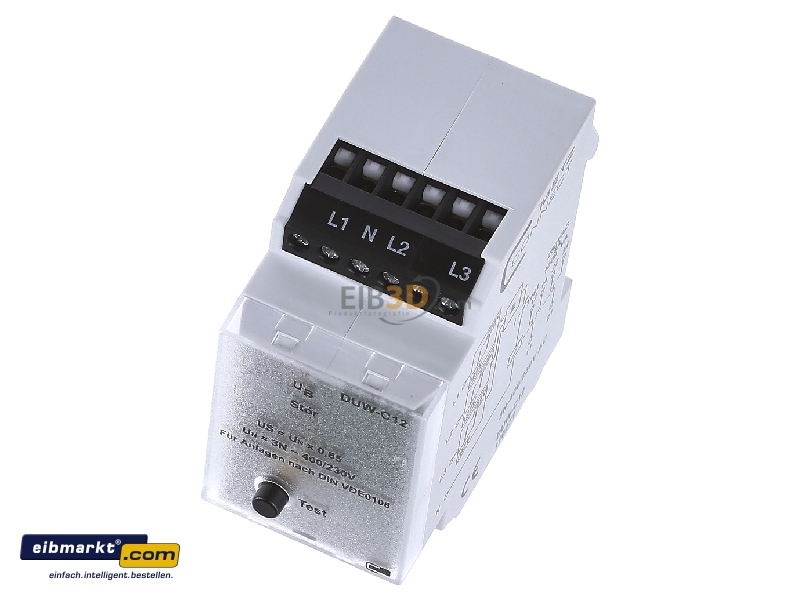

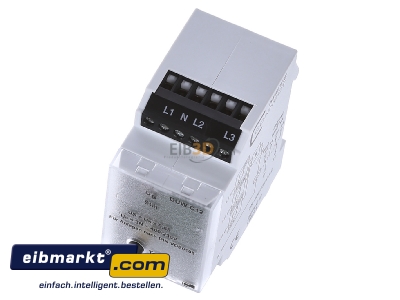

View up front Metz Connect DUW-C12 3x230V Voltage monitoring relay 195...400V AC -
View up front

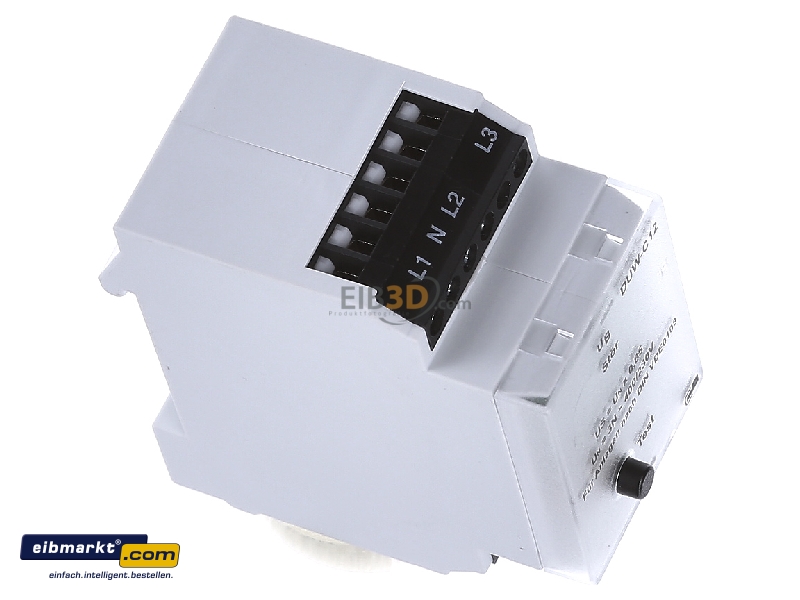

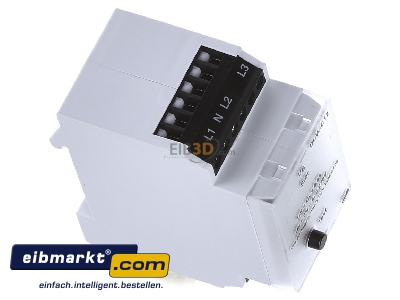

View top left Metz Connect DUW-C12 3x230V Voltage monitoring relay 195...400V AC -
View top left

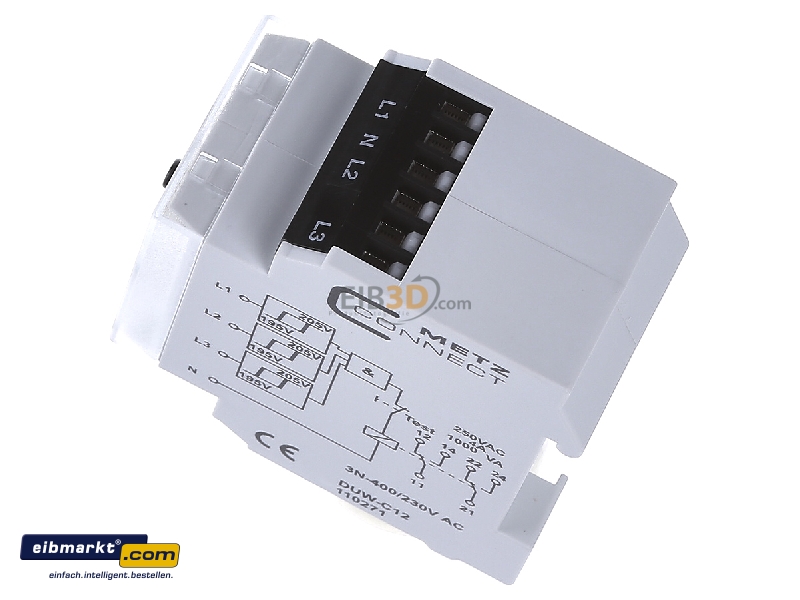

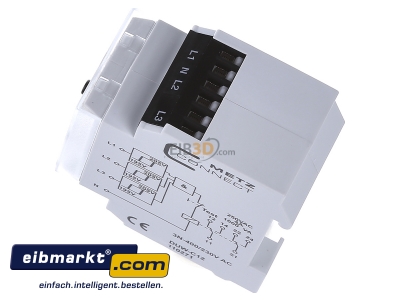

View top right Metz Connect DUW-C12 3x230V Voltage monitoring relay 195...400V AC -
View top right

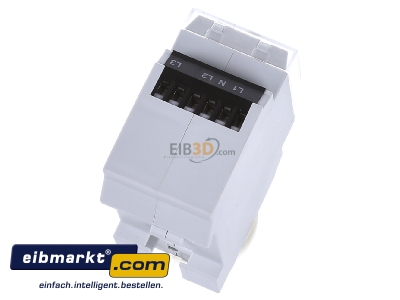

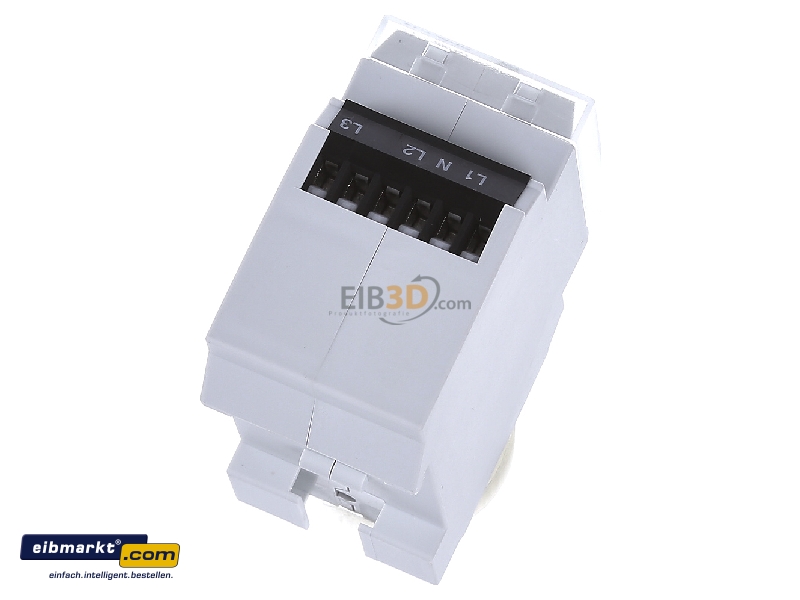

Top rear view Metz Connect DUW-C12 3x230V Voltage monitoring relay 195...400V AC -
Top rear view
