The PWM KN series from manufacturer Mean Well is a constant voltage mode output LED driver featuring Pulse Width Modulation (PWM) brightness control and the KNX interface to avoid using the complicated KNX-DALI gateway. There are a great number of options for adjusting the dimming process, e.g. dimming speeds, transition time, On-/Off- Behavior…. Scene function and different automatic functions are also available for the KNX interface.

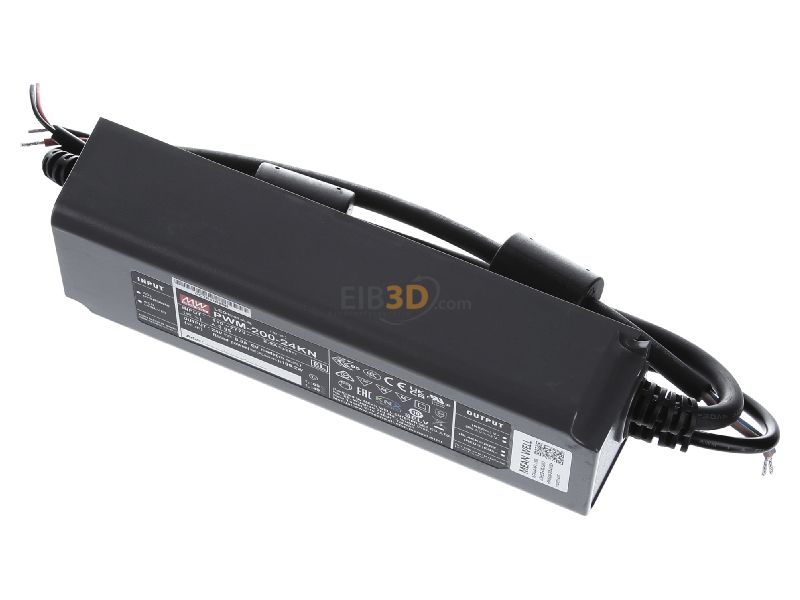

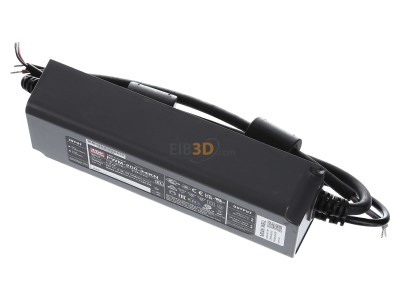

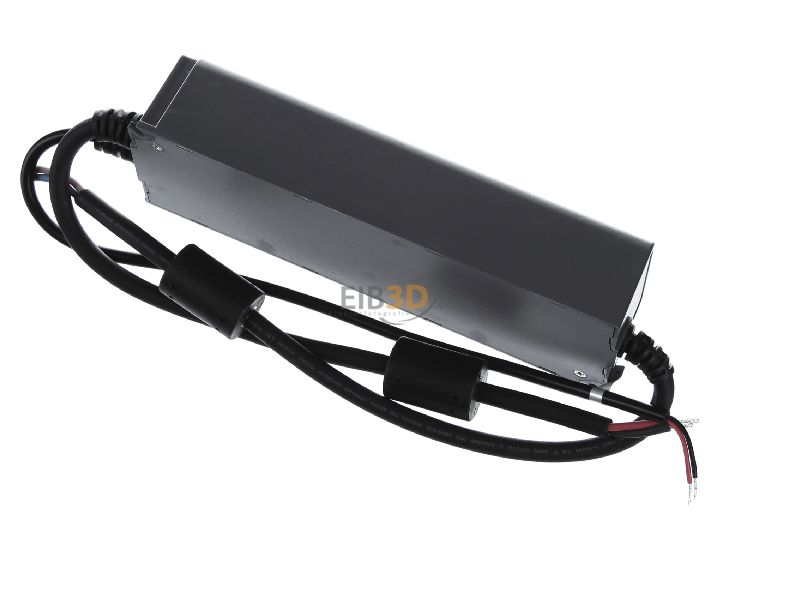

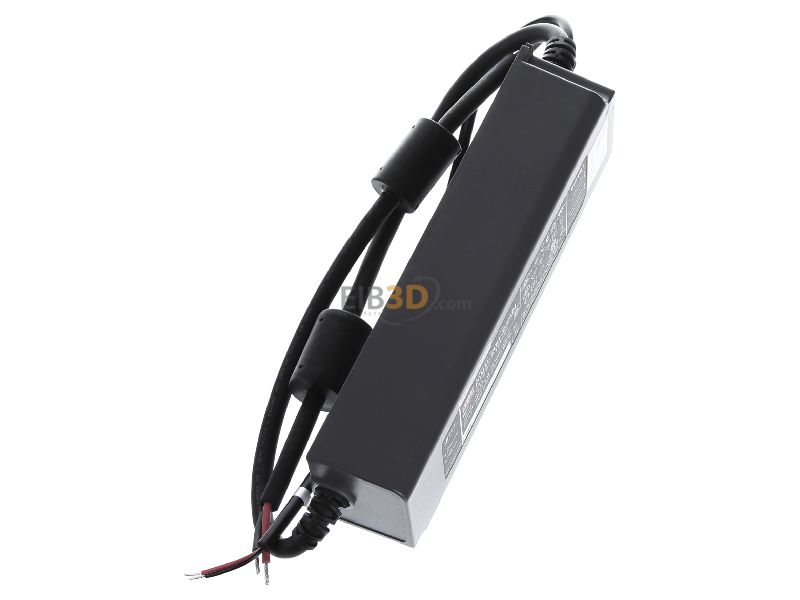

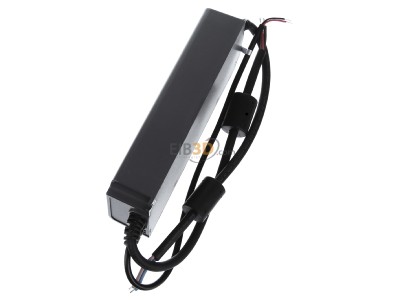

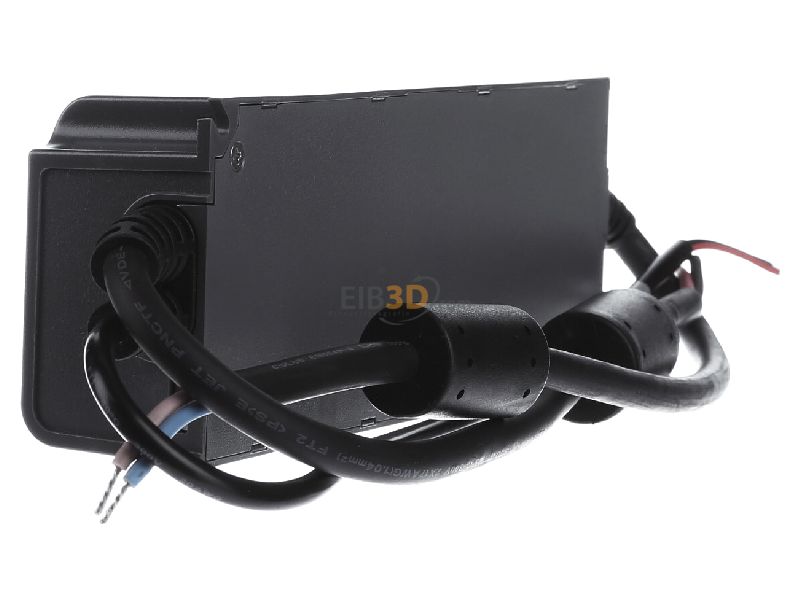

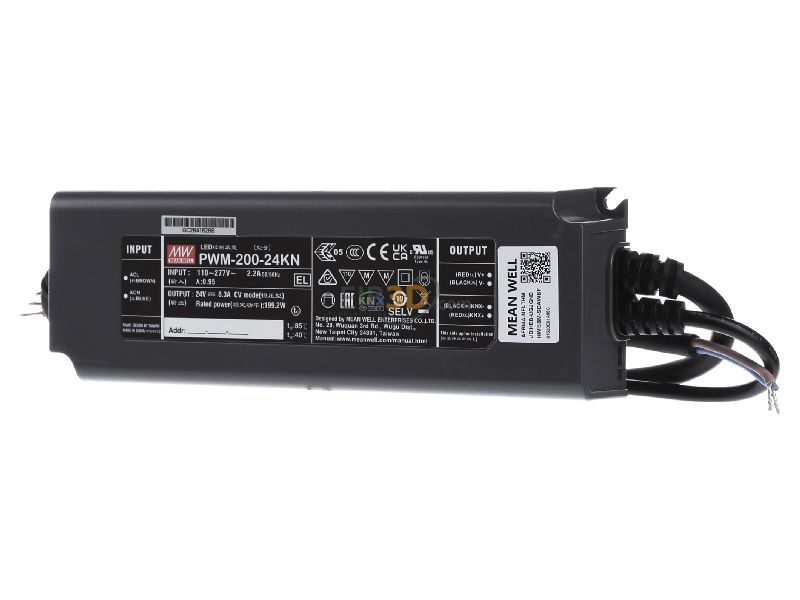

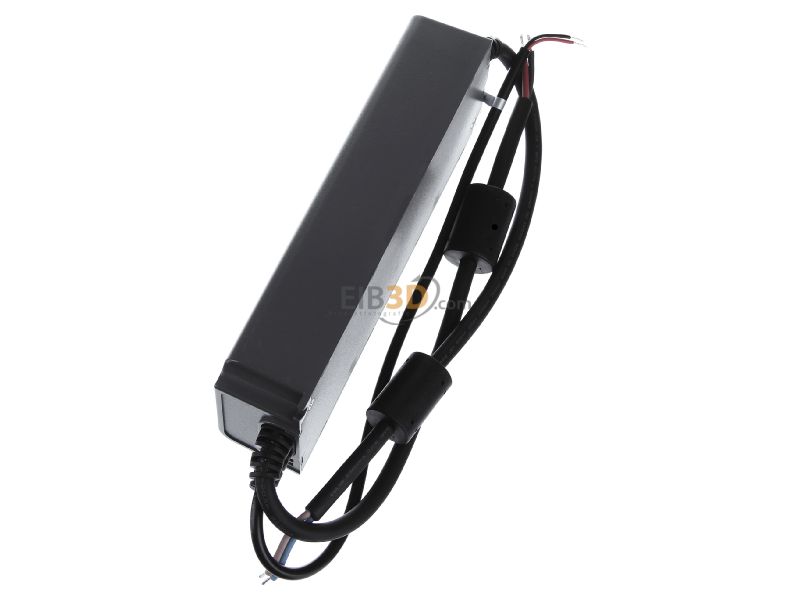

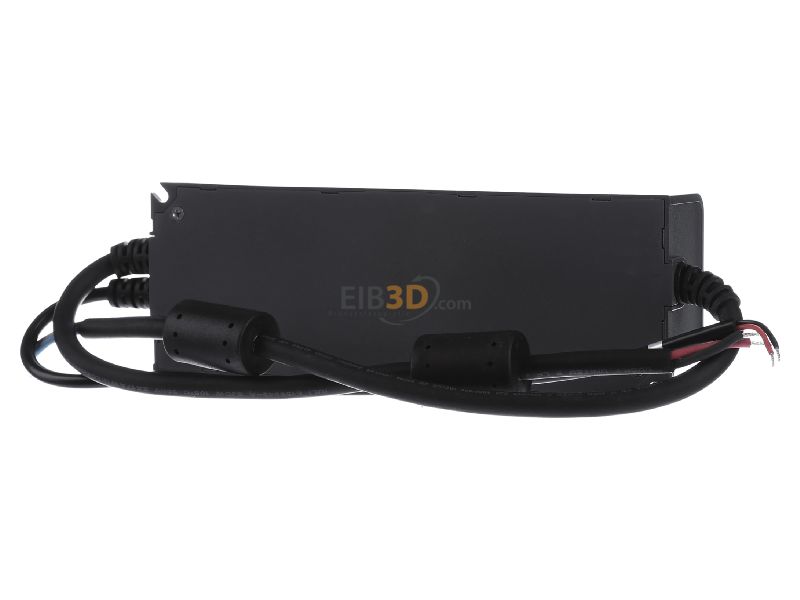

The PWM Output KNX LED Driver PWM-200-24KN is a 200W AC/DC LED driver featuring the constant voltage mode with PWM style output, wich is able to maintain the colour temperature and the brightness homogeneity when driving all kinds of LED stripes and constant voltage LED bulbs. Due to the built-in KNX interface the usage of the complicated KNX-DALI gateway can be avoided. The KNX LED Driver PWM-200-24KN operates from 90-305VAC and offers an output voltage of 24V. Thanks to the high efficiency up to 89% (with the fanless design), the entire series is able to operate for -35°C to +90°C case temperature under free air convection. The minimal dimming level low to 0,01% is suitable for low light level applications e.g. cinemas. The output frequency is changeable up to 4kHz complaint IEEE1789-2015 no risk requirement and EU Ecodesign stroboscopic visibility measure (SVM) requirement, providing a great solution for health concern due to light flickering.
INPUT: 90-305VAC 47-63Hz
KNX control technology
min. dimming level 0,01%
standby power consumption < 0,5W
integrated KNX control protocol
no need of any KNX-DALI gateway
typical lifetime > 50.000 hours
5 years of manufacturer warranty
constant voltage output (PWM) with user changeable frequency (up to 4kHz)
plastic housing with Class II design
suitable for LED strip lighting
suitable for Indoor LED lighting
suitable for LED decorative and architecture lighting
