The EIB/KNX actuator is a 8 channel device with high quality independent latching relay for switches, shutters or any possible mixed applications. The compact design with 4SU (72mm) wide modular makes it suitable for the installation in the distribution board on 35mm DIN mounting rails. The connection to the KNX bus is implemented via a bus connection terminal. The switching relays are particularly suitable for sitching ohmic loads, capcitive loads - for instance LED drivers - and inductive loads as well as motors in shutter- or blind-applications. The actuator is powered via EIB/KNX and does not require any additional power supply.
8 channel acuator in compact size
suitable for various and/or mixed applications
for AX, C-load, capacitive & inductive loads
programmable via ETS5 software
manual control via push button
programmable various time- and scene-functions
Usage & possible applications The universal actuator has its field of applications always if you ask flexibility. It can be parameterized as well as an adequate switching actuator. Further, there is the possibility of embedding the channel into automatic blocks and activate different scenes. At activation of the automatic function, absolute position can be approached via 1 Bit object. This function is e.g. very suitable for the start-up of sunblind positions, which are called via a brightness sensor. Additional weather alarms are parameterize able, which can call determined functions at the universal actuator. Additional a manual control of the shutter/blinds can be switched on or off.
Parameterized as switching actuator, the settings switching output and staircase are available. At the configuration switch, all settings are available which are necessary for a comprehensive parameterization. As well On-/Off-delay, normally opened mode or normally closed mode, cyclic sending, central function, logical functions as scene function are adjustable. Additional the reset behavior and the blocking behavior can be set. Via the staircase function an automatic switch off after a determined time can be adjusted.
More product images:

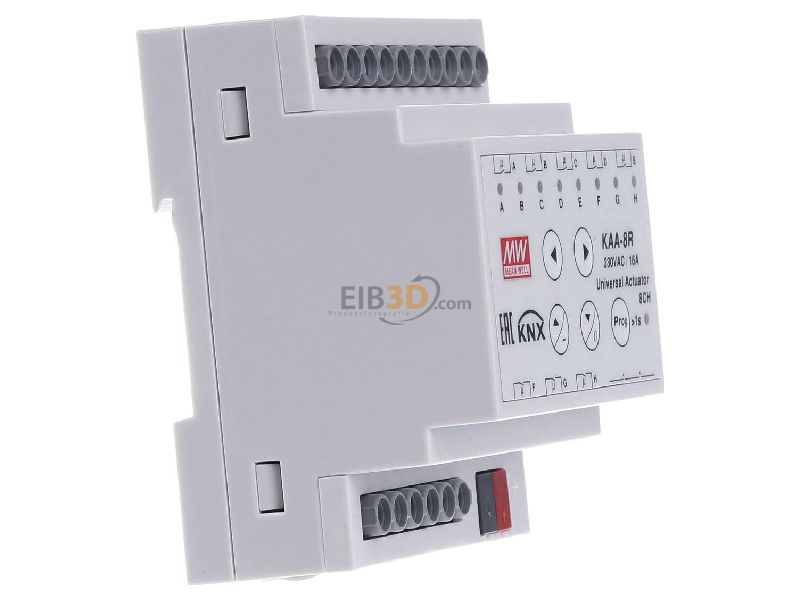

View on the left

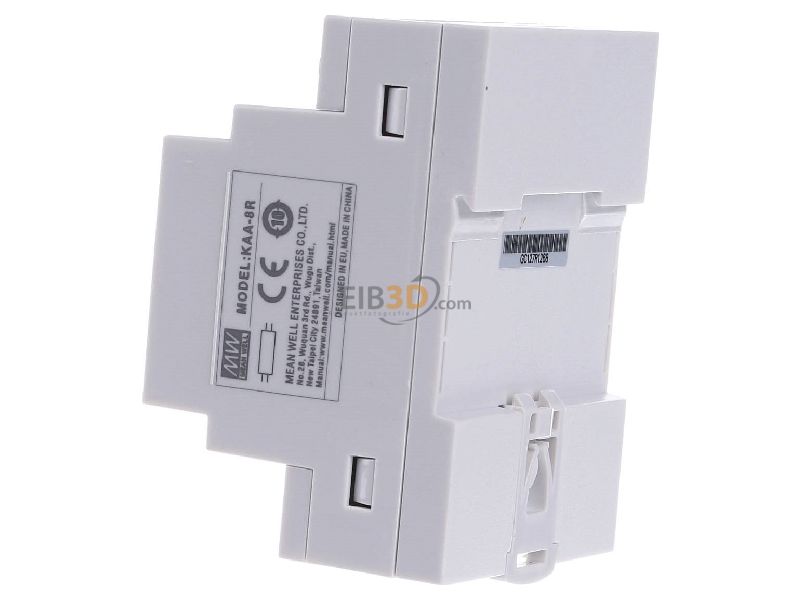

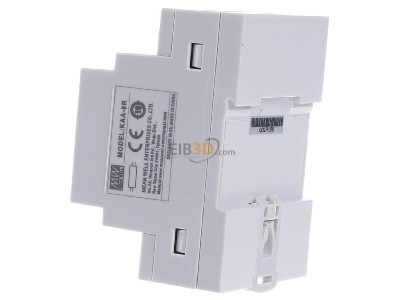

View on the right

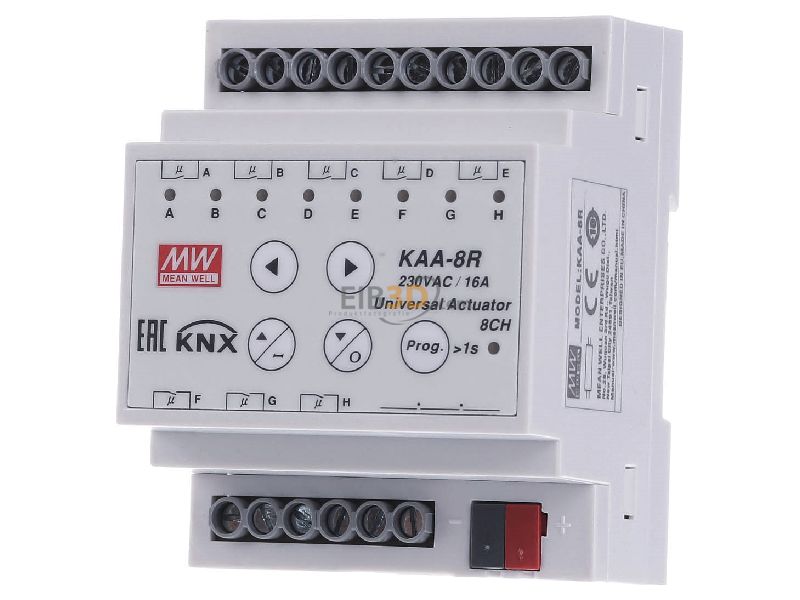

View up front

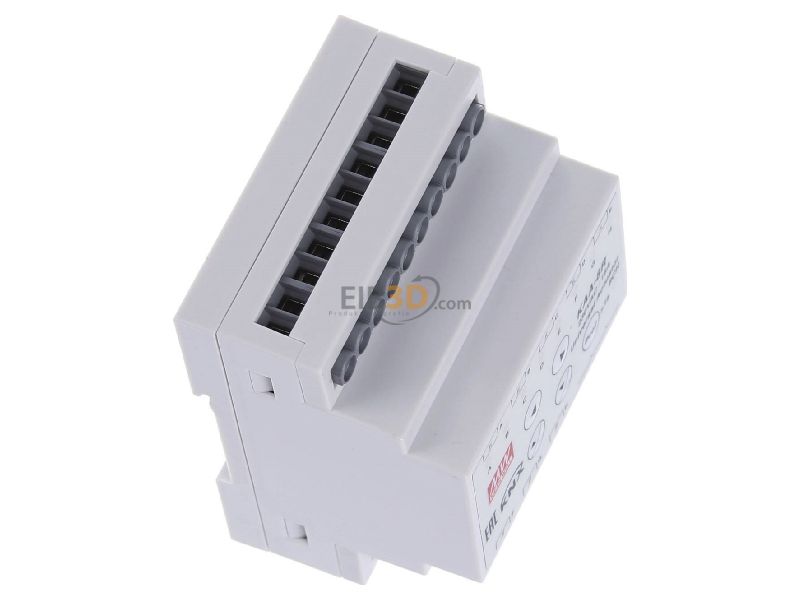

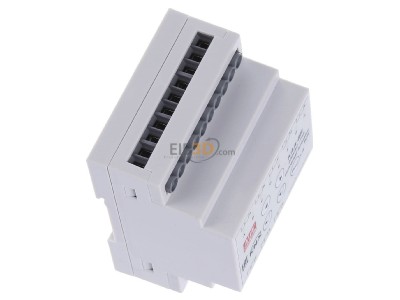

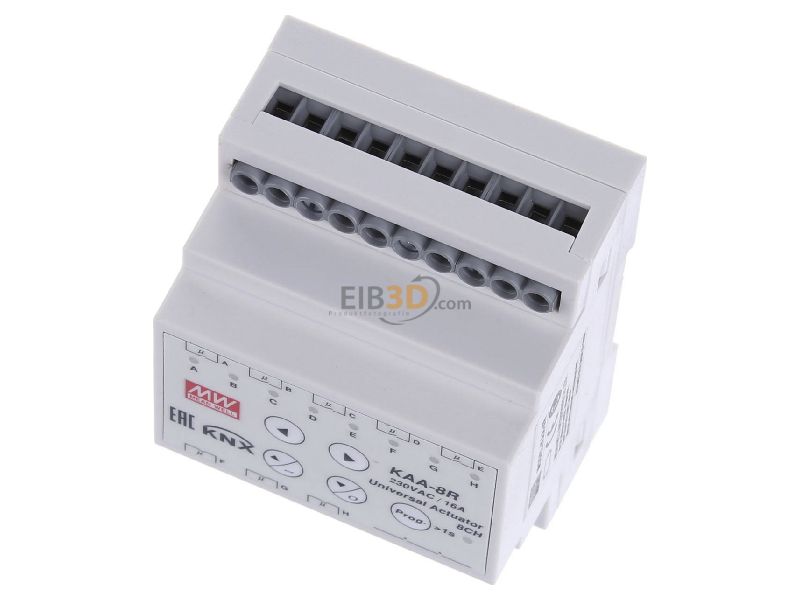

View top left

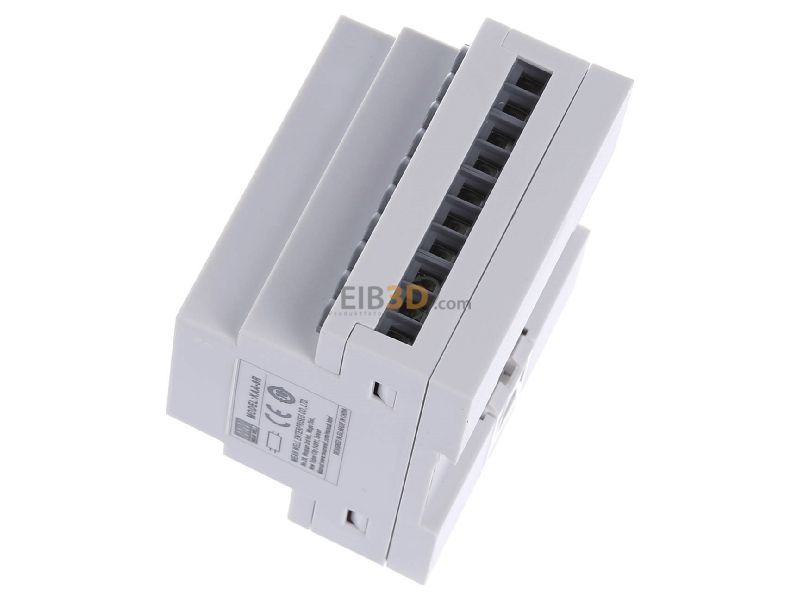

View top right

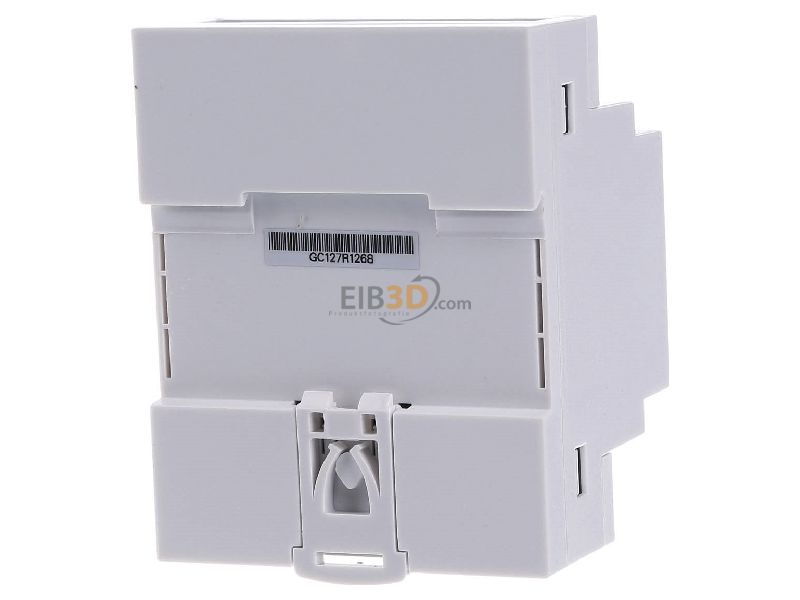

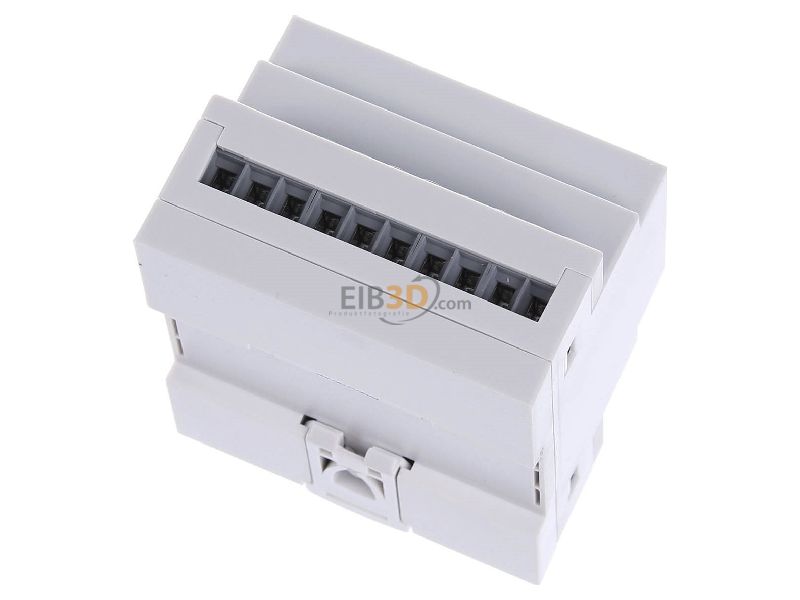

Top rear view
