The IP TP media coupler KSR series is a KNXnet/IP routing & tunneling device and works as KNX IP line/area coupler. No need to have an exterbal power supply for powering. The ability to address all bus devices in the KNX bus system makes network operations less time-consuming. Operational and filtering states, malfunction and faulty communication are indicated by LEDs. The device is UPnP and ist firmware can be updated via the built-in web front-end page.
The KSR series connects Ethernet/KNX IP and KNX TP two media for commissioning, addressing, parameters setting, visualization and diagnostic operations between devices on the KNX bus.
KSR series is able to filter the traffic according to the installation place in the bus system hierarchy and according to the built-in filter tables for group oriented communication. Configuring from the subline can be blocked. Message filtering can be temporarily deactivated anytime via a button press on the device. The time to switch back to normal operation is ETS configurable. If necessary, temporary access to other lines is possible also without download from the ETS.
KNX IP/TP routing
4 KNX IP/TP tunnelings
built-in web frontend
no additional KNX power supply needed
Compact size with 2 unit width
Installed on DIN rail TS-35 / 7.5 or 15
Application: ITE EN/UL/IEC 60950
Power Format: DIN rail
IP Rating: IP20
Bus system: KNX

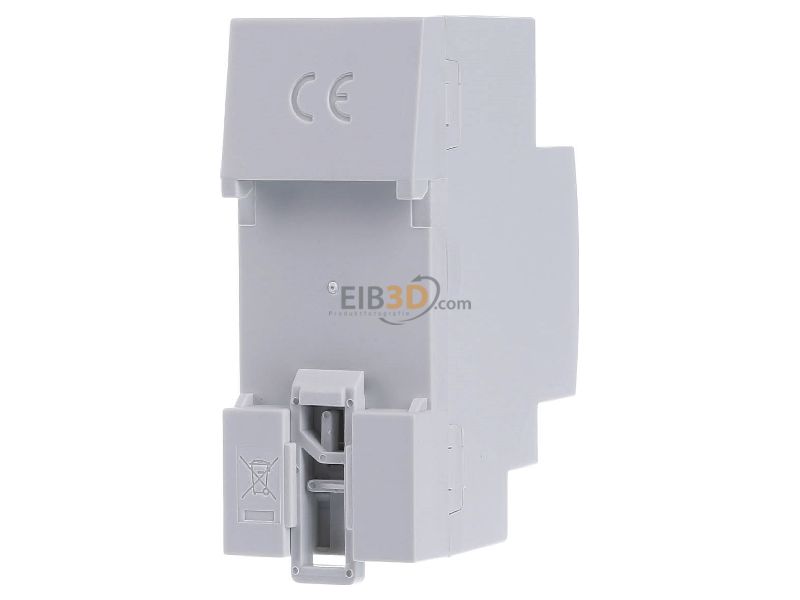

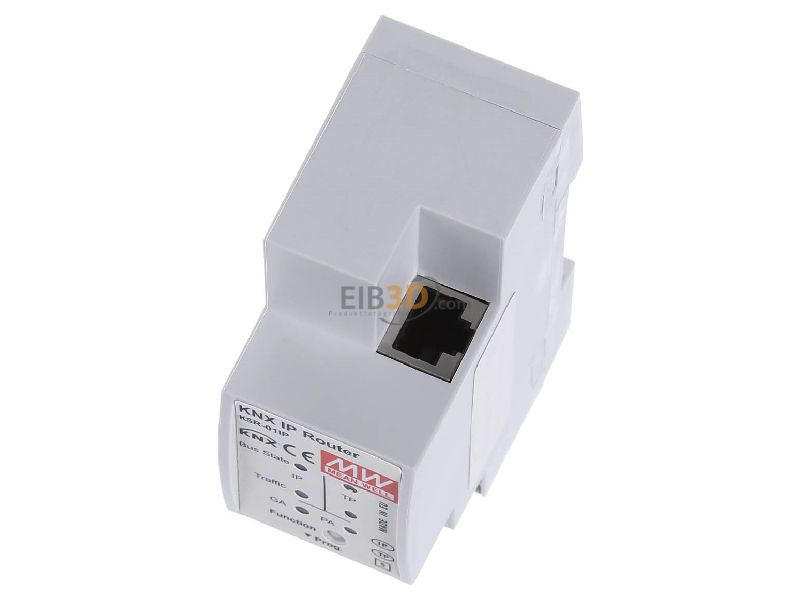

More product images:

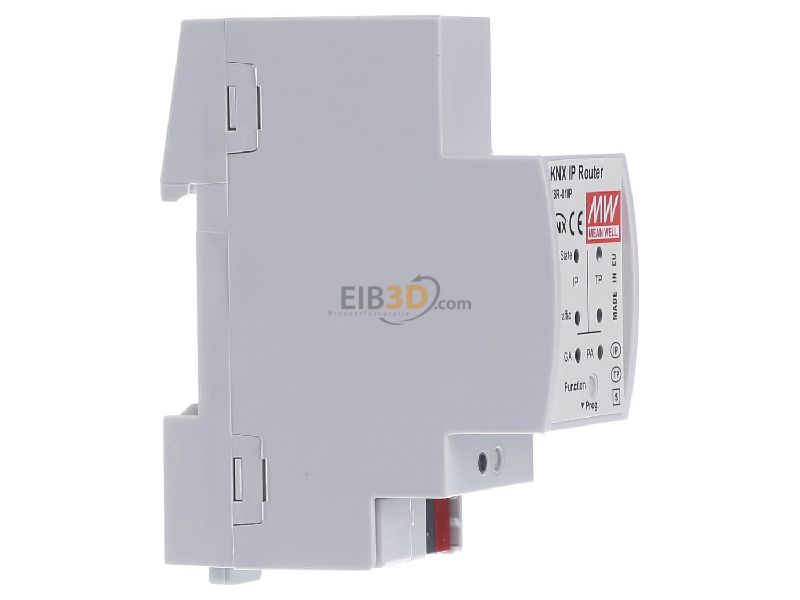

View on the left

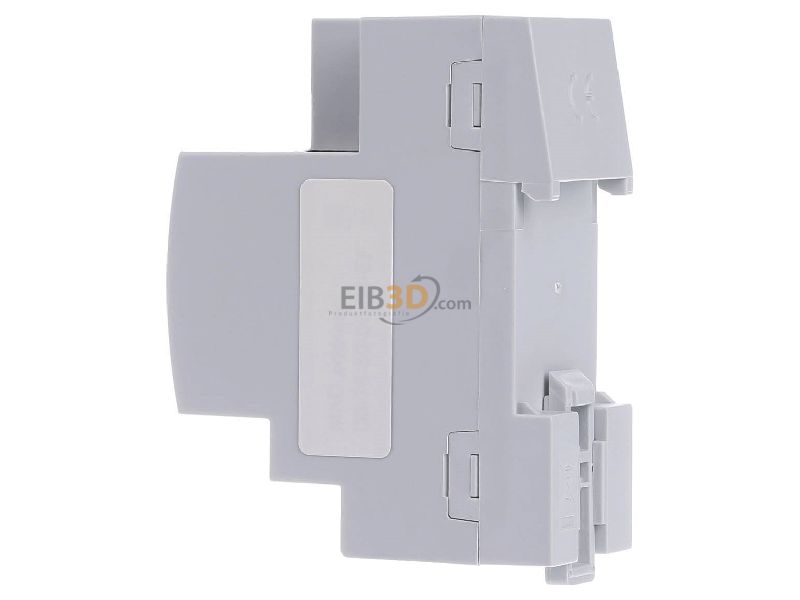

View on the right

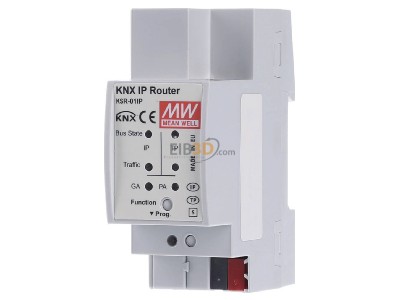

View up front

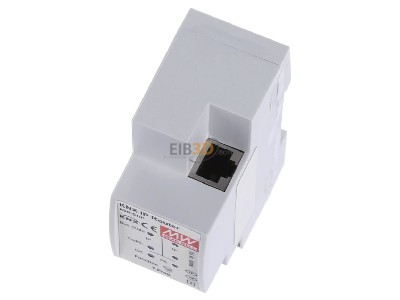

View top left

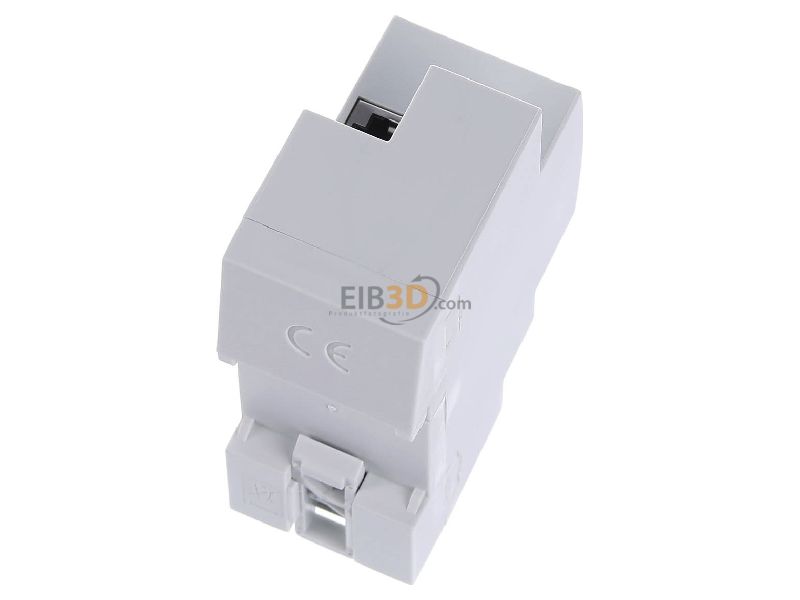

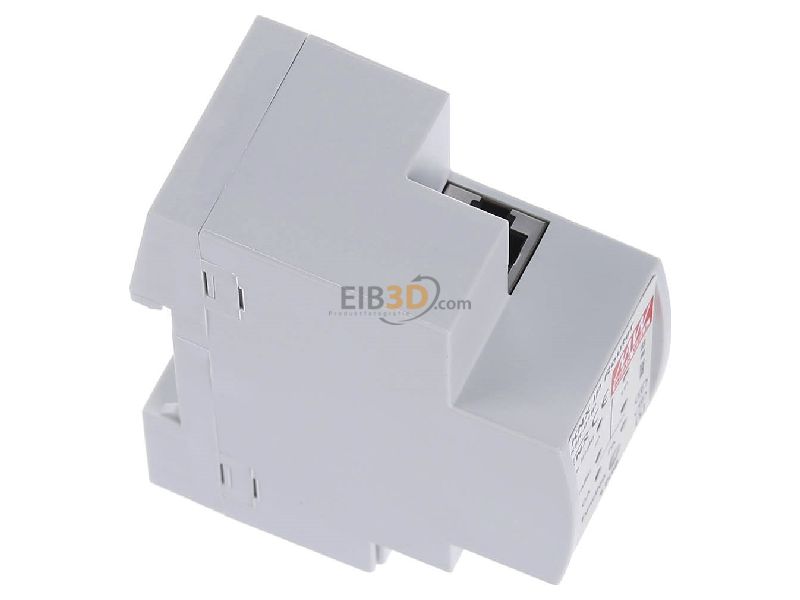

View top right

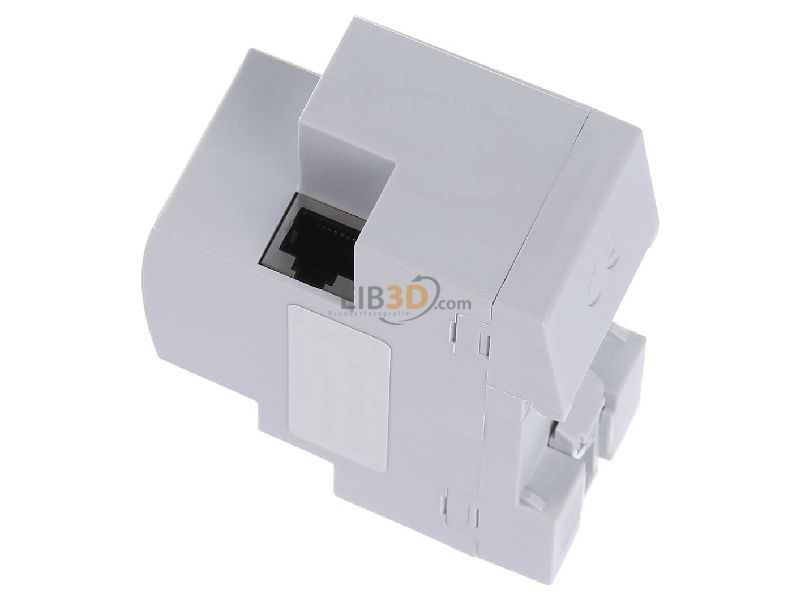

Top rear view
