Downlight/spot/floodlight SPAIRFIXP6W930PSD65B
Source photo:
LEDVANCE
(fig. might be different or similar)

Downlight/spot/floodlight SPAIRFIXP6W930PSD65B

EAN/GTIN: 4058075799967
WEEE: DE 30638372
Manufacturer: LEDVANCE
Manufacturer no.: SPAIRFIXP6W930PSD65B
Manufact.-SKU: 4058075799967
Customs tariff no.: 94054239
Similar top items: Show now & compare
28,56 USD Price incl. VAT (0,00 USD)
plus shipping
Delivery time:
4-5 days [US] Central warehouse item (regularly available) - live request to the central warehouse directly in the cart or click the link below the price >Quantity available?<
pce

We always deliver the latest available article version.

Note:
The installation of electrical devices may only be carried out by an approved electrician and, in the case of high-voltage systems (> = 400V and country-specific nominal power), only with the consent of the respective electricity network operator.

Details

Accessory
bought
Useful
Interesting

LED recessed spotlight IP65 930, dim, sw SPAIRFIXP6W930PSD65B Energy efficiency class of the light source according to EU Regulation 2019/2015 not relevant, Suitable for surface-mounted installation, Suitable for recessed installation, Suitable for ceiling installation, Adjustability not adjustable, LED bulb not replaceable, With bulb, Suitable for number of bulbs 0, socket without, material of the housing aluminum, surface protection powder-coated, housing color black, material of the cover plastic transparent, voltage type AC, nominal voltage 220 ... 240V, LED nominal current at constant current 28 ... 28mA, control gear LED control gear current-controlled, with Operating device, exchangeable operating device, dimming phase cut-off, dimming phase cut, reflector without, light distributor focus lens, light distribution symmetrical, beam angle medium beam 21-40°, light emission direct, rated service life L70/B50 at 25 °C 50000h, protection class (IP) IP65, impact resistance IK03, protection class II, rated ambient temperature according to IEC62722-2-1 -20 ... 40°C, max. system power 6W, light color white, color temperature 3000 ... 3000K, color rendering index CRI 90-100, luminous flux 510 ... 510lm, rated luminous flux according to IEC 62722 -2-1 510lm, power factor 0.9, color temperature adjustable no, luminous flux adjustable no, beam angle adjustable no, width 81mm, height/depth 34mm, length 81mm, outer diameter 81mm, installation width 68mm, installation height/depth 35mm, installation length 68mm, installation diameter 68 ... 68mm, type of wiring suitable for through-wiring, number of poles 2, max. number of lights circuit breaker B16 376, max. number of lights circuit breaker C16 457, glow wire test according to IEC 60695-2-11 650 °C - 30 s, light output 85lm/W, Photobiological safety according to EN 62471 RG1, IFTTT support available, color consistency (McAdam ellipse) SDCM3, recessed spotlight for low energy and narrow false ceilings, fixed. Product features: Color rendering index R a : 90. Protection class: IP65 (room side). Beam angle: 36°. Housing made of die-cast aluminum. Springs with soft silicone cover. Dimmable (on many commercially available dimmers ). Through-wiring possible. Product Benefits: Airtight construction for reduced air leakage and energy loss. Can be covered with many types of thermal insulation materials. Flat design allows installation in low ceiling cavities. Powerselect: Adjusting the brightness via dip switches on the driver. Easy replacement of the external driver thanks to the connector with bayonet lock. Easy installation and electrical connection thanks to tool-free connection terminals. SCALE design - great appearance, high quality materials and small size fit into any environment. Areas of application: Direct replacement for recessed spotlights with halogen lamps. Ceilings in low-energy houses. General lighting. Hotel rooms and corridors. Bars, restaurants. Accent lighting. Living rooms. Technical equipment: External ballast with dip switches included to adjust the power during installation.

More product images:

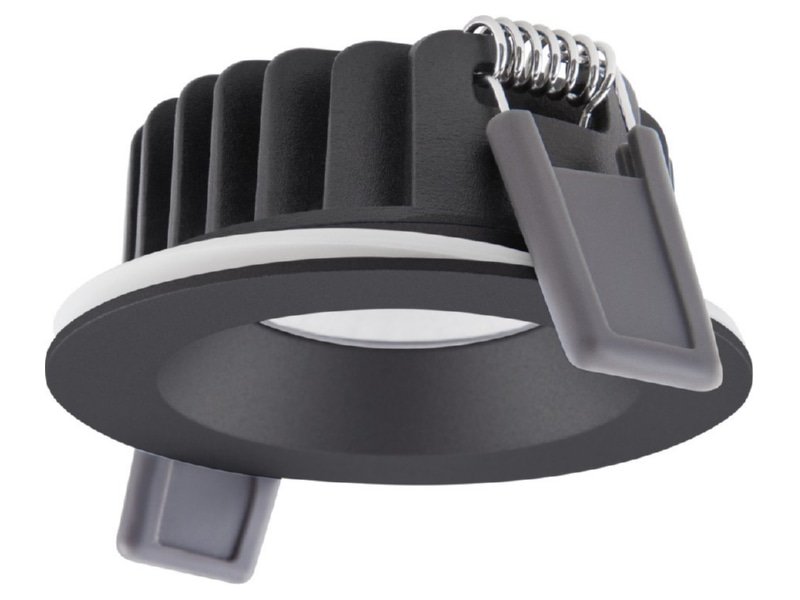

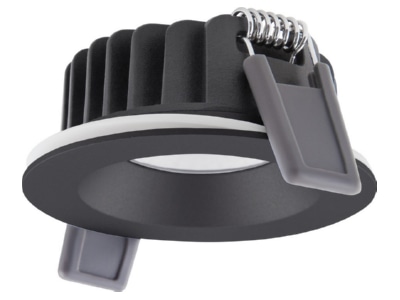

Product image Ledvance SPAIRFIXP6W930PSD65B Downlight spot floodlight
Product image

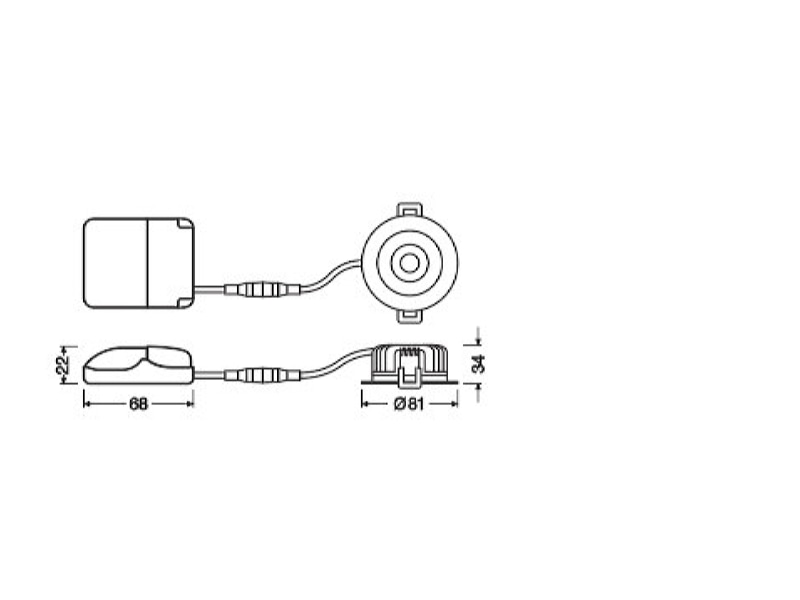

Dimensional drawing Ledvance SPAIRFIXP6W930PSD65B Downlight spot floodlight
Dimensional drawing

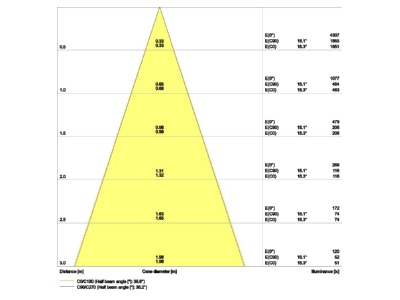

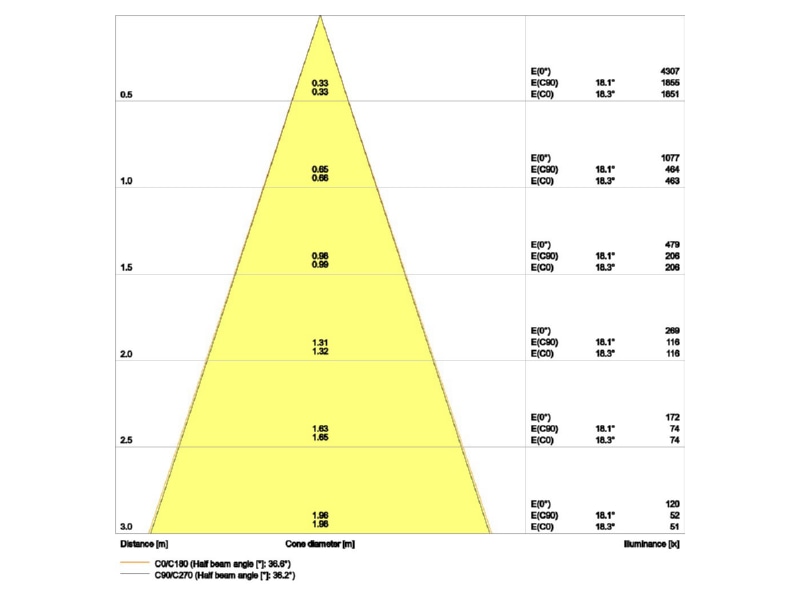

Cone diagram Ledvance SPAIRFIXP6W930PSD65B Downlight spot floodlight
Cone diagram
