Source photo: www.EIB3D.com

Latching relay 24V AC S12-110-24V

EAN/GTIN: 4010312100509
WEEE: DE 30298319
Manufacturer: Eltako
Manufacturer no.: S12-110-24V
Manufact.-SKU: 21110020
Customs tariff no.: 85365080
Similar top items: Show now & compare
21,55 USD Price incl. VAT (0,00 USD)
plus shipping
Delivery time:
4-5 days [US] Central warehouse item (regularly available) - live request to the central warehouse directly in the cart or click the link below the price >Quantity available?<
pce

We always deliver the latest available article version.

Note:
The installation of electrical devices may only be carried out by an approved electrician and, in the case of high-voltage systems (> = 400V and country-specific nominal power), only with the consent of the respective electricity network operator.

Details

bought
Useful
Interesting

Latching relay 24V AC Function Other, Mounting method DIN rail, Width in number of modular spacings 1, Built-in depth 55mm, Number of contacts as normally open contact 1, Number of contacts as normally closed contact 1, Number of contacts as change-over contact 0, Control voltage 1 24 ... 24V, Type of control voltage 1 AC, Frequency control voltage 1 50 ... 50Hz, Rated switch current 16A, Max. incandescent lamp load 2300W, Max. load fluorescent lamp 2300VA, Max. load fluorescent lamp (Duo circuit) 2300VA, Max. load fluorescent lamp (parallel compensated) 500VA, Max. switching current (cos phi = 0.6) 10A, Manual operation possible

More product images:

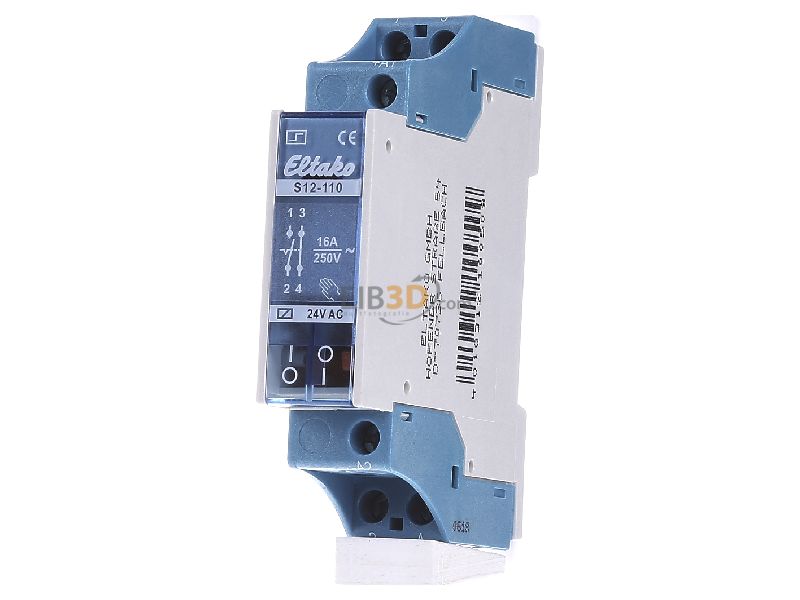

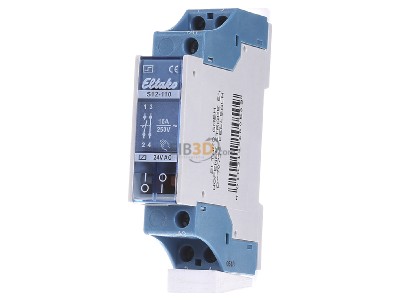

Front view Eltako S12-110-24V Latching relay 24V AC
Front view

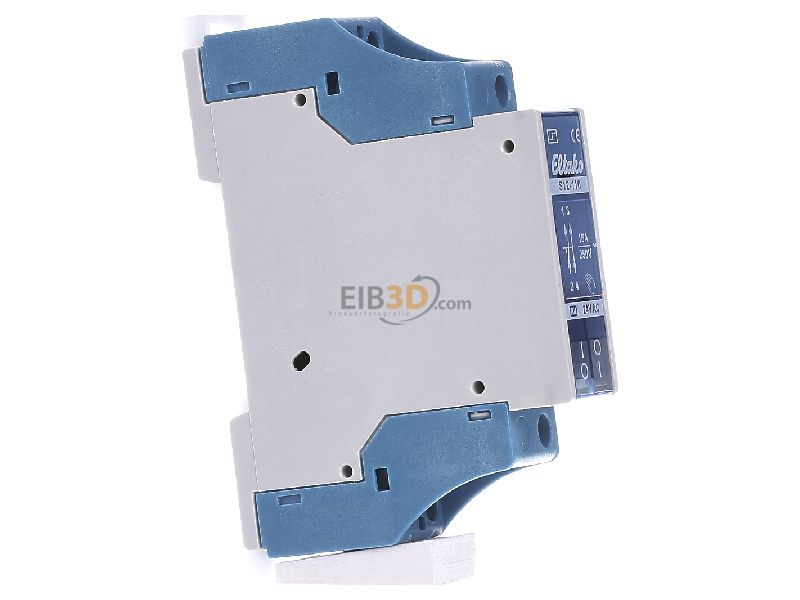

View on the left Eltako S12-110-24V Latching relay 24V AC
View on the left

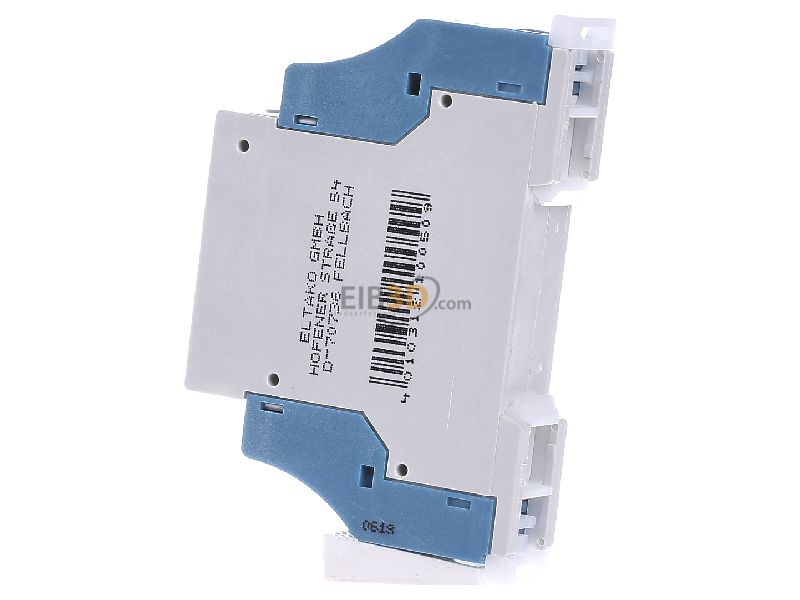

View on the right Eltako S12-110-24V Latching relay 24V AC
View on the right

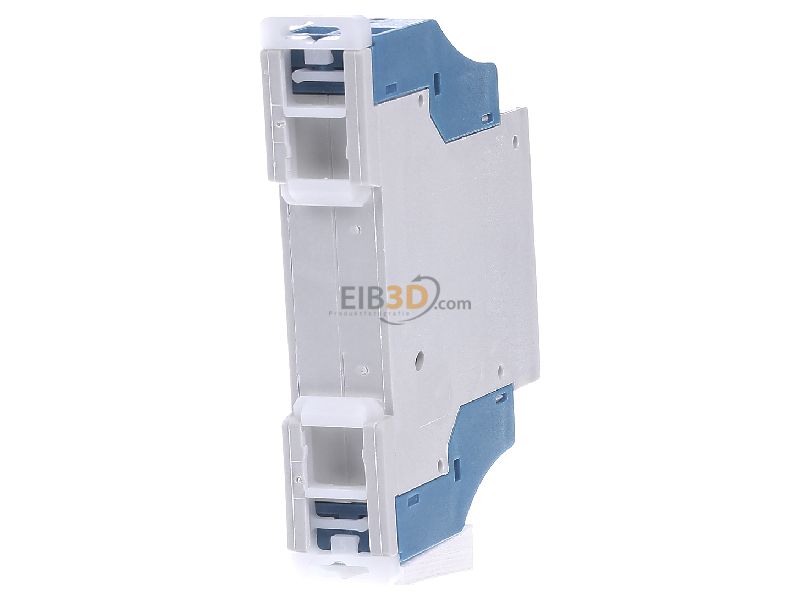

Back view Eltako S12-110-24V Latching relay 24V AC
Back view

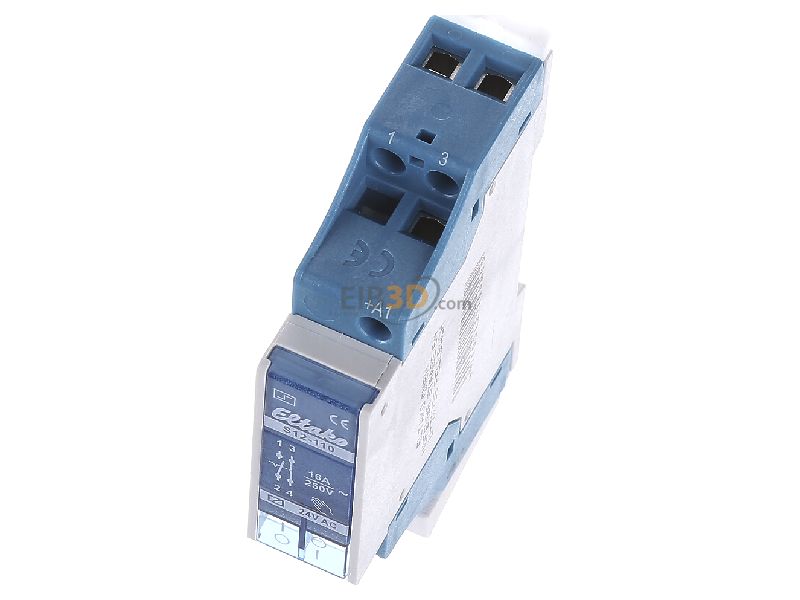

View up front Eltako S12-110-24V Latching relay 24V AC
View up front

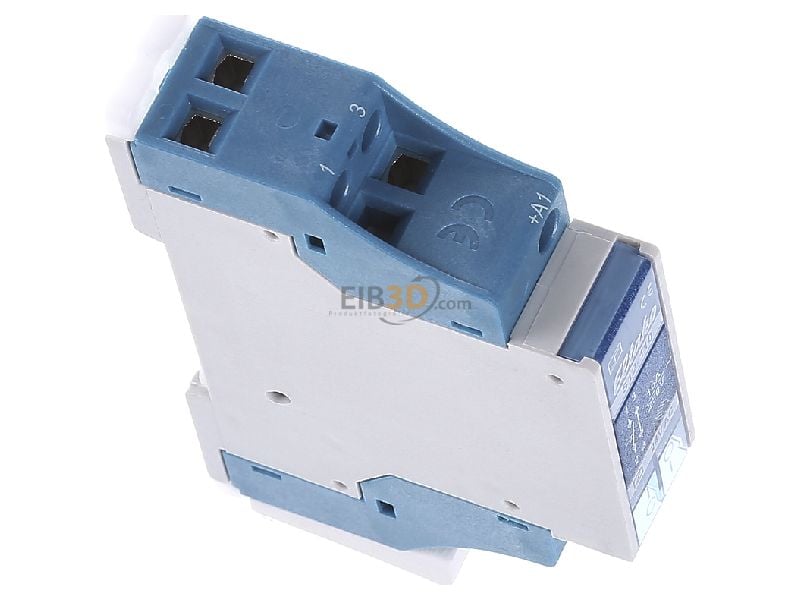

View top left Eltako S12-110-24V Latching relay 24V AC
View top left

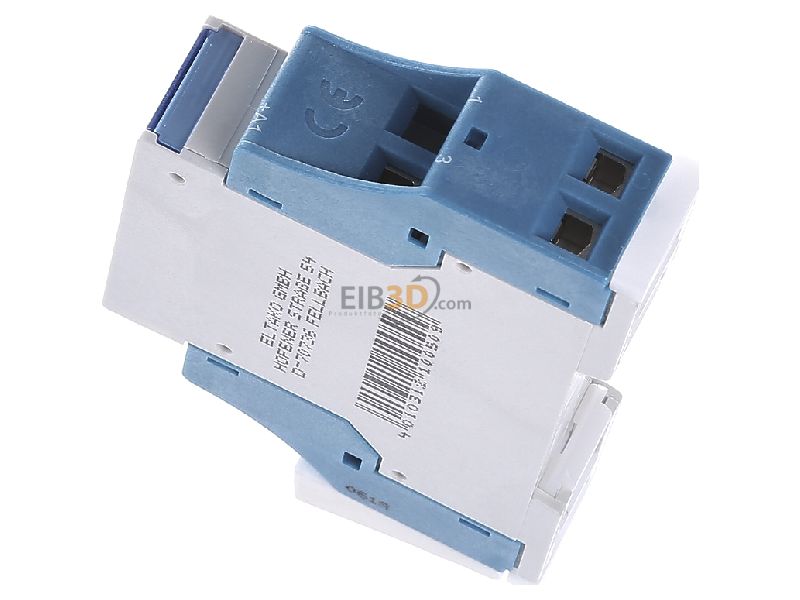

View top right Eltako S12-110-24V Latching relay 24V AC
View top right

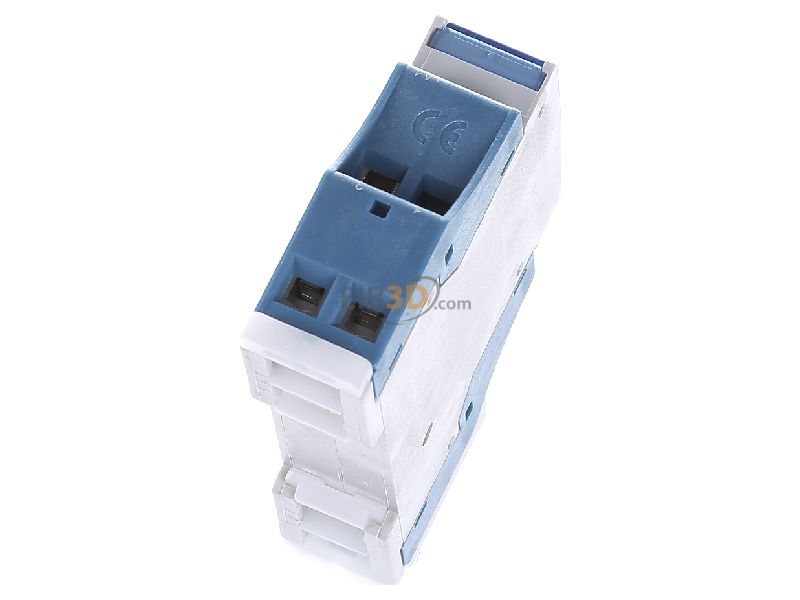

Top rear view Eltako S12-110-24V Latching relay 24V AC
Top rear view
