Source photo: www.EIB3D.com

Switching relay TRP 24VDC 1CO 16A

EAN/GTIN: 4050118670738
WEEE: DE 73937473
Manufacturer: Weidmüller
Manufacturer no.: TRP 24VDC 1CO 16A
Manufact.-SKU: 2618100000
Customs tariff no.: 85364190
Order level:
(minimum)
10 pce
Similar top items: Show now & compare
103,50 GBP Price incl. VAT (0,00 GBP)
(for 10 pce)
plus shipping
Delivery time:
13-15 days [GB] Items to be procured that can be ordered (no central warehouse item) - live request to the central warehouse directly in the cart or click the link below the price >Quantity available?<
This article is per 10 pce orderable.
pce

We always deliver the latest available article version.
Minimum order value (UK): 150 EUR (Sub total)

Note:
The installation of electrical devices may only be carried out by an approved electrician and, in the case of high-voltage systems (> = 400V and country-specific nominal power), only with the consent of the respective electricity network operator.

Details

Accessory
bought
Useful
Interesting

Type of electric connection Plug-in connection, Rated control supply voltage Us at DC 19,2 ... 28,8V, Voltage type for actuating DC, Drive, polarization Polarized, Drive, switching attitude Mono stable, Number of contacts as normally closed contact 0, Number of contacts as normally open contact 0, Number of contacts as change-over contact 1, Type of switch contact Simple contact, Complete with socket, With LED indication, Degree of protection (IP) IP20, Width 12,8mm, Height 89,4mm, Depth 87,8mm

More product images:

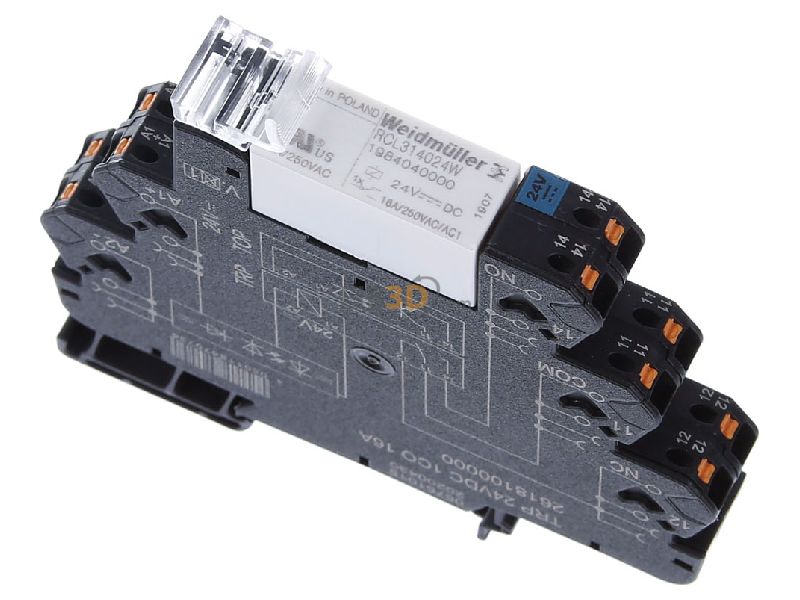

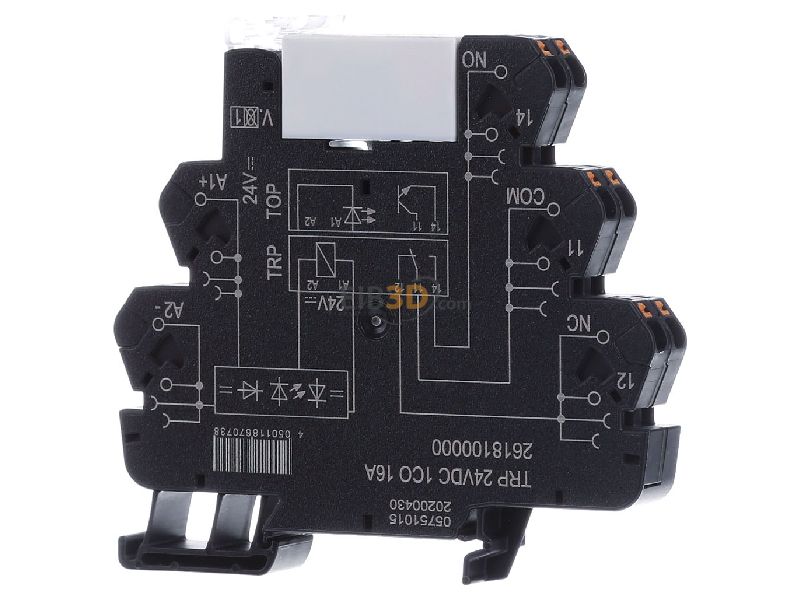

Front view Weidmüller TRP 24VDC 1CO 16A Switching relay
Front view

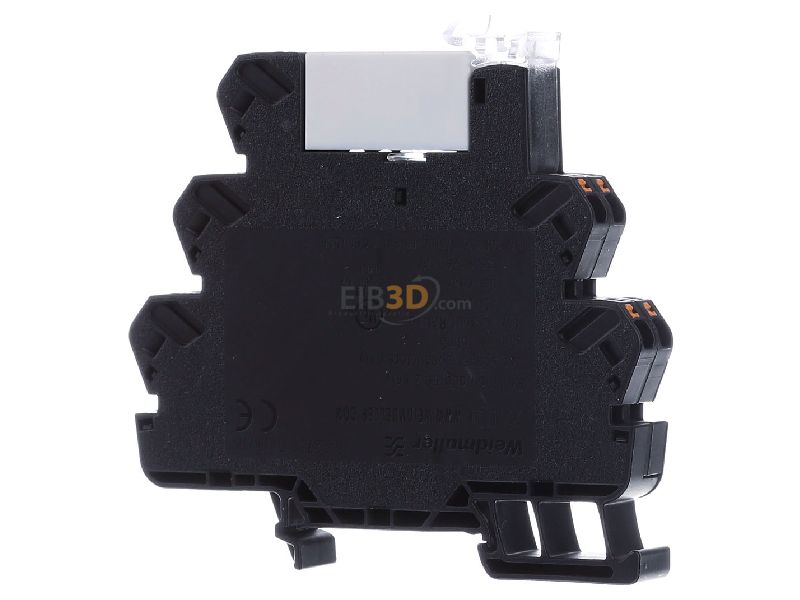

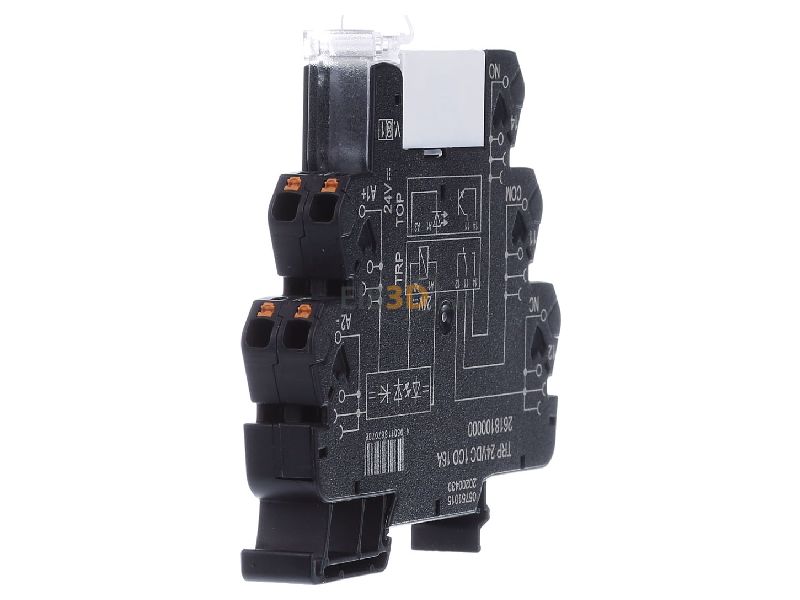

View on the left Weidmüller TRP 24VDC 1CO 16A Switching relay
View on the left

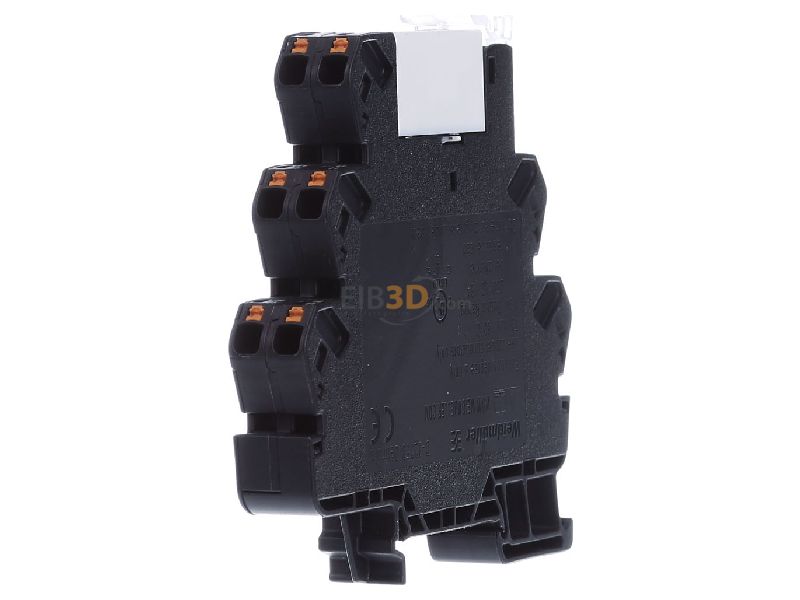

View on the right Weidmüller TRP 24VDC 1CO 16A Switching relay
View on the right
Back view Weidmüller TRP 24VDC 1CO 16A Switching relay
Back view

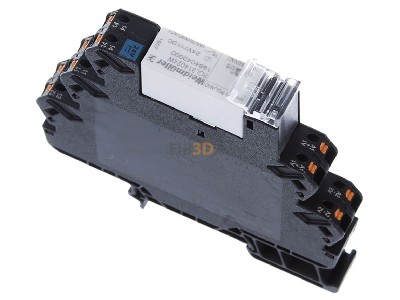

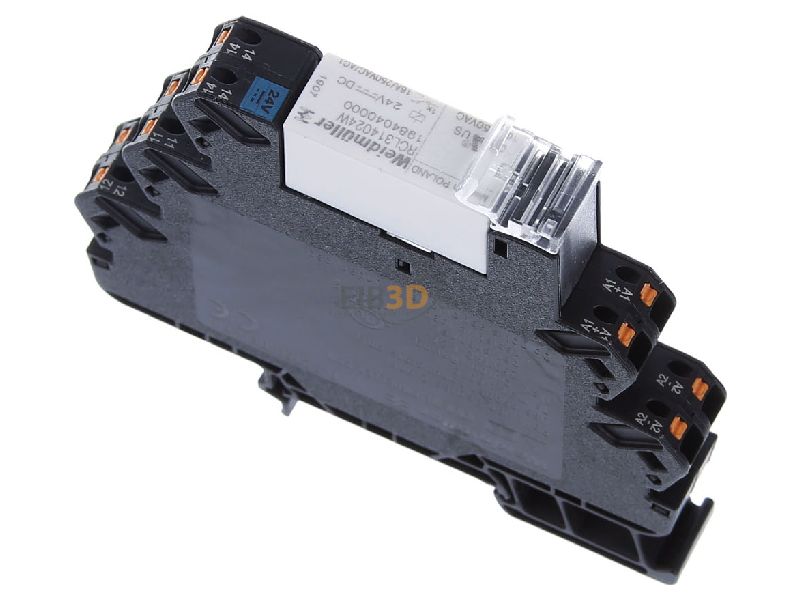

View up front Weidmüller TRP 24VDC 1CO 16A Switching relay
View up front

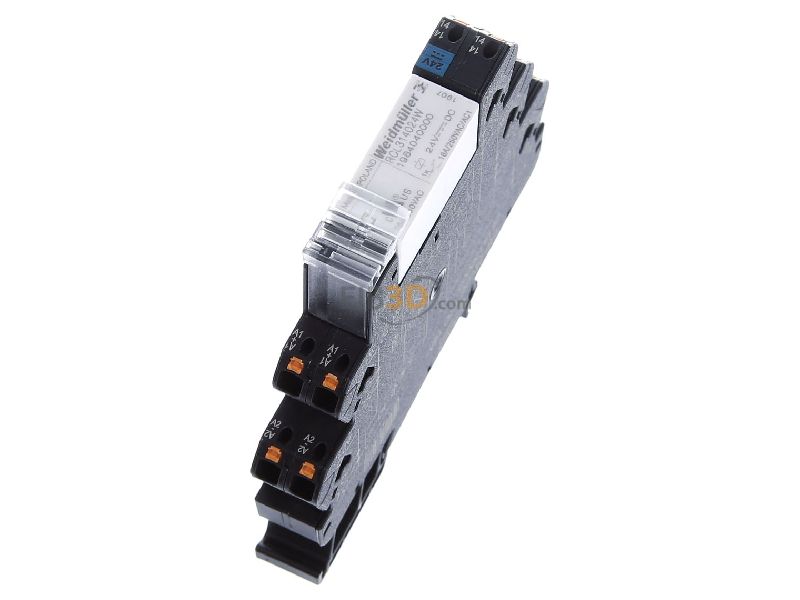

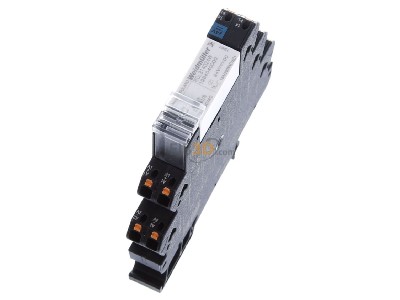

View top left Weidmüller TRP 24VDC 1CO 16A Switching relay
View top left

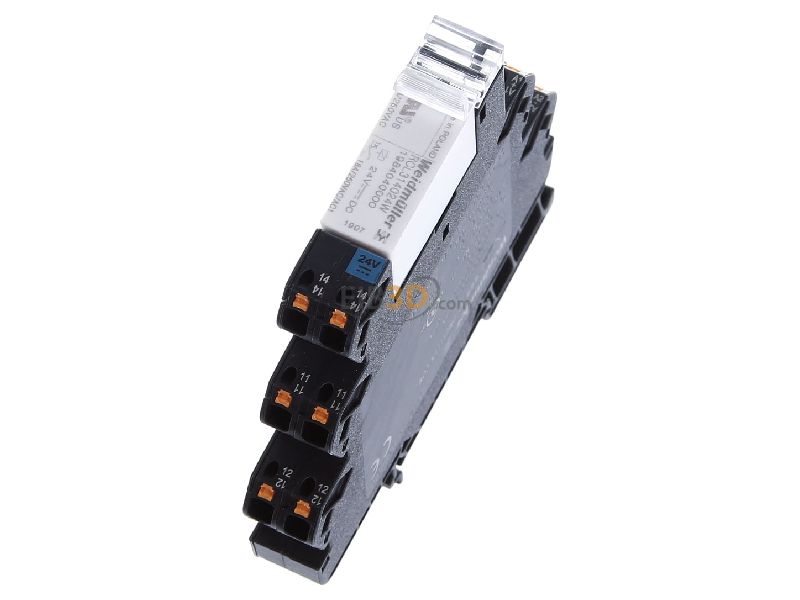

View top right Weidmüller TRP 24VDC 1CO 16A Switching relay
View top right
Top rear view Weidmüller TRP 24VDC 1CO 16A Switching relay
Top rear view
