Neutral disconnect terminal block 2010-7114

EAN/GTIN: 4055143879699
WEEE: DE 40917098
Manufacturer: WAGO
Manufacturer no.: 2010-7114
Customs tariff no.: 85365080
Similar top items: Show now & compare
2,42 GBP Price incl. VAT (0,00 GBP)
plus shipping
Delivery time:
3-5 days [GB] Central warehouse item (regularly available) - live request to the central warehouse directly in the cart or click the link below the price >Quantity available?<
pce

We always deliver the latest available article version.
Minimum order value (UK): 150 EUR (Sub total)

Note:
The installation of electrical devices may only be carried out by an approved electrician and, in the case of high-voltage systems (> = 400V and country-specific nominal power), only with the consent of the respective electricity network operator.

Details

Accessory
bought
Useful
Interesting

Neutral disconnect terminal block Connectable conductor cross section fine-strand without cable end sleeve 0,5 ... 16mm², Connectable conductor cross section fine-strand with cable end sleeve 2,5 ... 10mm², Connectable conductor cross section solid-core 2,5 ... 16mm², Connectable conductor cross section multi-wired 0,5 ... 10mm², Rated current In 57A, Rated voltage 250V, Type of electric connection Spring clamp connection, Number of clamp positions 1, Mounting method DIN rail (top hat rail) 35 mm, Material insulation body Thermoplastic, Operation temperature 105 ... 105°C, Inflammability class of insulation material acc. with UL94 V0, Width/grid dimension 10mm, Height at lowest possible mounting height 38,1mm, Length 67,3mm, Connecting plate required, Colour Blue, Suitable for N-busbar 3x10 mm

More product images:

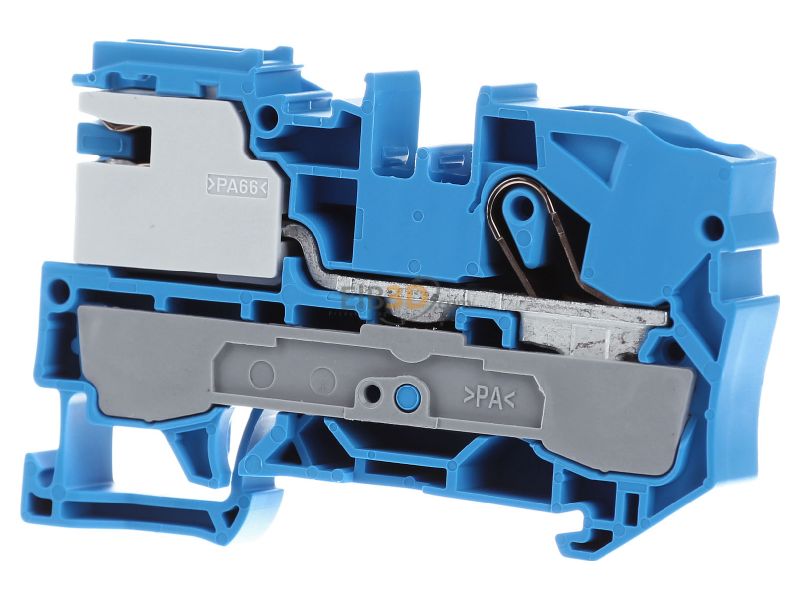

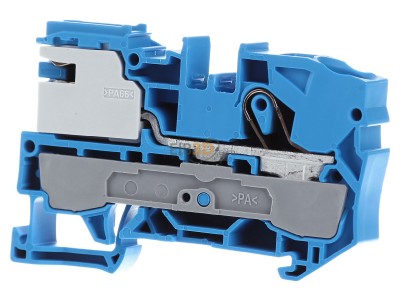

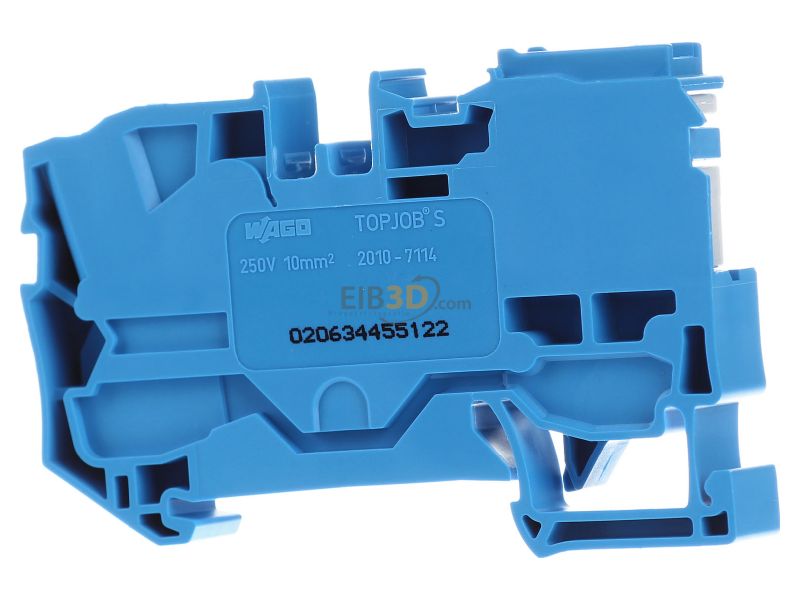

Front view WAGO 2010-7114 Neutral disconnect terminal block
Front view

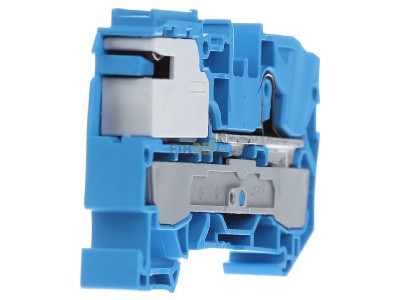

View on the left WAGO 2010-7114 Neutral disconnect terminal block
View on the left

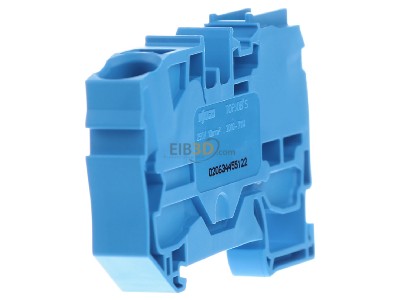

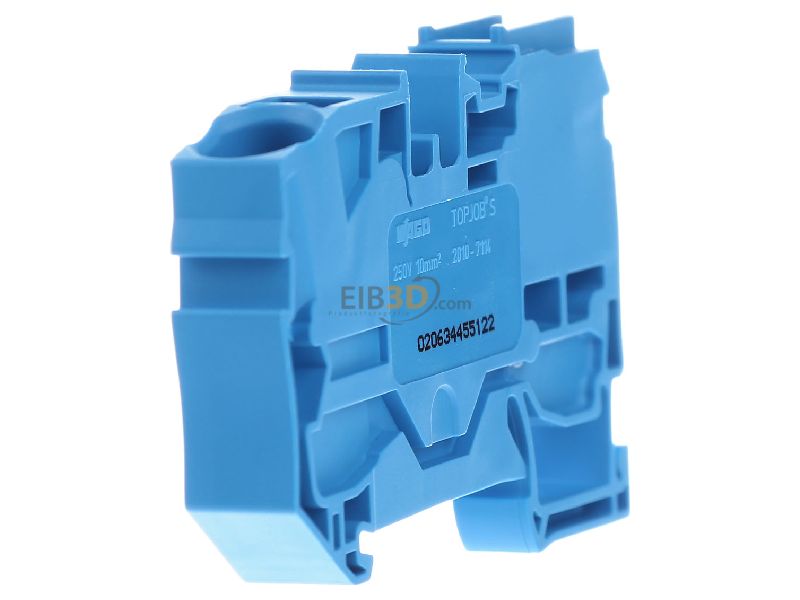

View on the right WAGO 2010-7114 Neutral disconnect terminal block
View on the right
Back view WAGO 2010-7114 Neutral disconnect terminal block
Back view

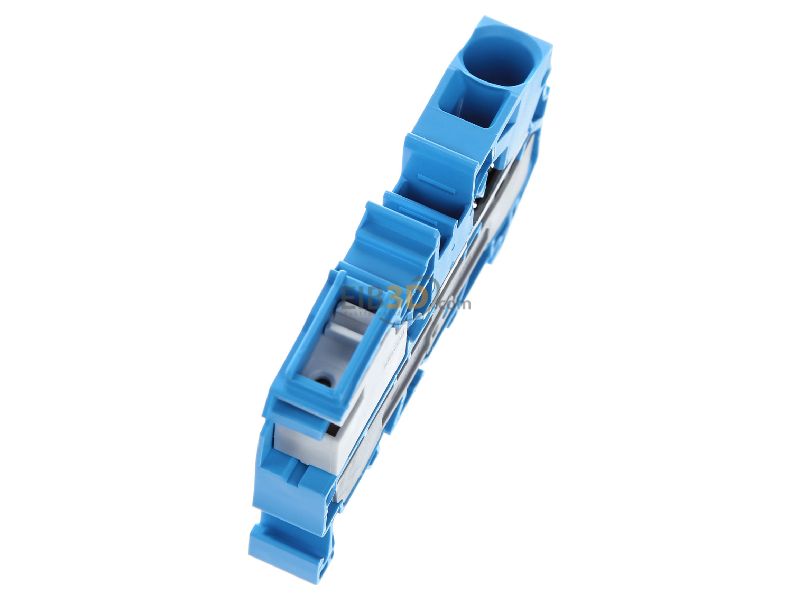

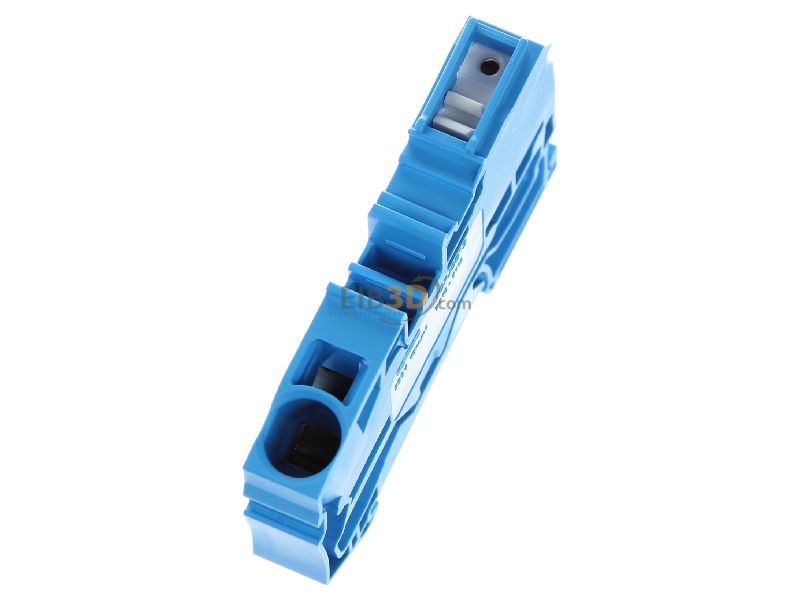

View up front WAGO 2010-7114 Neutral disconnect terminal block
View up front

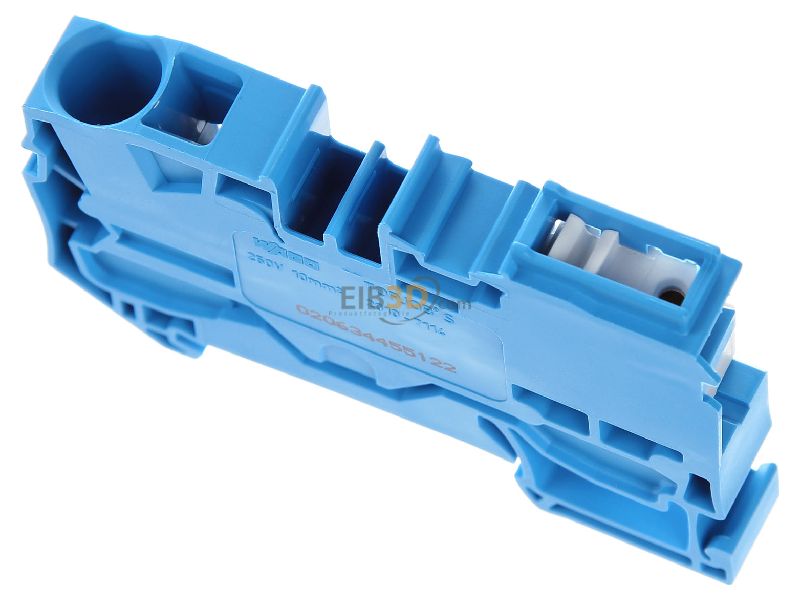

View top left WAGO 2010-7114 Neutral disconnect terminal block
View top left

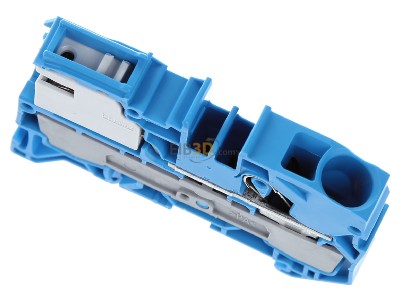

View top right WAGO 2010-7114 Neutral disconnect terminal block
View top right
Top rear view WAGO 2010-7114 Neutral disconnect terminal block
Top rear view

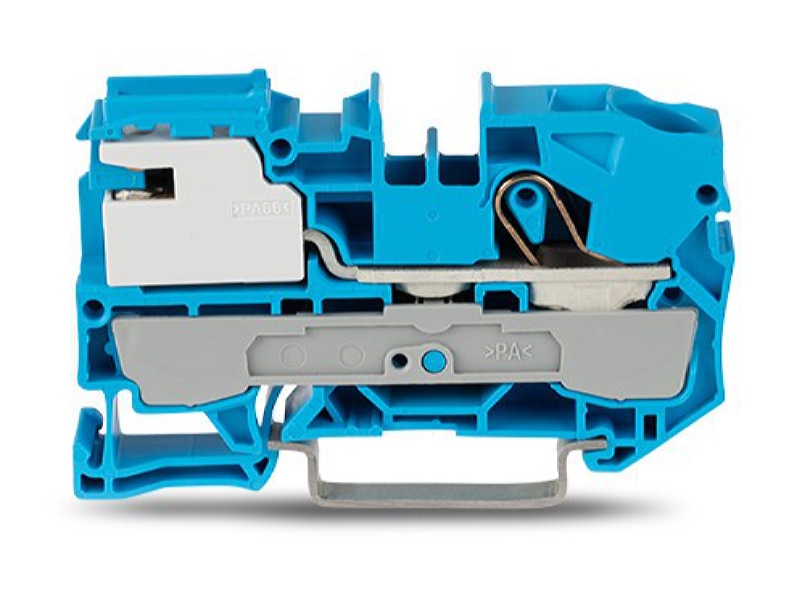

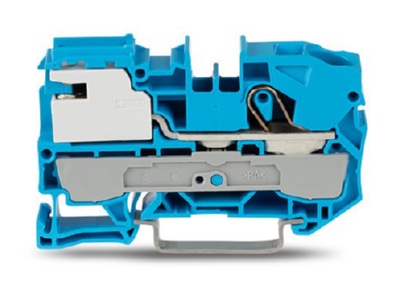

Product image WAGO 2010 7114 Neutral disconnect terminal block
Product image

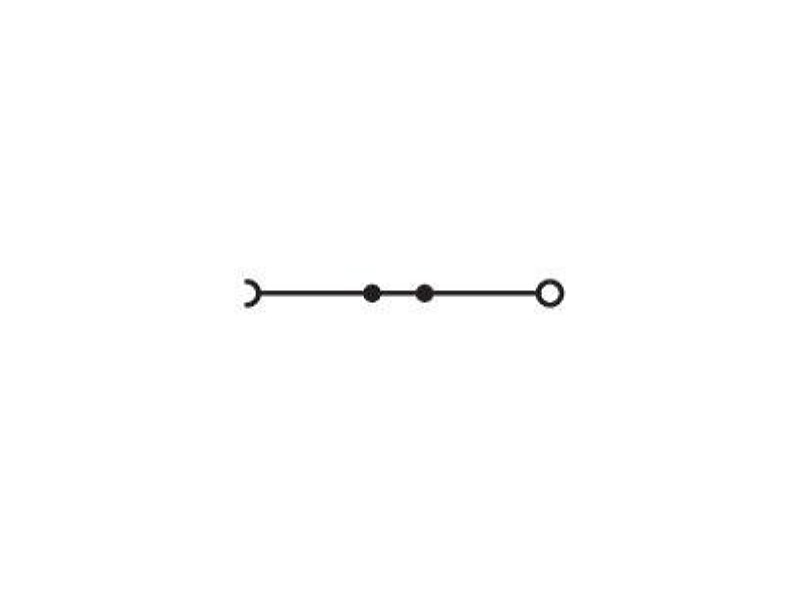

Circuit diagram WAGO 2010 7114 Neutral disconnect terminal block
Circuit diagram
