Compact PLC CPU-module PLC-CPU-module 750-8102
Source photo:
WAGO
(fig. might be different or similar)

Compact PLC CPU-module PLC-CPU-module 750-8102

EAN/GTIN: 4055143351829
WEEE: DE 40917098
Manufacturer: WAGO
Manufacturer no.: 750-8102
Customs tariff no.: 85371091
Similar top items: Show now & compare
623,81 GBP Price incl. VAT (0,00 GBP)
plus shipping
Delivery time:
13-15 days [GB] Items to be procured that can be ordered (no central warehouse item) - live request to the central warehouse directly in the cart or click the link below the price >Quantity available?<
pce

We always deliver the latest available article version.
Minimum order value (UK): 150 EUR (Sub total)

Note:
The installation of electrical devices may only be carried out by an approved electrician and, in the case of high-voltage systems (> = 400V and country-specific nominal power), only with the consent of the respective electricity network operator.

Details

Accessory
bought
Useful
Interesting

Compact PLC CPU-module PLC-CPU-module Supply voltage DC 24 ... 24V, Voltage type of supply voltage DC, Number of relay outputs 0, Max. number of time switches 0, Model Compact, Number of HW-interfaces industrial Ethernet 2, Number of interfaces PROFINET 0, Number of HW-interfaces RS-232 1, Number of HW-interfaces RS-422 0, Number of HW-interfaces RS-485 1, Number of HW-interfaces USB 0, Number of HW-interfaces parallel 0, Number of HW-interfaces Wireless 0, Number of HW-interfaces other 0, Number of analogue outputs 0, Number of analogue inputs 0, Number of digital inputs 0, Number of digital outputs 0, Supporting protocol for MODBUS, Supporting protocol for other bus systems, System accessory, Type of memory NVRAM, Memory size 128kByte, Additional program memory possible, Rail mounting possible, Explosion safety category for gas None, Explosion safety category for dust None, Width 62mm, Height 65mm, Depth 100mm

More product images:

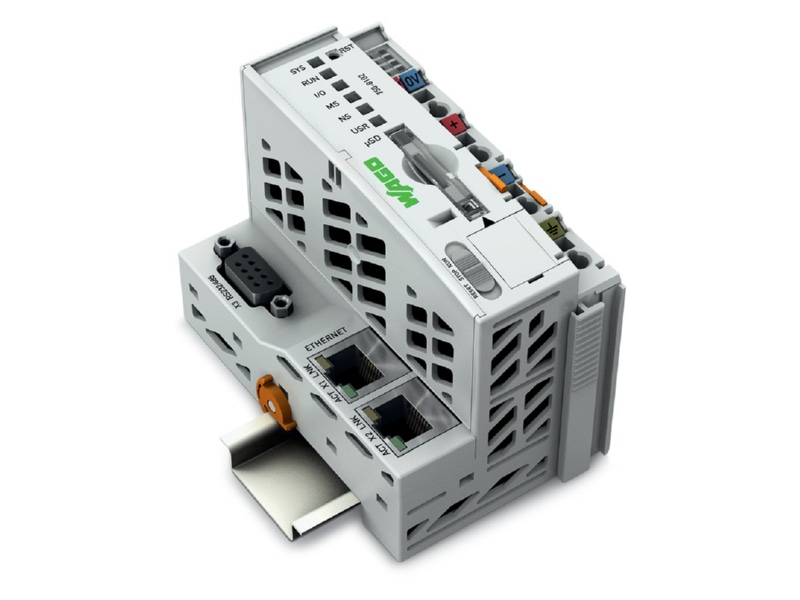

Product image WAGO 750 8102 Compact PLC CPU module PLC CPU module
Product image

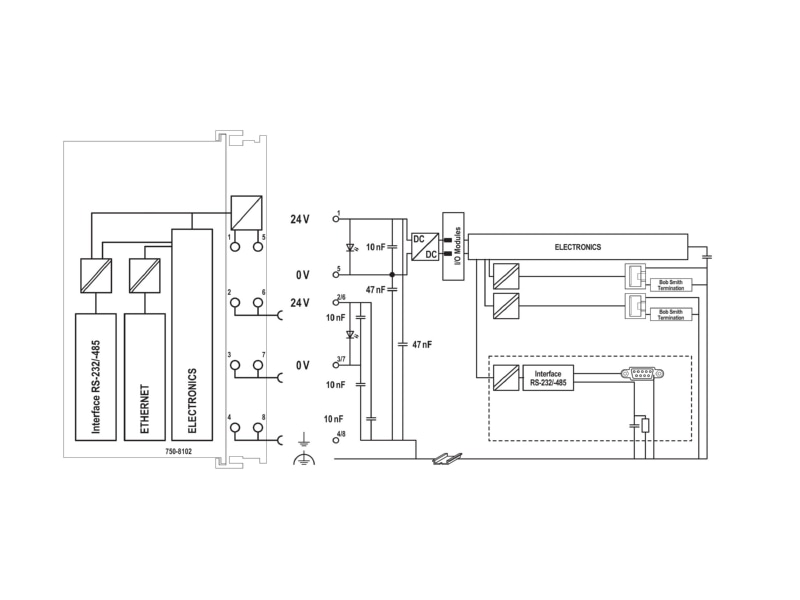

Circuit diagram WAGO 750 8102 Compact PLC CPU module PLC CPU module
Circuit diagram
