Isolation amplifier 857-411
Source photo:
WAGO
(fig. might be different or similar)

Isolation amplifier 857-411

EAN/GTIN: 4045454471224
WEEE: DE 40917098
Manufacturer: WAGO
Manufacturer no.: 857-411
Customs tariff no.: 85437090
Similar top items: Show now & compare
107,11 GBP Price incl. VAT (0,00 GBP)
plus shipping
Delivery time:
13-15 days [GB] Items to be procured that can be ordered (no central warehouse item) - live request to the central warehouse directly in the cart or click the link below the price >Quantity available?<
pce

We always deliver the latest available article version.
Minimum order value (UK): 150 EUR (Sub total)

Note:
The installation of electrical devices may only be carried out by an approved electrician and, in the case of high-voltage systems (> = 400V and country-specific nominal power), only with the consent of the respective electricity network operator.

Details

Accessory
bought
Useful
Interesting

Type of power supply other, Rated operating frequency 100 Hz, Rated supply voltage for DC 16.8..31.2 V, Number of input ranges 0 mA ... 20 mA 1, Number of input ranges 4 mA ... 20 mA 1, Number of output ranges 0 mA ... 20 mA 1, Number of output ranges 4 mA ... 20 mA 1, Amount of channels 1, Alarm output no, Intrinsically safe according to EN 60947-5-6 NAMUR no, Galvanic isolation between the inputs yes, Height 96 mm, Width 6 mm, Depth 94 mm, Burden 600..2000 Ohm, Operating temperature -25..70 °C, Temperature drift 0.01 %/K, Device type other, Mounting Snap-on mounting rail, Degree of protection (IP) IP20

More product images:

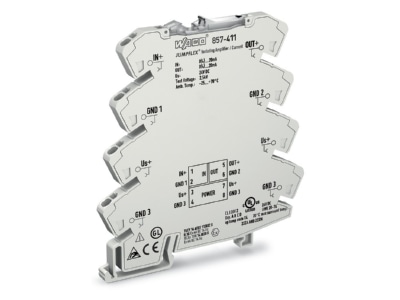

Product image WAGO 857 411 Isolation amplifier
Product image

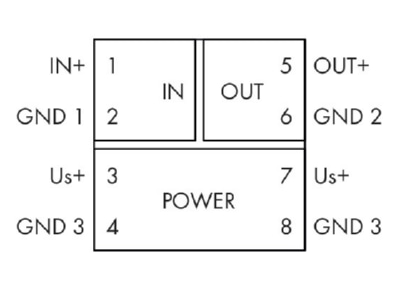

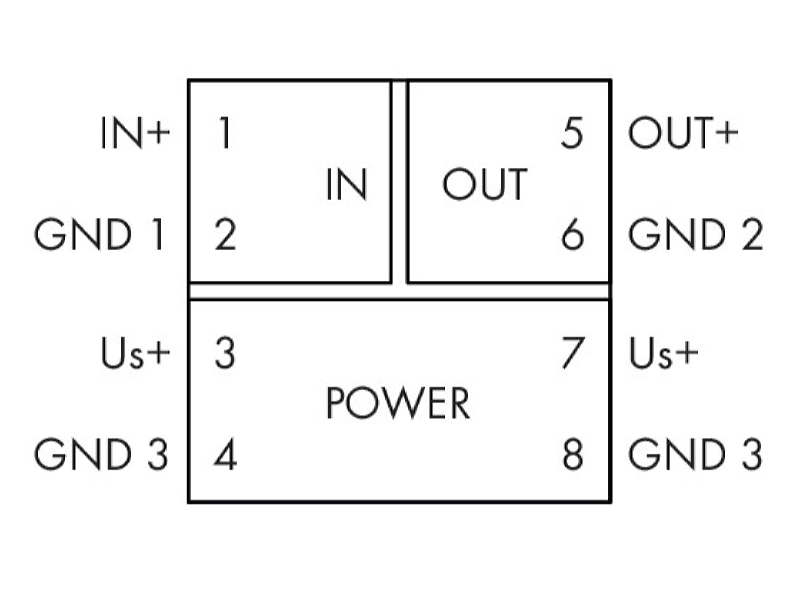

Circuit diagram WAGO 857 411 Isolation amplifier
Circuit diagram

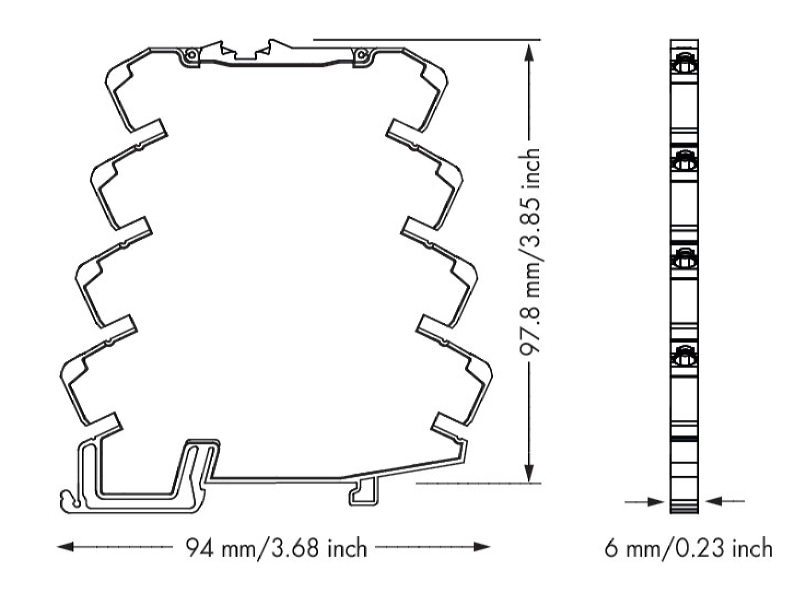

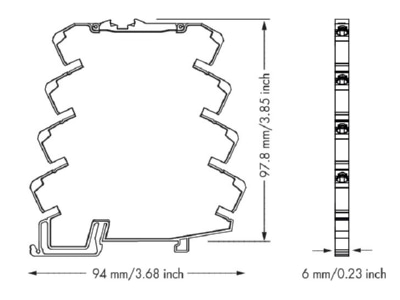

Dimensional drawing WAGO 857 411 Isolation amplifier
Dimensional drawing
