Fieldbus digital module 0 In / 4 Out 750-515
Source photo:
WAGO
(fig. might be different or similar)

Fieldbus digital module 0 In / 4 Out 750-515

EAN/GTIN: 4055143512831
WEEE: DE 40917098
Manufacturer: WAGO
Manufacturer no.: 750-515
Customs tariff no.: 85371098
Similar top items: Show now & compare
83,74 GBP Price incl. VAT (0,00 GBP)
plus shipping
Delivery time:
13-15 days [GB] Items to be procured that can be ordered (no central warehouse item) - live request to the central warehouse directly in the cart or click the link below the price >Quantity available?<
pce

We always deliver the latest available article version.
Minimum order value (UK): 150 EUR (Sub total)

Note:
The installation of electrical devices may only be carried out by an approved electrician and, in the case of high-voltage systems (> = 400V and country-specific nominal power), only with the consent of the respective electricity network operator.

Details

Accessory
bought
Useful
Interesting

Fieldbus digital module 0 In / 4 Out Number of digital inputs 0, Number of digital outputs 4, Type of digital output Relay, Output current 2A, Permitted voltage at output 250 ... 250V, Type of output voltage AC, Number of HW-interfaces industrial Ethernet 0, Number of interfaces PROFINET 0, Number of HW-interfaces RS-232 0, Number of HW-interfaces RS-422 0, Number of HW-interfaces RS-485 0, Number of HW-interfaces serial TTY 0, Number of HW-interfaces parallel 0, Number of HW-interfaces Wireless 0, Number of HW-interfaces USB 0, System accessory, Degree of protection (IP) IP20, Type of electric connection Spring clamp connection, Signal change delay 10 ... 10ms, Fieldbus connection over separate bus coupler possible, Rail mounting possible, Width 12mm, Height 100mm, Depth 64mm

More product images:

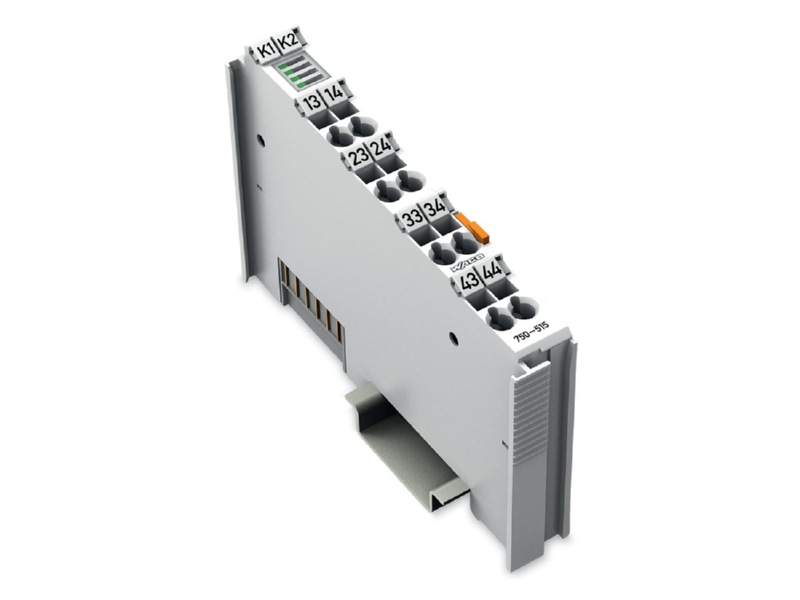

Product image WAGO 750 515 Fieldbus digital module 0 In   4 Out
Product image

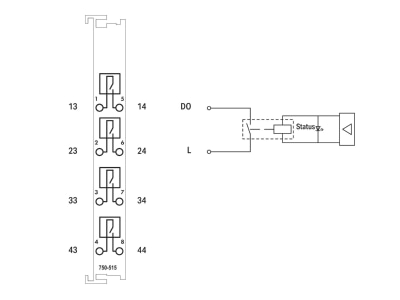

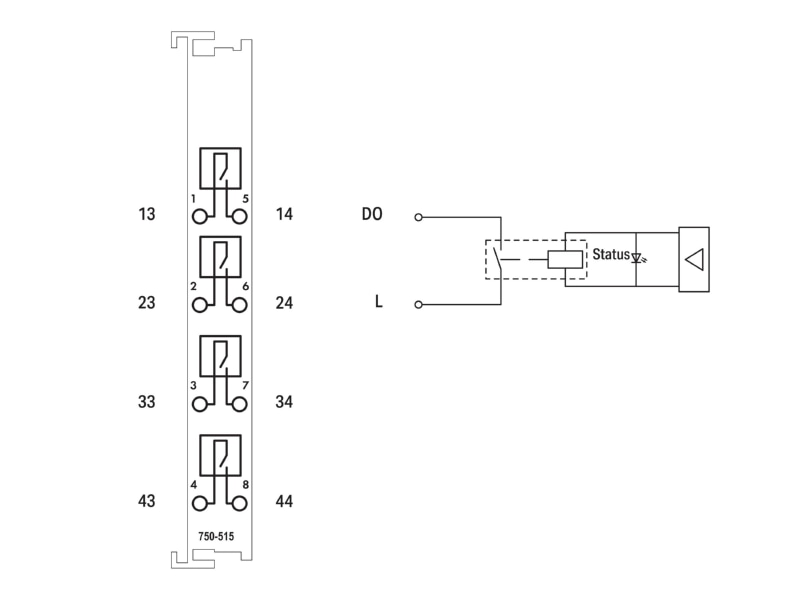

Circuit diagram WAGO 750 515 Fieldbus digital module 0 In   4 Out
Circuit diagram
