Isolation amplifier 857-423
Source photo:
WAGO
(fig. might be different or similar)

Isolation amplifier 857-423

EAN/GTIN: 4045454471316
WEEE: DE 40917098
Manufacturer: WAGO
Manufacturer no.: 857-423
Customs tariff no.: 85437090
Similar top items: Show now & compare
168,61 GBP Price incl. VAT (0,00 GBP)
plus shipping
Delivery time:
13-15 days [GB] Items to be procured that can be ordered (no central warehouse item) - live request to the central warehouse directly in the cart or click the link below the price >Quantity available?<
pce

We always deliver the latest available article version.
Minimum order value (UK): 150 EUR (Sub total)

Note:
The installation of electrical devices may only be carried out by an approved electrician and, in the case of high-voltage systems (> = 400V and country-specific nominal power), only with the consent of the respective electricity network operator.

Details

Accessory
bought
Useful
Interesting

Type of power supply=Other, Rated operation frequency=100..1000 Hz, Rated supply voltage at DC=16,8..31,2 V, Number of input ranges 0 V ... 5 V=1, Number of input ranges 0 V ... 10 V=1, Number of input ranges 1 V ... 5 V=1, Number of input ranges 2 V ... 10 V=1, Number of input ranges 0 mA ... 20 mA=1, Number of input ranges 4 mA ... 20 mA=1, Number of output ranges 0 mA ... 20 mA=2, Number of output ranges 4 mA ... 20 mA=2, Number of channels=2, Malfunction message output=no, Inherently safe according to EN 60947-5-6 NAMUR=no, Galvanic separation between inputs=yes, Galvanic separation between input and output=yes, Galvanic separation between output to output=no, Galvanic separation between supply voltage and all other current circuits=yes, Height=96 mm, Width=6 mm, Depth=94 mm, Load=300 Ohm, Operating temperature=-25..70 °C, Temperature drift=0,01 %/K, Construction type of device=Other, Type of electric connection=Spring clamp connection, Mounting method=Snap mounting support rail, Degree of protection (IP)=IP20

More product images:

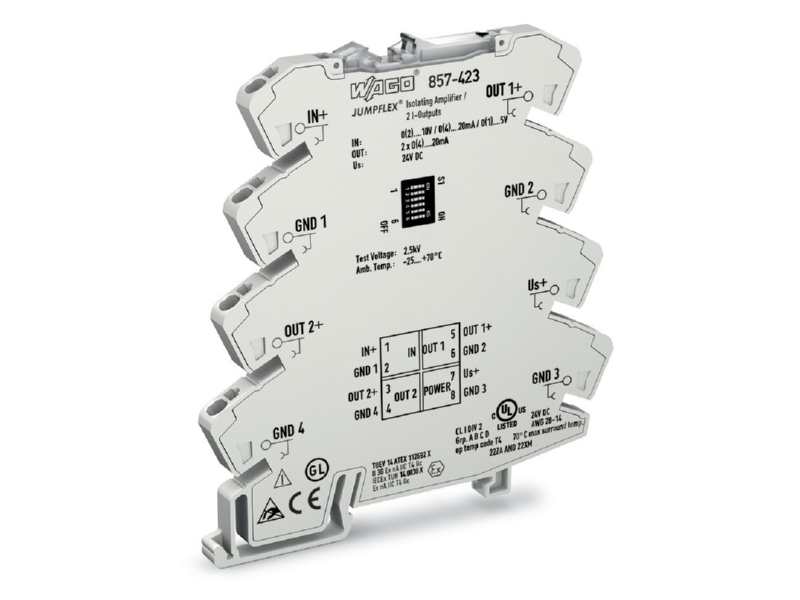

Product image WAGO 857 423 Isolation amplifier
Product image

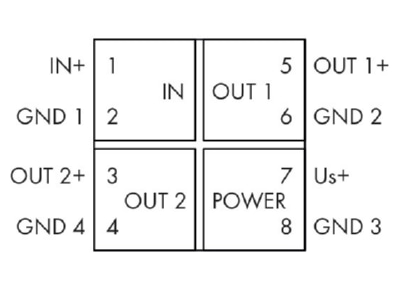

Circuit diagram WAGO 857 423 Isolation amplifier
Circuit diagram

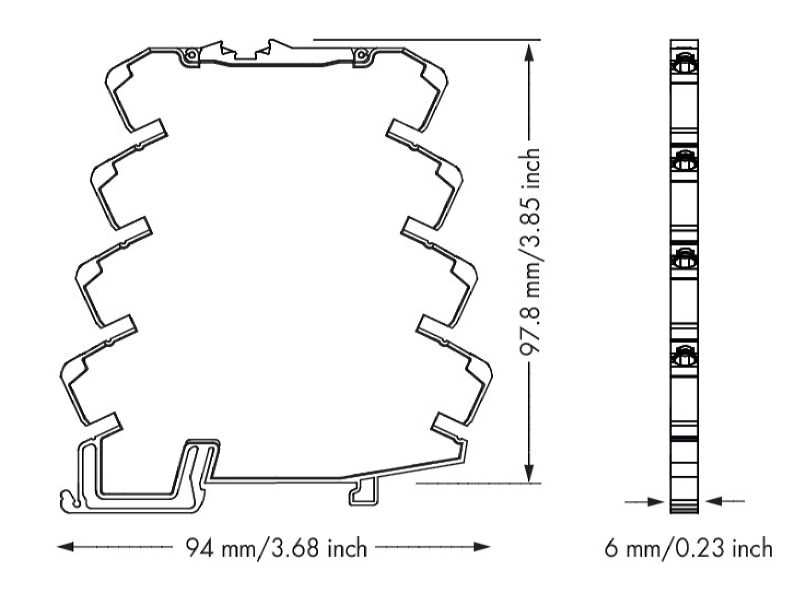

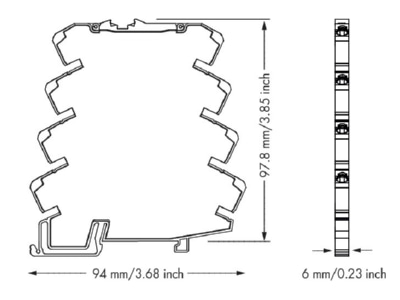

Dimensional drawing WAGO 857 423 Isolation amplifier
Dimensional drawing
