Retroreflective photoelectric sensor Q20PLPQ7
Source photo:
Turck
(fig. might be different or similar)

Retroreflective photoelectric sensor Q20PLPQ7

EAN/GTIN: 0662488777623
WEEE: DE 71889523
Manufacturer: Turck
Manufacturer no.: Q20PLPQ7
Manufact.-SKU: 3077762
Customs tariff no.: 85365019
Similar top items: Show now & compare
81,74 GBP Price incl. VAT (0,00 GBP)
plus shipping
Delivery time:
13-15 days [GB] Items to be procured that can be ordered (no central warehouse item) - live request to the central warehouse directly in the cart or click the link below the price >Quantity available?<
pce

We always deliver the latest available article version.
Minimum order value (UK): 150 EUR (Sub total)

Note:
The installation of electrical devices may only be carried out by an approved electrician and, in the case of high-voltage systems (> = 400V and country-specific nominal power), only with the consent of the respective electricity network operator.

Details

bought
Useful
Interesting

Rated switching distance=4000 mm, Max. switching distance=4000 mm, With reflector=no, Type of electric connection=Connector M8, Type of switching output=PNP, Type of switch function=Change-over contact (NO/NC), Construction type housing=Cuboid, Width sensor=12 mm, Diameter sensor=0 mm, Height of sensor=42 mm, Length of sensor=20 mm, Material of optical surface=Plastic, Housing material=Plastic, Max. output current at protected output=100 mA, Min. reflector distance=30 mm, Ambient temperature=-20..60 °C, Response time=0,8 ms, Switching frequency=600 Hz, Rated control supply voltage DC=10..30 V, Voltage type=DC, Wavelength of the sensor=645 nm, Type of light=Polarized red light, Suitable for safety functions=no, Degree of protection (IP)=IP67

More product images:

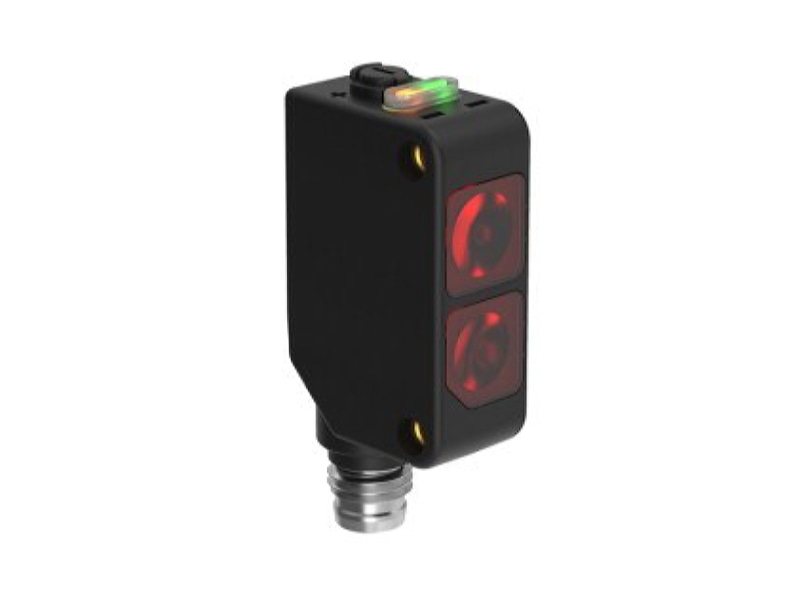

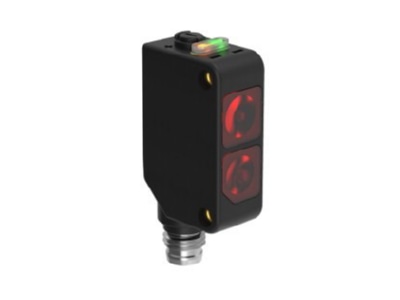

Product image Turck Q20PLPQ7 Retroreflective photoelectric sensor
Product image

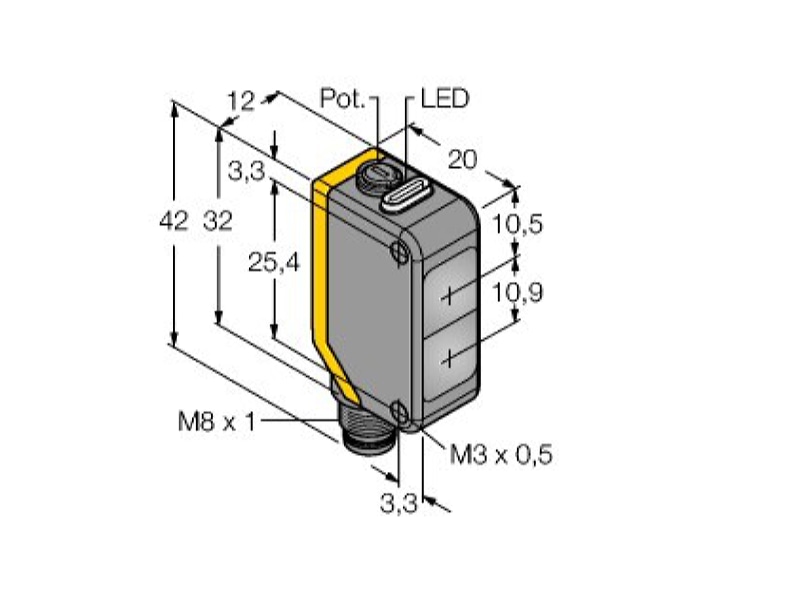

Dimensional drawing Turck Q20PLPQ7 Retroreflective photoelectric sensor
Dimensional drawing
