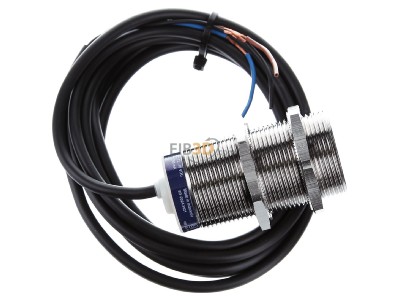

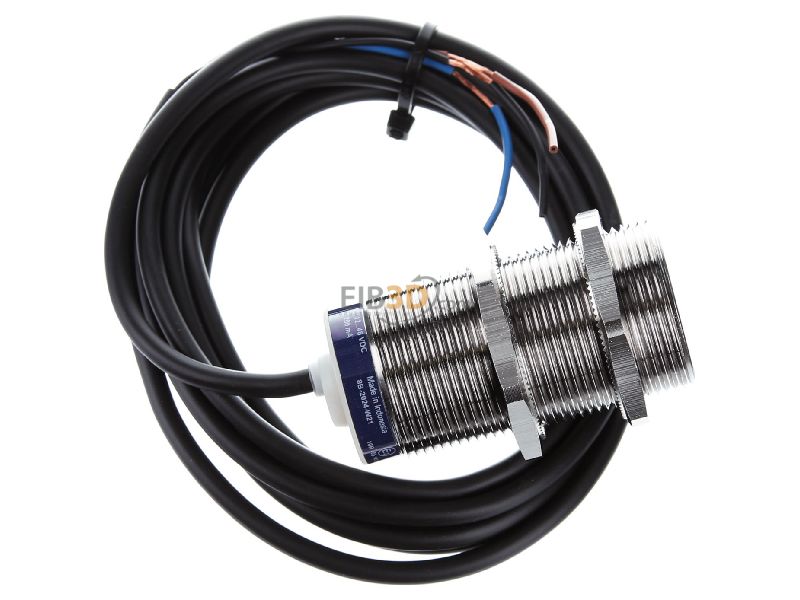

Inductive proximity switch 15mm XS630B1PAL2

EAN/GTIN: 3389110146608
Manufacturer: Telemechanique Sensors
Manufacturer no.: XS630B1PAL2
Customs tariff no.: 85365019
Similar top items: Show now & compare
18,61 GBP Price incl. VAT (0,00 GBP)
plus shipping
Delivery time:
13-15 days [GB] Items to be procured that can be ordered (no central warehouse item) - live request to the central warehouse directly in the cart or click the link below the price >Quantity available?<
pce

We always deliver the latest available article version.
Minimum order value (UK): 150 EUR (Sub total)

Note:
The installation of electrical devices may only be carried out by an approved electrician and, in the case of high-voltage systems (> = 400V and country-specific nominal power), only with the consent of the respective electricity network operator.

Details

Accessory
bought
Useful
Interesting

Length of sensor=60 mm, Diameter sensor=30 mm, Mechanical mounting condition for sensor=Concise, Switching distance=15 mm, Suitable for safety functions=no, Type of switch function=Normally open contact, Type of switching output=PNP/PNP, Type of electric connection=Cable radial, Number of semiconductor outputs with signalling function=1, Number of protected semiconductor outputs=1, Type of actuation=Metallic Target, Type of interface=None, Type of interface for safety communication=None, Construction type housing=Cylinder, screw-thread, Coating housing=Nickel-plated, Cascadable=no, SIL according to IEC 61508=None, Performance level according to EN ISO 13849-1=None, Max. output current at protected output=200 mA, Supply voltage=12..48 V, Rated control supply voltage Us at DC=12..48 V, Voltage type=AC/DC, Switching frequency=500 Hz, With monitoring function downstream switching devices=no, Material housing=Metal, Compression-resistant=no, Explosion safety category for gas=None, Explosion safety category for dust=None, Interference resistance to magnetic fields=Immune against magnetic DC-field

More product images:

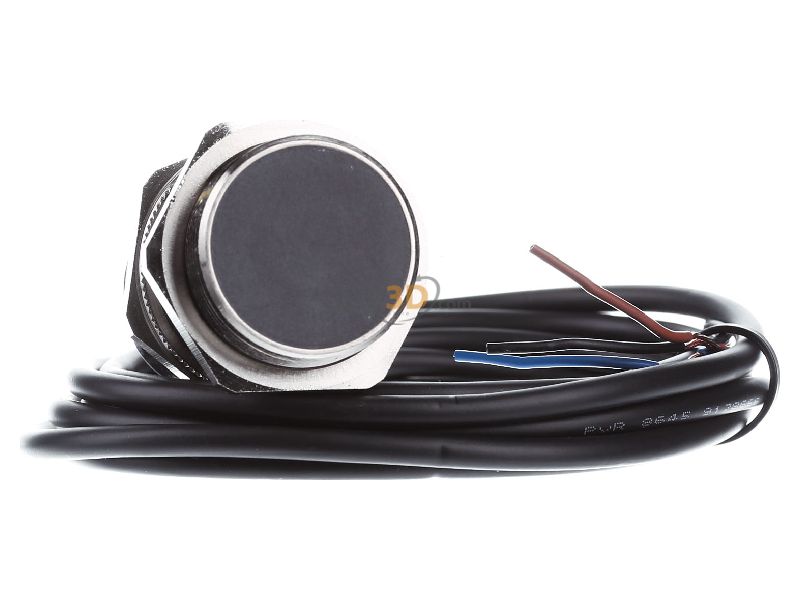

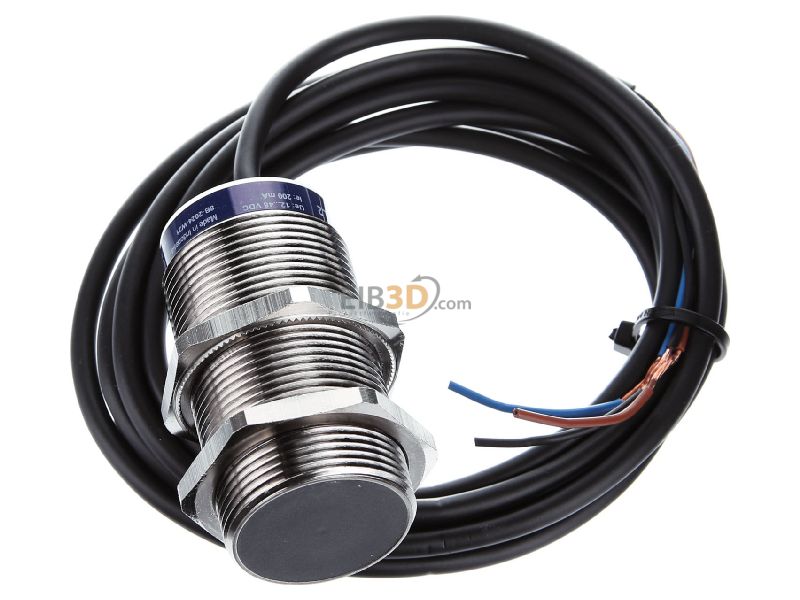

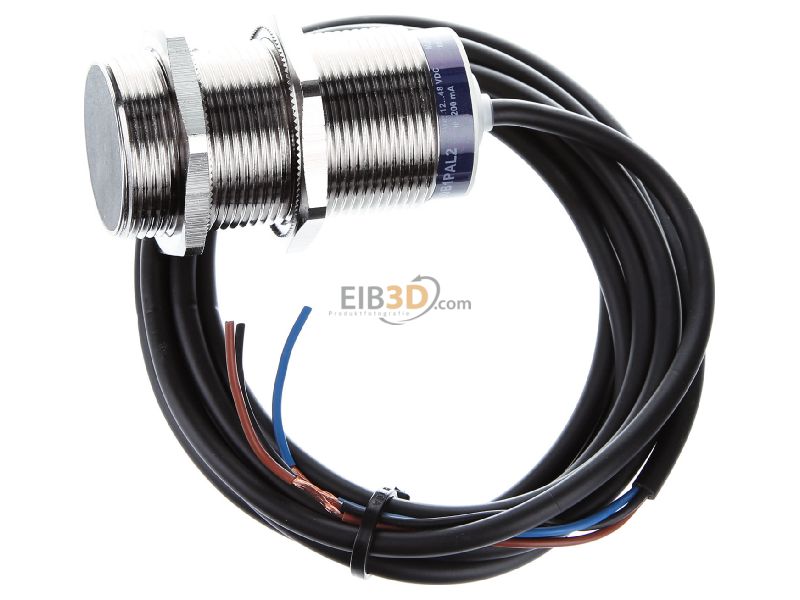

Front view Telemechanique Sensors XS630B1PAL2 Inductive proximity switch 15mm
Front view

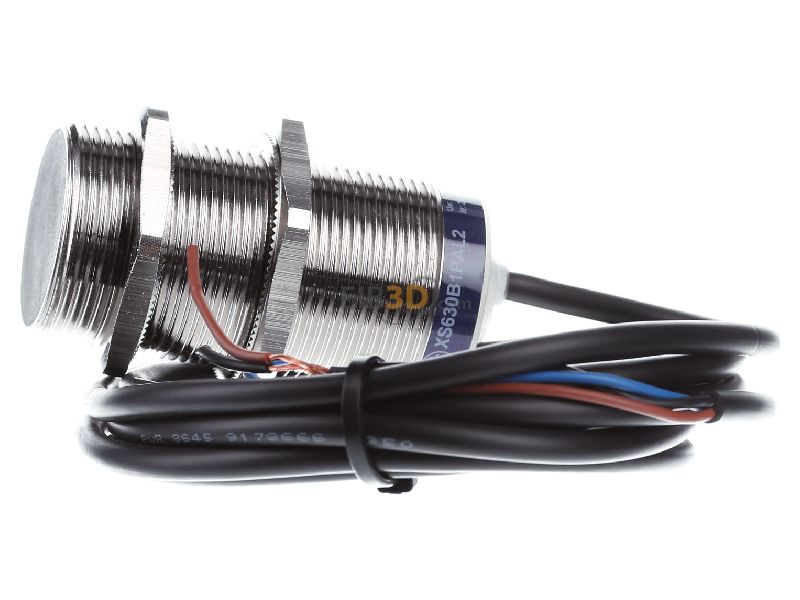

View on the left Telemechanique Sensors XS630B1PAL2 Inductive proximity switch 15mm
View on the left

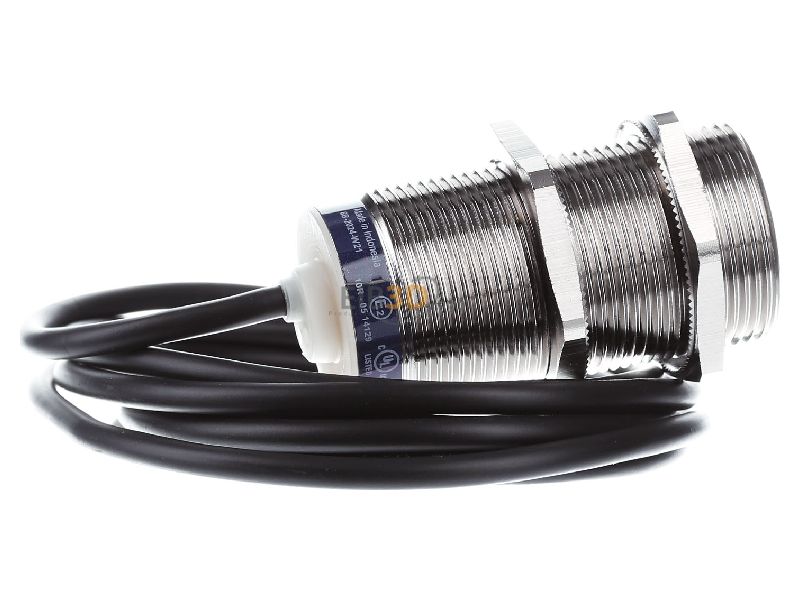

View on the right Telemechanique Sensors XS630B1PAL2 Inductive proximity switch 15mm
View on the right

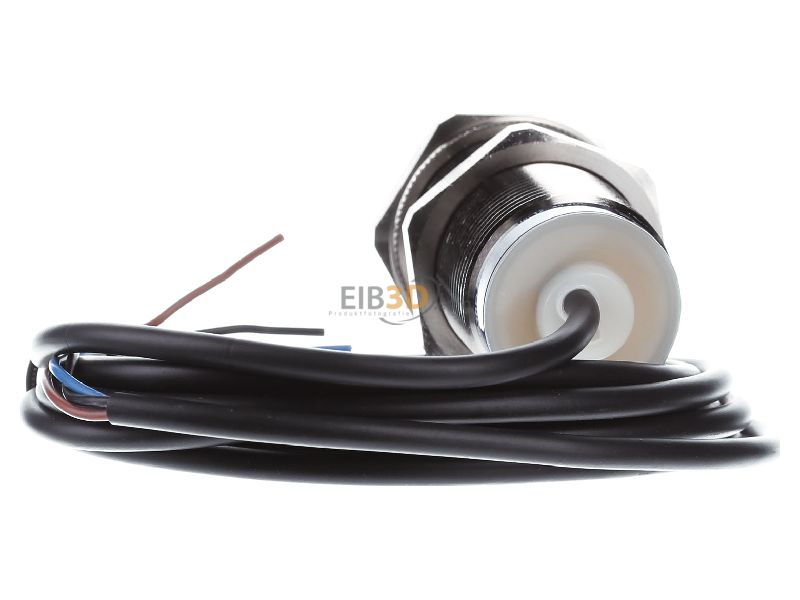

Back view Telemechanique Sensors XS630B1PAL2 Inductive proximity switch 15mm
Back view
View up front Telemechanique Sensors XS630B1PAL2 Inductive proximity switch 15mm
View up front
View top left Telemechanique Sensors XS630B1PAL2 Inductive proximity switch 15mm
View top left

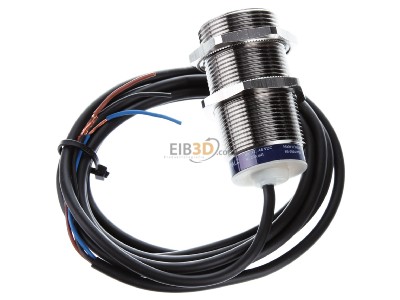

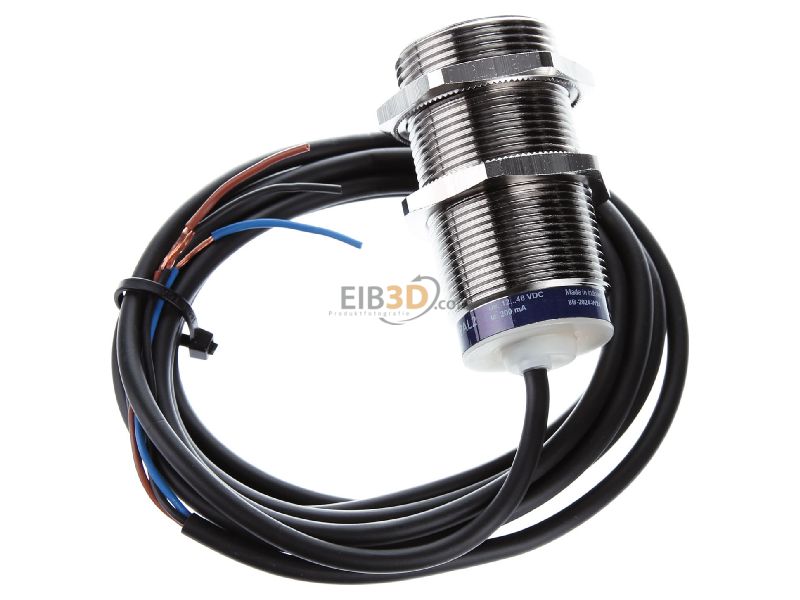

View top right Telemechanique Sensors XS630B1PAL2 Inductive proximity switch 15mm
View top right
Top rear view Telemechanique Sensors XS630B1PAL2 Inductive proximity switch 15mm
Top rear view
