DIN rail- LUNA 111 top3 EL

EAN/GTIN: 4003468110058
WEEE: DE 48221059
Manufacturer: THEBEN
Manufacturer no.: LUNA 111 top3 EL
Manufact.-SKU: 1110230
Customs tariff no.: 90314990
Similar top items: Show now & compare
127,62 GBP Price incl. VAT (0,00 GBP)
plus shipping
Delivery time:
13-15 days [GB] Items to be procured that can be ordered (no central warehouse item) - live request to the central warehouse directly in the cart or click the link below the price >Quantity available?<
pce

We always deliver the latest available article version.
Minimum order value (UK): 150 EUR (Sub total)

Note:
The installation of electrical devices may only be carried out by an approved electrician and, in the case of high-voltage systems (> = 400V and country-specific nominal power), only with the consent of the respective electricity network operator.

Details

Accessory
bought
Useful
Interesting

DIN rail- Rated voltage 230V, Rated frequency 50 ... 60Hz, Max. incandescent lamp load 3600W, Max. load fluorescent lamp 3600VA, Max. load fluorescent lamp (Duo circuit) 3600VA, Max. load fluorescent lamp (parallel compensated) 1200VA, Max. switching current (cos phi = 0.6) 10A, Rated switch current 16A, Adjustment range brightness value 1 ... 99000lx, Push button input, Max. conductor length light sensor 100m, Protection class light sensor II, Mounting method light sensor Built-in, Mounting method DIN rail, Width in number of modular spacings 2, Built-in depth 69,2mm, Degree of protection (IP) IP20, Degree of protection (IP) light sensor IP67

More product images:

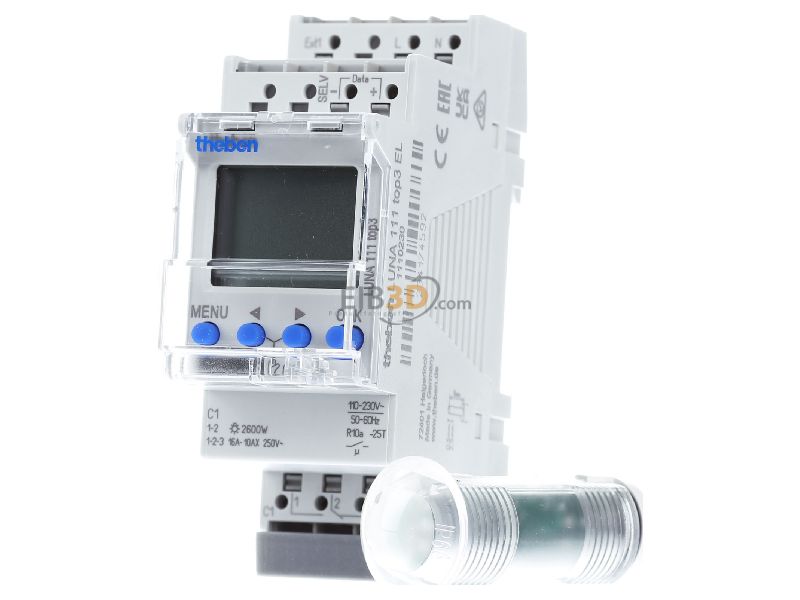

Front view Theben LUNA 111 top3 EL DIN rail-
Front view

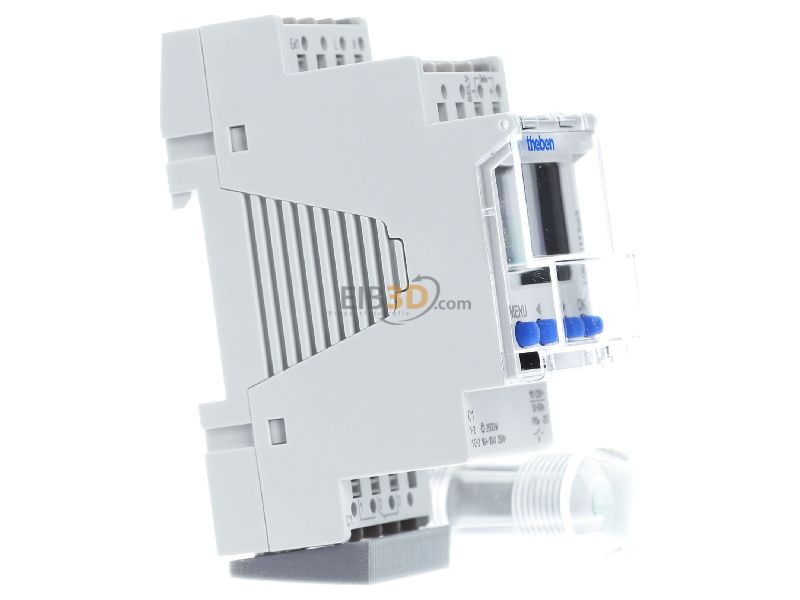

View on the left Theben LUNA 111 top3 EL DIN rail-
View on the left

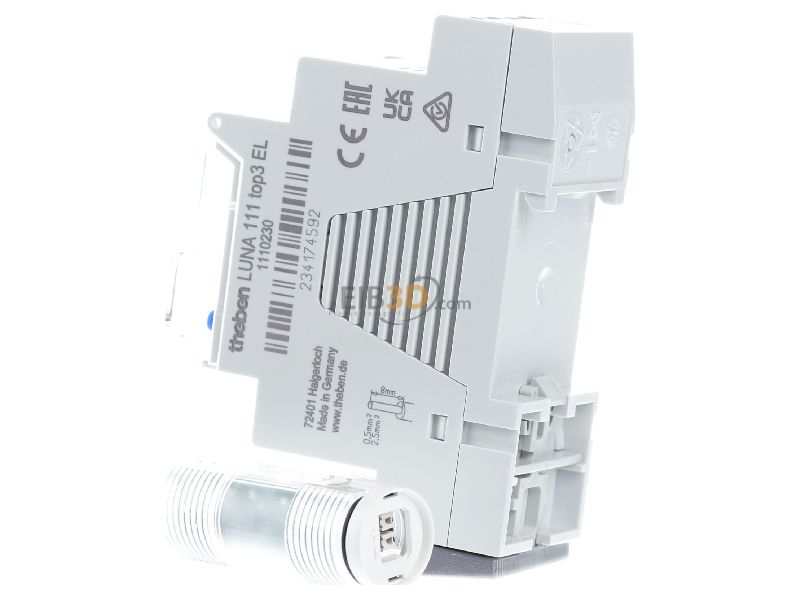

View on the right Theben LUNA 111 top3 EL DIN rail-
View on the right

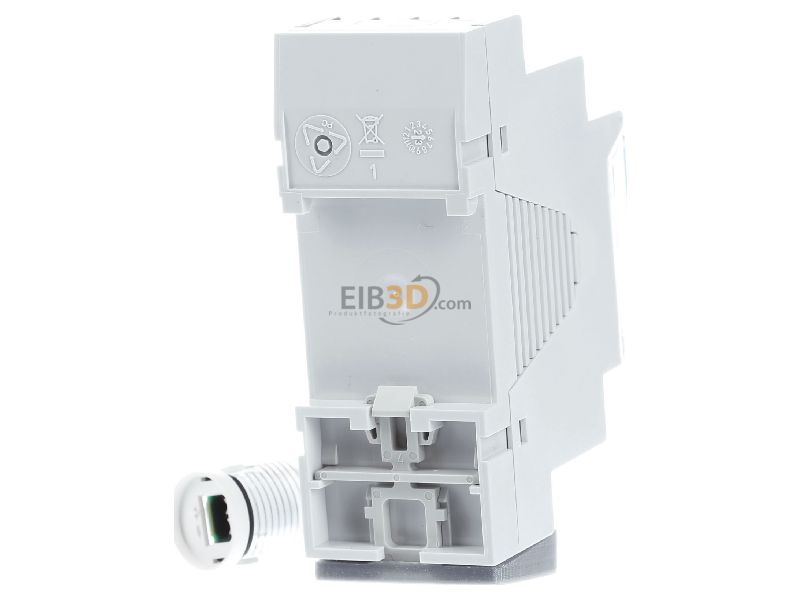

Back view Theben LUNA 111 top3 EL DIN rail-
Back view

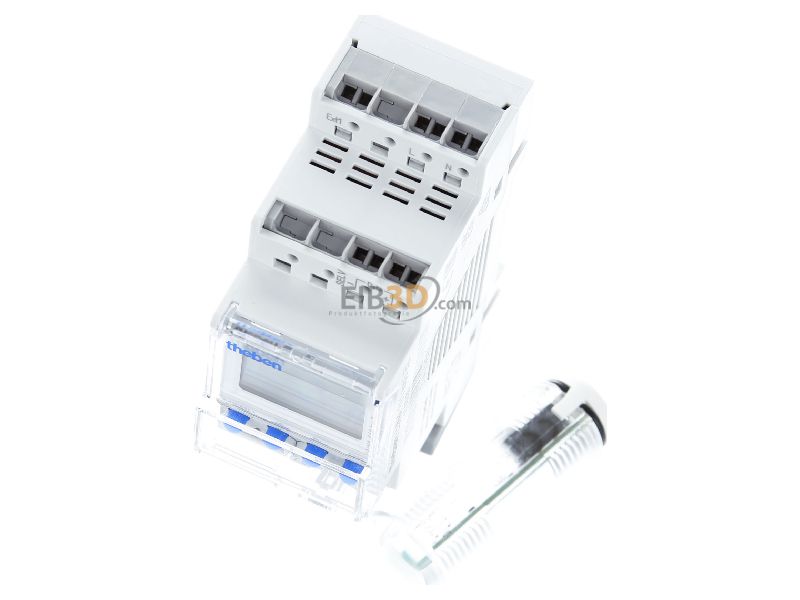

View up front Theben LUNA 111 top3 EL DIN rail-
View up front

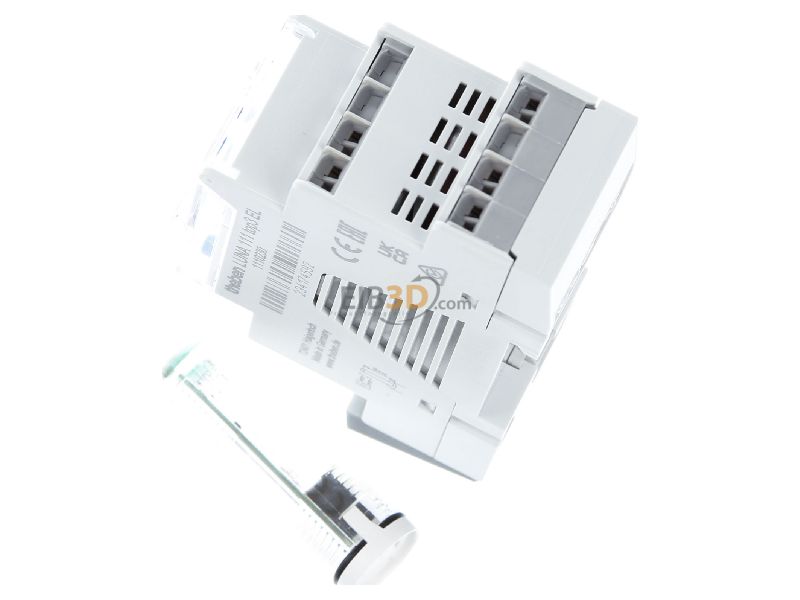

View top left Theben LUNA 111 top3 EL DIN rail-
View top left

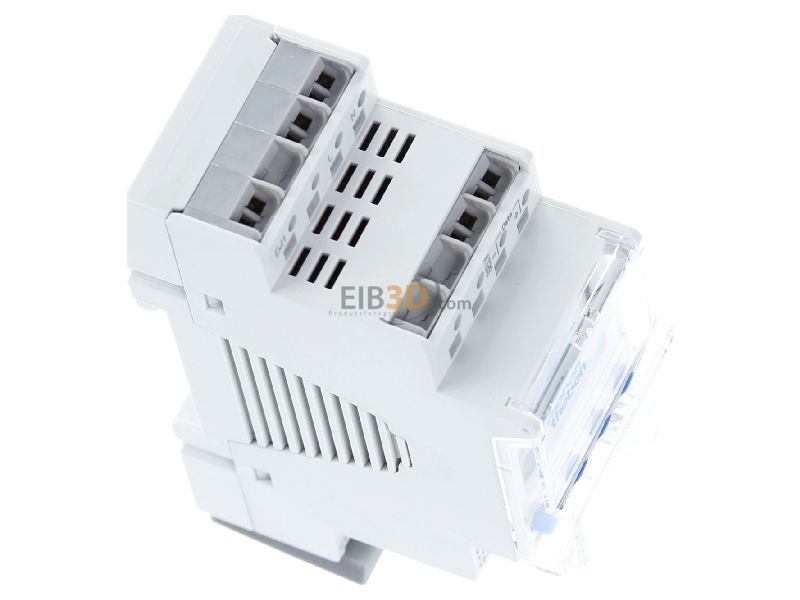

View top right Theben LUNA 111 top3 EL DIN rail-
View top right

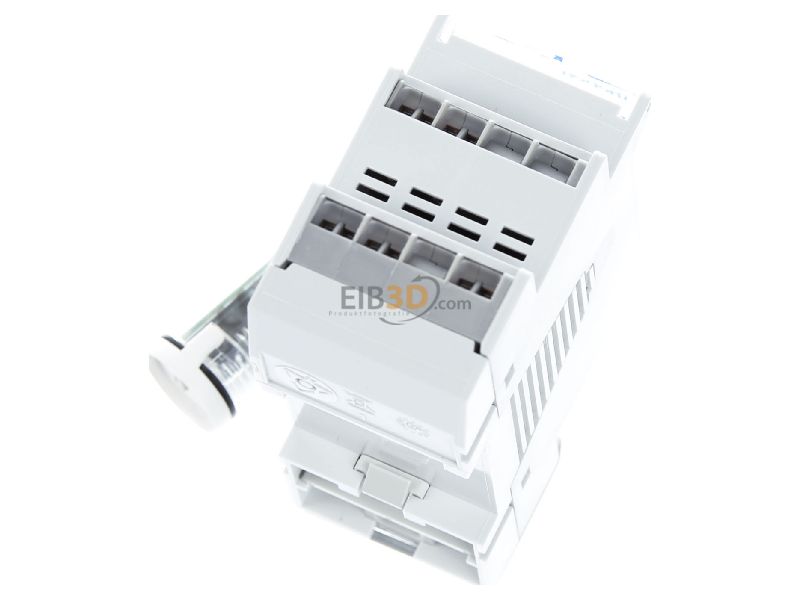

Top rear view Theben LUNA 111 top3 EL DIN rail-
Top rear view

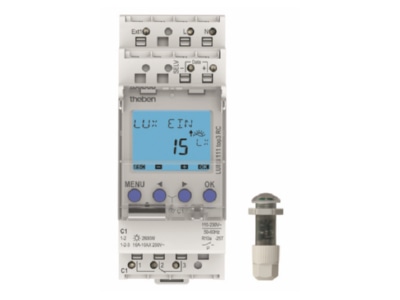

Product image Theben LUNA 111 top3 EL DIN rail
Product image

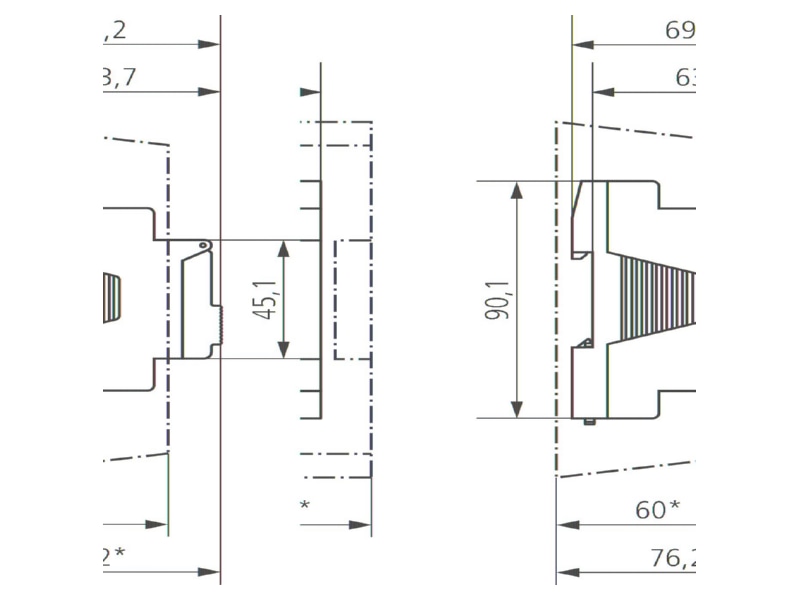

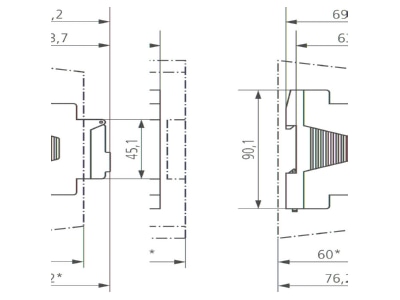

Dimensional drawing Theben LUNA 111 top3 EL DIN rail
Dimensional drawing
