Movement sensor 4m IS 360-1 DE weiß

EAN/GTIN: 4007841032845
WEEE: DE 39896667
Manufacturer: Steinel
Manufacturer no.: IS 360-1 DE weiß
Manufact.-SKU: 032845
Customs tariff no.: 85365080
Similar top items: Show now & compare
45,06 GBP Price incl. VAT (0,00 GBP)
plus shipping
Delivery time:
13-15 days [GB] Items to be procured that can be ordered (no central warehouse item) - live request to the central warehouse directly in the cart or click the link below the price >Quantity available?<
pce

We always deliver the latest available article version.
Minimum order value (UK): 150 EUR (Sub total)

Note:
The installation of electrical devices may only be carried out by an approved electrician and, in the case of high-voltage systems (> = 400V and country-specific nominal power), only with the consent of the respective electricity network operator.

Details

bought
Useful
Interesting

Movement sensor 4m Model Movement sensor, Sensor type Passive infrared, Forced switch off, Creep-under protection, Networkable, Optimum mounting height 2,5m, Bridging switch, Max. transmission range sideways 4m, Max. transmission range frontally 4m, Diameter detection range on floor 4m, Response value luminosity adjustable, With signal unit, Suitable for ceiling mounting, Mounting method Other, Connection type Other, Material Plastic, Material quality Thermoplastic, Halogen free, Surface protection Other, Colour White, RAL-number (akin) 9010, Degree of protection (IP) IP54, Voltage type AC, Frequency 50 ... 60Hz, Nominal voltage 240V, Min. switch-on time 8s, Max. duty cycle 35min, Switch-off delay 480s, Detection angle horizontal 360 ... 360°, Pivoting range sensor, horizontal 20 ... 20°, Response value luminosity 2 ... 2000lx, Max. switching power 1000W, Suitable for C-load, Temperature -20 ... 40°C, Number of switching zones 306, Max. starting current 110A, Height 89mm, Depth 89mm, Diameter 78mm, Built-in length 58mm

More product images:

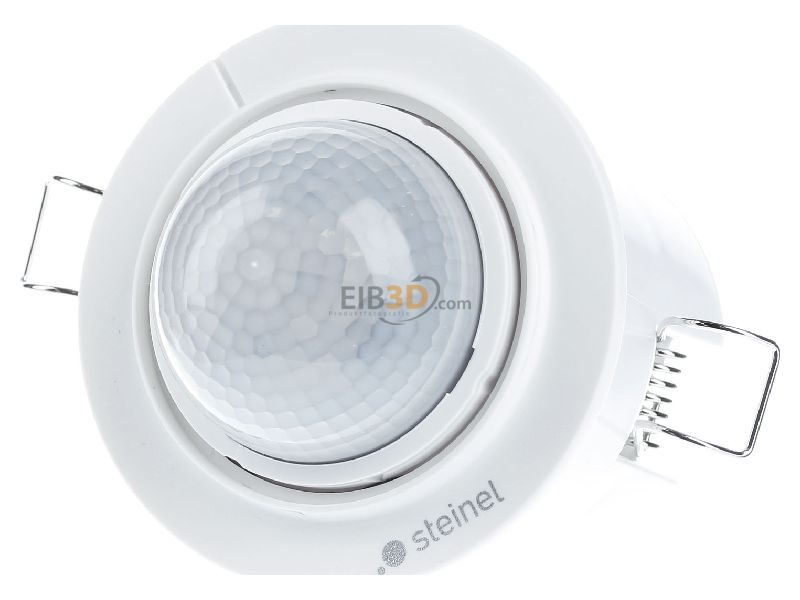

Front view Steinel IS 360-1 DE weiß Movement sensor 4m
Front view

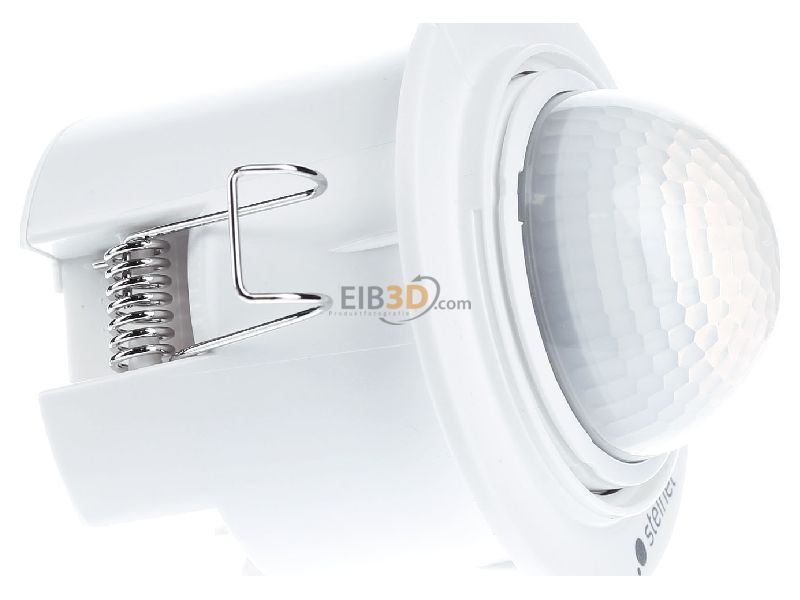

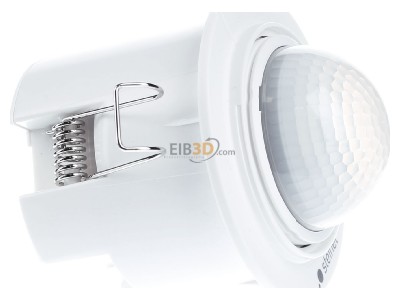

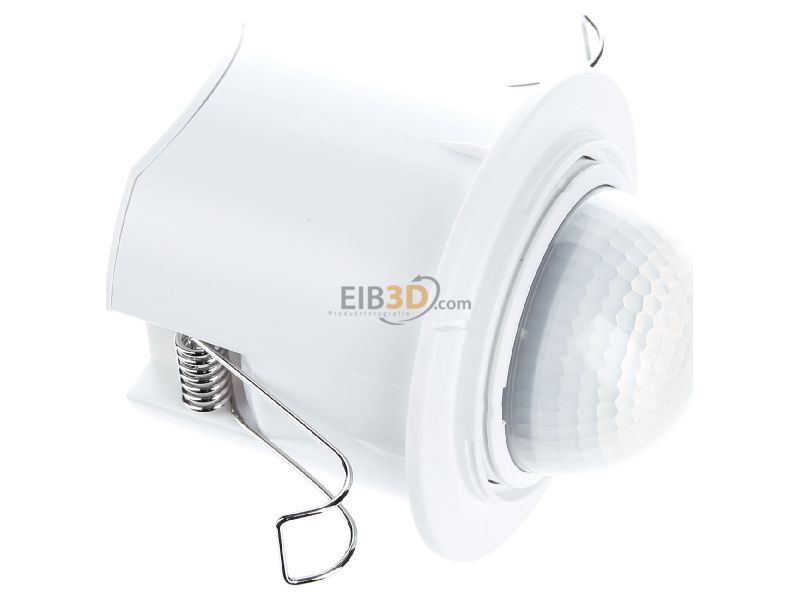

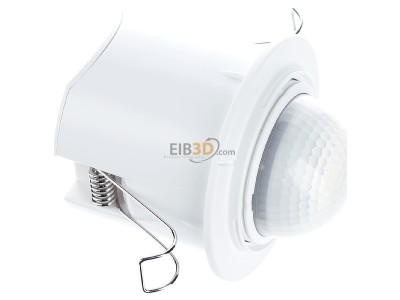

View on the left Steinel IS 360-1 DE weiß Movement sensor 4m
View on the left

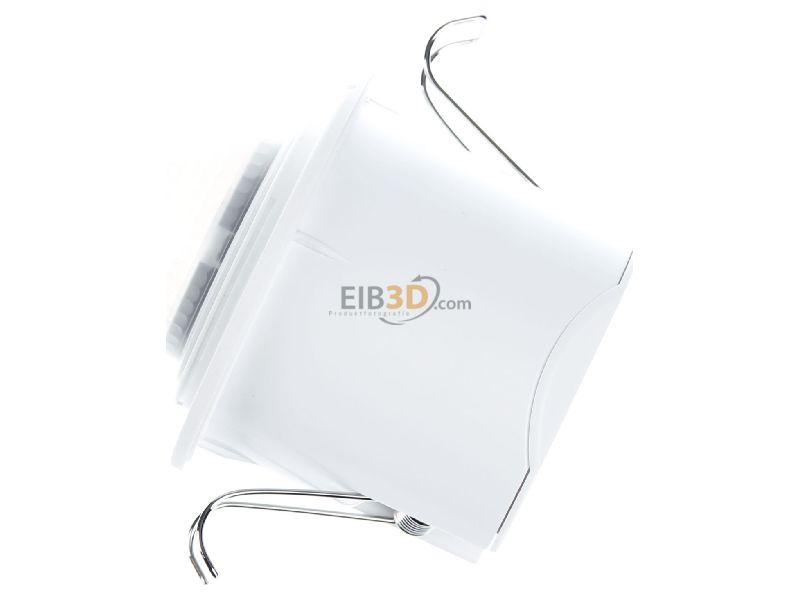

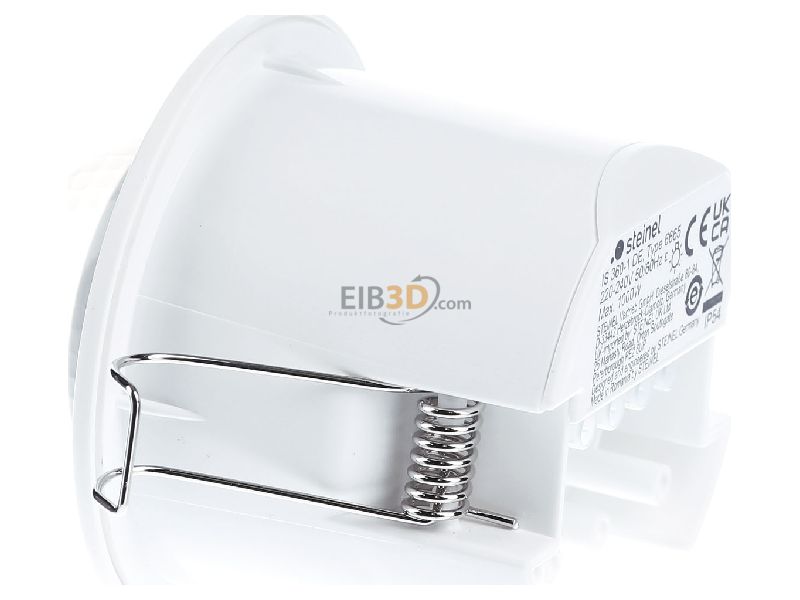

View on the right Steinel IS 360-1 DE weiß Movement sensor 4m
View on the right

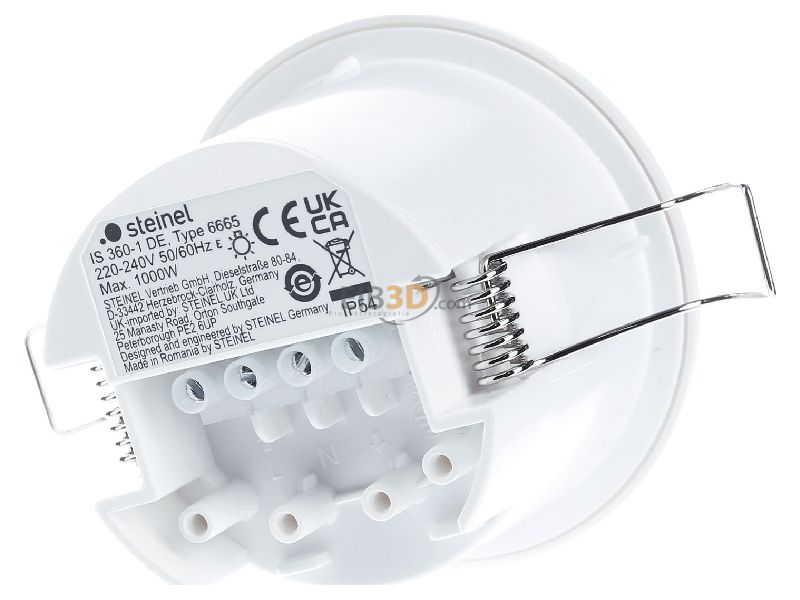

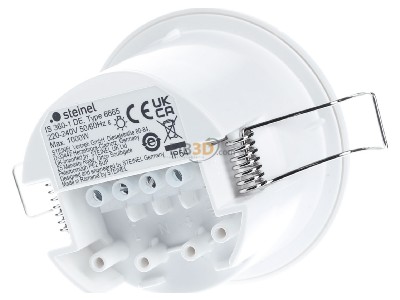

Back view Steinel IS 360-1 DE weiß Movement sensor 4m
Back view

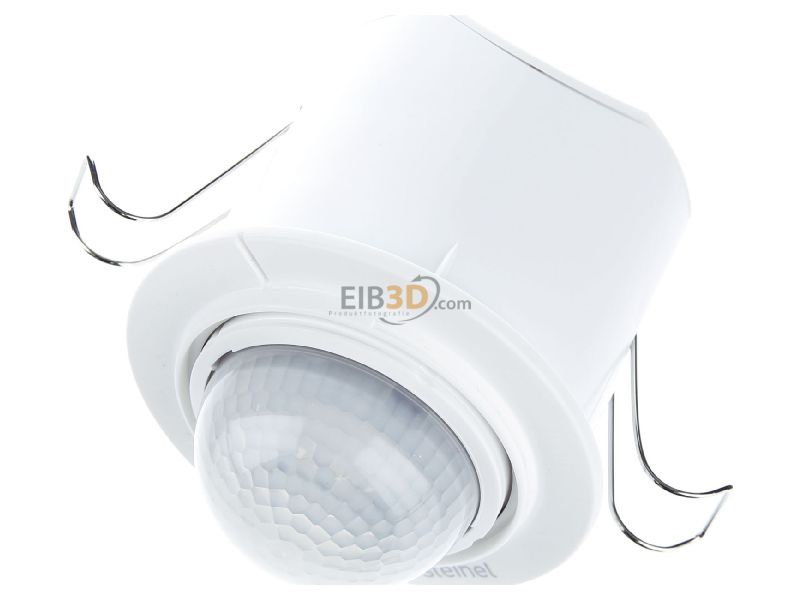

View up front Steinel IS 360-1 DE weiß Movement sensor 4m
View up front
View top left Steinel IS 360-1 DE weiß Movement sensor 4m
View top left

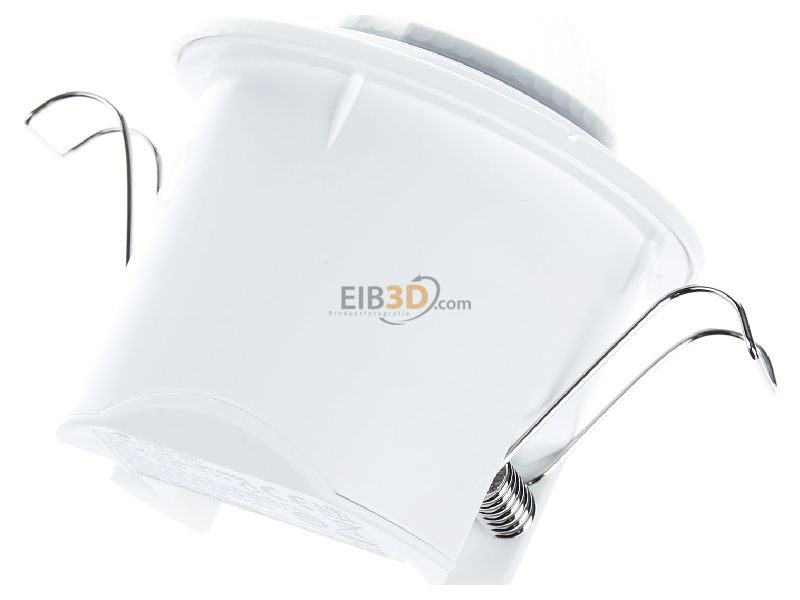

View top right Steinel IS 360-1 DE weiß Movement sensor 4m
View top right
Top rear view Steinel IS 360-1 DE weiß Movement sensor 4m
Top rear view

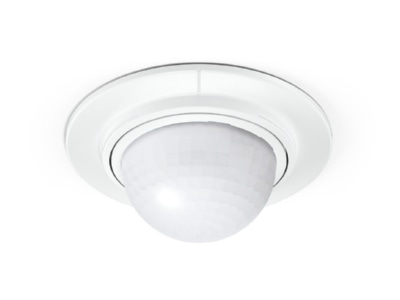

Product image Steinel IS 360 1 DE weiss Movement sensor 4m
Product image
Dimensional drawing Steinel IS 360 1 DE weiss Movement sensor 4m
Dimensional drawing
