Movement sensor 20m Sens IQ EVO schwarz
Source photo:
Steinel
(fig. might be different or similar)

Movement sensor 20m Sens IQ EVO schwarz

EAN/GTIN: 4007841029579
WEEE: DE 39896667
Manufacturer: Steinel
Manufacturer no.: Sens IQ EVO schwarz
Manufact.-SKU: 029579
Customs tariff no.: 85365080
Similar top items: Show now & compare
101,55 GBP Price incl. VAT (0,00 GBP)
plus shipping
Delivery time:
3-5 days [GB] Central warehouse item (regularly available) - live request to the central warehouse directly in the cart or click the link below the price >Quantity available?<
pce

We always deliver the latest available article version.
Minimum order value (UK): 150 EUR (Sub total)

Note:
The installation of electrical devices may only be carried out by an approved electrician and, in the case of high-voltage systems (> = 400V and country-specific nominal power), only with the consent of the respective electricity network operator.

Details

Accessory
bought
Useful
Interesting

Movement sensor 20m Model Movement sensor, Sensor type Passive infrared, Forced switch on, Forced switch off, Creep-under protection, Networkable, Optimum mounting height 2m, Staircase monitoring, Bridging switch, Max. transmission range sideways 20m, Max. transmission range frontally 20m, Diameter detection range on floor 8m, Remote operation, With remote control, Response value luminosity adjustable, With signal unit, Teach-function for response value luminosity, Suitable for wall mounting, Mounting method Surface mounted (plaster), Connection type Other, Material Plastic, Material quality Thermoplastic, Halogen free, Surface protection Other, Surface finishing Matt, Colour Black, RAL-number (akin) 9005, Degree of protection (IP) IP54, Voltage type AC, Frequency 50 ... 60Hz, Nominal voltage 240V, Min. switch-on time 5s, Max. duty cycle 15min, Switch-off delay 300s, Detection angle horizontal 300 ... 300°, Response value luminosity 2 ... 2000lx, Max. switching power 2500W, Suitable for C-load, Temperature -20 ... 50°C, Number of switching zones 1360, Max. starting current 110A, Substation input, Width 113mm, Height 172mm

More product images:

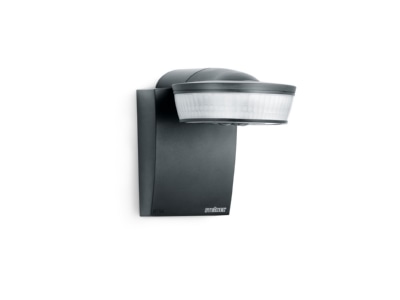

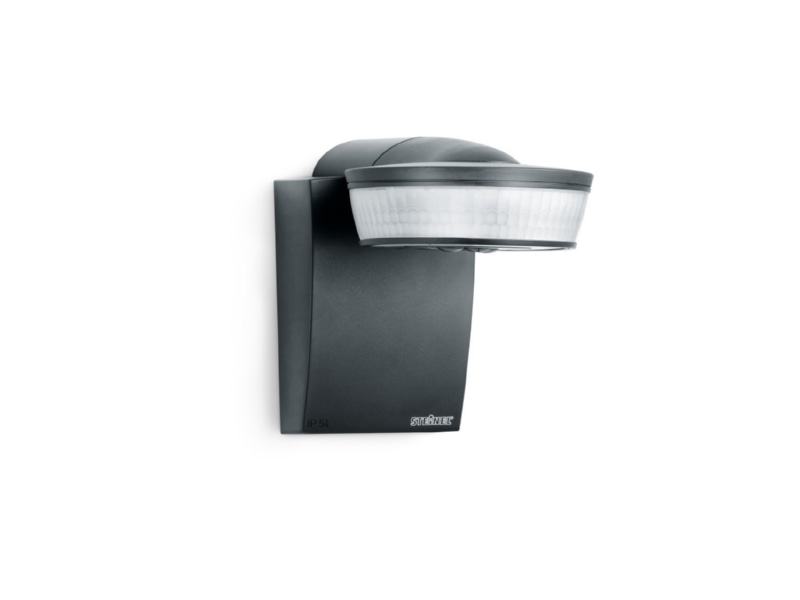

Product image Steinel Sens IQ EVO schwarz Movement sensor 20m
Product image

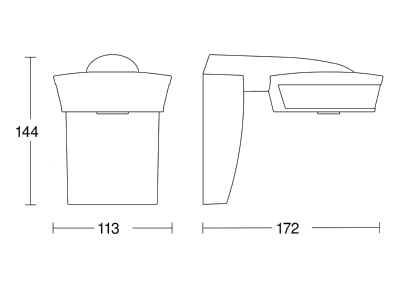

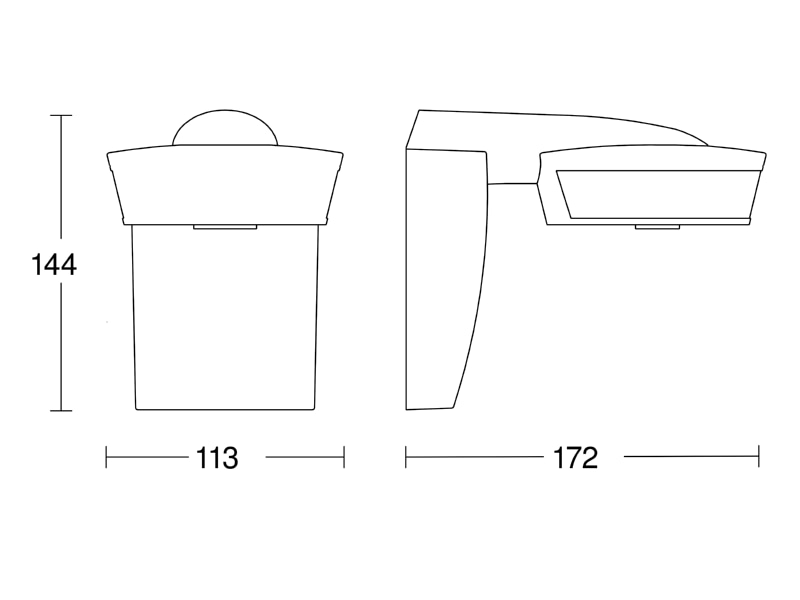

Dimensional drawing Steinel Sens IQ EVO schwarz Movement sensor 20m
Dimensional drawing
