Surface mounted terminal box 5x4mm² 8118/111-503

EAN/GTIN: 4046827010996
WEEE: DE 52376448
Manufacturer: Stahl
Manufacturer no.: 8118/111-503
Manufact.-SKU: 133248
Customs tariff no.: 85369095
Similar top items: Show now & compare
48,88 GBP Price incl. VAT (0,00 GBP)
plus shipping
Delivery time:
20-22 days [GB] Items to be procured that can be ordered (no central warehouse item) - live request to the central warehouse directly in the cart or click the link below the price >Quantity available?<
pce

We always deliver the latest available article version.
Minimum order value (UK): 150 EUR (Sub total)

Note:
The installation of electrical devices may only be carried out by an approved electrician and, in the case of high-voltage systems (> = 400V and country-specific nominal power), only with the consent of the respective electricity network operator.

Details

bought
Useful
Interesting

Surface mounted terminal box 5x4mm² Number of connection clamps 5, Max. conductor cross section 4mm², Length 85mm, Width 85mm, Depth 55mm, Mounting method Surface mounted (plaster), Number of inlets 4, Type of inlet Gland nut, Material Plastic, Surface protection Untreated, Colour Black, Degree of protection (IP) IP66, With cover, Cover attachment Screwed, Rated insulation voltage Ui 550V, Circuit integrity None, Working temperature 0 ... 95°C, Explosion-tested version, For Ex-zone gas 1, 2, For Ex-Zone dust 21, 22

More product images:

Front view Stahl 8118/111-503 Surface mounted terminal box 5x4mm²
Front view
View on the left Stahl 8118/111-503 Surface mounted terminal box 5x4mm²
View on the left
View on the right Stahl 8118/111-503 Surface mounted terminal box 5x4mm²
View on the right
Back view Stahl 8118/111-503 Surface mounted terminal box 5x4mm²
Back view
View up front Stahl 8118/111-503 Surface mounted terminal box 5x4mm²
View up front
View top left Stahl 8118/111-503 Surface mounted terminal box 5x4mm²
View top left
View top right Stahl 8118/111-503 Surface mounted terminal box 5x4mm²
View top right
Top rear view Stahl 8118/111-503 Surface mounted terminal box 5x4mm²
Top rear view
Product image Stahl 8118 111 503 Surface mounted terminal box 5x4mm
Product image

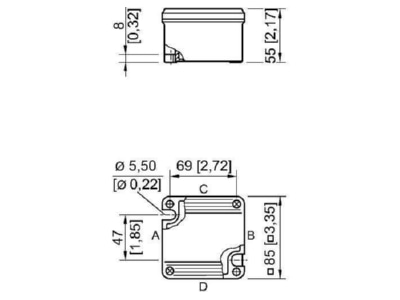

Dimensional drawing Stahl 8118 111 503 Surface mounted terminal box 5x4mm
Dimensional drawing
