Graphic panel TFT 15,6 6AV2128-3QB36-0AX1
Source photo:
Siemens Dig.Industr.
(fig. might be different or similar)

Graphic panel TFT 15,6 6AV2128-3QB36-0AX1

EAN/GTIN: 4047618128029
WEEE: DE 23691322
Manufacturer: Siemens Dig.Industr.
Manufacturer no.: 6AV2128-3QB36-0AX1
Customs tariff no.: 85371091
Similar top items: Show now & compare
2.931,79 GBP Price incl. VAT (0,00 GBP)
plus shipping
Delivery time:
13-15 days [GB] Items to be procured that can be ordered (no central warehouse item) - live request to the central warehouse directly in the cart or click the link below the price >Quantity available?<
pce

We always deliver the latest available article version.
Minimum order value (UK): 150 EUR (Sub total)

Note:
The installation of electrical devices may only be carried out by an approved electrician and, in the case of high-voltage systems (> = 400V and country-specific nominal power), only with the consent of the respective electricity network operator.

Details

Accessory
bought
Useful
Interesting

UnifiedComfort neutr.Front SIMATIC HMI MTP1500 6AV2128-3QB36-0AX1 Supply voltage at DC 19.2 ... 28.8V, voltage type of supply voltage DC, number of HW interfaces Industrial Ethernet 2, number of HW interfaces serial RS-232 0, Number of HW interfaces serial RS-422 0, number of HW interfaces serial RS-485 1, number of HW interfaces serial TTY 0, number of HW interfaces USB 4, number of HW interfaces parallel 0, number of HW -Interfaces wireless 0, number of HW interfaces other 0, supports protocol for TCP/IP, supports protocol for MODBUS, supports protocol for EtherNet/IP, supports protocol for other bus systems, design of the display TFT, with color display, number of colors of the Displays 16777216, screen diagonal 15.6 inches, number of pixels, horizontal 1366, number of pixels, vertical 768, with numeric keyboard, with alpha keyboard, with message display, with message system (incl. buffer and acknowledgment), process value display (output) possible, process value specification (input) possible, with recipes, with print output, number of online languages 32, additional software components, loadable, protection class (IP), front IP65, operating temperature 0 ... 50°C, width of the front 398mm, height of the front 257mm, Installation depth 73mm, SIMATIC HMI MTP1500, Unified Comfort Panel, neutral, touch operation, 15.6 widescreen TFT display, 16 MIO colors, PROFINET interface, configurable from WinCC Unified Comfort V16, contains open source software, which is provided free of charge, see enclosed DVD SIMATIC HMI Unified Comfort Panels enable innovative operating concepts based on the new SIMATIC WinCC Unified visualization software. All devices, ranging in size from 7 to 22 inches, offer the same number of interfaces as well as maximum ease of use thanks to modern multi-touch technology. The new hardware also offers significantly more performance for implementing the visualization. The system limits have been at least doubled, and in some cases even tripled. This enables the implementation of significantly larger applications than before on a panel system. The functionality of the devices can be easily expanded as required using the integrated edge functionality. To ensure the IT security of the devices, Siemens uses a proprietary operating system and allows the user to deactivate functions or interfaces that are not required. Each Unified Comfort Panel is available in two design variants. Standard design: Siemens and SIMATIC HMI branding and with a silver aluminum frame. Neutral design: Without branding and with a black aluminum frame.

More product images:

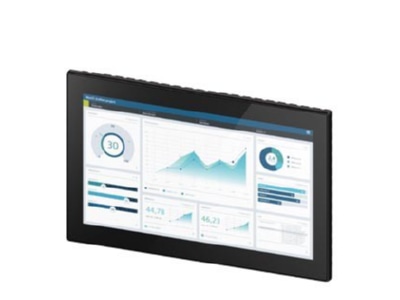

Product image 1 Siemens Dig Industr  6AV2128 3QB36 0AX1 Graphic panel TFT 15 6
Product image 1

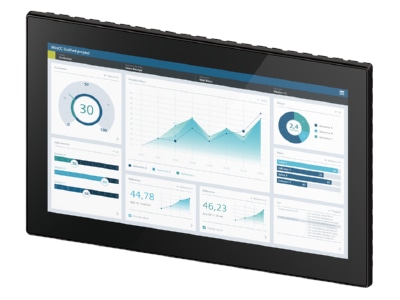

Product image 2 Siemens Dig Industr  6AV2128 3QB36 0AX1 Graphic panel TFT 15 6
Product image 2

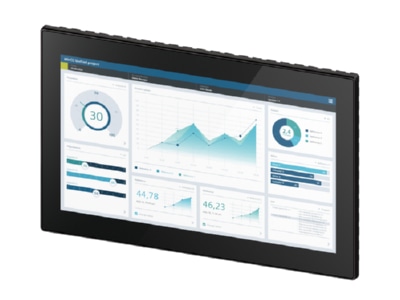

Product image 3 Siemens Dig Industr  6AV2128 3QB36 0AX1 Graphic panel TFT 15 6
Product image 3
