Transformer kilowatt-hour meter 5A METSEPM5561

EAN/GTIN: 3606480614071
WEEE: DE 33842582
Manufacturer: Schneider Electric
Manufacturer no.: METSEPM5561
Customs tariff no.: 90283090
Similar top items: Show now & compare
628,45 GBP Price incl. VAT (0,00 GBP)
plus shipping
Delivery time:
13-15 days [GB] Items to be procured that can be ordered (no central warehouse item) - live request to the central warehouse directly in the cart or click the link below the price >Quantity available?<
pce

We always deliver the latest available article version.
Minimum order value (UK): 150 EUR (Sub total)

Note:
The installation of electrical devices may only be carried out by an approved electrician and, in the case of high-voltage systems (> = 400V and country-specific nominal power), only with the consent of the respective electricity network operator.

Details

bought
Useful
Interesting

Type of meter=Electronic, Nominal current (In)=5 A, Max. current (Imax)=10 A, Nominal voltage (Un) N-L=20..400 V, Nominal voltage (Un) L-L=35..690 V, Frequency=45..65 Hz, Accuracy class=C, Pole type=Three conductor/four conductor, Model=Measurement transformer, Energy type=Effective power and blind power, Suitable for=Purchase/supply, Tariff type=Multi-tariff, Tariff control=Internal/external, Measurement type load profile=yes, Calibrated=no, Approval=Measuring Instruments Directive, Pulse output=Optic, Pulse type=S0, Pulse rate=1..10000000 Imp/kWh (kvarh), Type of indication=Digital, Mounting method=Front mounting, Type of interface=RS-485, EEC40 signature=no, With lock code=no, Degree of protection (IP)=IP52, Degree of protection (NEMA)=1

More product images:

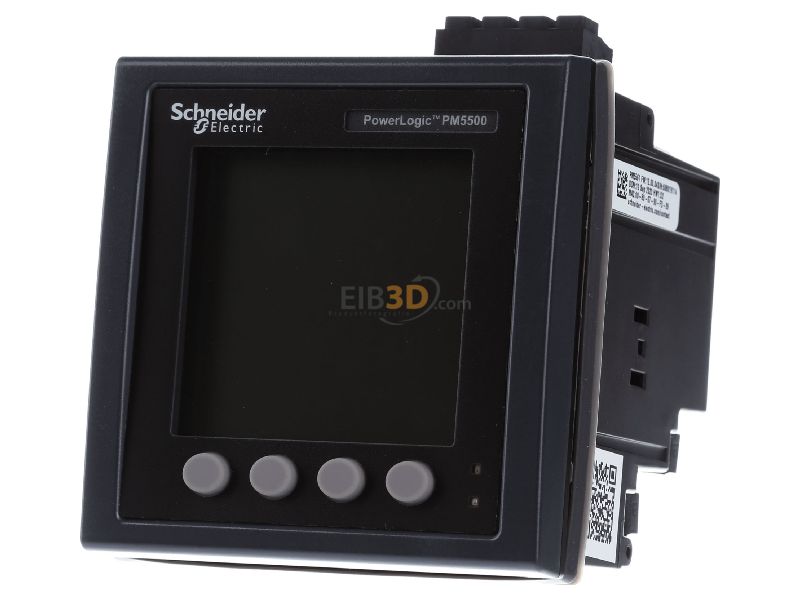

Front view Schneider Electric METSEPM5561 Transformer kilowatt-hour meter 5A
Front view

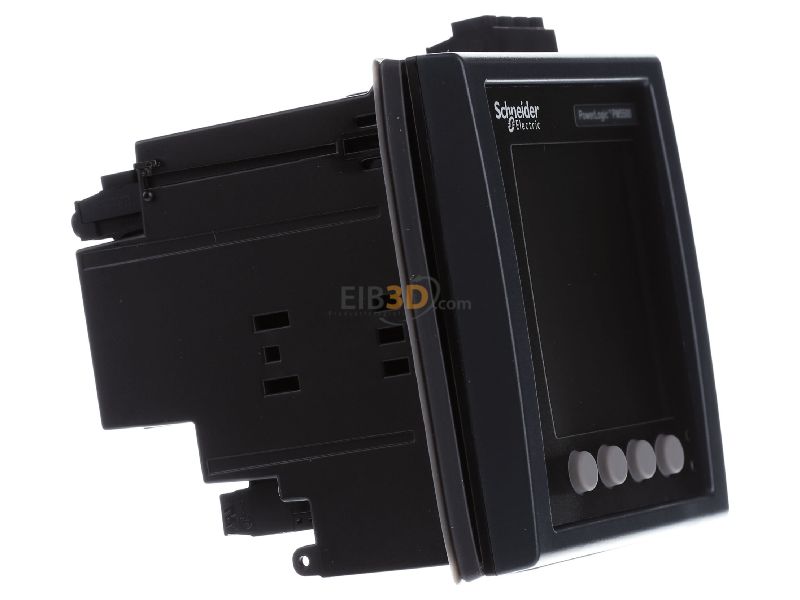

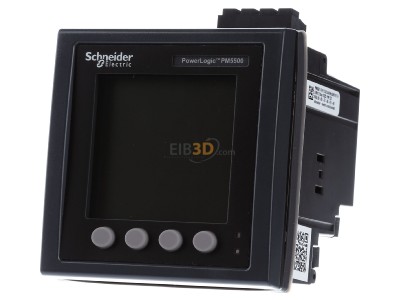

View on the left Schneider Electric METSEPM5561 Transformer kilowatt-hour meter 5A
View on the left

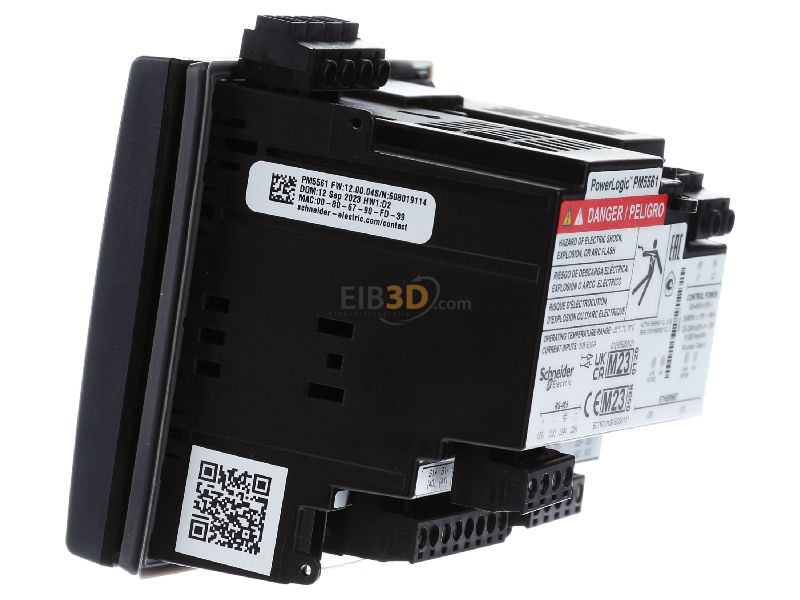

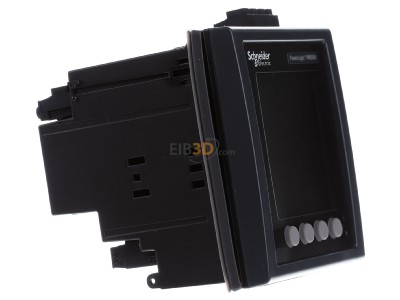

View on the right Schneider Electric METSEPM5561 Transformer kilowatt-hour meter 5A
View on the right

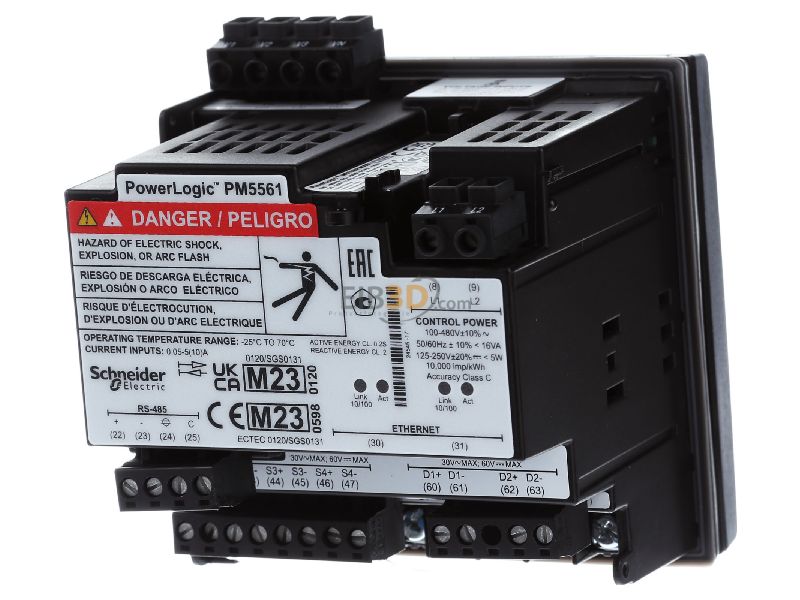

Back view Schneider Electric METSEPM5561 Transformer kilowatt-hour meter 5A
Back view

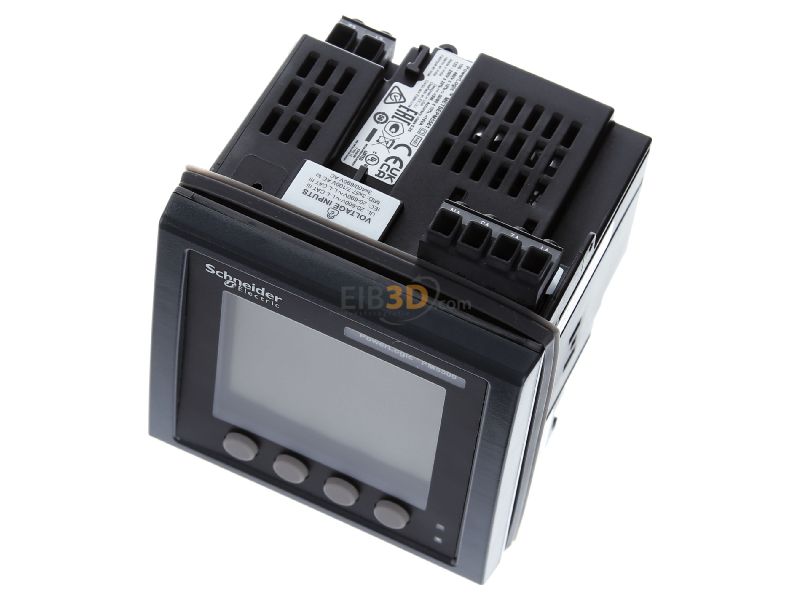

View up front Schneider Electric METSEPM5561 Transformer kilowatt-hour meter 5A
View up front

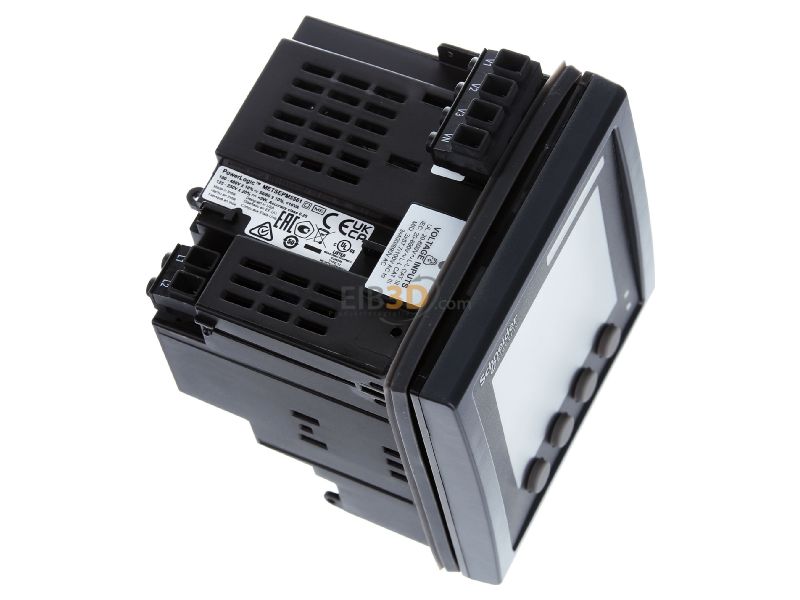

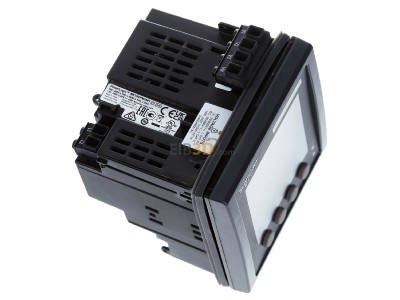

View top left Schneider Electric METSEPM5561 Transformer kilowatt-hour meter 5A
View top left

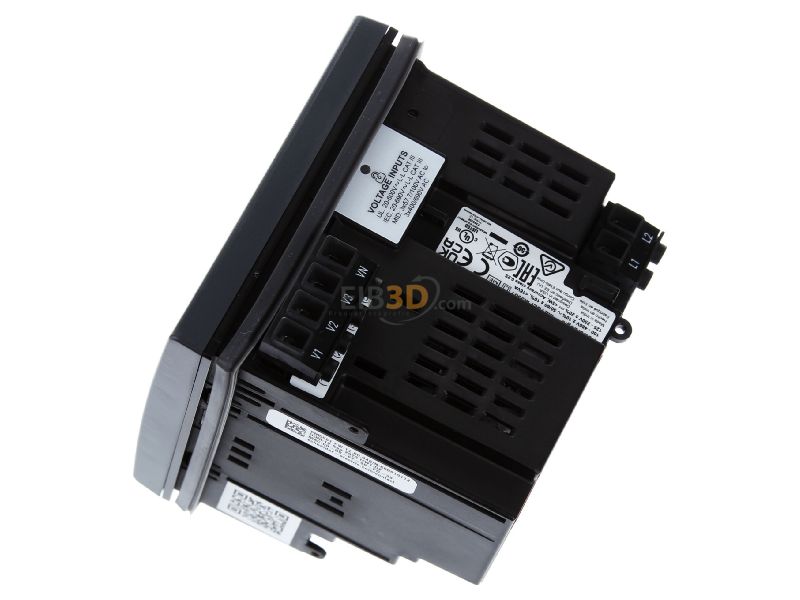

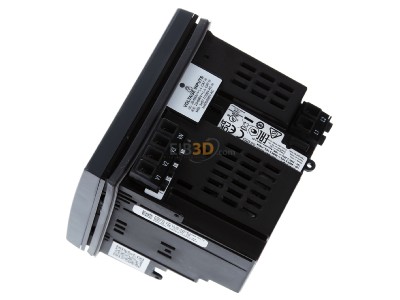

View top right Schneider Electric METSEPM5561 Transformer kilowatt-hour meter 5A
View top right

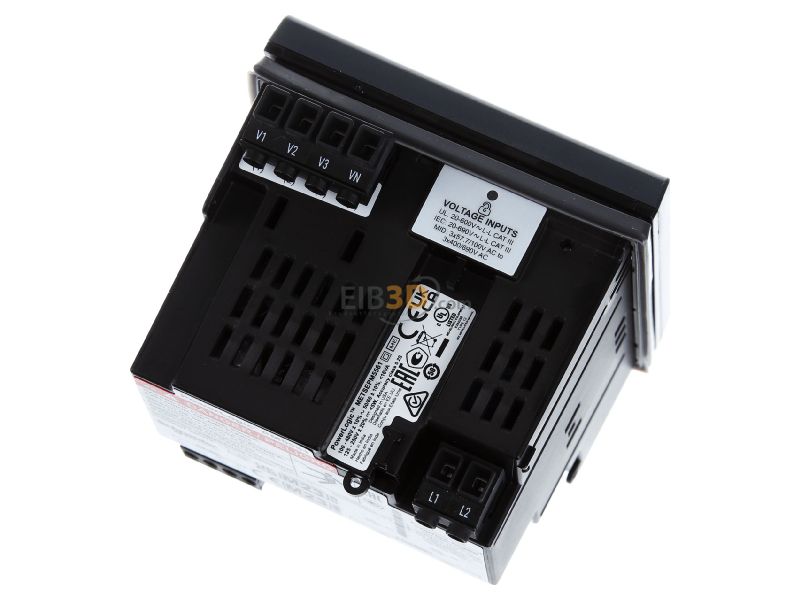

Top rear view Schneider Electric METSEPM5561 Transformer kilowatt-hour meter 5A
Top rear view
