Source photo: www.EIB3D.com

Safety switch 3-p 7,5kW VCD0

EAN/GTIN: 3389110724875
WEEE: DE 33842582
Manufacturer: Schneider Electric
Manufacturer no.: VCD0
Customs tariff no.: 85365080
Similar top items: Show now & compare
19,02 GBP Price incl. VAT (0,00 GBP)
plus shipping
Delivery time:
13-15 days [GB] Items to be procured that can be ordered (no central warehouse item) - live request to the central warehouse directly in the cart or click the link below the price >Quantity available?<
pce

We always deliver the latest available article version.
Minimum order value (UK): 150 EUR (Sub total)

Note:
The installation of electrical devices may only be carried out by an approved electrician and, in the case of high-voltage systems (> = 400V and country-specific nominal power), only with the consent of the respective electricity network operator.

Details

Accessory
bought
Useful
Interesting

Version as main switch yes, Version as maintenance/repair switch no, Version as safety switch no, Version as emergency stop device yes, Version as reversing switch no, Number of switches 1, Max. rated operating voltage Ue for AC 690V, Rated operating voltage 0..690 V, Rated continuous current Iu 25 A, Rated uninterrupted current at AC-23, 400 V 14.5 A, Rated continuous current for AC-21, 400 V 25 A, Rated operational power for AC-3, 400V 5.5 kW, Rated short-time withstand current Icw 0.3 kA, Conditional rated short-circuit current Iq 10 kA, Number of poles 3, Motor drive optional no, Motor drive integrated no, Shunt release optional no, Device construction Built-in device fixed-mounted design, Suitable for ground mounting no, Suitable for front mounting 4-hole no, Suitable for front mounting central yes, Suitable for distributor installation no, Suitable for intermediate construction no, Color of the actuating element red, Lockable yes, Connection type main circuit Screw, Degree of protection (IP), front side IP65

More product images:

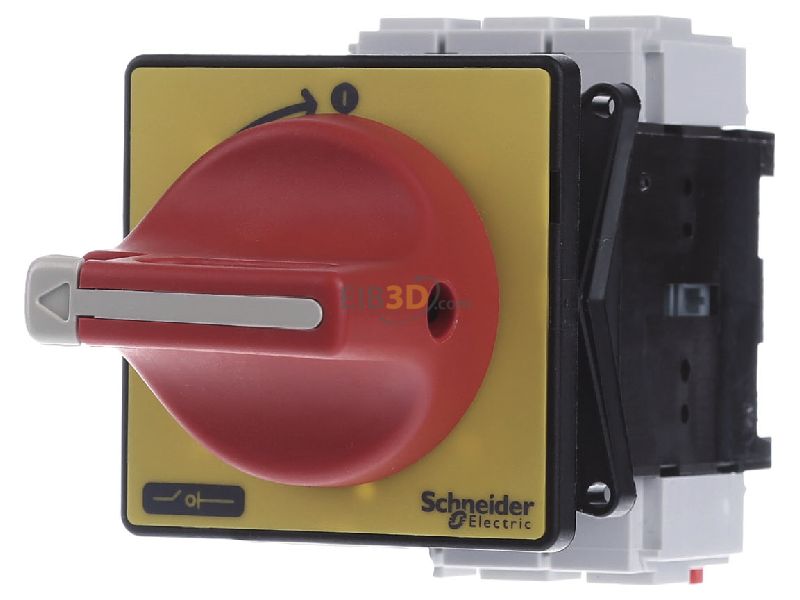

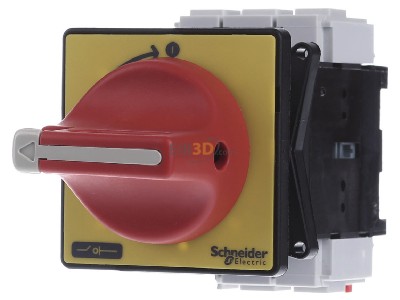

Front view Schneider Electric VCD0 Safety switch 3-p 7,5kW
Front view

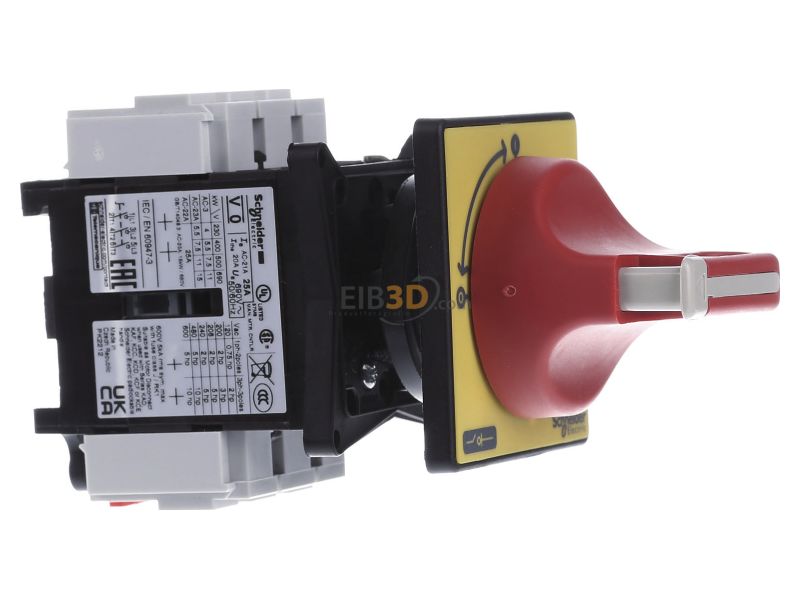

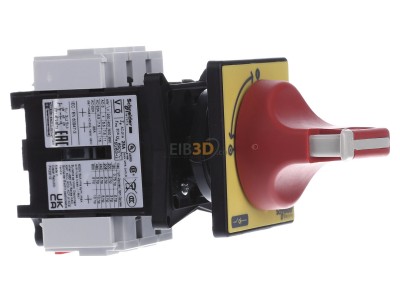

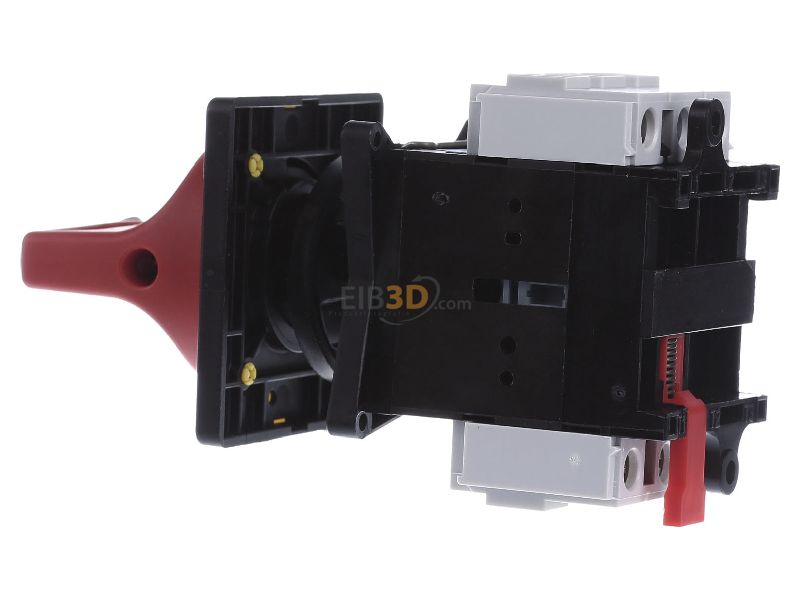

View on the left Schneider Electric VCD0 Safety switch 3-p 7,5kW
View on the left

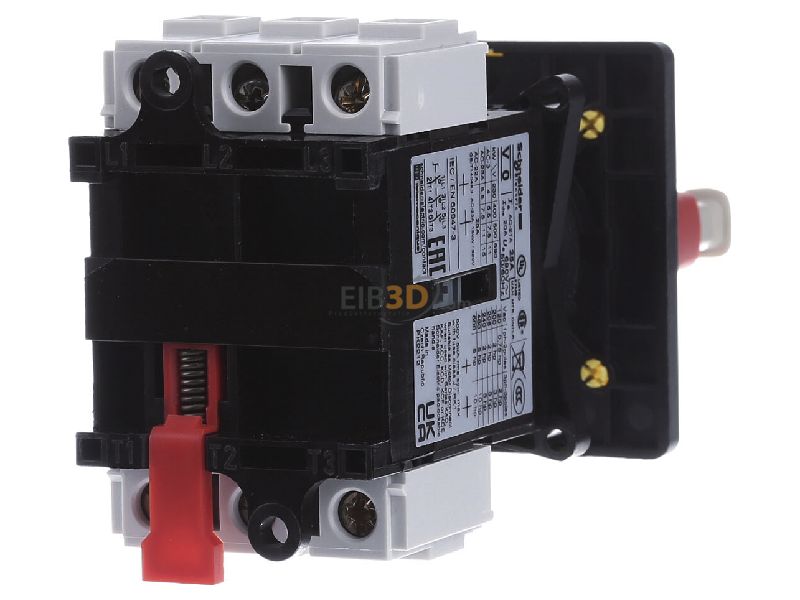

View on the right Schneider Electric VCD0 Safety switch 3-p 7,5kW
View on the right
Back view Schneider Electric VCD0 Safety switch 3-p 7,5kW
Back view

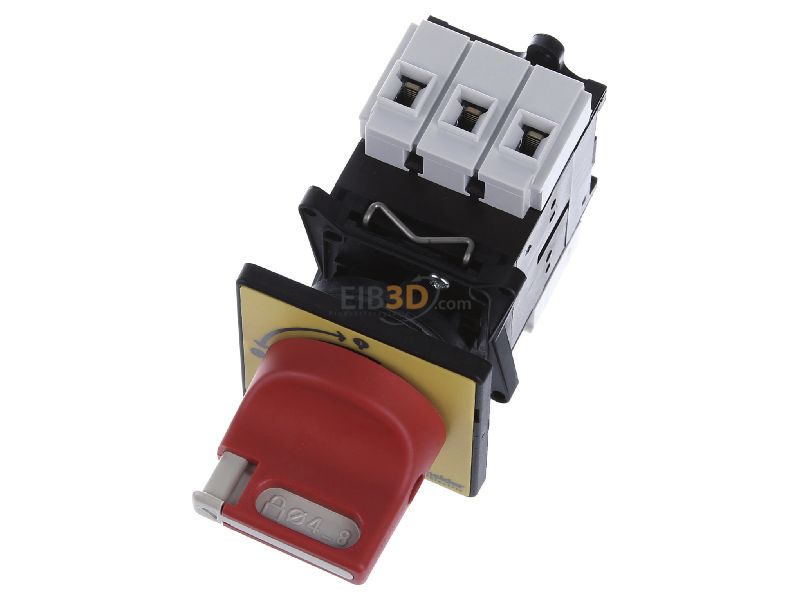

View up front Schneider Electric VCD0 Safety switch 3-p 7,5kW
View up front

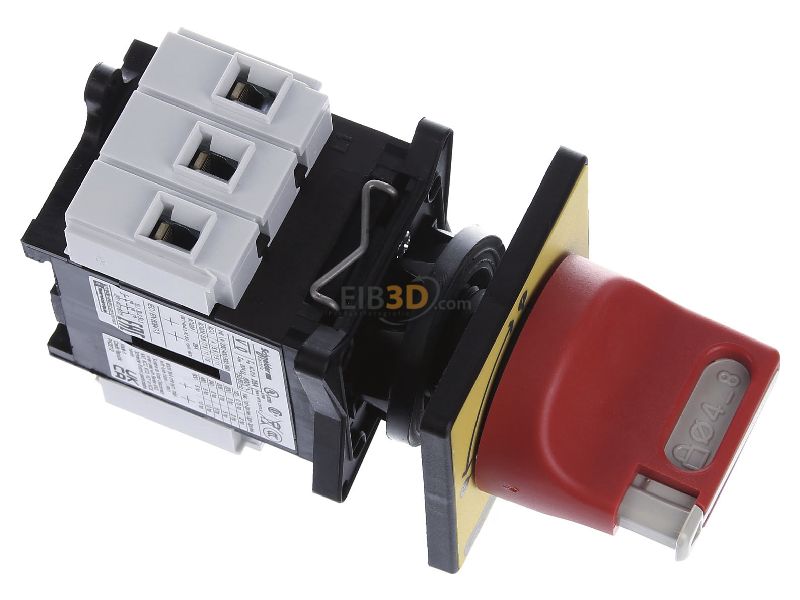

View top left Schneider Electric VCD0 Safety switch 3-p 7,5kW
View top left

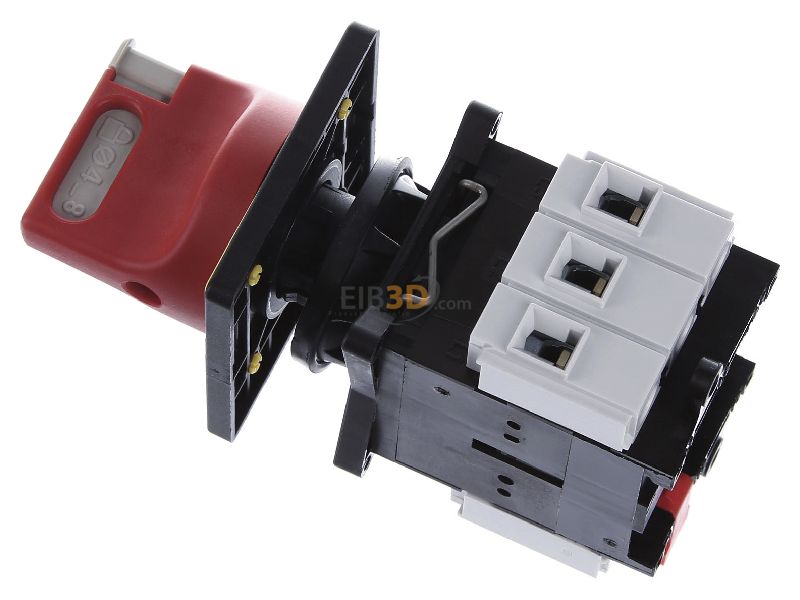

View top right Schneider Electric VCD0 Safety switch 3-p 7,5kW
View top right

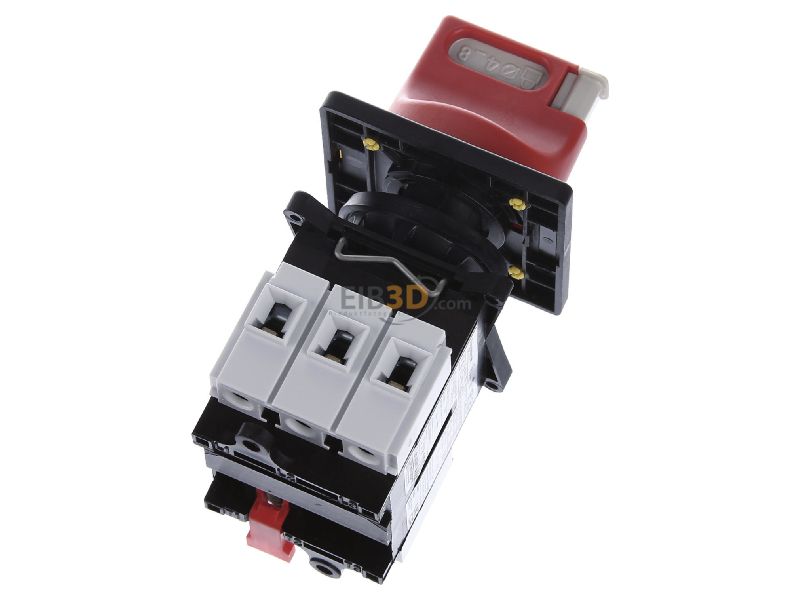

Top rear view Schneider Electric VCD0 Safety switch 3-p 7,5kW
Top rear view
