Source photo: www.EIB3D.com

Rail terminal bar 1-p screwless clamp LVS04031

EAN/GTIN: 3606481870865
WEEE: DE 33842582
Manufacturer: Schneider Electric
Manufacturer no.: LVS04031
Customs tariff no.: 85369010
Similar top items: Show now & compare
9,94 GBP Price incl. VAT (0,00 GBP)
plus shipping
Delivery time:
13-15 days [GB] Items to be procured that can be ordered (no central warehouse item) - live request to the central warehouse directly in the cart or click the link below the price >Quantity available?<
pce

We always deliver the latest available article version.
Minimum order value (UK): 150 EUR (Sub total)

Note:
The installation of electrical devices may only be carried out by an approved electrician and, in the case of high-voltage systems (> = 400V and country-specific nominal power), only with the consent of the respective electricity network operator.

Details

Accessory
bought
Useful
Interesting

PrismaSeT-P, Linergy DX distribution block, 1-pole LVS04031 number of poles 1, rated current 160A, connection type screwless, mounting type DIN rail, touch-safe, height 95mm, width 36mm, depth 70mm, PrismaSeT P. Linergy DX distribution block 1-pole with a permissible current of up to 160 A with feed terminals up to 70 mm² and output-side connection capacity for cables of 6 x 16 mm², with a rated surge current strength (Ipk) of 24 kA. Rated short-circuit current (Isc) 150 kA with feed-side protection of 150 kA (Icc), rated insulation voltage (Ui) 750 V AC, rated voltage (Ue) 690 V AC, rated impulse withstand voltage (Uimp) 8 kV. with protection class IPxxB for mounting on a DIN rail with a width of 2 module units (18 mm), a height of 95 mm and a depth of 70 mm.

More product images:

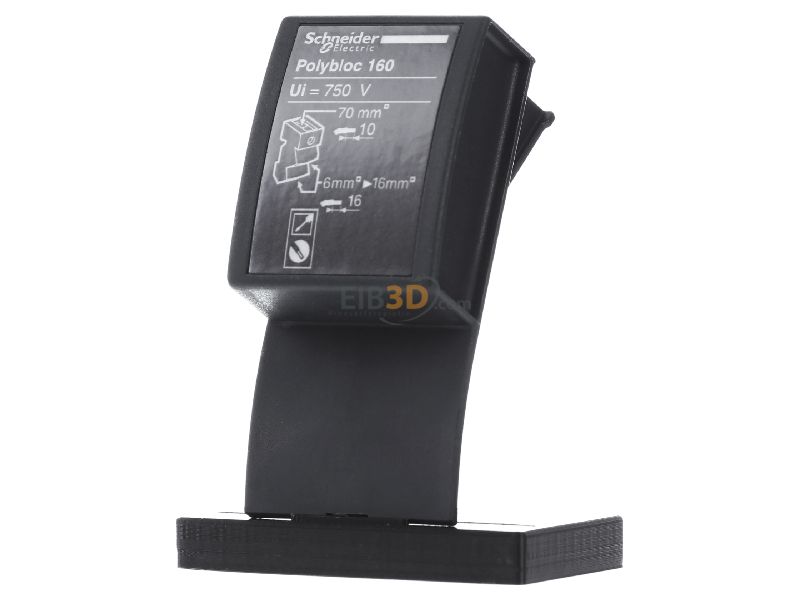

Front view Schneider Electric LVS04031 Rail terminal bar 1-p screwless clamp
Front view

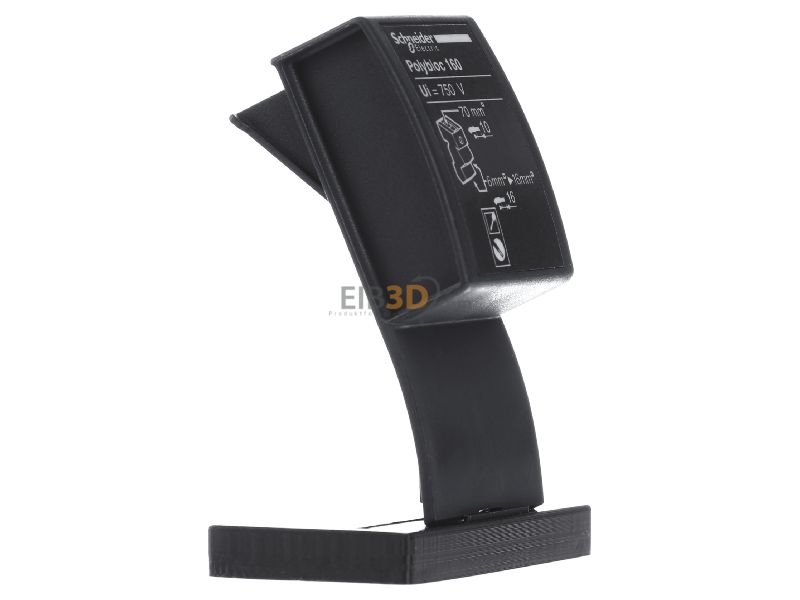

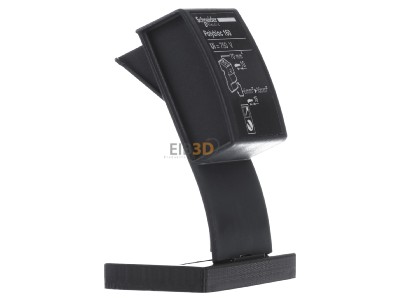

View on the left Schneider Electric LVS04031 Rail terminal bar 1-p screwless clamp
View on the left

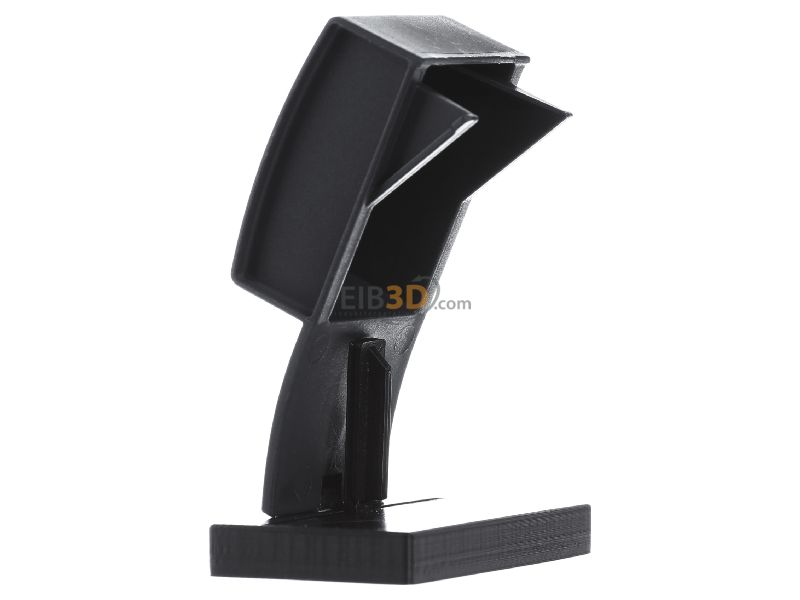

View on the right Schneider Electric LVS04031 Rail terminal bar 1-p screwless clamp
View on the right

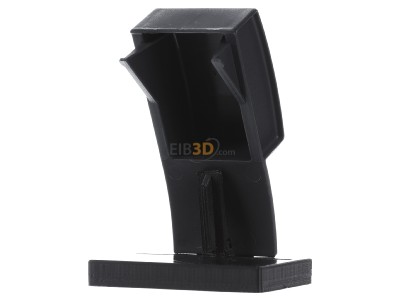

Back view Schneider Electric LVS04031 Rail terminal bar 1-p screwless clamp
Back view

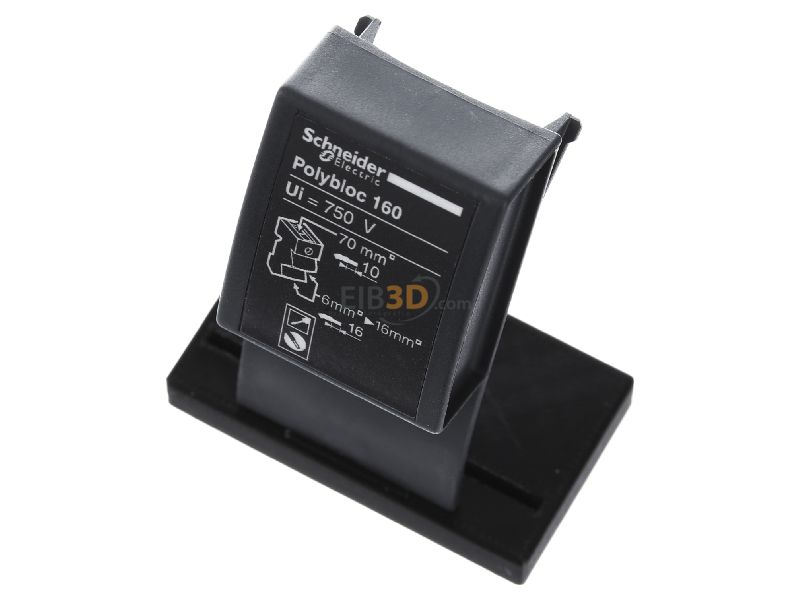

View up front Schneider Electric LVS04031 Rail terminal bar 1-p screwless clamp
View up front

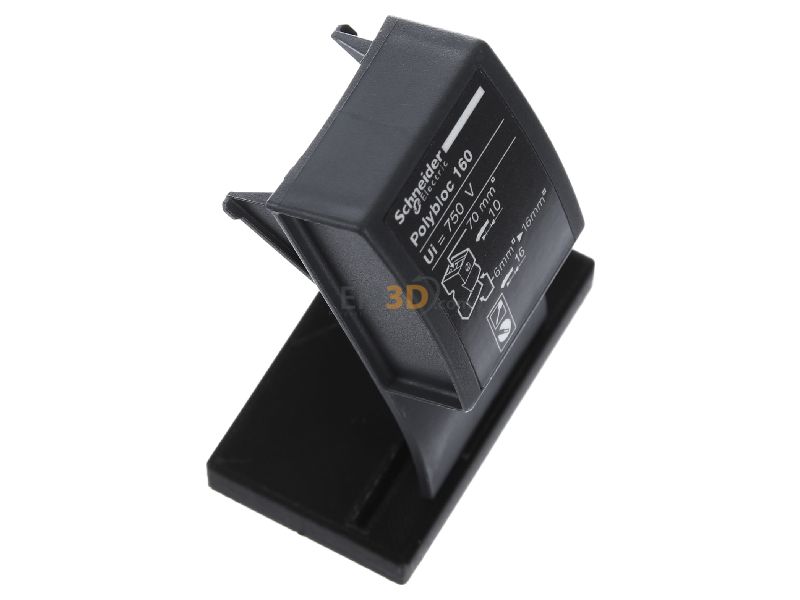

View top left Schneider Electric LVS04031 Rail terminal bar 1-p screwless clamp
View top left

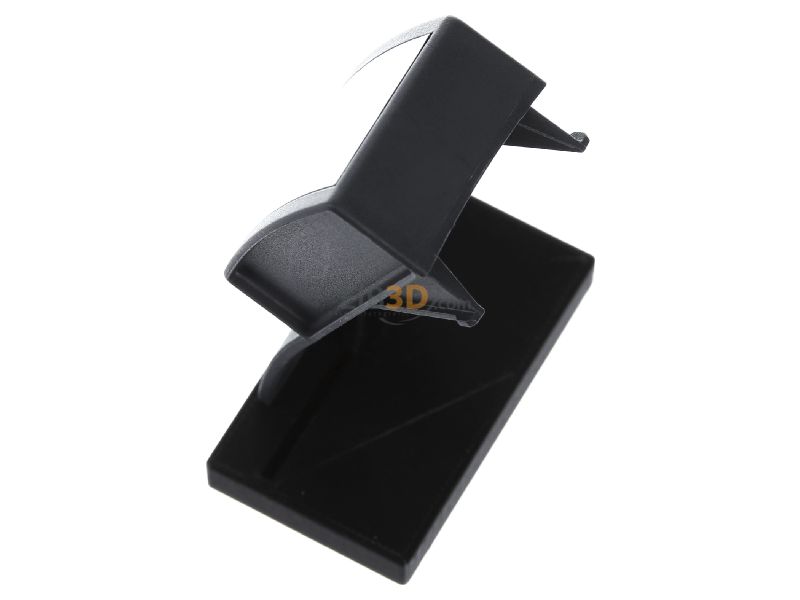

View top right Schneider Electric LVS04031 Rail terminal bar 1-p screwless clamp
View top right

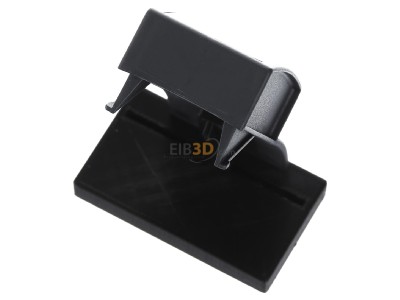

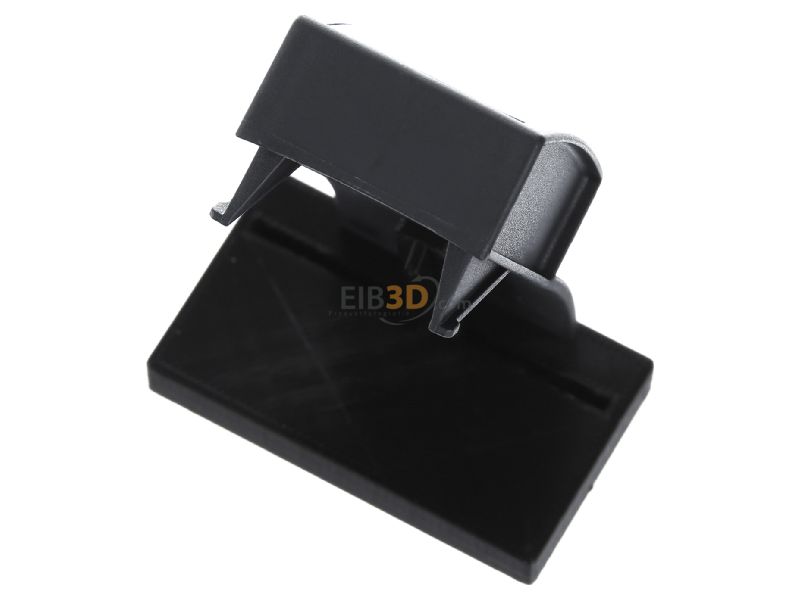

Top rear view Schneider Electric LVS04031 Rail terminal bar 1-p screwless clamp
Top rear view
