Earth leakage circuit breaker B16/0,03A R9D01616

EAN/GTIN: 3606489661977
WEEE: DE 33842582
Manufacturer: Schneider Electric
Manufacturer no.: R9D01616
Customs tariff no.: 85362010
Similar top items: Show now & compare
22,40 GBP Price incl. VAT (0,00 GBP)
plus shipping
Delivery time:
3-5 days [GB] Central warehouse item (regularly available) - live request to the central warehouse directly in the cart or click the link below the price >Quantity available?<
pce

We always deliver the latest available article version.
Minimum order value (UK): 150 EUR (Sub total)

Note:
The installation of electrical devices may only be carried out by an approved electrician and, in the case of high-voltage systems (> = 400V and country-specific nominal power), only with the consent of the respective electricity network operator.

Details

bought
Useful
Interesting

Earth leakage circuit breaker B16/0,03A Number of poles (total) 2, Number of protected poles 1, Rated voltage 230V, Rated current 16A, Rated fault current 0,03A, Leakage current type A, Rated short-circuit breaking capacity Icn acc. EN 61009-1 6kA, Disconnection characteristic Undelayed, Voltage type AC, Frequency 50/60 Hz, Release characteristic B, Concurrently switching N-neutral, With interlocking device, Over voltage category 3, Ambient temperature during operating -25 ... 40°C, Width in number of modular spacings 2, Degree of protection (IP) IP20, Connectable conductor cross section solid-core 1 ... 25mm², Connectable conductor cross section multi-wired 1 ... 16mm²

More product images:

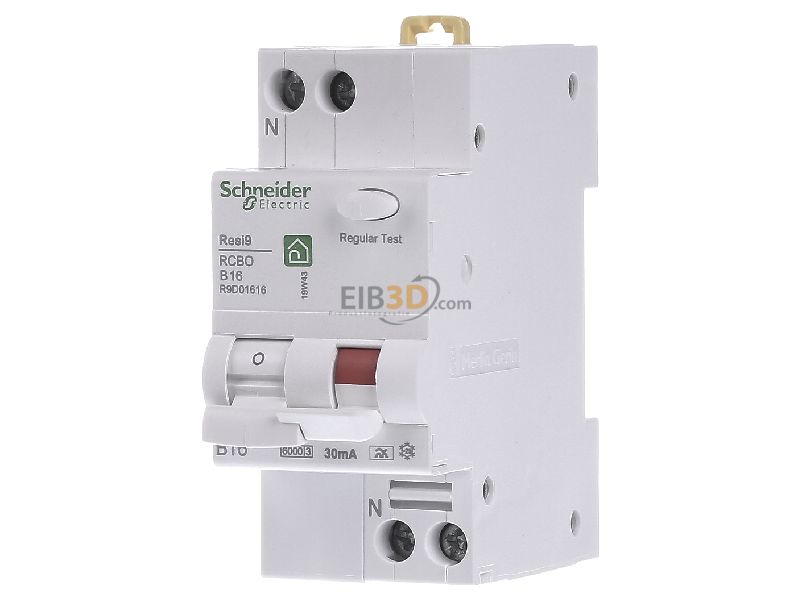

Front view Schneider Electric R9D01616
Front view

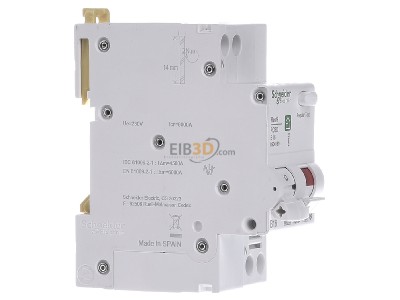

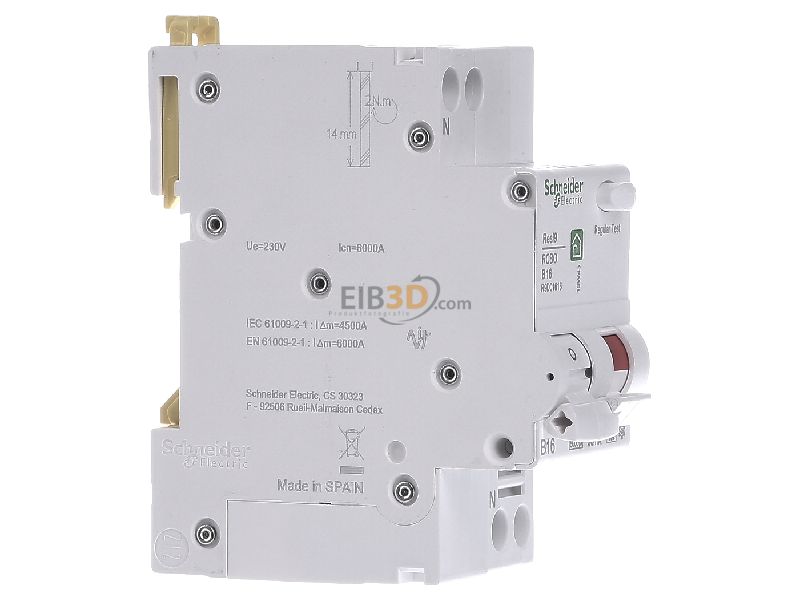

View on the left Schneider Electric R9D01616
View on the left

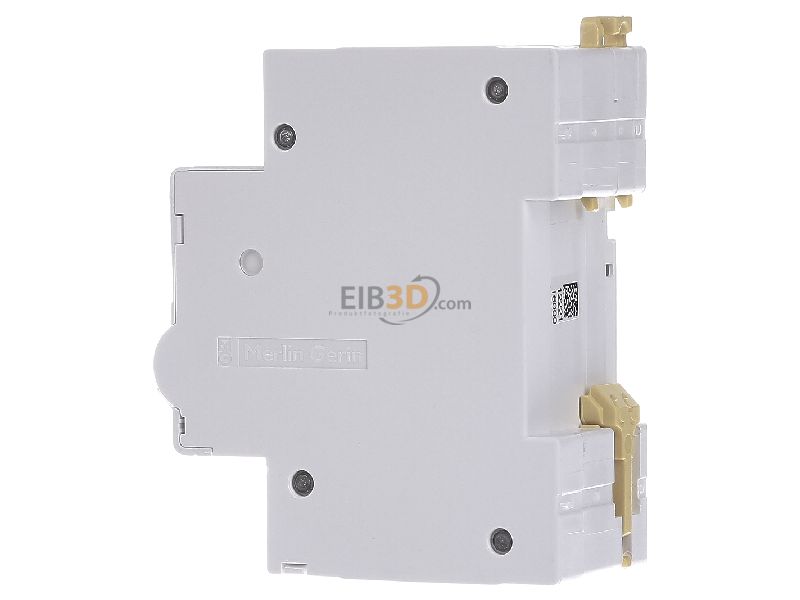

View on the right Schneider Electric R9D01616
View on the right

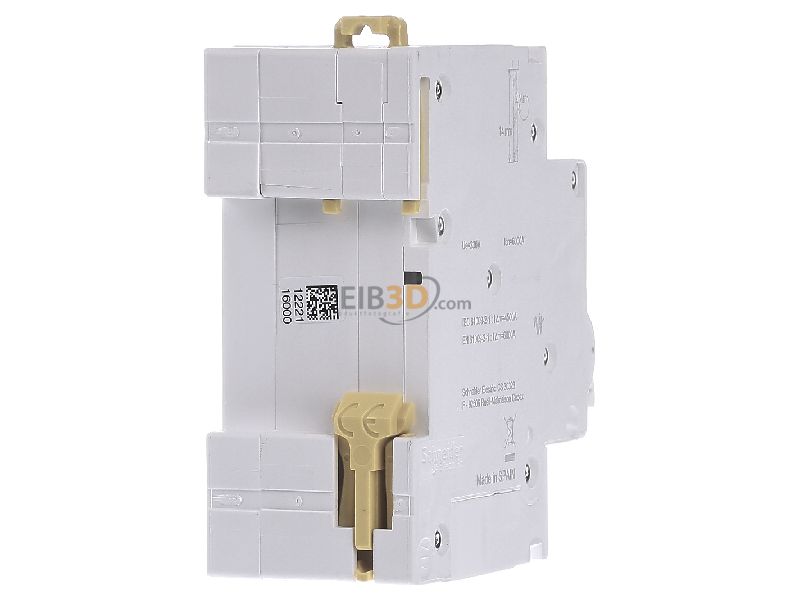

Back view Schneider Electric R9D01616
Back view

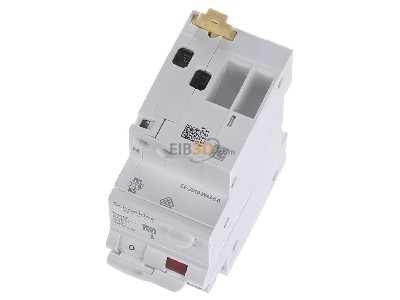

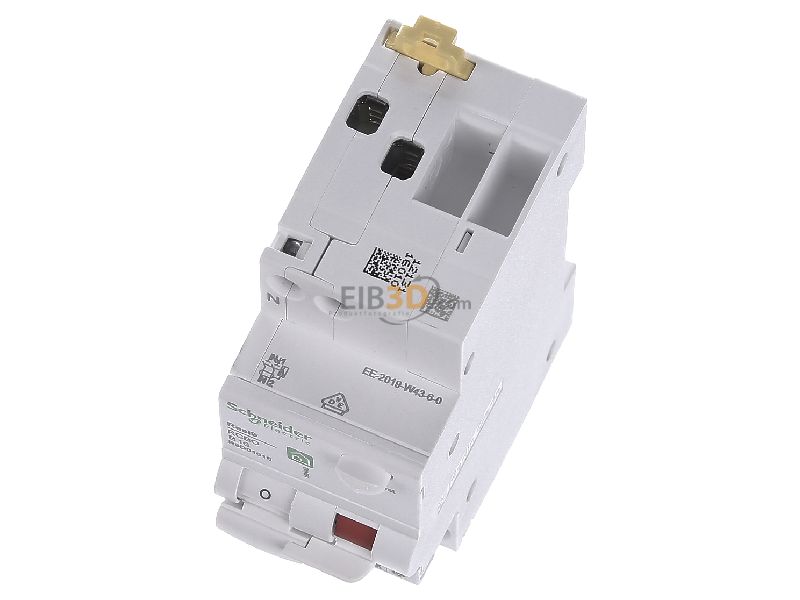

View up front Schneider Electric R9D01616
View up front

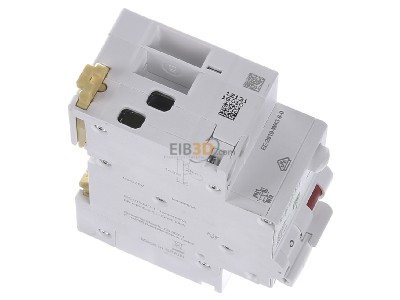

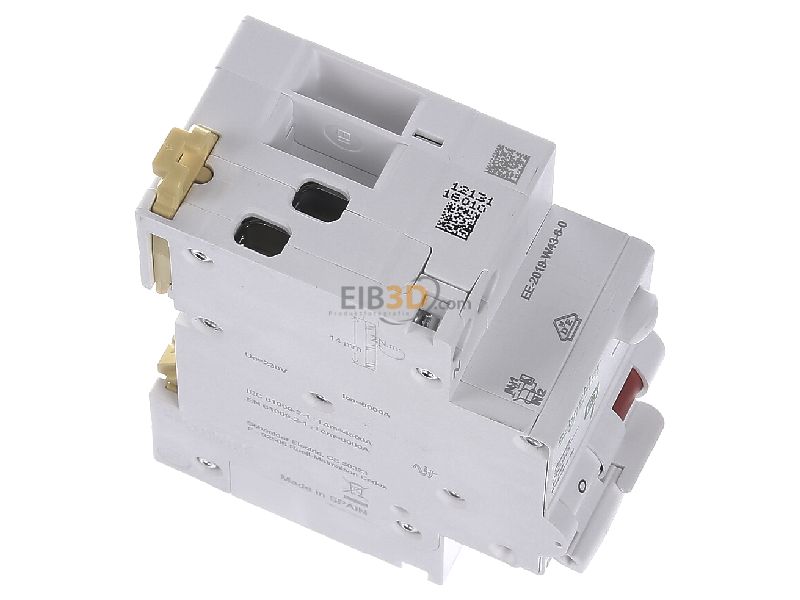

View top left Schneider Electric R9D01616
View top left

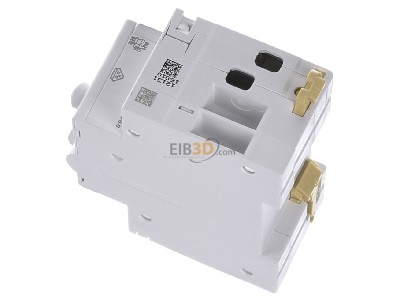

View top right Schneider Electric R9D01616
View top right

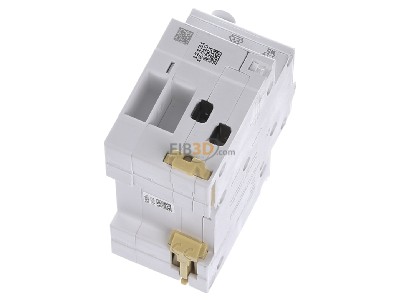

Top rear view Schneider Electric R9D01616
Top rear view
