Source photo: www.EIB3D.com

Plunger switch IP67 TS 236-11Z-M20

EAN/GTIN: 4030661166711
WEEE: DE 24486642
Manufacturer: Schmersal
Manufacturer no.: TS 236-11Z-M20
Manufact.-SKU: 151152880
Customs tariff no.: 85365080
Similar top items: Show now & compare
21,48 GBP Price incl. VAT (0,00 GBP)
plus shipping
Delivery time:
13-15 days [GB] Items to be procured that can be ordered (no central warehouse item) - live request to the central warehouse directly in the cart or click the link below the price >Quantity available?<
pce

We always deliver the latest available article version.
Minimum order value (UK): 150 EUR (Sub total)

Note:
The installation of electrical devices may only be carried out by an approved electrician and, in the case of high-voltage systems (> = 400V and country-specific nominal power), only with the consent of the respective electricity network operator.

Details

bought
Useful
Interesting

Width sensor=30 mm, Height of sensor=73,5 mm, Length of sensor=30 mm, Rated operation current Ie at AC-15, 230 V=4 A, Rated operation current Ie at DC-13, 24 V=1 A, Switching function=Slow-action switch, Output electronic=no, Forced opening=yes, Number of safety auxiliary contacts=2, Number of contacts as normally closed contact=1, Number of contacts as normally open contact=1, Type of interface=None, Type of interface for safety communication=None, Construction type housing=Cuboid, Material housing=Plastic, Coating housing=Other, Type of control element=Plunger, Alignment of the control element=Other, Type of electric connection=Cable entry metrical, With status indication=no, Suitable for safety functions=no, Explosion safety category for gas=None, Explosion safety category for dust=None, Ambient temperature during operating=-30..80 °C, Degree of protection (IP)=IP67

More product images:

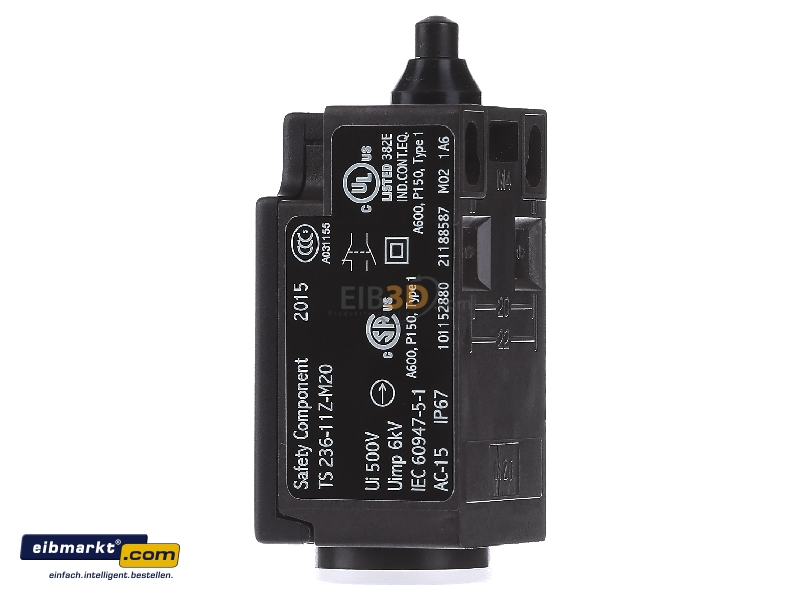

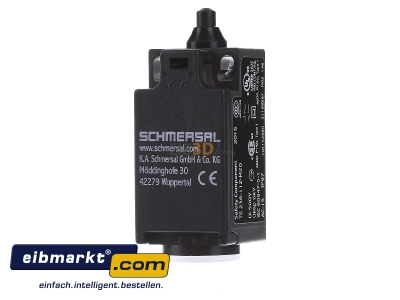

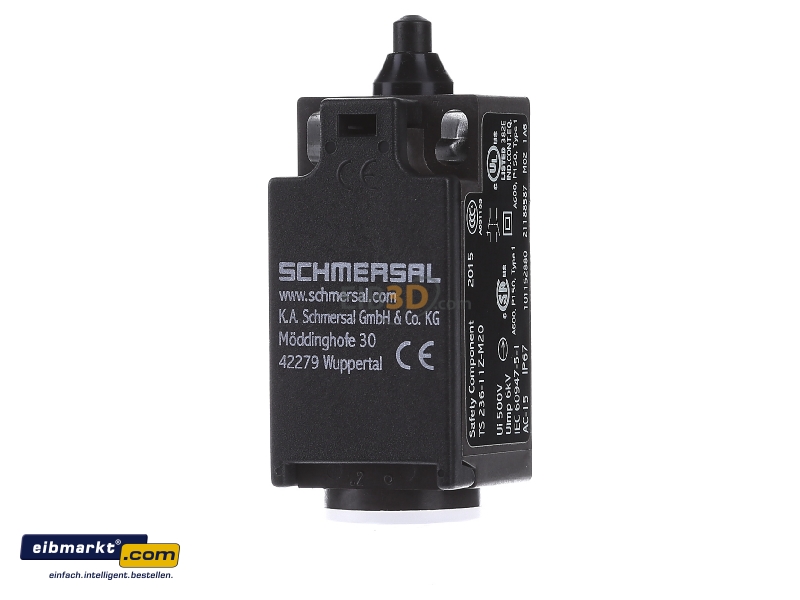

Front view Schmersal TS 236-11Z-M20 End switch -
Front view

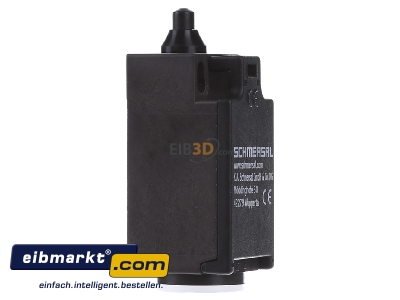

View on the left Schmersal TS 236-11Z-M20 End switch -
View on the left

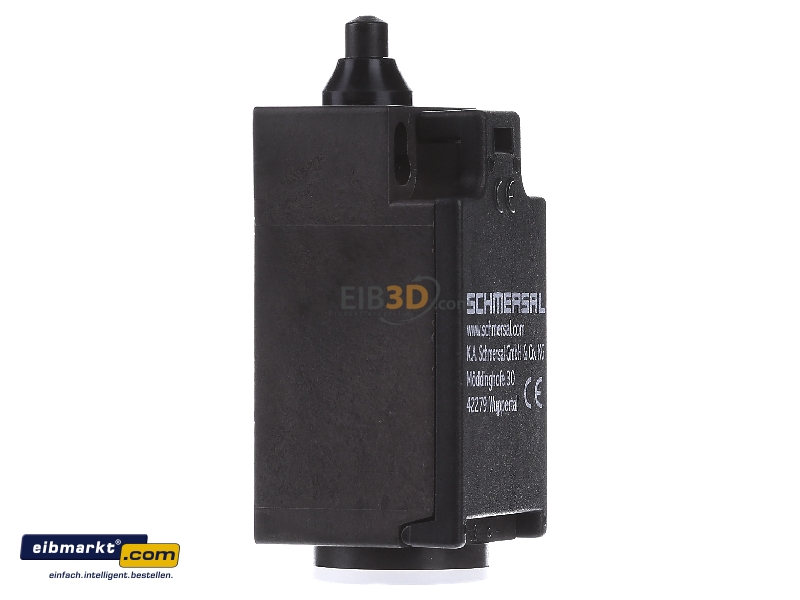

View on the right Schmersal TS 236-11Z-M20 End switch -
View on the right

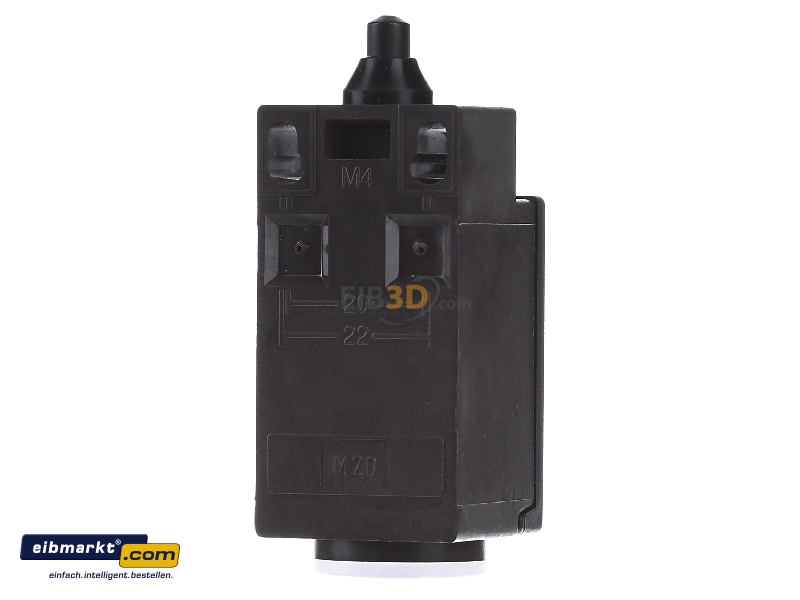

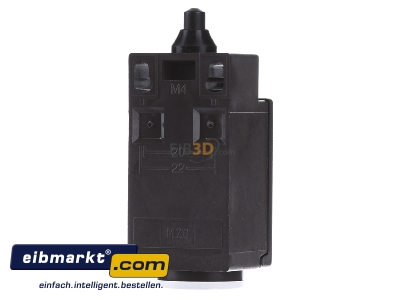

Back view Schmersal TS 236-11Z-M20 End switch -
Back view

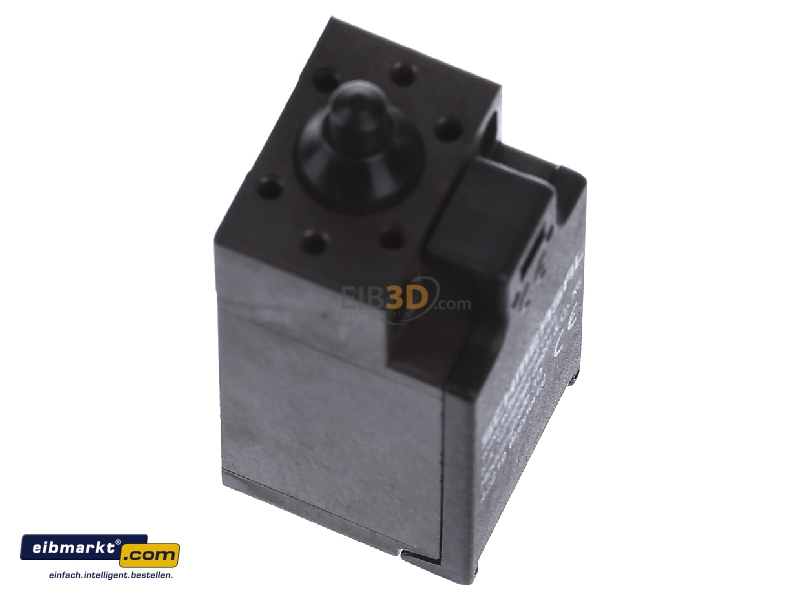

View up front Schmersal TS 236-11Z-M20 End switch -
View up front

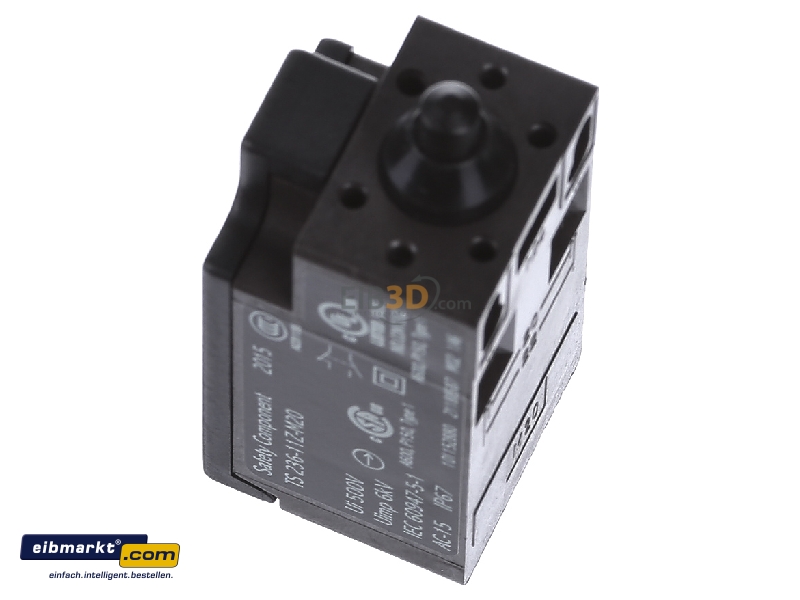

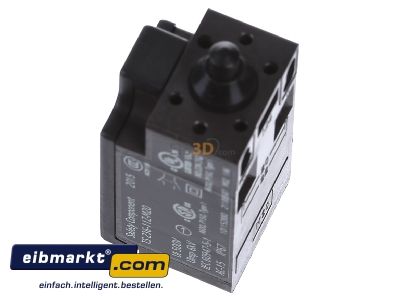

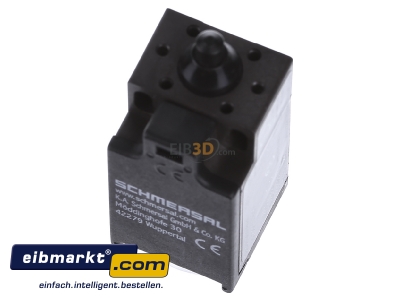

View top left Schmersal TS 236-11Z-M20 End switch -
View top left

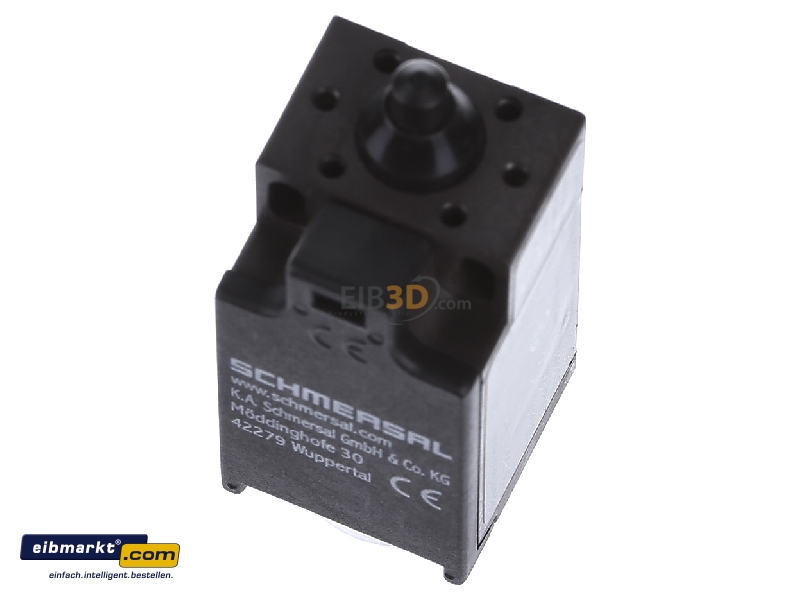

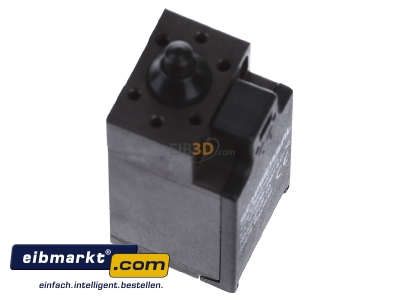

View top right Schmersal TS 236-11Z-M20 End switch -
View top right

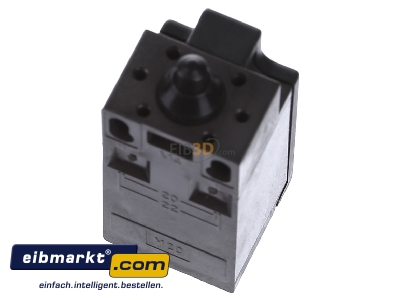

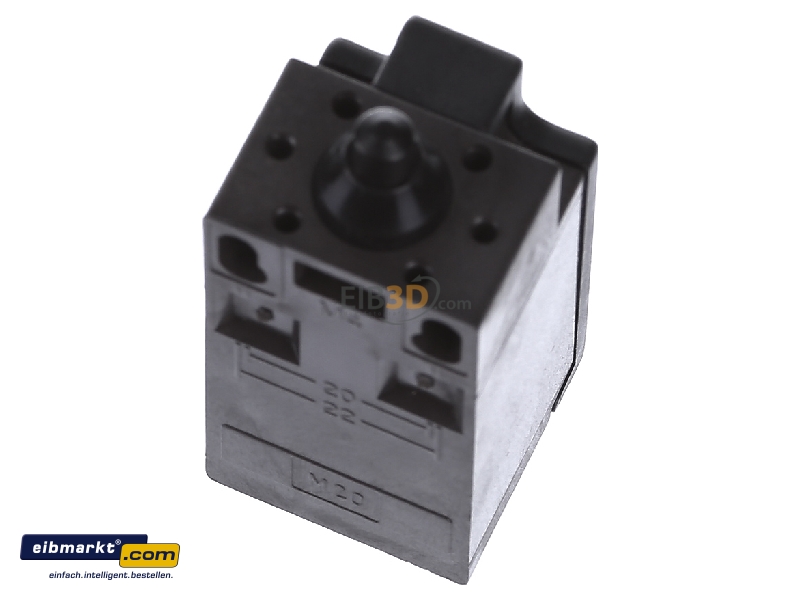

Top rear view Schmersal TS 236-11Z-M20 End switch -
Top rear view
