Earth leakage circuit breaker 5SV1316-6KK06

EAN/GTIN: 4001869557748
WEEE: DE 23691322
Manufacturer: SIEMENS
Manufacturer no.: 5SV1316-6KK06
Customs tariff no.: 85362010
Similar top items: Show now & compare
37,74 GBP Price incl. VAT (0,00 GBP)
plus shipping
Delivery time:
13-15 days [GB] Items to be procured that can be ordered (no central warehouse item) - live request to the central warehouse directly in the cart or click the link below the price >Quantity available?<
pce

We always deliver the latest available article version.
Minimum order value (UK): 150 EUR (Sub total)

Note:
The installation of electrical devices may only be carried out by an approved electrician and, in the case of high-voltage systems (> = 400V and country-specific nominal power), only with the consent of the respective electricity network operator.

Details

Accessory
bought
Useful
Interesting

Earth leakage circuit breaker Number of poles (total) 2, Number of protected poles 1, Rated voltage 230V, Rated impulse withstand voltage Uimp 4kV, Rated current 6A, Rated fault current 0,03A, Leakage current type A, Current limiting class 3, Rated short-circuit breaking capacity acc. EN 61009 6kA, Rated short-circuit breaking capacity IEC 60947-2 35kA, Rated short-circuit breaking capacity Icn acc. EN 61009-1 6kA, Disconnection characteristic Undelayed, Surge current capacity 1kA, Voltage type AC, Release characteristic B, Concurrently switching N-neutral, With interlocking device, Over voltage category 3, Pollution degree 2, Ambient temperature during operating -25 ... 45°C, Width in number of modular spacings 1, Built-in depth 70mm, Suitable for flush-mounted installation, Anti-nuisance tripping version, Degree of protection (IP) IP20, Connectable conductor cross section solid-core 0,75 ... 16mm², Connectable conductor cross section multi-wired 0,75 ... 16mm²

More product images:

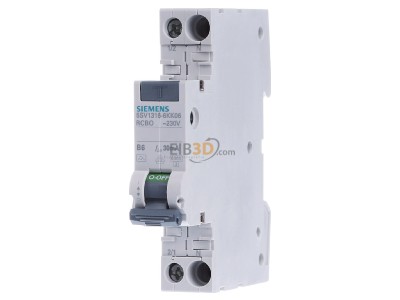

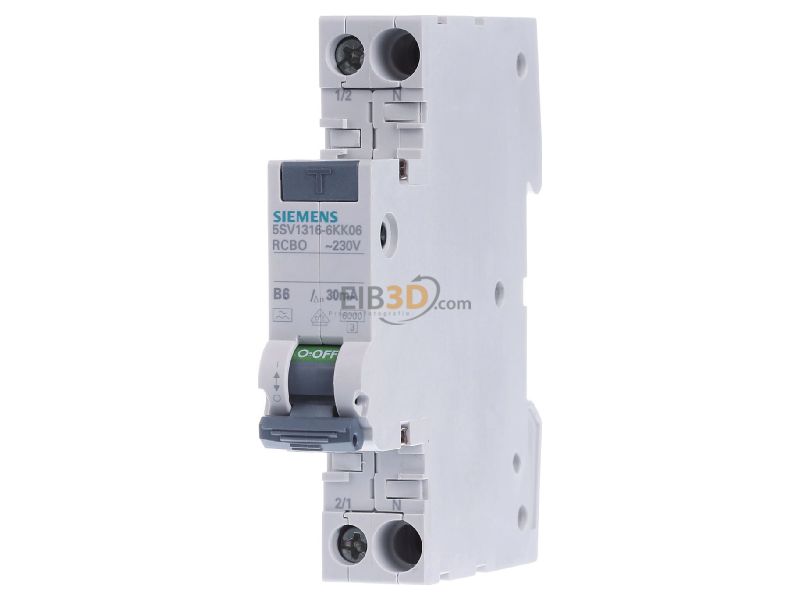

Front view Siemens 5SV1316-6KK06 Earth leakage circuit breaker
Front view

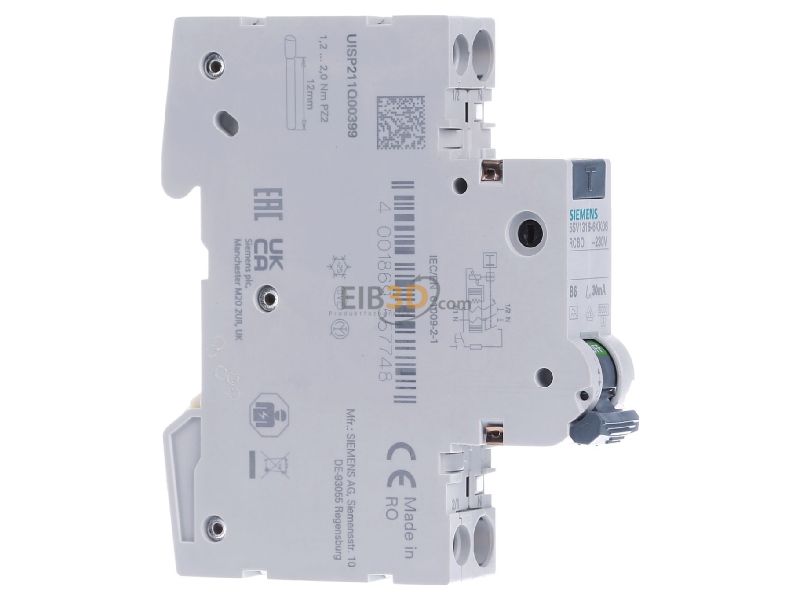

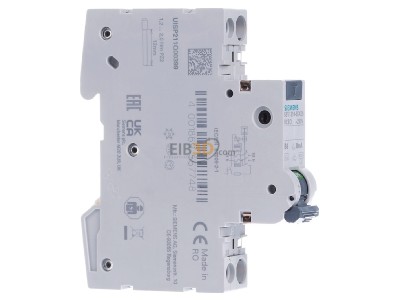

View on the left Siemens 5SV1316-6KK06 Earth leakage circuit breaker
View on the left

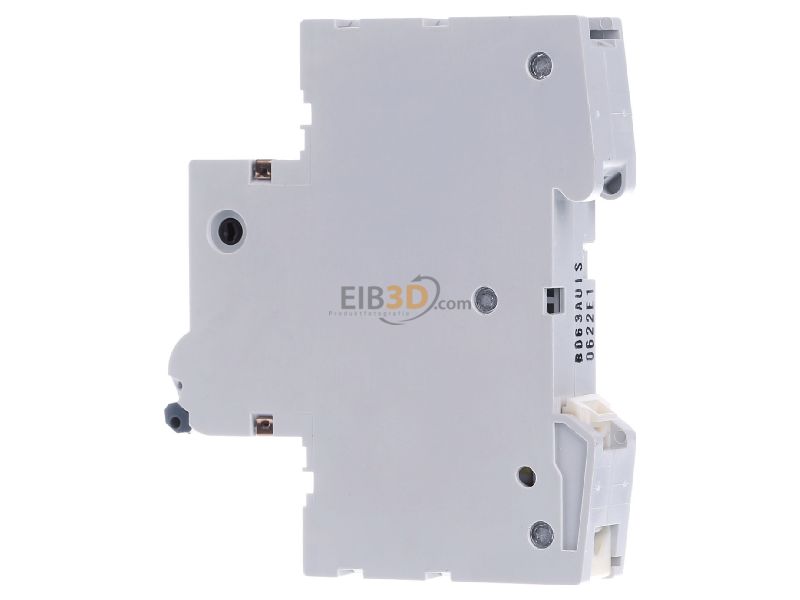

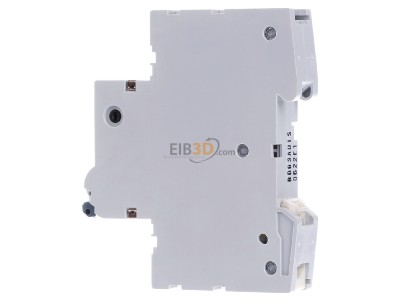

View on the right Siemens 5SV1316-6KK06 Earth leakage circuit breaker
View on the right

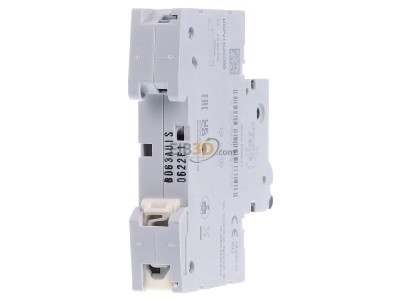

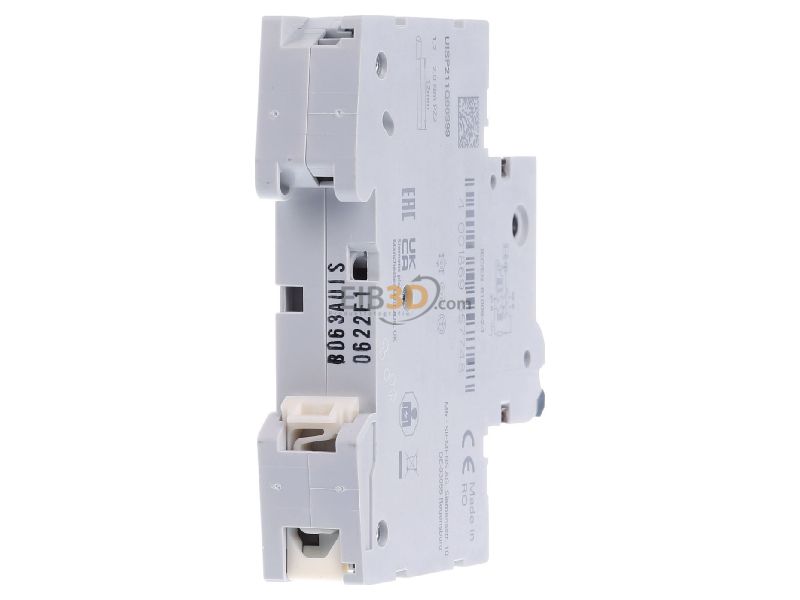

Back view Siemens 5SV1316-6KK06 Earth leakage circuit breaker
Back view

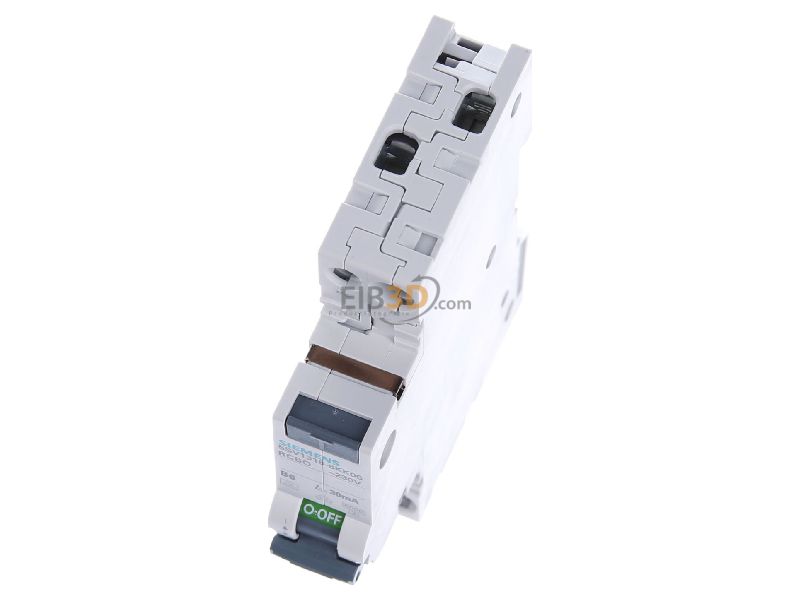

View up front Siemens 5SV1316-6KK06 Earth leakage circuit breaker
View up front

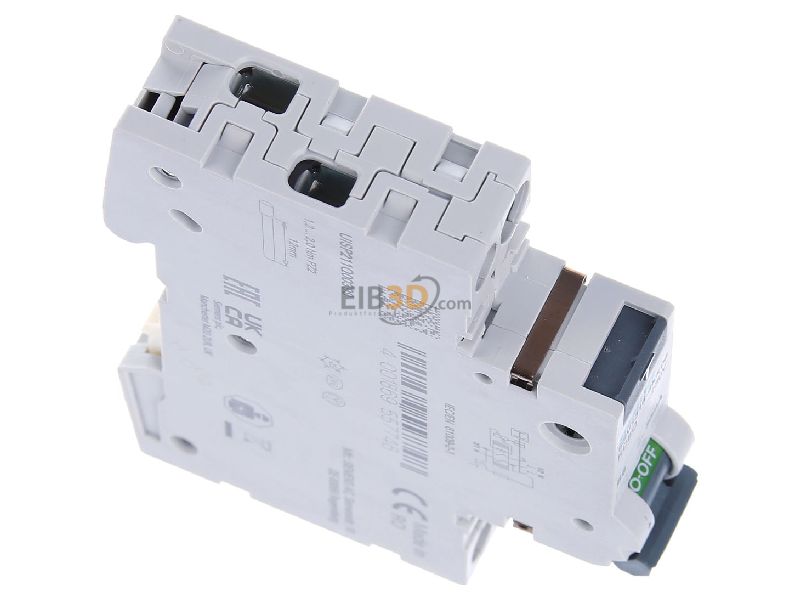

View top left Siemens 5SV1316-6KK06 Earth leakage circuit breaker
View top left

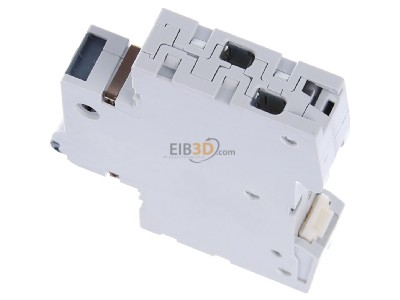

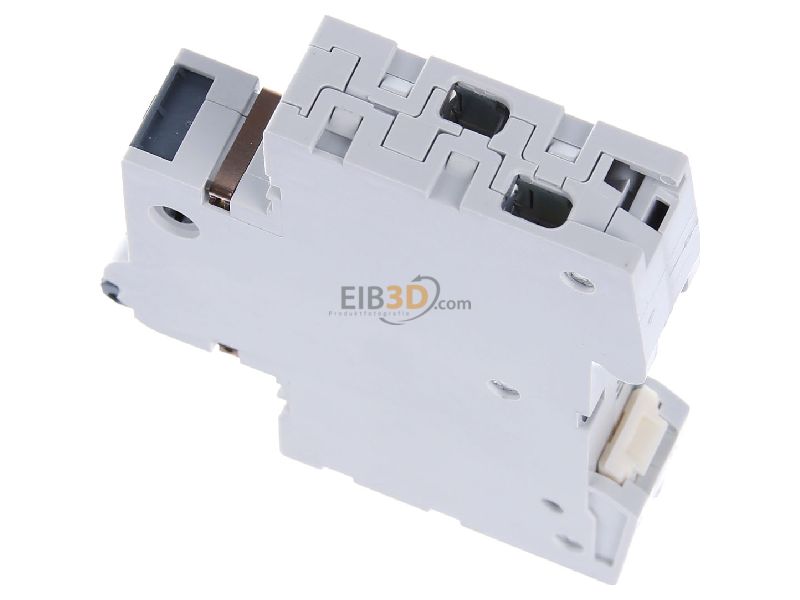

View top right Siemens 5SV1316-6KK06 Earth leakage circuit breaker
View top right

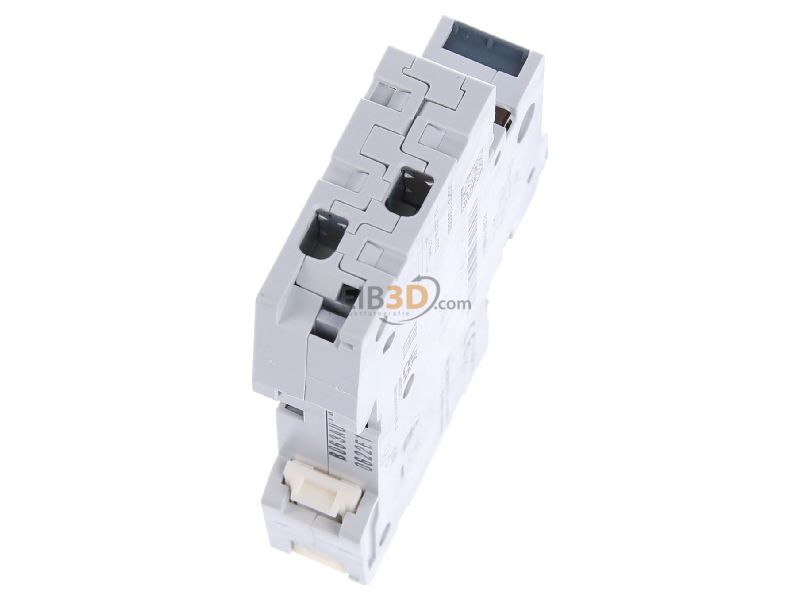

Top rear view Siemens 5SV1316-6KK06 Earth leakage circuit breaker
Top rear view
