Type 3 PLT-SEC-T3-230-FM-PT surge protection device

EAN/GTIN: 4055626257655
WEEE: DE 50738265
Manufacturer: Phoenix
Manufacturer no.: PLT-SEC-T3-230-FM-PT
Manufact.-SKU: 2907928
Customs tariff no.: 85363030
Similar top items: Show now & compare
59,38 GBP Price incl. VAT (0,00 GBP)
plus shipping
Delivery time:
3-5 days [GB] Central warehouse item (regularly available) - live request to the central warehouse directly in the cart or click the link below the price >Quantity available?<
pce

We always deliver the latest available article version.
Minimum order value (UK): 150 EUR (Sub total)

Note:
The installation of electrical devices may only be carried out by an approved electrician and, in the case of high-voltage systems (> = 400V and country-specific nominal power), only with the consent of the respective electricity network operator.

Details

Accessory
bought
Useful
Interesting

Overvoltage protection device type 3 PLT-SEC-T3-230-FM-PT Mounting type top hat rail TH35, rated voltage AC 240V, maximum continuous voltage AC 264V, maximum continuous voltage DC 275V, rated load current 26A, rated leakage surge current (8/20) (L-N) 5kA, Total leakage surge current (8/20) (L+N-PE) 5kA, Protection level 1,25kV, Protection level L-N 1,25kV, Protection level L-PE/N-PE 1,4kV, Number of poles 2, With telecommunication contact, Optical signalling on the device, Max. Conductor cross-section rigid (single/stranded) 4mm², Max. Conductor cross-section flexible (fine-stranded) 2.5mm², Test class type 3, Overvoltage protection type 2/3, consisting of protective plug and base element, with integrated status display and remote signalling for single-phase power supply networks. Nominal voltage 230 V AC/DC.

More product images:

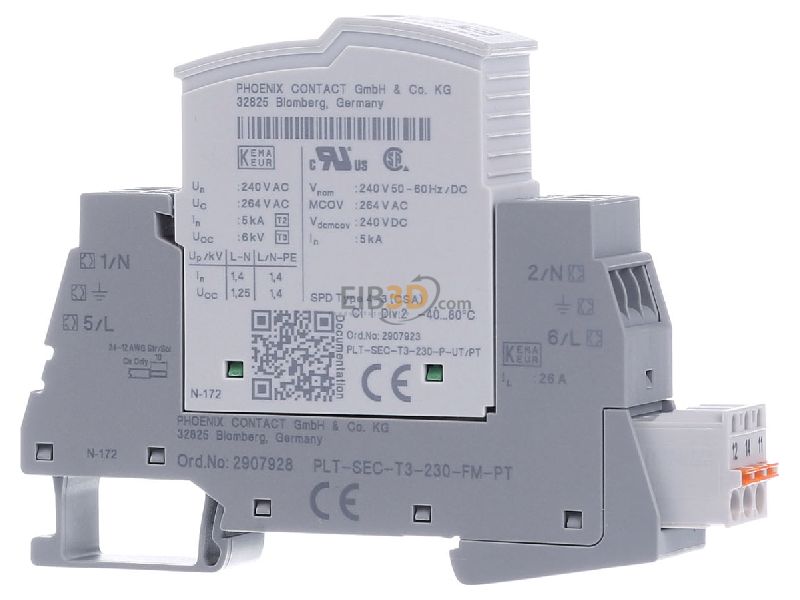

Front view Phoenix PLT-SEC-T3-230-FM-PT Type 3_surge protection device
Front view

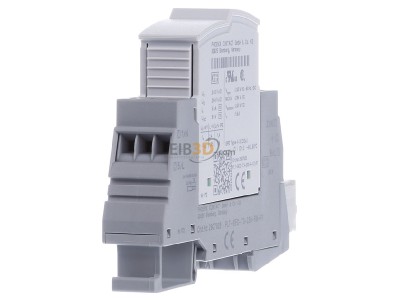

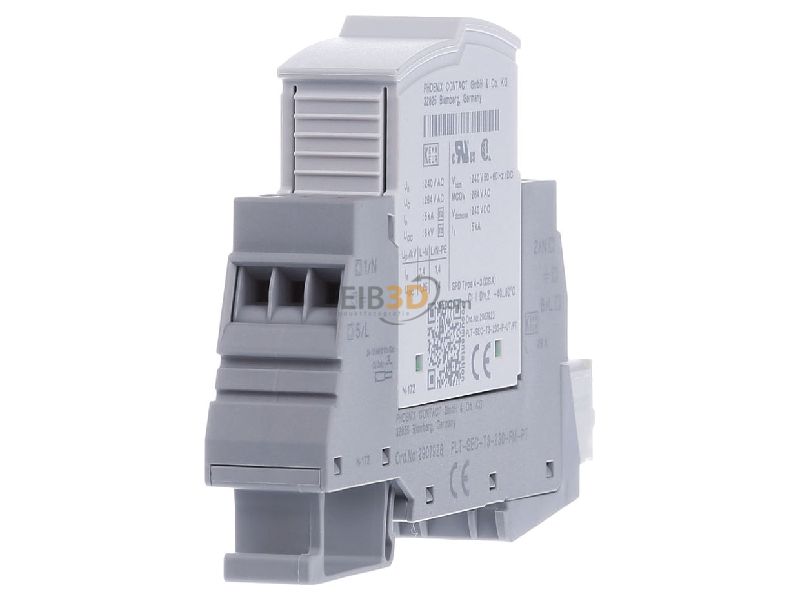

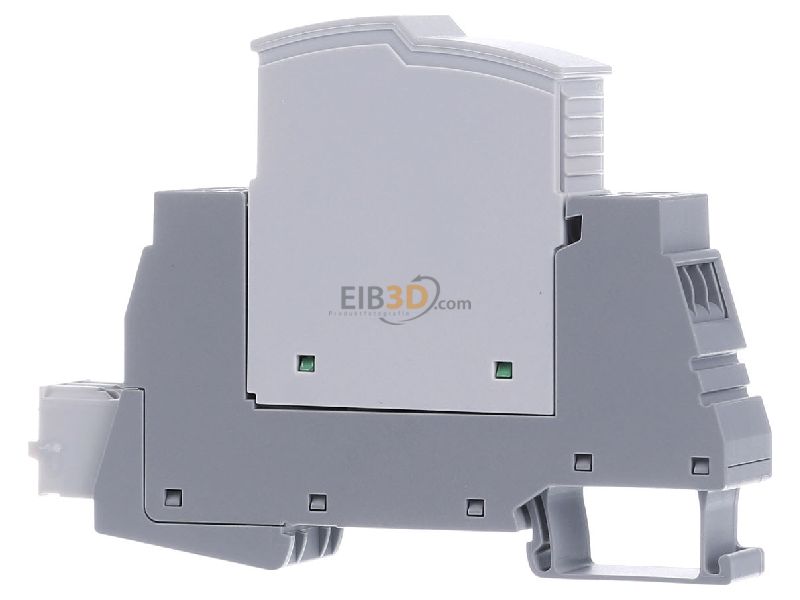

View on the left Phoenix PLT-SEC-T3-230-FM-PT Type 3_surge protection device
View on the left
View on the right Phoenix PLT-SEC-T3-230-FM-PT Type 3_surge protection device
View on the right

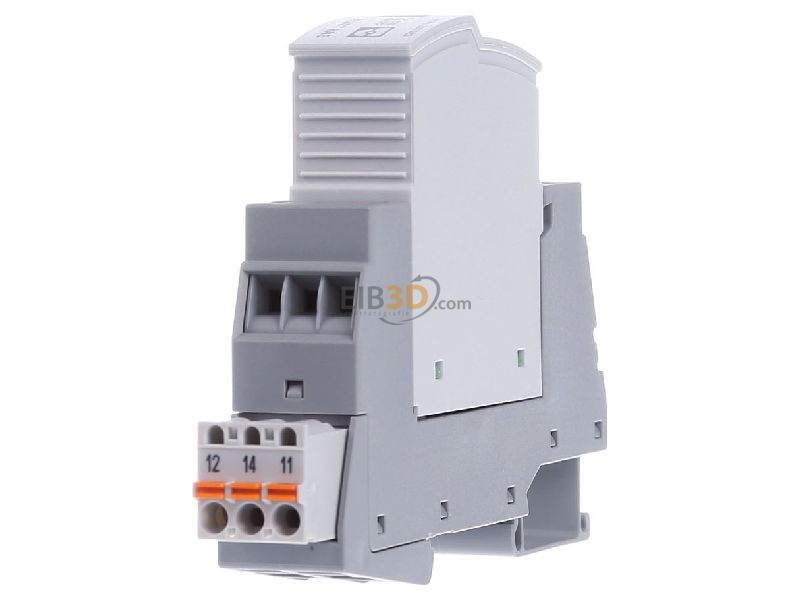

Back view Phoenix PLT-SEC-T3-230-FM-PT Type 3_surge protection device
Back view
View up front Phoenix PLT-SEC-T3-230-FM-PT Type 3_surge protection device
View up front

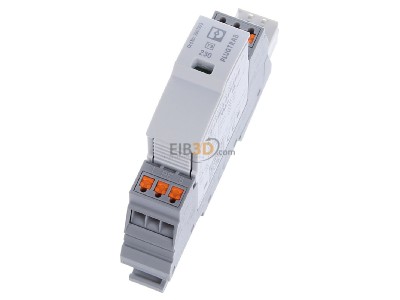

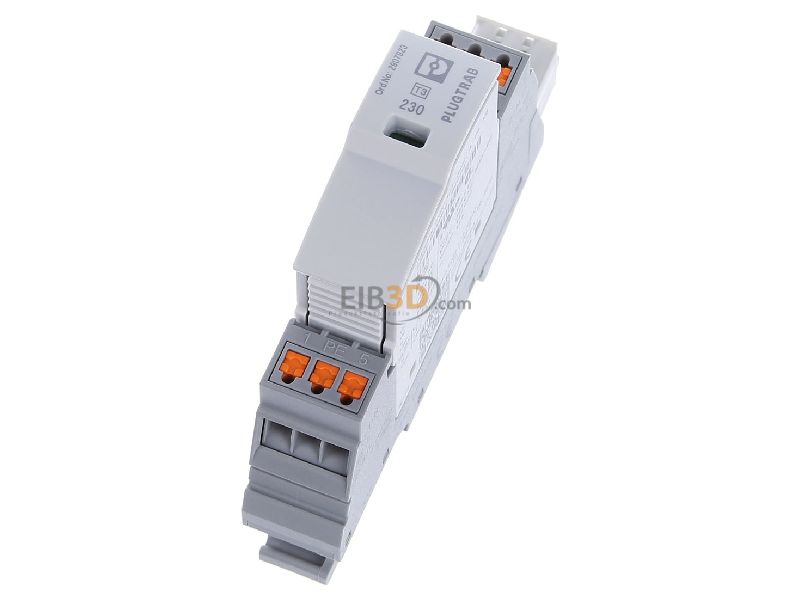

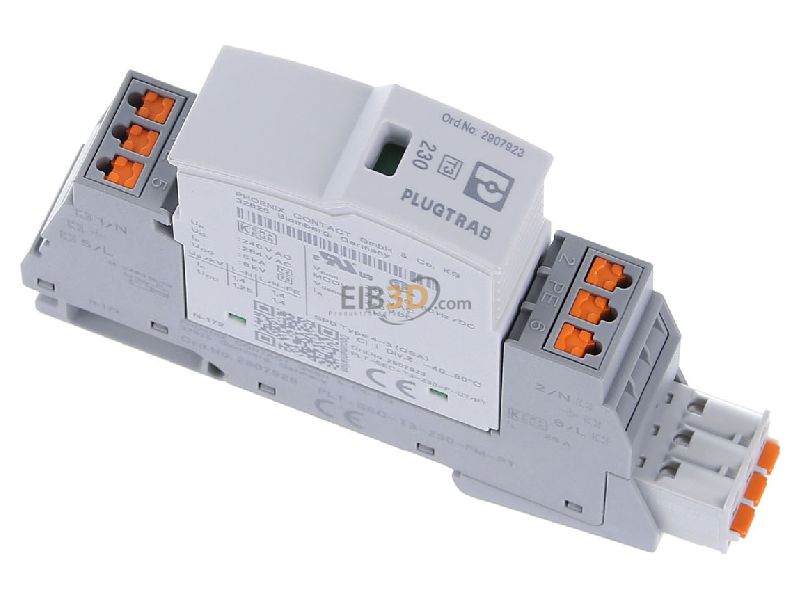

View top left Phoenix PLT-SEC-T3-230-FM-PT Type 3_surge protection device
View top left

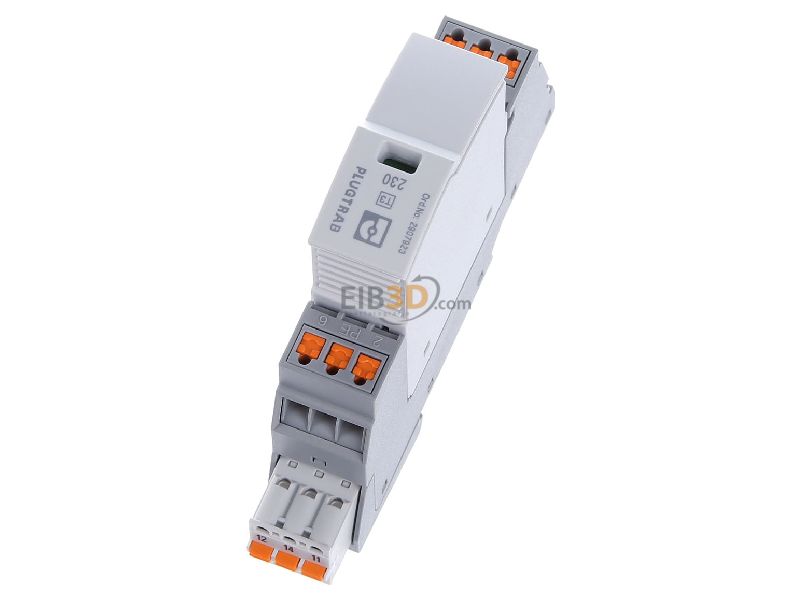

View top right Phoenix PLT-SEC-T3-230-FM-PT Type 3_surge protection device
View top right

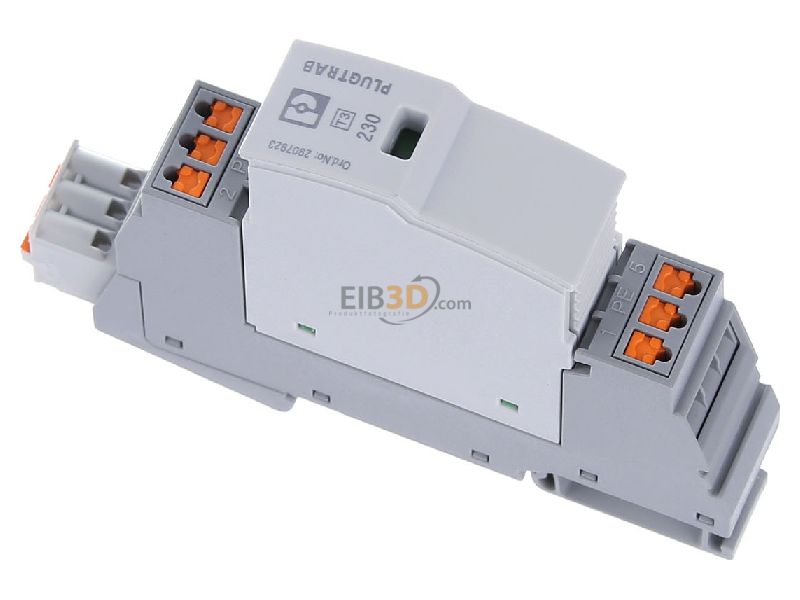

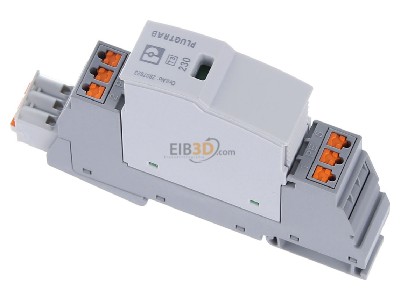

Top rear view Phoenix PLT-SEC-T3-230-FM-PT Type 3_surge protection device
Top rear view
