Gear tray for light-line system 4MX850 66693599
Source photo:
Signify PLS
(fig. might be different or similar)

Gear tray for light-line system 4MX850 66693599

EAN/GTIN: 4030732666935
WEEE: DE 57797264
Manufacturer: Signify PLS
Manufacturer no.: 4MX850 #66693599
Manufact.-SKU: 66693599
Customs tariff no.: 94051190
Similar top items: Show now & compare
111,15 GBP Price incl. VAT (0,00 GBP)
NO DHL DISPATCH!
Delivery time:
14-16 days [GB] Items to be procured that can be ordered (no central warehouse item) - live request to the central warehouse directly in the cart or click the link below the price >Quantity available?<
Delivery takes place day-exactly. Article is very heavy and/or bulky! Article is >31kg and/or bulky | Package > 1.2m x 0.6m x 0.6m
pce

We always deliver the latest available article version.
Minimum order value (UK): 150 EUR (Sub total)

Note:
The installation of electrical devices may only be carried out by an approved electrician and, in the case of high-voltage systems (> = 400V and country-specific nominal power), only with the consent of the respective electricity network operator.

Details

bought
Useful
Interesting

Gear tray for light-line system Lamp type LED not exchangeable, With light source, Suitable for number of lamps 1, Lamp holder Other, Material housing Steel, Colour housing White, Voltage type AC/DC, Nominal voltage 220 ... 240V, LED nominal current at constant current 204 ... 222mA, Type of control gear LED operating device current-controlled, Control gear included, Dimming DALI, Light distributor Diffuser lens/optic/panel, Reflector None, Light sharing Symmetric, Light outlet Direct, Beam angle Wide beam 41-80°, Rated life time L70/B50 at 25 °C 70000h, Rated life time L80/B50 at 25 °C 50000h, Rated life time L90/B50 at 25 °C 25000h, Degree of protection (IP) IP20, Protection class I, Filament test according to IEC 60695-2-11 650 °C - 30 s, Max. system power 48,4W, Rated luminous flux acc. IEC 62722-2-1 6600lm, Colour of light White, Colour temperature 3000 ... 3000K, Colour rendering index CRI 80-89, Power factor 0,9, Width 63mm, Height/depth 50mm, Length 1478mm, Type of wiring Ending, Number of poles 5, Conductor cross section 0,5mm², Connection type Other

More product images:

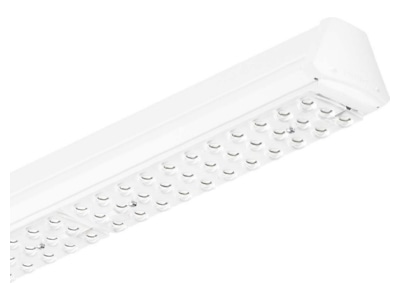

Product image Signify PLS 4MX850  66693599 Gear tray for light line system 4MX850 66693599
Product image

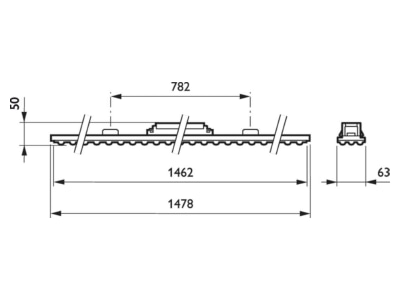

Dimensional drawing Signify PLS 4MX850  66693599 Gear tray for light line system 4MX850 66693599
Dimensional drawing
