Fireproof partition box PMB 120-4 A2
Source photo:
OBO
(fig. might be different or similar)

Fireproof partition box PMB 120-4 A2

EAN/GTIN: 4012196811830
WEEE: DE 64419409
Manufacturer: OBO
Manufacturer no.: PMB 120-4 A2
Manufact.-SKU: 7204124
Customs tariff no.: 39211310
Similar top items: Show now & compare
117,65 GBP Price incl. VAT (0,00 GBP)
plus shipping
Delivery time:
13-15 days [GB] Items to be procured that can be ordered (no central warehouse item) - live request to the central warehouse directly in the cart or click the link below the price >Quantity available?<
pce

We always deliver the latest available article version.
Minimum order value (UK): 150 EUR (Sub total)

Note:
The installation of electrical devices may only be carried out by an approved electrician and, in the case of high-voltage systems (> = 400V and country-specific nominal power), only with the consent of the respective electricity network operator.

Details

Accessory
bought
Useful
Interesting

Fire protection box four-sided PMB 120-4 A2 design bulkhead box, square shape, external height 181mm, external width 223mm, internal height 114mm, internal width 205mm, plate thickness/product length 300mm, accessories required, fire protection box as a sealing system made of two-part stainless steel housing with intumescent fire protection inserts. Can be used in walls and ceilings. Quick assembly thanks to the removable magic connection. Interior can be fully occupied with installations. Indoor use. Closure of the remaining openings with PYROSIT® NG fire protection foam, particularly easy for difficult geometries. CE-marked construction product with general type approval. Fire resistance class EI90 (fire resistant). Includes graphite strips.

More product images:

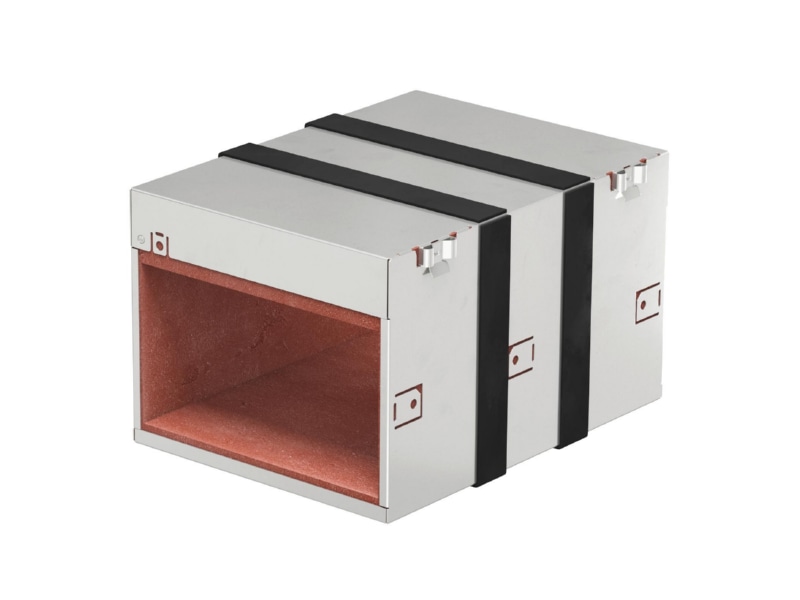

Product image OBO PMB 120 4 A2 Fireproof partition box
Product image

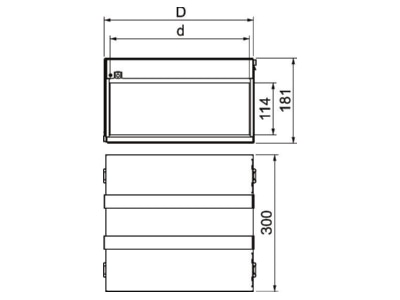

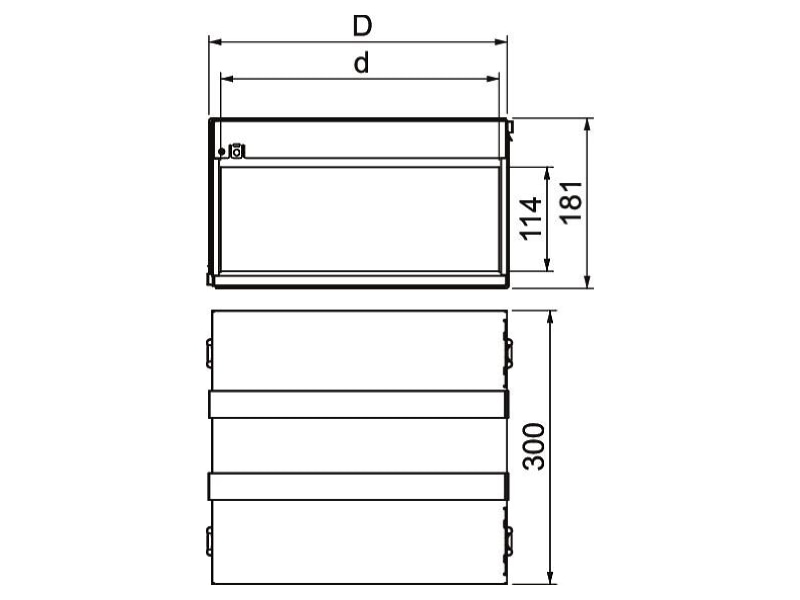

Dimensional drawing OBO PMB 120 4 A2 Fireproof partition box
Dimensional drawing
