Direct kilowatt-hour meter 5A 23030627
Source photo:
NZR
(fig. might be different or similar)

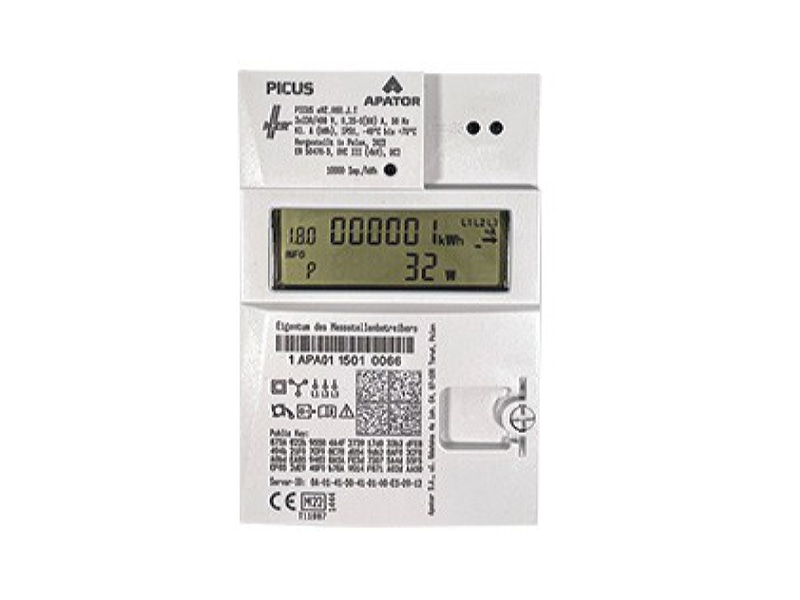

Direct kilowatt-hour meter 5A 23030627

EAN/GTIN: 4048652113774
WEEE: DE 92690024
Manufacturer: NZR
Manufacturer no.: 23030627
Customs tariff no.: 90283019
Similar top items: Show now & compare
94,56 GBP Price incl. VAT (0,00 GBP)
plus shipping
Delivery time:
3-5 days [GB] Central warehouse item (regularly available) - live request to the central warehouse directly in the cart or click the link below the price >Quantity available?<
pce

We always deliver the latest available article version.
Minimum order value (UK): 150 EUR (Sub total)

Note:
The installation of electrical devices may only be carried out by an approved electrician and, in the case of high-voltage systems (> = 400V and country-specific nominal power), only with the consent of the respective electricity network operator.

Details

Accessory
bought
Useful
Interesting

Type of meter=Electronic, Nominal current (In)=5 A, Max. current (Imax)=60 A, Nominal voltage (Un) N-L=230 V, Nominal voltage (Un) L-L=400 V, Frequency=50 Hz, Accuracy class=B, Pole type=Four conductor, Model=Direct measurement, Energy type=Effective power, Suitable for=Purchase/supply, Tariff type=Two-tariff, Tariff control=External, Measurement type load profile=no, Escapement mechanism=no, Calibrated=yes, Approval=Measuring Instruments Directive, Pulse output=Optic, Pulse type=D0, Pulse rate=0 Imp/kWh (kvarh), Type of indication=Digital, Mounting method=Plug-in technique, Width in number of modular spacings=5, Width=140 mm, Depth=100 mm, Height=110 mm, Type of interface=Other, EEC40 signature=no, With lock code=yes, Number of positions total (counter)=6, Degree of protection (IP)=IP20, Degree of protection (NEMA)=Other

More product images:

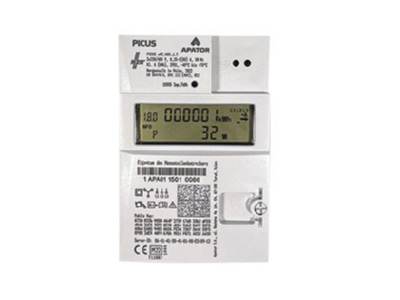

Product image 1 NZR 23030627 Direct kilowatt hour meter 5A
Product image 1
Product image 2 NZR 23030627 Direct kilowatt hour meter 5A
Product image 2
