EIB/KNX LED Driver 60W with PWM Output

EAN/GTIN: 4021087070225
Manufacturer: Mean Well
Manufacturer no.: PWM-60-24KN
Manufact.-SKU: PWM60KN
Customs tariff no.: 85044095
Similar top items: Show now & compare
31,38 GBP Price incl. VAT (0,00 GBP)
plus shipping
Delivery time:
3-5 days [GB] Central warehouse item (regularly available) - live request to the central warehouse directly in the cart or click the link below the price >Quantity available?<
pce

We always deliver the latest available article version.
Minimum order value (UK): 150 EUR (Sub total)

Note:
The installation of electrical devices may only be carried out by an approved electrician and, in the case of high-voltage systems (> = 400V and country-specific nominal power), only with the consent of the respective electricity network operator.

Details

bought
Useful
Interesting

The PWM KN series from manufacturer Mean Well is a constant voltage mode output LED driver featuring Pulse Width Modulation (PWM) brightness control and the KNX interface to avoid using the complicated KNX-DALI gateway. There are a great number of options for adjusting the dimming process, e.g. dimming speeds, transition time, On-/Off- Behavior…. Scene function and different automatic functions are also available for the KNX interface.

The PWM Output EIB/KNX LED Driver PWM-60KN is a 60W AC/DC LED driver featuring the constant voltage mode with PWM style output, wich is able to maintain the colour temperature and the brightness homogeneity when driving all kinds of LED stripes and constant voltage LED bulbs. Due to the built-in KNX interface the usage of the complicated KNX-DALI gateway can be avoided.
The EIB/KNX LED Driver PWM-60KN operates from 90-305VAC and offers two models with output voltage 12V and 24V. Thanks to the high efficiency up to 89% (with the fanless design), the entire series is able to operate for -35°C to +90°C case temperature under free air convection.
The minimal dimming level low to 0,01% is suitable for low light level applications e.g. cinemas. The output frequency is changeable up to 4kHz complaint IEEE1789-2015 no risk requirement and EU Ecodesign stroboscopic visibility measure (SVM) requirement, providing a great solution for health concern due to light flickering.

Features

  • INPUT: 90-305VAC 47-63Hz
  • OUTPUT: 5A/12V or 2.5A/24V
  • KNX control technology
  • min. dimming level 0,01%
  • standby power consumption < 0,5W
  • integrated KNX control protocol
  • no need of any KNX-DALI gateway
  • typical lifetime > 50.000 hours

Applications

  • constant voltage output (PWM) with user changeable frequency (up to 4kHz)
  • plastic housing with Class II design
  • suitable for LED strip lighting
  • suitable for Indoor LED lighting
  • suitable for LED decorative and architecture lighting

More product images:

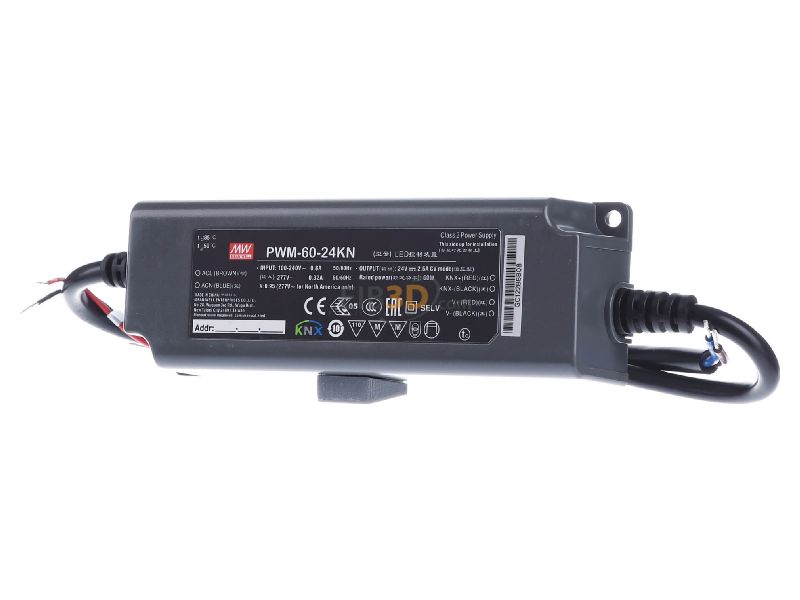

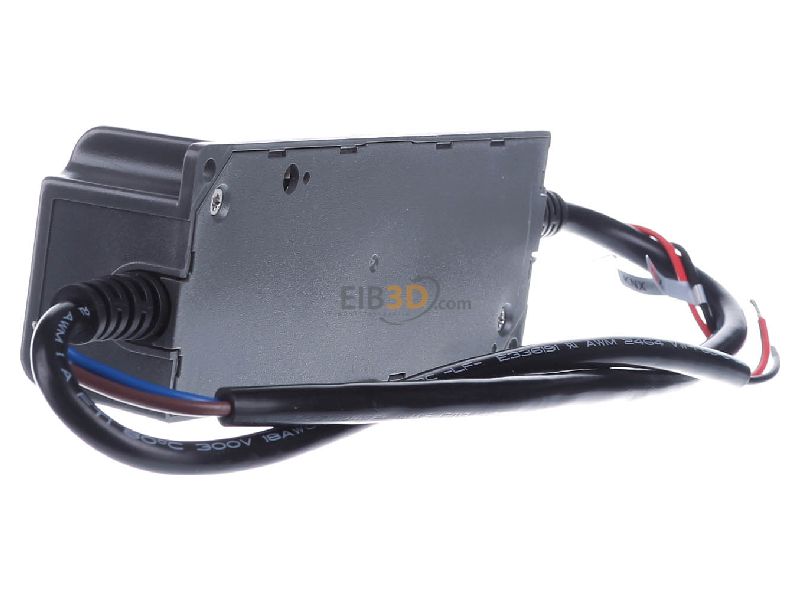

Front view Mean Well PWM-60KN EIB/KNX LED Driver 60W with PWM Output
Front view
View on the left Mean Well PWM-60KN EIB/KNX LED Driver 60W with PWM Output
View on the left
View on the right Mean Well PWM-60KN EIB/KNX LED Driver 60W with PWM Output
View on the right

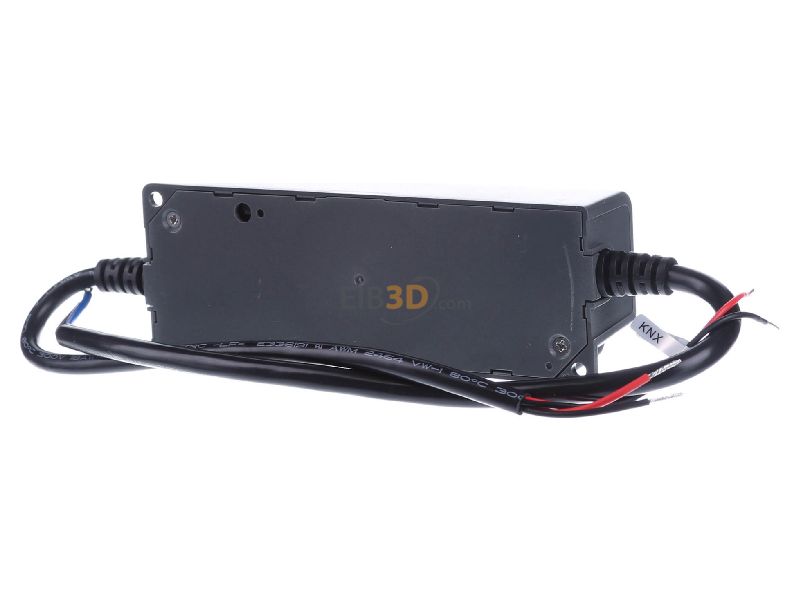

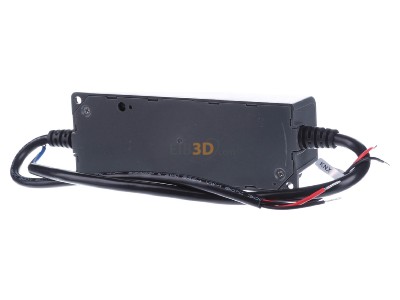

Back view Mean Well PWM-60KN EIB/KNX LED Driver 60W with PWM Output
Back view

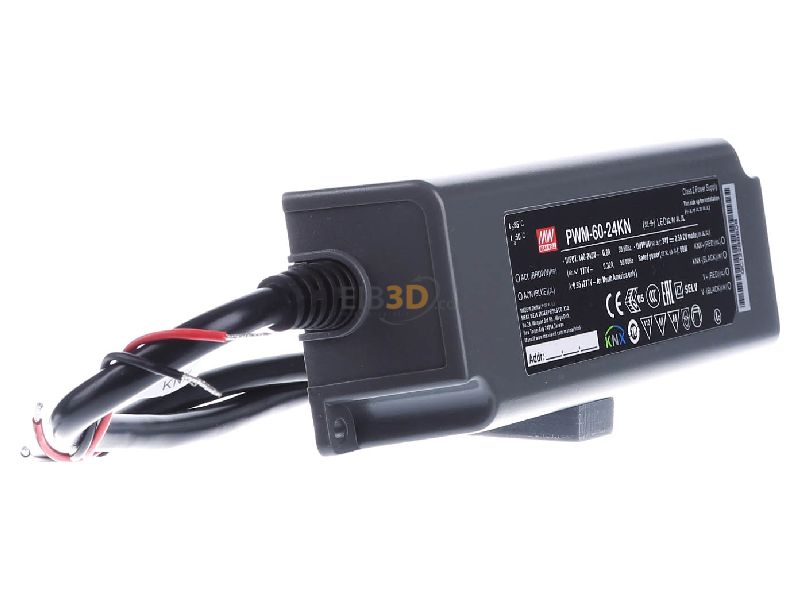

View up front Mean Well PWM-60KN EIB/KNX LED Driver 60W with PWM Output
View up front

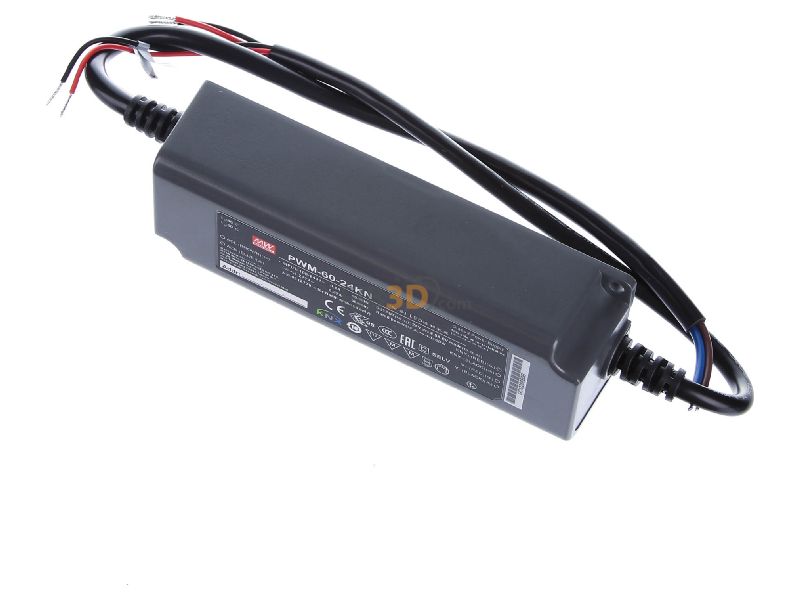

View top left Mean Well PWM-60KN EIB/KNX LED Driver 60W with PWM Output
View top left

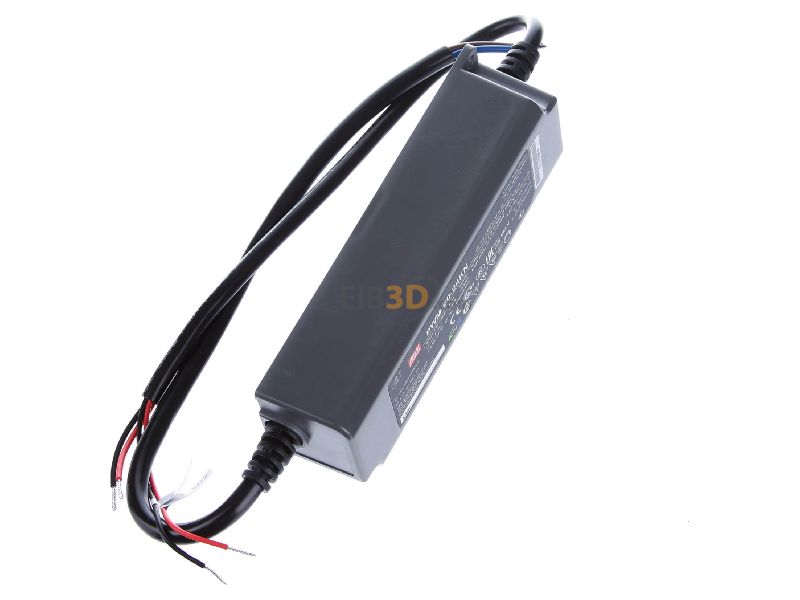

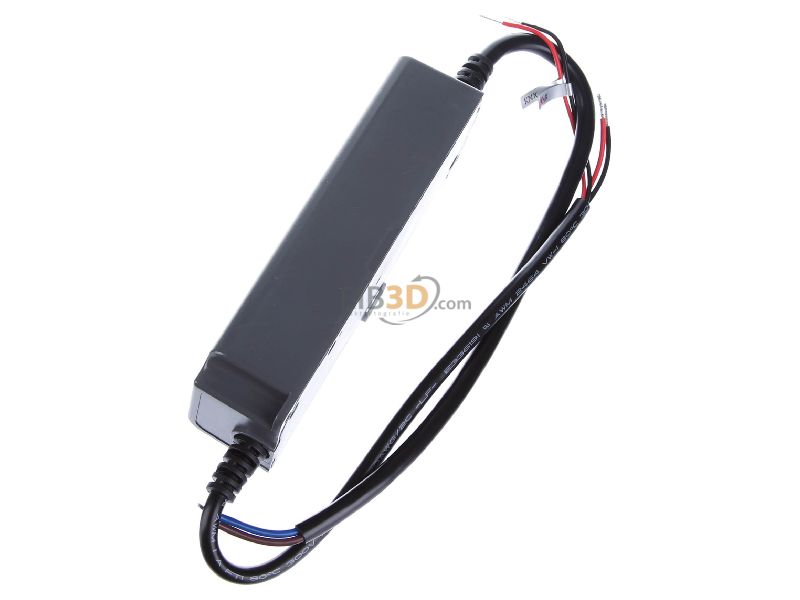

View top right Mean Well PWM-60KN EIB/KNX LED Driver 60W with PWM Output
View top right

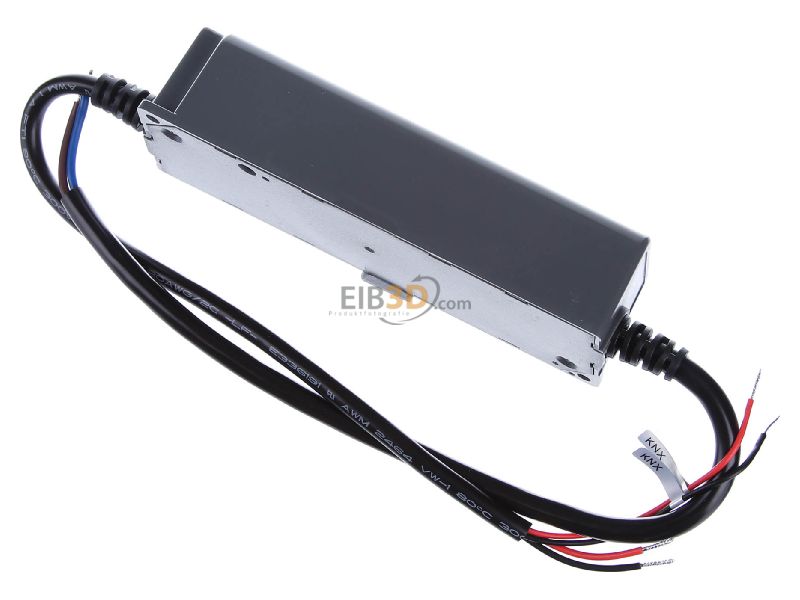

Top rear view Mean Well PWM-60KN EIB/KNX LED Driver 60W with PWM Output
Top rear view
