Temperature control relay DC 7,5...30V 00394779
Source photo:
Jumo
(fig. might be different or similar)

Temperature control relay DC 7,5...30V 00394779

EAN/GTIN: 4053877000655
WEEE: DE 92688874
Manufacturer: Jumo
Manufacturer no.: 00394779
Customs tariff no.: 85043129
Similar top items: Show now & compare
76,71 GBP Price incl. VAT (0,00 GBP)
plus shipping
Delivery time:
13-15 days [GB] Items to be procured that can be ordered (no central warehouse item) - live request to the central warehouse directly in the cart or click the link below the price >Quantity available?<
pce

We always deliver the latest available article version.
Minimum order value (UK): 150 EUR (Sub total)

Note:
The installation of electrical devices may only be carried out by an approved electrician and, in the case of high-voltage systems (> = 400V and country-specific nominal power), only with the consent of the respective electricity network operator.

Details

Accessory
bought
Useful
Interesting

2-wire measuring transducer 00394779 Design of the electrical connection screw connection, rated control supply voltage Us at DC 7.5 ... 30V, voltage type for actuation DC, number of measuring circuits 1, number of contacts as normally closed contacts 0, number of contacts as normally open contacts 0, number of Contacts as changeover contact 0, temperature measuring range 0 ... 100°C, resistance measuring range 0 ... 3000Ohm, width 44mm, height 21mm, depth 44mm, analog two-wire measuring transducer for installation in the connection head form B. The measuring transducer intended for industrial use records the Temperature with a resistance thermometer. The output signal is available in a temperature-linear manner. The continuously analog signal path enables extremely fast reaction times of the output in the event of a temperature change (analog continuous measurement instead of digital measuring rate). This results in a low-noise and interference-proof output signal. The highest precision - even with small measuring ranges - is ensured by the measuring range-specific amplification. Digital communication enables the measuring transducer to be adapted to the measuring task (measuring range, sensor break and fine adjustment).

More product images:

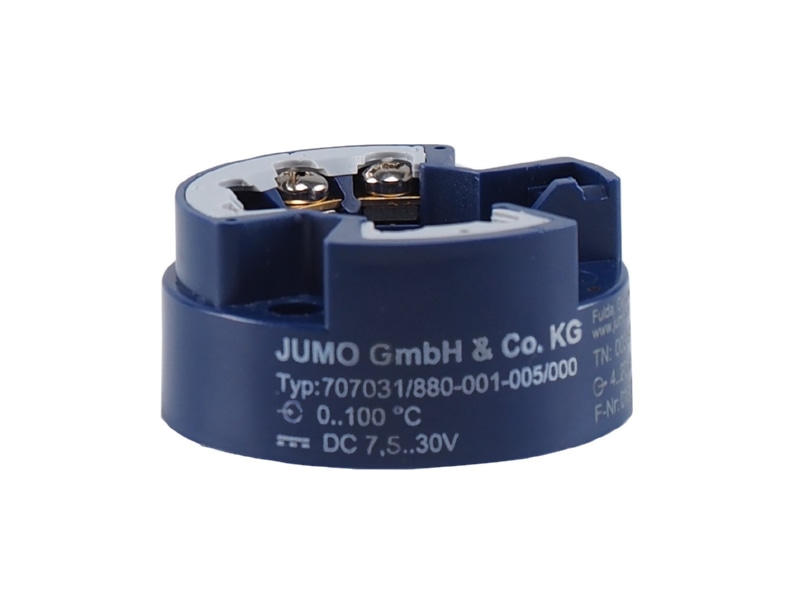

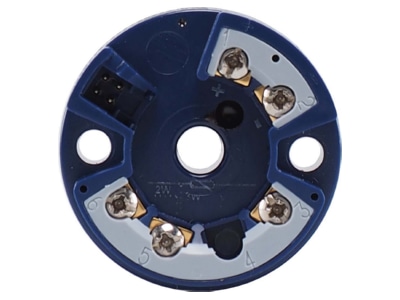

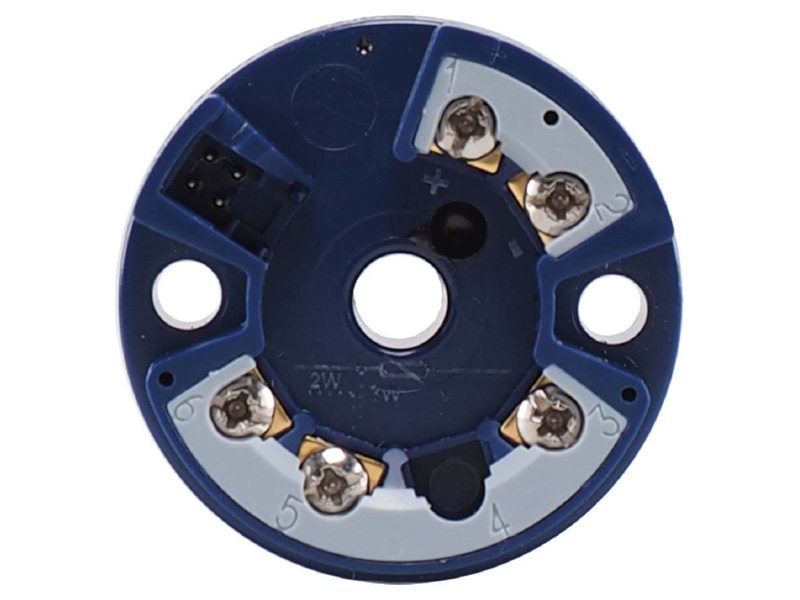

Product image Jumo 00394779 Temperature control relay DC 7 5   30V
Product image
Angled view 1 Jumo 00394779 Temperature control relay DC 7 5   30V
Angled view 1

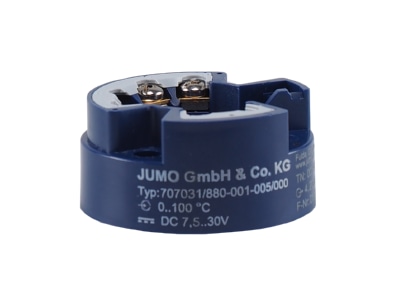

Angled view 2 Jumo 00394779 Temperature control relay DC 7 5   30V
Angled view 2

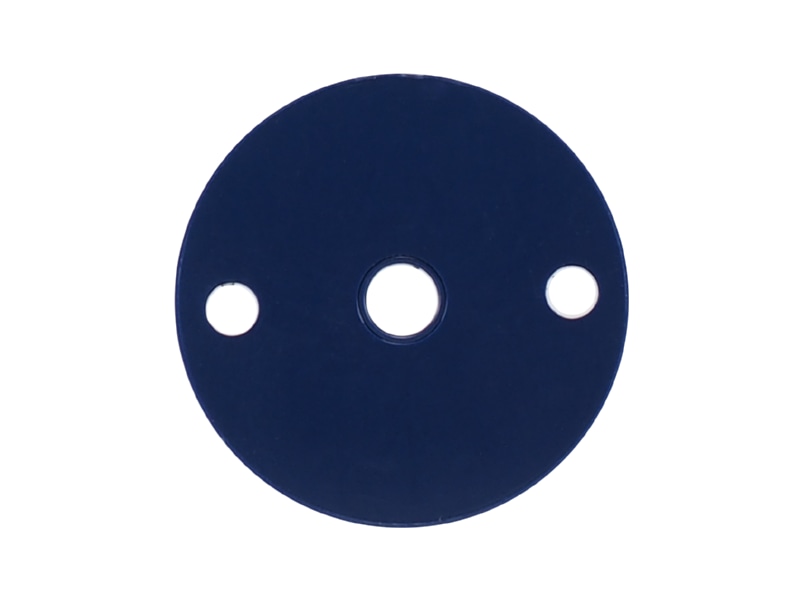

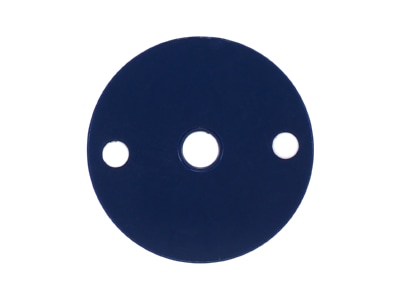

Back view 1 Jumo 00394779 Temperature control relay DC 7 5   30V
Back view 1
Back view 2 Jumo 00394779 Temperature control relay DC 7 5   30V
Back view 2
