Disconnect terminal block 24A 1-p 7,9mm Mi EM 02

EAN/GTIN: 4012591127314
WEEE: DE 52801221
Manufacturer: HENSEL
Manufacturer no.: Mi EM 02
Manufact.-SKU: 4012591127314
Customs tariff no.: 85371098
Similar top items: Show now & compare
87,98 GBP Price incl. VAT (0,00 GBP)
plus shipping
Delivery time:
13-15 days [GB] Items to be procured that can be ordered (no central warehouse item) - live request to the central warehouse directly in the cart or click the link below the price >Quantity available?<
pce

We always deliver the latest available article version.
Minimum order value (UK): 150 EUR (Sub total)

Note:
The installation of electrical devices may only be carried out by an approved electrician and, in the case of high-voltage systems (> = 400V and country-specific nominal power), only with the consent of the respective electricity network operator.

Details

bought
Useful
Interesting

Disconnect terminal block 24A 1-p 7,9mm Connectable conductor cross section fine-strand without cable end sleeve 0,5 ... 4mm², Connectable conductor cross section fine-strand with cable end sleeve 0,5 ... 2,5mm², Connectable conductor cross section solid-core 0,5 ... 4mm², Connectable conductor cross section multi-wired 1,5 ... 4mm², Rated current In 24A, Rated voltage 500V, Type of electrical connection 1 Screw connection, Type of electrical connection 2 Screw connection, Connection position Sideways, Number of levels 1, Number of clamp positions per level 2, Mounting method DIN rail (top hat rail) 35 mm, Material insulation body Thermoplastic, Inflammability class of insulation material acc. with UL94 V0, Operation temperature -5 ... 35°C, Width/grid dimension 7,9mm, Height at lowest possible mounting height 72mm, Colour Beige, Type of slitting Sliding, Type of cross disconnection None, With integrated test socket, Length 284mm

More product images:

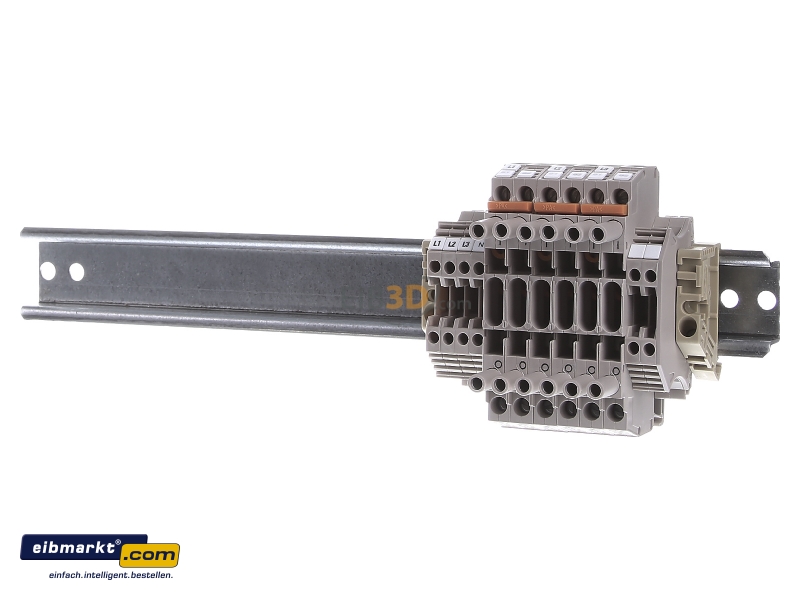

Front view Hensel Mi EM 02 Mounting rail
Front view

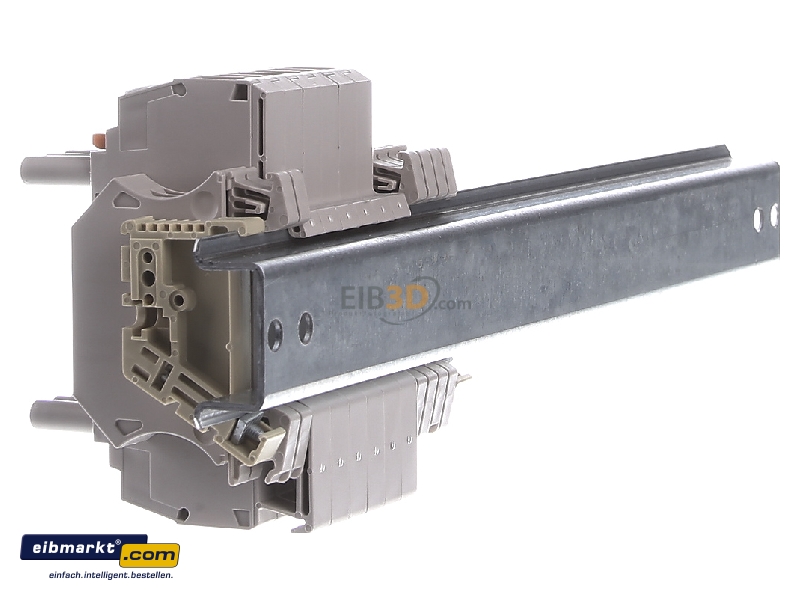

View on the left Hensel Mi EM 02 Mounting rail
View on the left

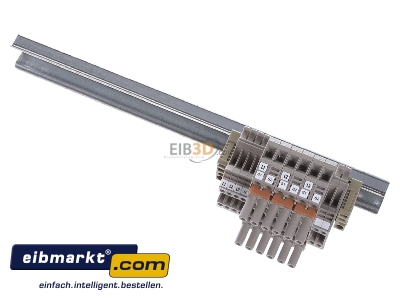

View on the right Hensel Mi EM 02 Mounting rail
View on the right

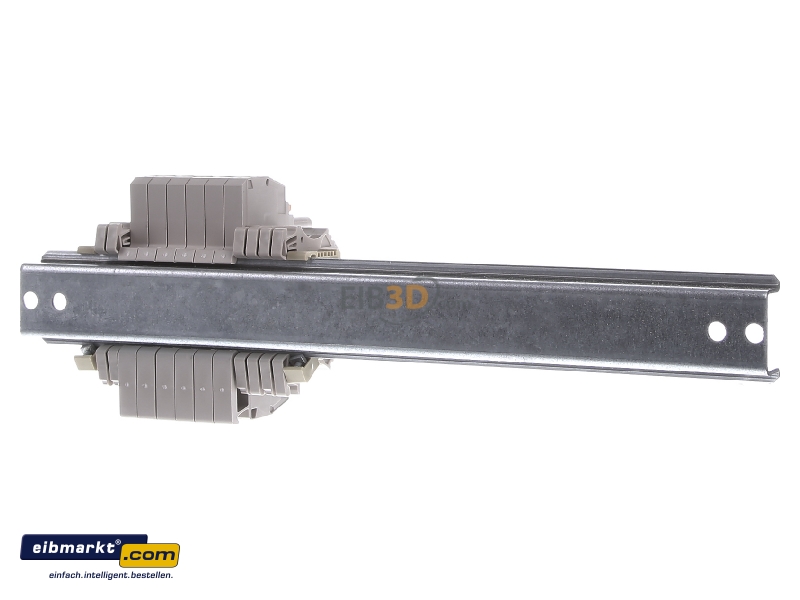

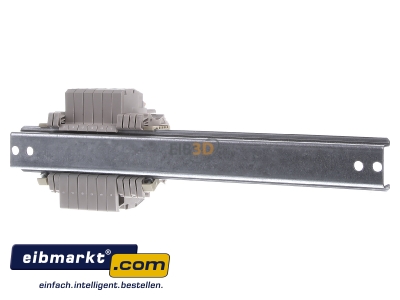

Back view Hensel Mi EM 02 Mounting rail
Back view

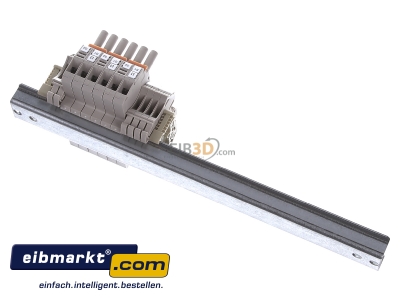

View up front Hensel Mi EM 02 Mounting rail
View up front

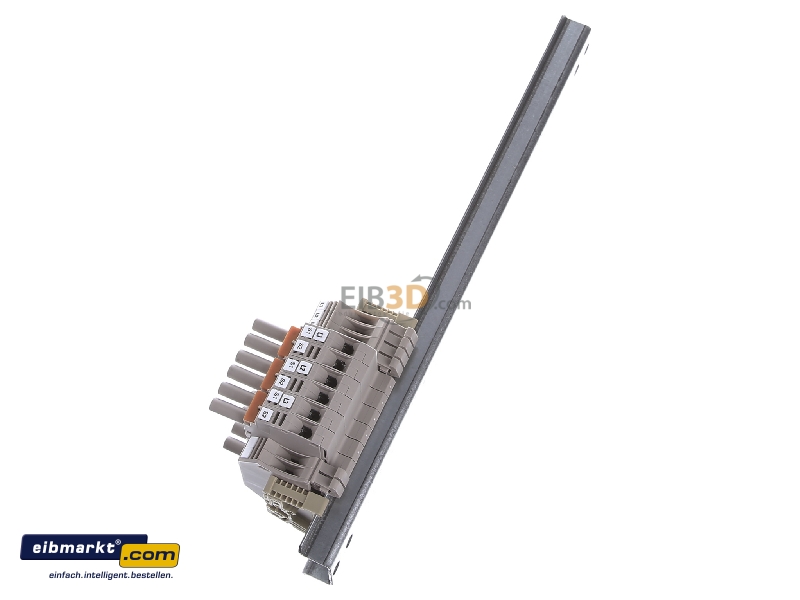

View top left Hensel Mi EM 02 Mounting rail
View top left

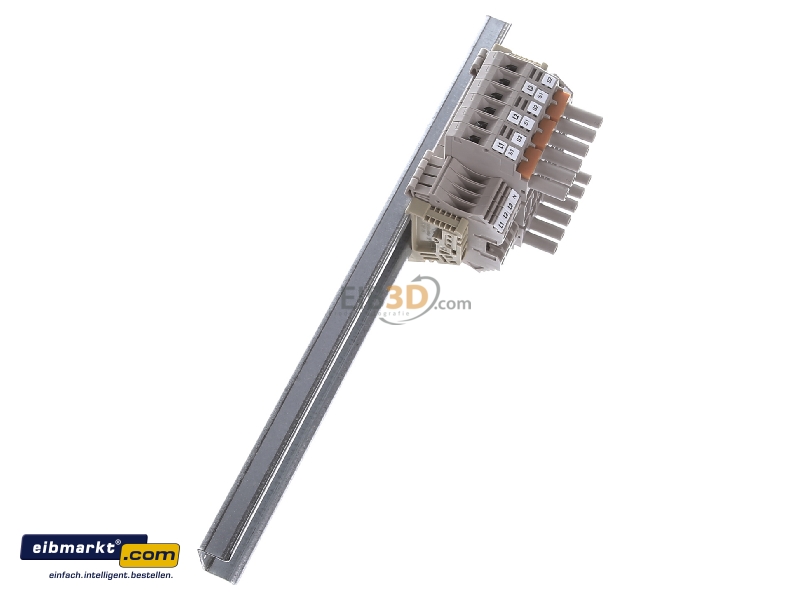

View top right Hensel Mi EM 02 Mounting rail
View top right
Top rear view Hensel Mi EM 02 Mounting rail
Top rear view
