Earth leakage circuit breaker with ARF916D

EAN/GTIN: 3250611034766
WEEE: DE 23692311
Manufacturer: HAGER
Manufacturer no.: ARF916D
Customs tariff no.: 85362010
Similar top items: Show now & compare
125,77 GBP Price incl. VAT (0,00 GBP)
plus shipping
Delivery time:
3-5 days [GB] Central warehouse item (regularly available) - live request to the central warehouse directly in the cart or click the link below the price >Quantity available?<
pce

We always deliver the latest available article version.
Minimum order value (UK): 150 EUR (Sub total)

Note:
The installation of electrical devices may only be carried out by an approved electrician and, in the case of high-voltage systems (> = 400V and country-specific nominal power), only with the consent of the respective electricity network operator.

Details

Accessory
bought
Useful
Interesting

Arc fault protection 1P + N 6kA B-16A 30mA ARF916D, number of poles = 2, rated voltage = 230 V, rated current = 16 A, rated residual current = 0.03 A, residual current type = A, energy limiting class = 3, rated breaking capacity according to EN 61009 = 6 kA, frequency = 50 Hz, tripping characteristic = B, neutral switch = yes, overvoltage category = 3, degree of pollution = 2, width in division units = 3, additional devices installed at the factory = fire protection switch, protection class (IP) = IP20, arc fault protection device AFDD with FI- LS 1P + N 6kA B-16A 30mA type A 3M. AFDD fire protection switch according to DIN VDE 0665-10 / EN62606, combined with FI / LS switch 1P + N according to DIN DIN VDE 0664-20 / EN 61009-1, DIN VDE 0664-21 / EN 61009-2-1, with residual current monitoring type A (30 mA), with QuickConnect terminal according to DIN EN 60898-1, VDE 0641-11. Protection against accidental contact according to IP2x DIN VDE 0106 part 100, one test button each for the AFD unit and for the residual current device. Simple individual removal from the phase rail network. With VDE mark. Suitable for retrofitting additional equipment. Labeling option directly on the device.

More product images:

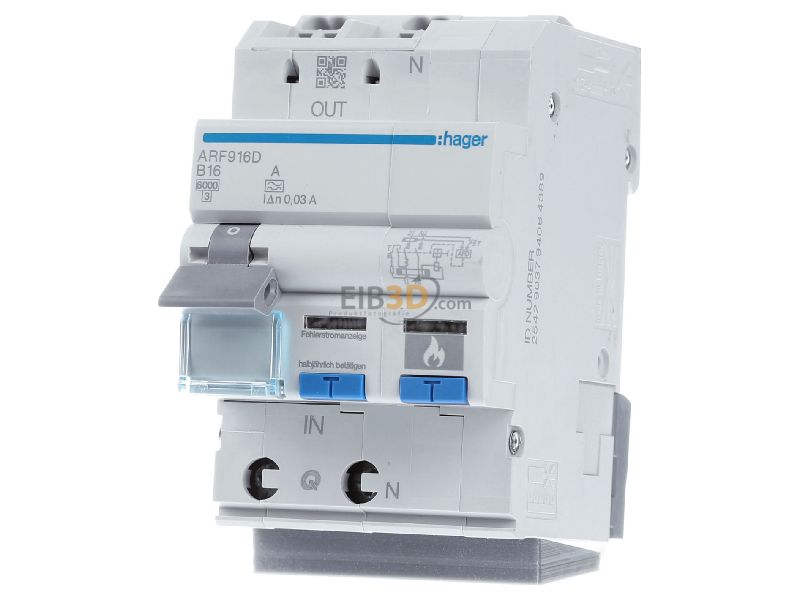

Front view Hager ARF916D Earth leakage circuit breaker with
Front view

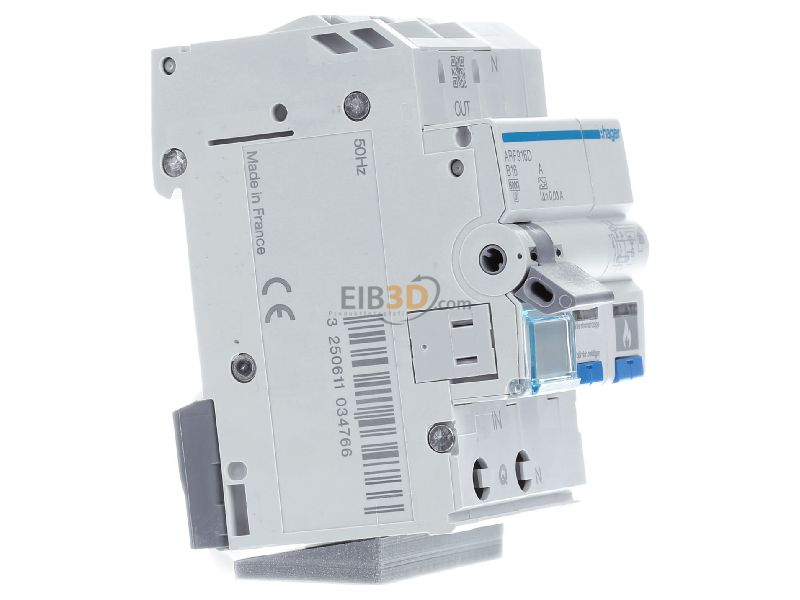

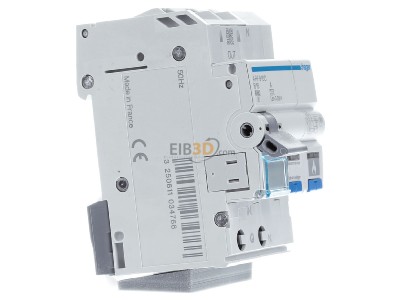

View on the left Hager ARF916D Earth leakage circuit breaker with
View on the left

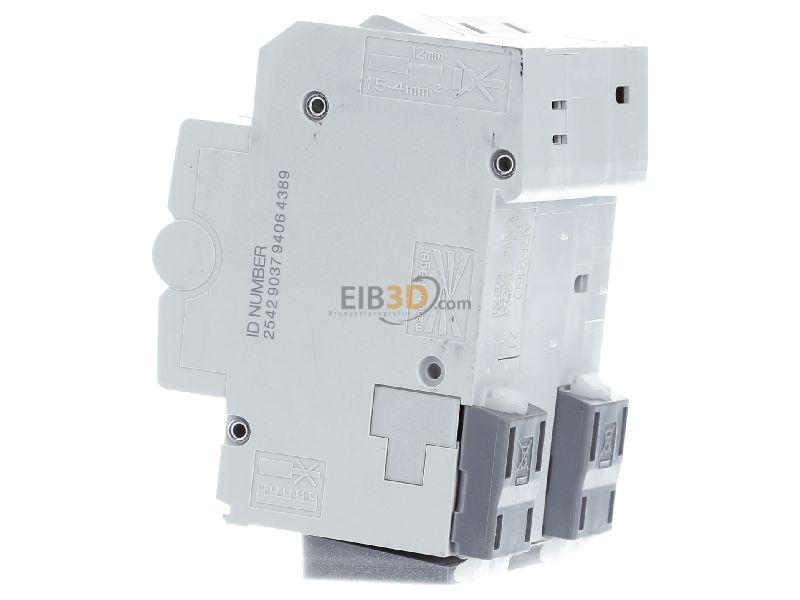

View on the right Hager ARF916D Earth leakage circuit breaker with
View on the right

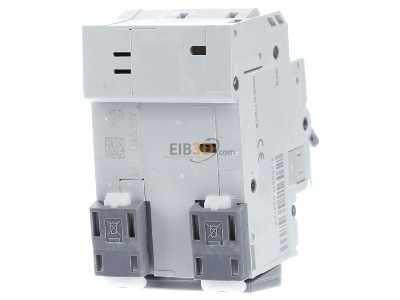

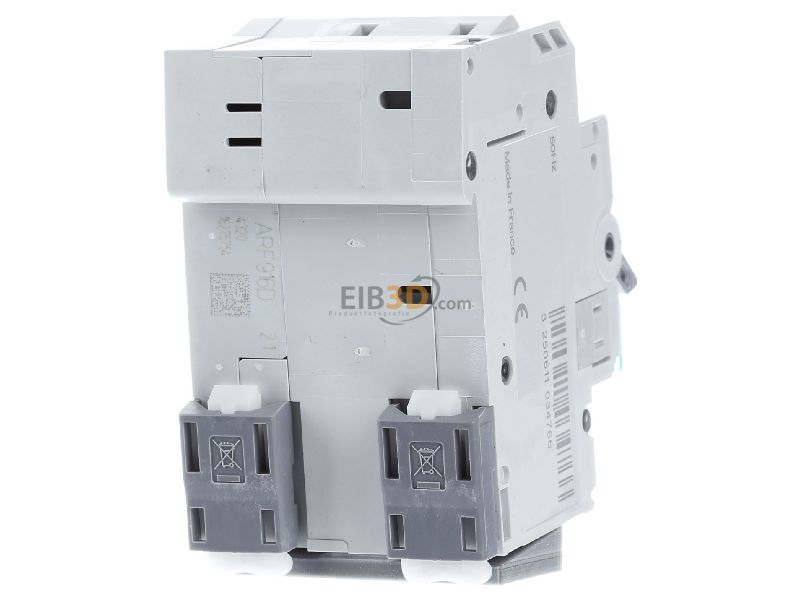

Back view Hager ARF916D Earth leakage circuit breaker with
Back view

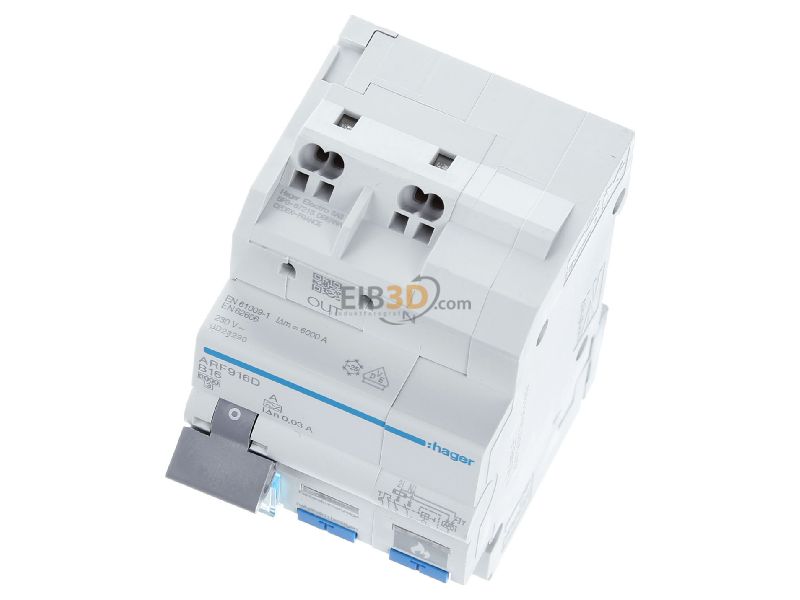

View up front Hager ARF916D Earth leakage circuit breaker with
View up front
View top left Hager ARF916D Earth leakage circuit breaker with
View top left

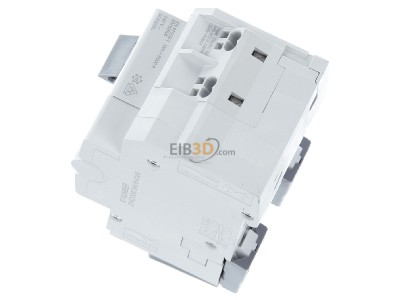

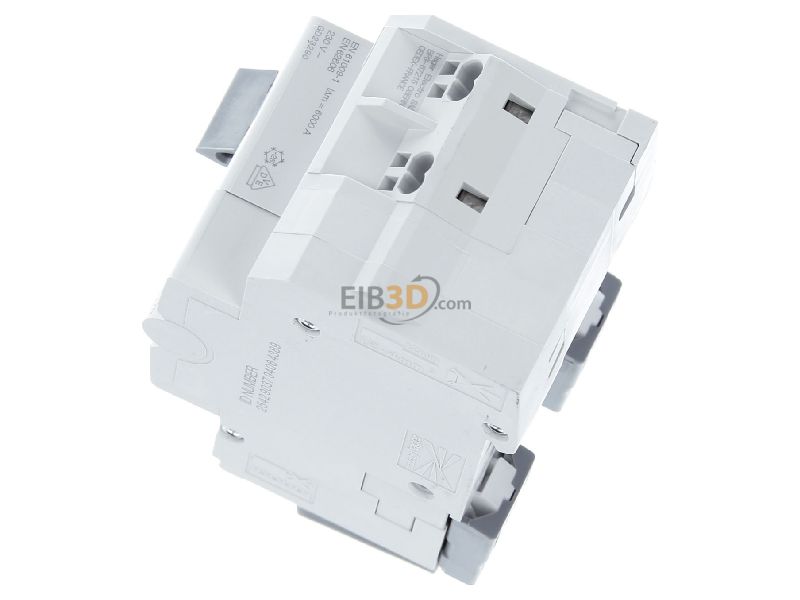

View top right Hager ARF916D Earth leakage circuit breaker with
View top right

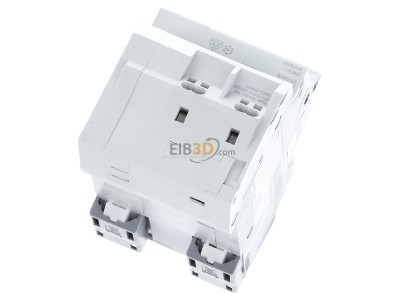

Top rear view Hager ARF916D Earth leakage circuit breaker with
Top rear view
