Source photo: www.EIB3D.com

Earth leakage circuit breaker B16/0,03A ADM416QC

EAN/GTIN: 3250611027942
WEEE: DE 23692311
Manufacturer: HAGER
Manufacturer no.: ADM416QC
Customs tariff no.: 85362010
Similar top items: Show now & compare
140,12 GBP Price incl. VAT (0,00 GBP)
plus shipping
Delivery time:
3-5 days [GB] Central warehouse item (regularly available) - live request to the central warehouse directly in the cart or click the link below the price >Quantity available?<
pce

We always deliver the latest available article version.
Minimum order value (UK): 150 EUR (Sub total)

Note:
The installation of electrical devices may only be carried out by an approved electrician and, in the case of high-voltage systems (> = 400V and country-specific nominal power), only with the consent of the respective electricity network operator.

Details

Accessory
bought
Useful
Interesting

Number of poles (total) 4, Number of protected poles 4, Rated voltage 400V, Rated insulation voltage Ui 500V, Rated impulse withstand voltage Uimp 4kV, Rated current 16A, Rated fault current 0,03A, Leakage current type A, Current limiting class 3, Rated short-circuit breaking capacity Icn acc. EN 61009-1 6kA, Disconnection characteristic Undelayed, Surge current capacity 3kA, Voltage type AC, Frequency 50 Hz, Release characteristic B, With interlocking device, Over voltage category 3, Pollution degree 2, Ambient temperature during operating -25 ... 40°C, Width in number of modular spacings 4, Built-in depth 70mm, Suitable for flush-mounted installation, Degree of protection (IP) IP20, Connectable conductor cross section solid-core 1 ... 25mm², Connectable conductor cross section multi-wired 1 ... 16mm²

More product images:

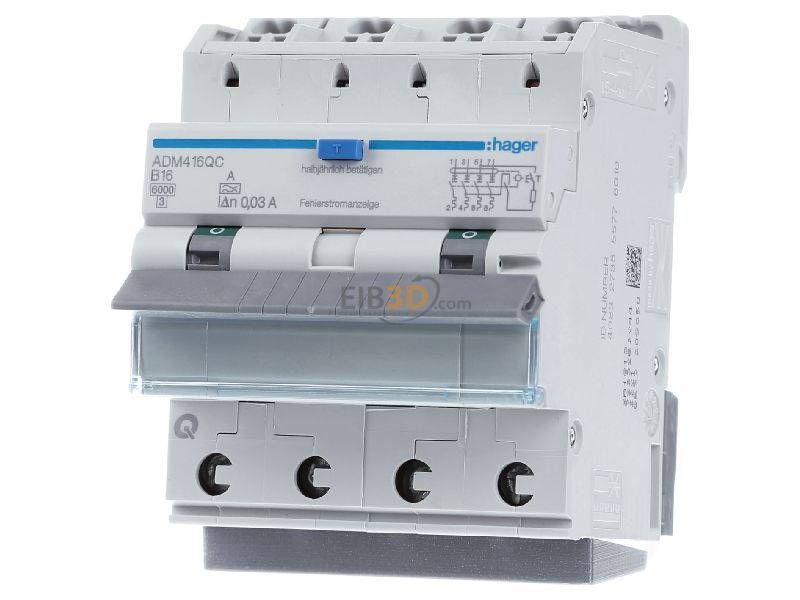

Front view Hager ADM416QC Earth leakage circuit breaker B16/0,03A
Front view

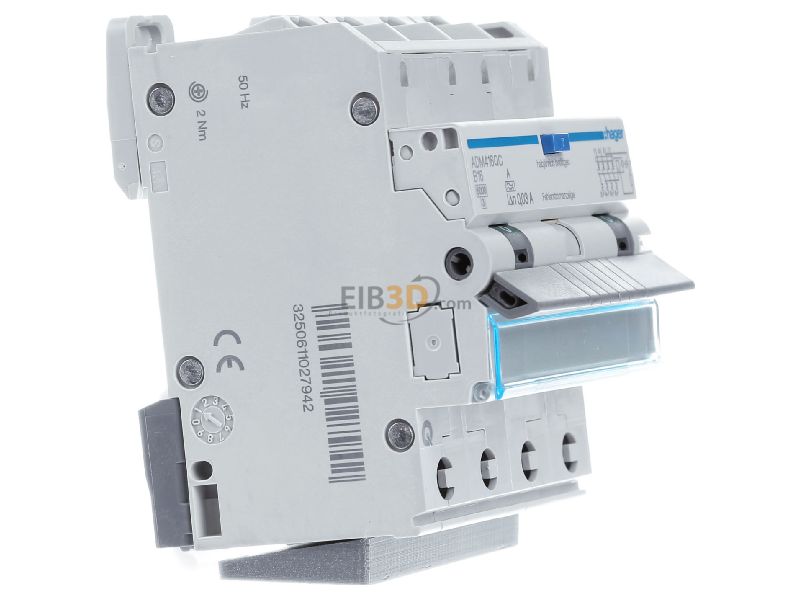

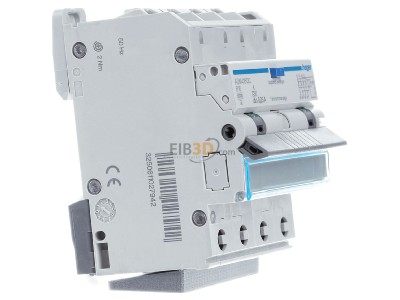

View on the left Hager ADM416QC Earth leakage circuit breaker B16/0,03A
View on the left

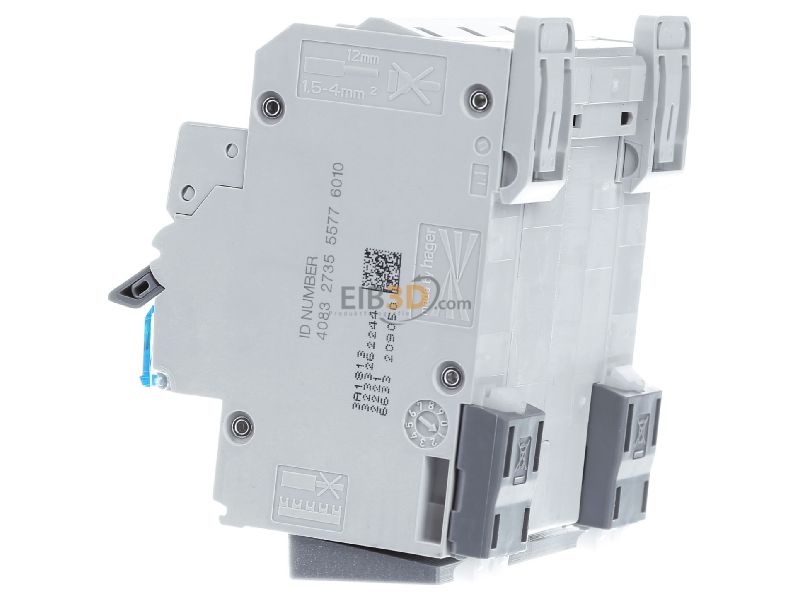

View on the right Hager ADM416QC Earth leakage circuit breaker B16/0,03A
View on the right

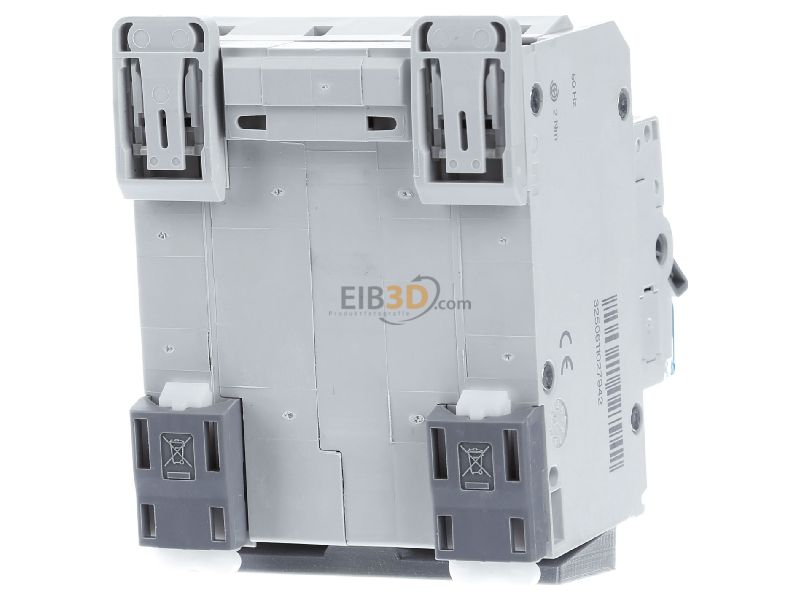

Back view Hager ADM416QC Earth leakage circuit breaker B16/0,03A
Back view

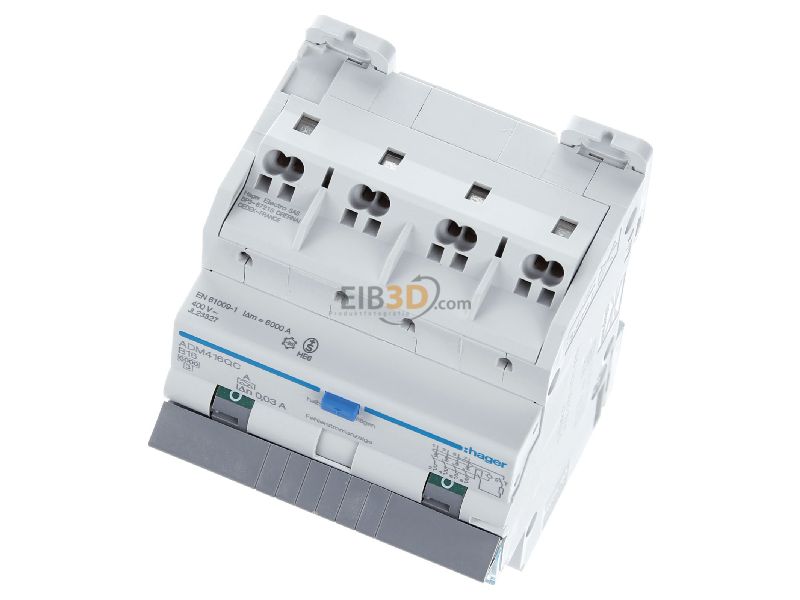

View up front Hager ADM416QC Earth leakage circuit breaker B16/0,03A
View up front

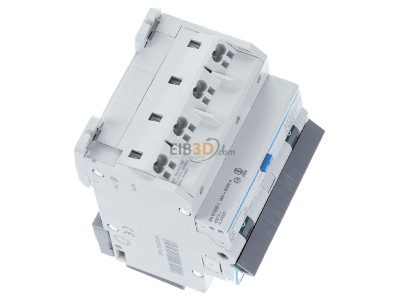

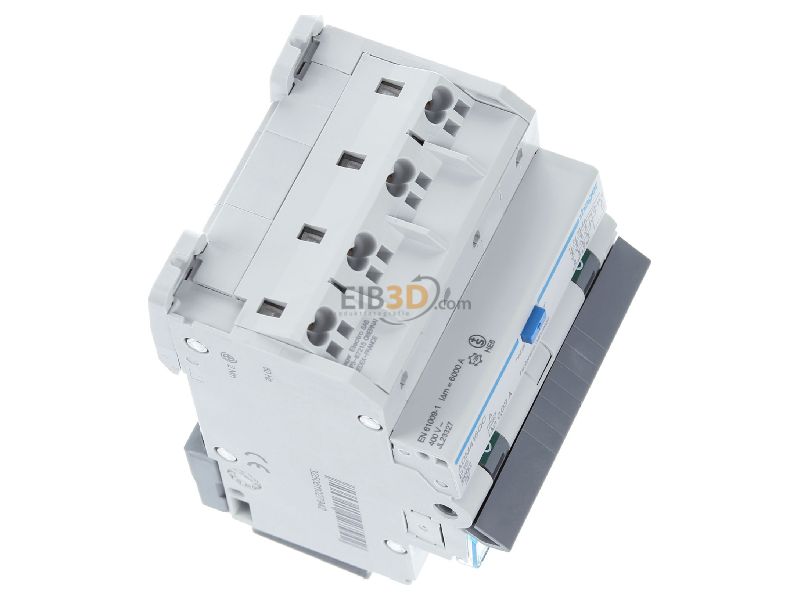

View top left Hager ADM416QC Earth leakage circuit breaker B16/0,03A
View top left

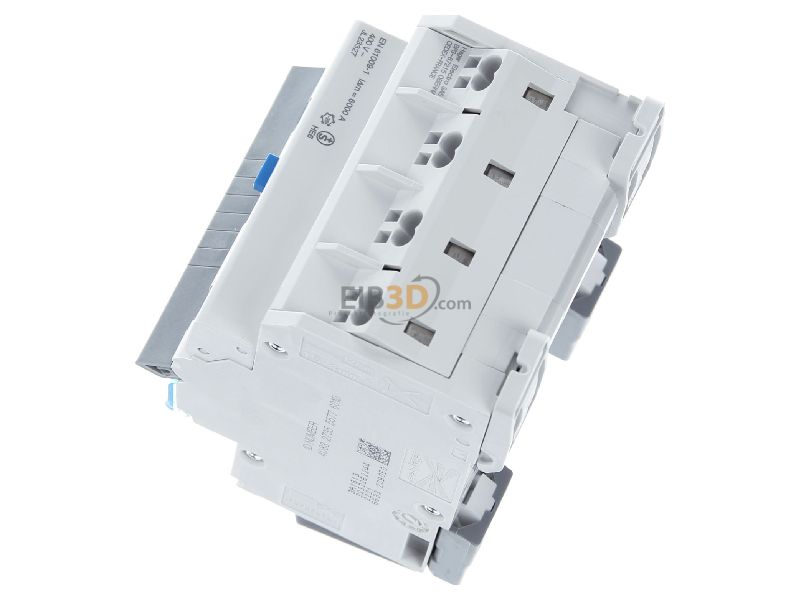

View top right Hager ADM416QC Earth leakage circuit breaker B16/0,03A
View top right

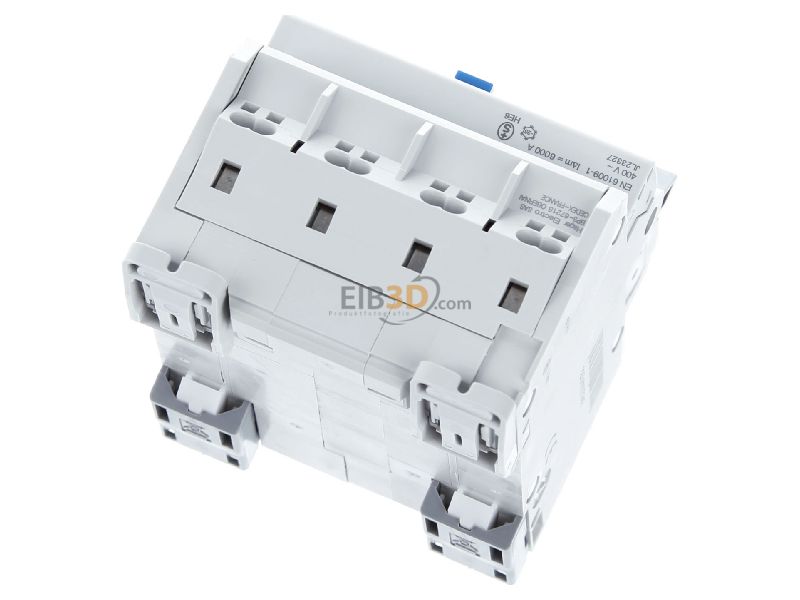

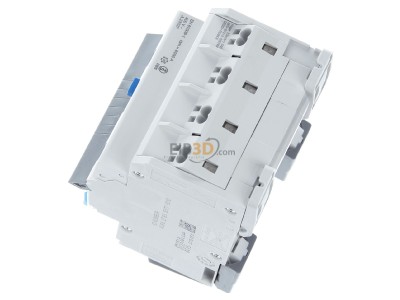

Top rear view Hager ADM416QC Earth leakage circuit breaker B16/0,03A
Top rear view
