Direct kilowatt-hour meter 5A 7M.38.8.400.0212

EAN/GTIN: 8012823433219
WEEE: DE 43501029
Manufacturer: Finder
Manufacturer no.: 7M.38.8.400.0212
Manufact.-SKU: 7M3884000212
Customs tariff no.: 90283019
Similar top items: Show now & compare
168,72 GBP Price incl. VAT (0,00 GBP)
plus shipping
Delivery time:
3-5 days [GB] Central warehouse item (regularly available) - live request to the central warehouse directly in the cart or click the link below the price >Quantity available?<
pce

We always deliver the latest available article version.
Minimum order value (UK): 150 EUR (Sub total)

Note:
The installation of electrical devices may only be carried out by an approved electrician and, in the case of high-voltage systems (> = 400V and country-specific nominal power), only with the consent of the respective electricity network operator.

Details

bought
Useful
Interesting

Direct kilowatt-hour meter 5A Type of meter Electronic, Nominal current (In) 5A, Max. current (Imax) 80A, Nominal voltage (Un) N-L 230 ... 230V, Nominal voltage (Un) L-L 400 ... 400V, Frequency 50 ... 60Hz, Accuracy class B, Pole type Three conductor/four conductor, Model Direct measurement, Energy type Effective power and blind power, Suitable for Purchase/supply, Tariff type Two-tariff, Tariff control External, Calibrated, Approval Measuring Instruments Directive, Pulse output Electrical, Pulse type S0, Pulse rate 500 ... 500Imp/kWh (kvarh), Type of indication Digital, Mounting method DRA (DIN-rail adapter), Width in number of modular spacings 3, Type of interface Modbus, With lock code, Number of positions total (counter) 8, Degree of protection (IP) IP20, Degree of protection (NEMA) 1

More product images:

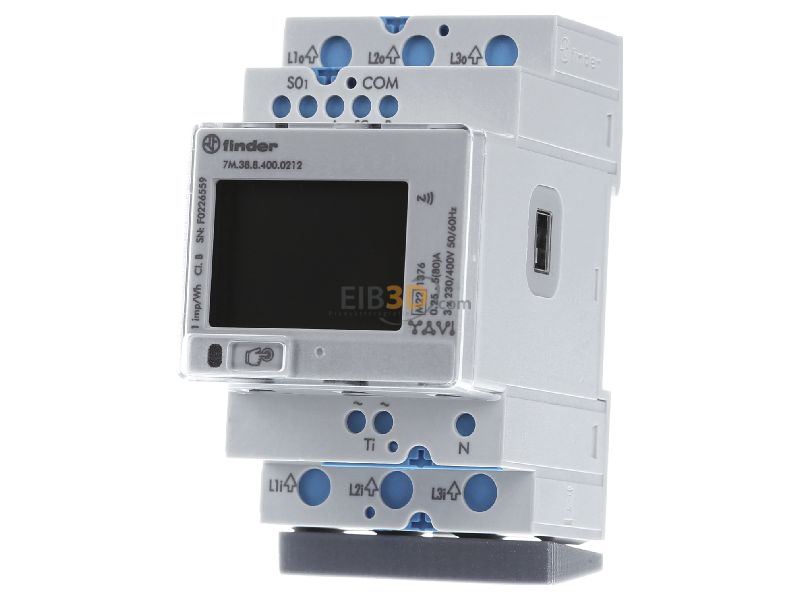

Front view Finder 7M.38.8.400.0212 Direct kilowatt-hour meter 5A
Front view

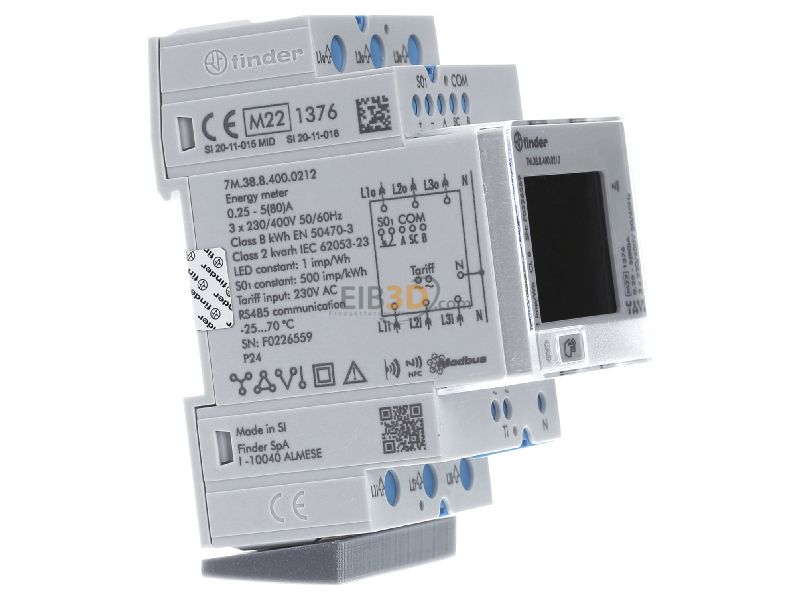

View on the left Finder 7M.38.8.400.0212 Direct kilowatt-hour meter 5A
View on the left
View on the right Finder 7M.38.8.400.0212 Direct kilowatt-hour meter 5A
View on the right

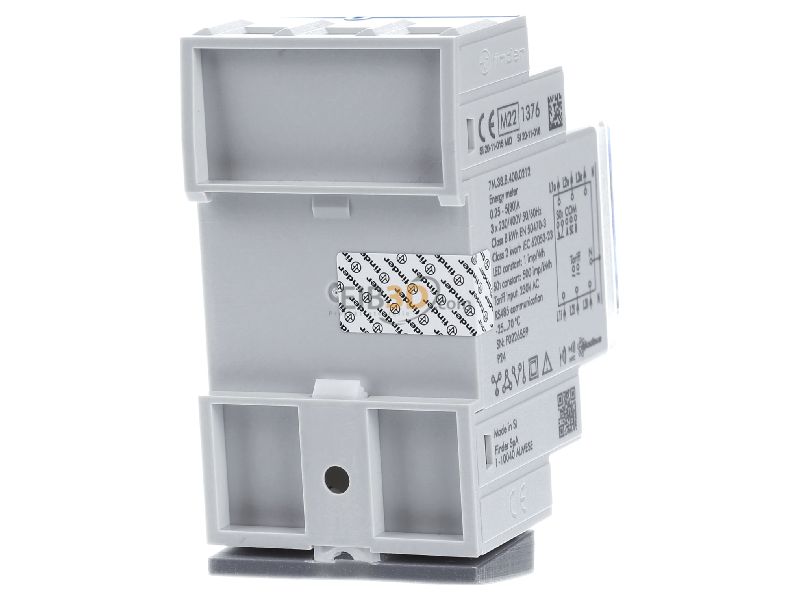

Back view Finder 7M.38.8.400.0212 Direct kilowatt-hour meter 5A
Back view
View up front Finder 7M.38.8.400.0212 Direct kilowatt-hour meter 5A
View up front
View top left Finder 7M.38.8.400.0212 Direct kilowatt-hour meter 5A
View top left
View top right Finder 7M.38.8.400.0212 Direct kilowatt-hour meter 5A
View top right
Top rear view Finder 7M.38.8.400.0212 Direct kilowatt-hour meter 5A
Top rear view
