Phase busbar 3-p 10mm² 106mm EVGK-3PHAS/6MODUL

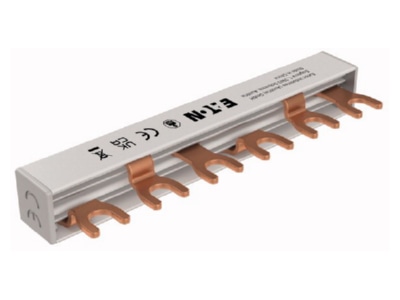

Source photo:
Eaton
(fig. might be different or similar)

Phase busbar 3-p 10mm² 106mm EVGK-3PHAS/6MODUL

EAN/GTIN: 9010653035190
WEEE: DE 92318050
Manufacturer: Eaton
Manufacturer no.: EVGK-3PHAS/6MODUL
Manufact.-SKU: 501075
Customs tariff no.: 85444290
Similar top items: Show now & compare
2,57 GBP Price incl. VAT (0,00 GBP)
plus shipping
Delivery time:
3-5 days [GB] Central warehouse item (regularly available) - live request to the central warehouse directly in the cart or click the link below the price >Quantity available?<
pce

We always deliver the latest available article version.
Minimum order value (UK): 150 EUR (Sub total)

Note:
The installation of electrical devices may only be carried out by an approved electrician and, in the case of high-voltage systems (> = 400V and country-specific nominal power), only with the consent of the respective electricity network operator.

Details

bought
Useful
Interesting

Fork busbar 3-phase EVGK-3PHAS/6MODUL Number of phases 3, number of poles 3, suitable for number of devices 2, pitch 17.8mm, cross section 10mm², length 106mm, width in pitch units 6, rated continuous current Iu 63A, design of the electrical connection fork, insulated , Rated impulse voltage 4kV, Rated conditional short-circuit current Iq 25kA, Max. rated operating voltage Ue 415V, Rated short-time withstand current Icw 0kA, color gray, busbar for circuit breakers, residual current circuit breakers, combined residual current protective devices, pre-assembled end caps (also available separately), can be cut to length individually, color RAL 7035, halogen-free ( DIN EN 60754-1), fire behavior class according to V2, tested by VDE (DIN EN 61439-1:2021-10 DIN EN 61439-6:2013-06), PC-ABS insulation material and PP contact protection material, dielectric strength 36 kV/mm and overvoltage category III

More product images:

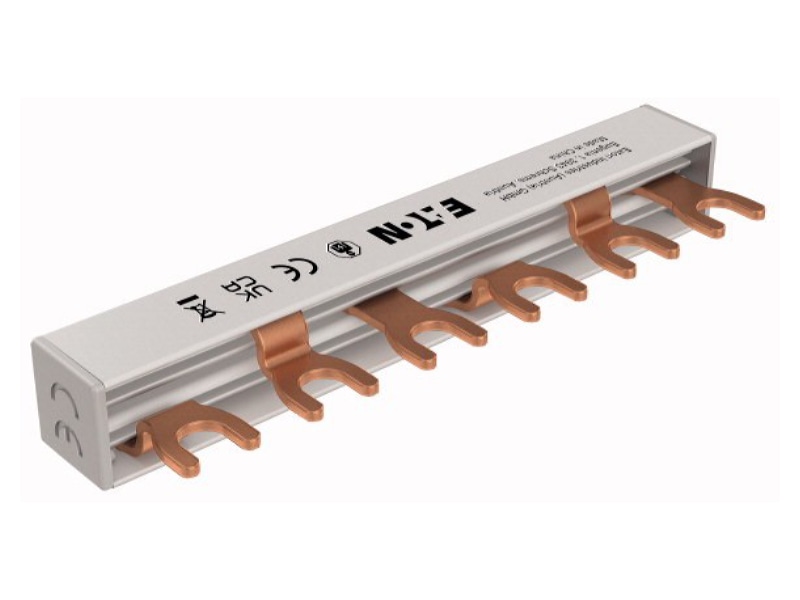

Product image Eaton EVGK 3PHAS 6MODUL Phase busbar 3 p 10mm  106mm
Product image

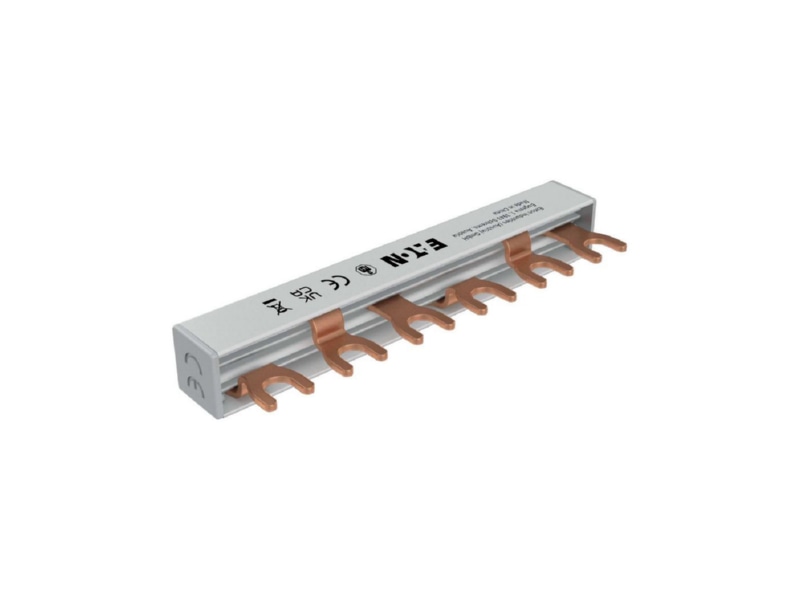

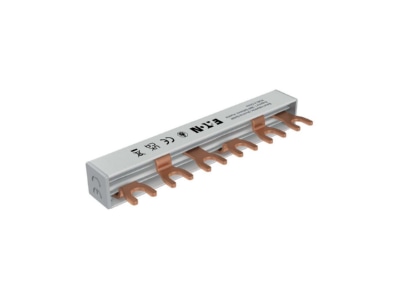

View left Eaton EVGK 3PHAS 6MODUL Phase busbar 3 p 10mm  106mm
View left

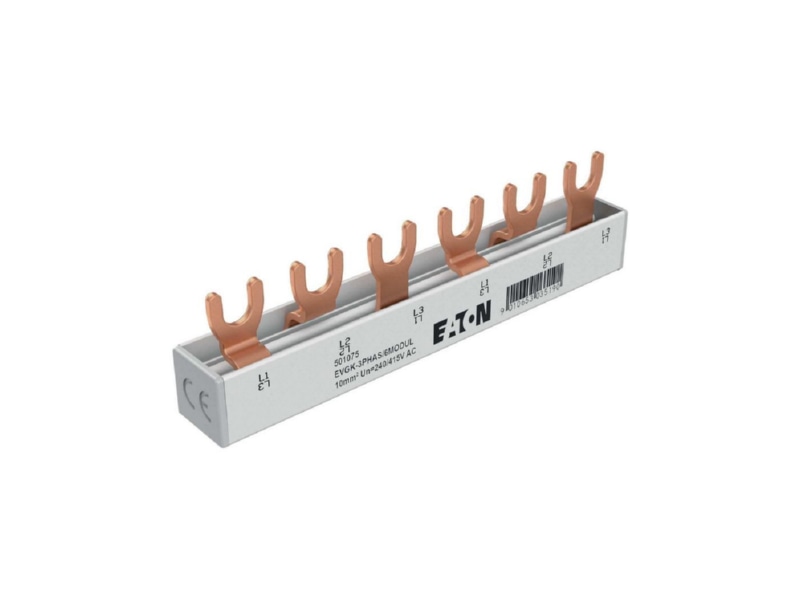

View right Eaton EVGK 3PHAS 6MODUL Phase busbar 3 p 10mm  106mm
View right
