Soft starter 32A 110...230VAC 0VDC DS7-342SX032N0-N
Source photo:
Eaton
(fig. might be different or similar)

Soft starter 32A 110...230VAC 0VDC DS7-342SX032N0-N

EAN/GTIN: 4015081317479
WEEE: DE 92318050
Manufacturer: Eaton
Manufacturer no.: DS7-342SX032N0-N
Manufact.-SKU: 134932
Customs tariff no.: 85044095
Similar top items: Show now & compare
287,66 GBP Price incl. VAT (0,00 GBP)
plus shipping
Delivery time:
13-15 days [GB] Items to be procured that can be ordered (no central warehouse item) - live request to the central warehouse directly in the cart or click the link below the price >Quantity available?<
pce

We always deliver the latest available article version.
Minimum order value (UK): 150 EUR (Sub total)

Note:
The installation of electrical devices may only be carried out by an approved electrician and, in the case of high-voltage systems (> = 400V and country-specific nominal power), only with the consent of the respective electricity network operator.

Details

Accessory
bought
Useful
Interesting

Rated operation current Ie at 40 °C Tu=32 A, Rated operating voltage Ue=230..460 V, Rated power three-phase motor, inline, at 230 V=7,5 kW, Rated power three-phase motor, inline, at 400 V=15 kW, Rated power three-phase motor, inside delta, at 230 V=0 kW, Rated power three-phase motor, inside delta, at 400 V=0 kW, Function=Single direction, Internal bypass=yes, With display=no, Torque control=no, Rated surrounding temperature without derating=40 °C, Rated control supply voltage Us at AC 50HZ=110..230 V, Rated control supply voltage Us at AC 60HZ=110..230 V, Rated control supply voltage Us at DC=0 V, Voltage type for actuating=AC, Integrated motor overload protection=no, Release class=Other, Degree of protection (IP)=IP20, Degree of protection (NEMA)=1

More product images:

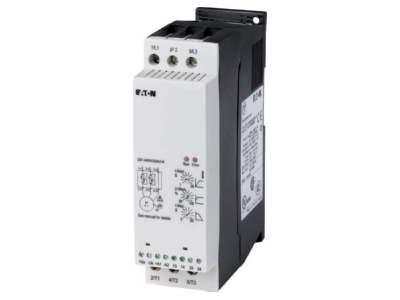

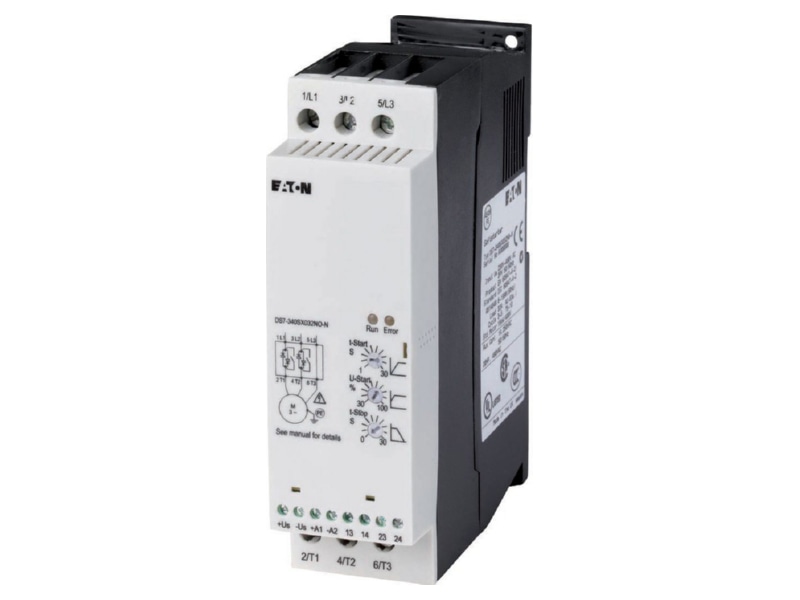

Product image 1 Eaton DS7 342SX032N0 N Soft starter 32A 110   230VAC 0VDC
Product image 1

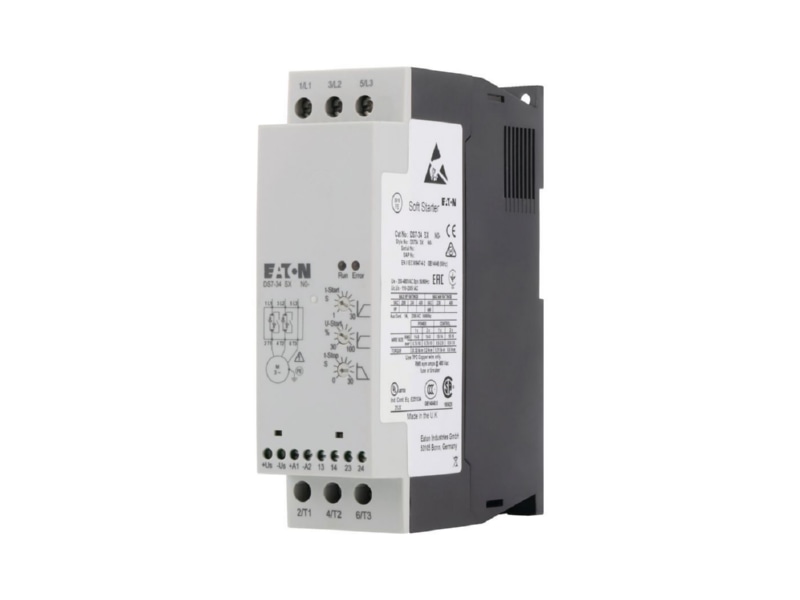

Product image 2 Eaton DS7 342SX032N0 N Soft starter 32A 110   230VAC 0VDC
Product image 2
