Residual current breaker 4-p FRCMM-125/4/03-S/BFQ
Source photo:
Eaton
(fig. might be different or similar)

Residual current breaker 4-p FRCMM-125/4/03-S/BFQ

EAN/GTIN: 4015081676743
WEEE: DE 92318050
Manufacturer: Eaton
Manufacturer no.: FRCMM-125/4/03-S/BFQ
Manufact.-SKU: 171190
Customs tariff no.: 85362090
Similar top items: Show now & compare
2.895,84 GBP Price incl. VAT (0,00 GBP)
plus shipping
Delivery time:
13-15 days [GB] Items to be procured that can be ordered (no central warehouse item) - live request to the central warehouse directly in the cart or click the link below the price >Quantity available?<
pce

We always deliver the latest available article version.
Minimum order value (UK): 150 EUR (Sub total)

Note:
The installation of electrical devices may only be carried out by an approved electrician and, in the case of high-voltage systems (> = 400V and country-specific nominal power), only with the consent of the respective electricity network operator.

Details

bought
Useful
Interesting

Number of poles=4, Rated voltage=415 V, Rated current=125 A, Rated fault current=0,3 A, Rated insulation voltage Ui=440 V, Rated impulse withstand voltage Uimp=4 kV, Mounting method=DIN rail, Leakage current type=B, Selective protection=yes, Short-time delayed tripping=no, Short-circuit breaking capacity (Icw)=10 kA, Surge current capacity=5 kA, With interlocking device=yes, Frequency=50 Hz, Additional equipment possible=yes, Degree of protection (IP)=IP20, Width in number of modular spacings=4, Built-in depth=70,5 mm, Ambient temperature during operating=-25..40 °C, Pollution degree=2, Connectable conductor cross section multi-wired=1,5..16 mm², Connectable conductor cross section solid-core=1,5..50 mm²

More product images:

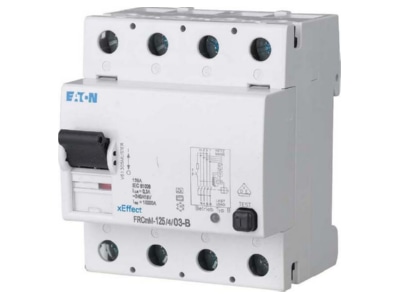

Product image 1 Eaton FRCMM 125 4 03 S BFQ Residual current breaker 4 p
Product image 1

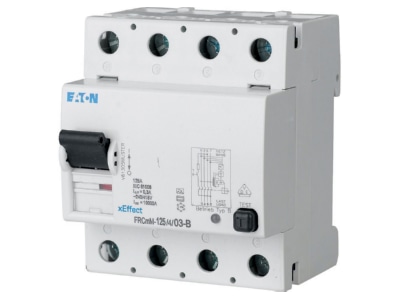

Product image 2 Eaton FRCMM 125 4 03 S BFQ Residual current breaker 4 p
Product image 2
