Frequency converter 380...480V 0,75kW DA1-342D2FB-A20C
Source photo:
Eaton
(fig. might be different or similar)

Frequency converter 380...480V 0,75kW DA1-342D2FB-A20C

EAN/GTIN: 4015081655984
WEEE: DE 92318050
Manufacturer: Eaton
Manufacturer no.: DA1-342D2FB-A20C
Manufact.-SKU: 169117
Customs tariff no.: 85044095
Similar top items: Show now & compare
497,00 GBP Price incl. VAT (0,00 GBP)
plus shipping
Delivery time:
13-15 days [GB] Items to be procured that can be ordered (no central warehouse item) - live request to the central warehouse directly in the cart or click the link below the price >Quantity available?<
pce

We always deliver the latest available article version.
Minimum order value (UK): 150 EUR (Sub total)

Note:
The installation of electrical devices may only be carried out by an approved electrician and, in the case of high-voltage systems (> = 400V and country-specific nominal power), only with the consent of the respective electricity network operator.

Details

Accessory
bought
Useful
Interesting

Mains voltage 380..480 V, Mains frequency 50/60 Hz, Input phase number 3, Output phase number 3, Max. output frequency 500 Hz, Max. output voltage 500V, Rated output current I2N 2.2 A, Relative symmetric mains frequency tolerance 10%, Relative symmetrical mains voltage tolerance 10%, Number of analog outputs 2, Number of analog inputs 2, Number of digital outputs 2, Number of digital inputs 5, With operating element yes, Use in the industrial sector permitted yes, Use in residential and commercial areas permitted yes, Supports protocol for TCP/IP no, Supports protocol for PROFIBUS yes, Supports protocol for CAN yes, Supports protocol for INTERBUS no, Supports protocol for ASI no, Supports protocol for KNX no, Supports protocol for MODBUS yes, Supports data highway protocol no, Supports protocol for DeviceNet yes, Supports protocol for SUCONET no, Supports protocol for LON no, Supports protocol for PROFINET IO yes, Supports protocol for PROFINET CBA no, Supports protocol for SERCOS no, Supports protocol for Ethernet/IP yes, Supports protocol for DeviceNet Safety no, Supports protocol for INTERBUS safety no, Supports protocol for PROFIsafe no, Supports protocol for SafetyBUS p no, Supports protocol for BACnet no, Supports protocol for other bus systems yes, Number of HW interfaces, serial RS-485 1, With optical interface no, With PC connection yes, Integrated braking resistance yes, 4-quadrant operation possible no, Type of inverter Voltage converters, Degree of protection (IP) IP20, Protection class (NEMA) other, Height 231 mm, Width 107 mm, Depth 186 mm

More product images:

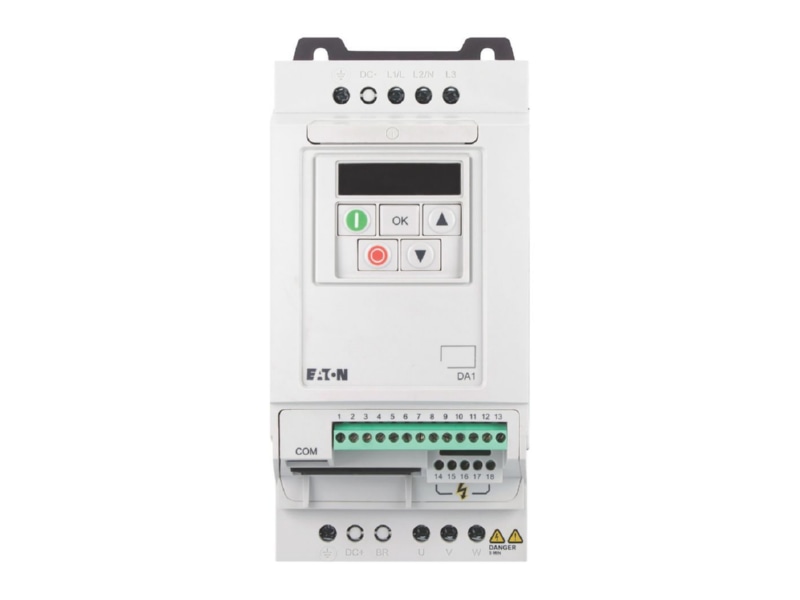

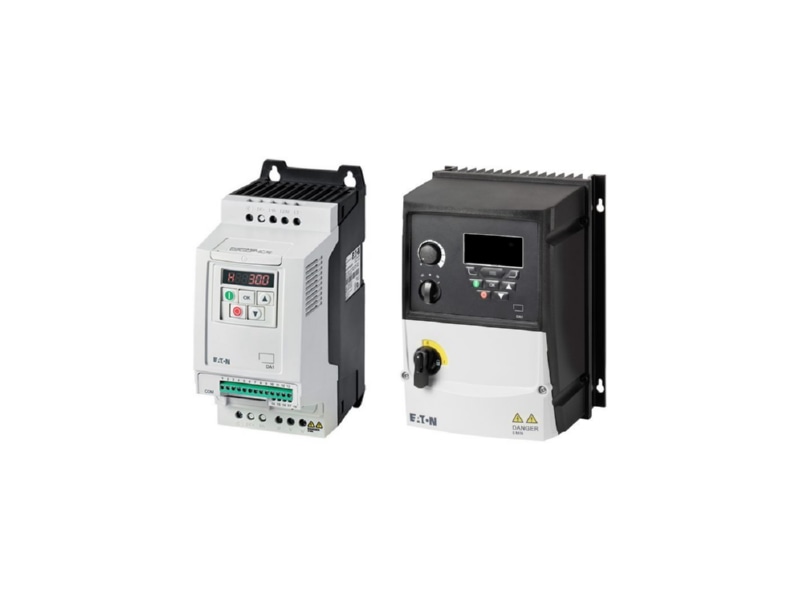

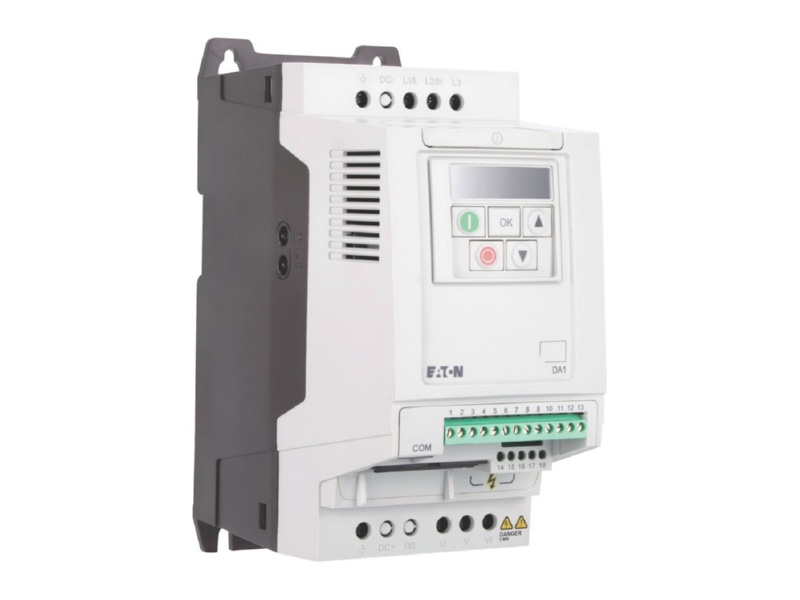

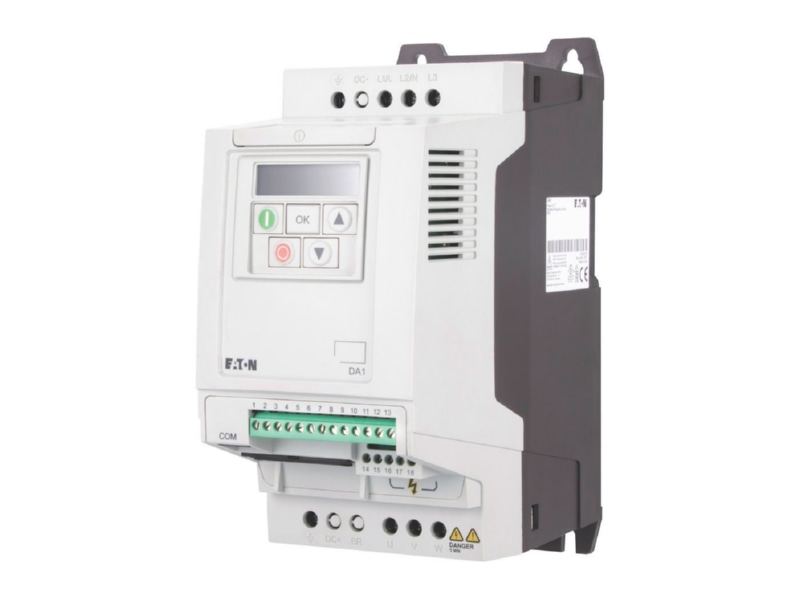

Product image Eaton DA1 342D2FB A20C Frequency converter 380   480V 0 75kW
Product image
View left Eaton DA1 342D2FB A20C Frequency converter 380   480V 0 75kW
View left
Front view 1 Eaton DA1 342D2FB A20C Frequency converter 380   480V 0 75kW
Front view 1
Front view 2 Eaton DA1 342D2FB A20C Frequency converter 380   480V 0 75kW
Front view 2
View right 1 Eaton DA1 342D2FB A20C Frequency converter 380   480V 0 75kW
View right 1
View right 2 Eaton DA1 342D2FB A20C Frequency converter 380   480V 0 75kW
View right 2
