Miniature circuit breaker 1-p C80A AZ-C80
Source photo:
Eaton
(fig. might be different or similar)

Miniature circuit breaker 1-p C80A AZ-C80

EAN/GTIN: 4015082117993
WEEE: DE 92318050
Manufacturer: Eaton
Manufacturer no.: AZ-C80
Manufact.-SKU: 211799
Customs tariff no.: 85362090
Similar top items: Show now & compare
81,95 GBP Price incl. VAT (0,00 GBP)
plus shipping
Delivery time:
13-15 days [GB] Items to be procured that can be ordered (no central warehouse item) - live request to the central warehouse directly in the cart or click the link below the price >Quantity available?<
pce

We always deliver the latest available article version.
Minimum order value (UK): 150 EUR (Sub total)

Note:
The installation of electrical devices may only be carried out by an approved electrician and, in the case of high-voltage systems (> = 400V and country-specific nominal power), only with the consent of the respective electricity network operator.

Details

Accessory
bought
Useful
Interesting

Built-in depth=75 mm, Release characteristic=C, Number of poles (total)=1, Number of protected poles=1, Rated current=80 A, Rated voltage=230 V, Rated insulation voltage Ui=440 V, Rated impulse withstand voltage Uimp=4 kV, Rated short-circuit breaking capacity Icn according to EN 60898 at 230 V=0 kA, Voltage type=AC, Rated short-circuit breaking capacity Icn according to EN 60898 at 400 V=0 kA, Rated short-circuit breaking capacity Icu according to IEC 60947-2 at 230 V=20 kA, Rated short-circuit breaking capacity Icu according to IEC 60947-2 at 400 V=20 kA, Frequency=50..60 Hz, Current limiting class=3, Flush-mounted installation=no, Concurrently switching neutral conductor=no, Over voltage category=3, Pollution degree=2, Additional equipment possible=yes, Width in number of modular spacings=1,5, Degree of protection (IP)=IP20, Ambient temperature during operating=-25..55 °C, Connectable conductor cross section multi-wired=2,5..50 mm², Connectable conductor cross section solid-core=2,5..50 mm², Explosion-proof=no

More product images:

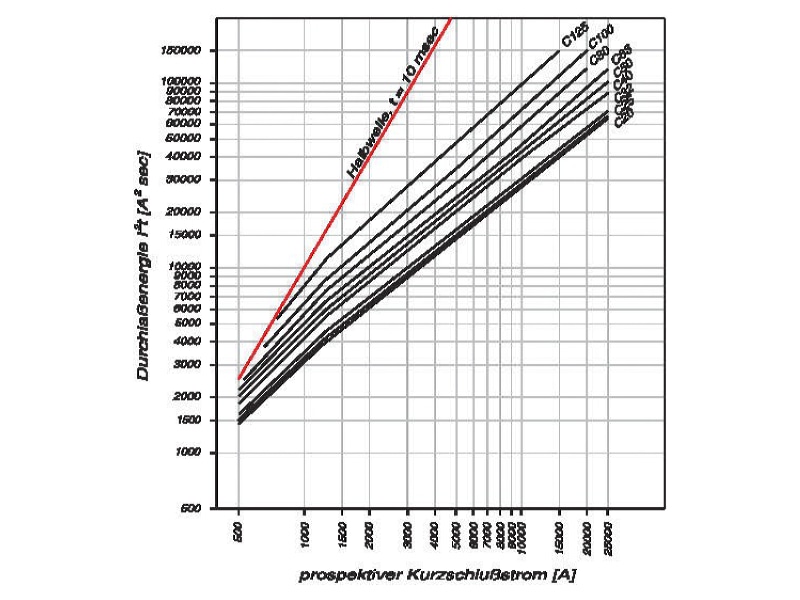

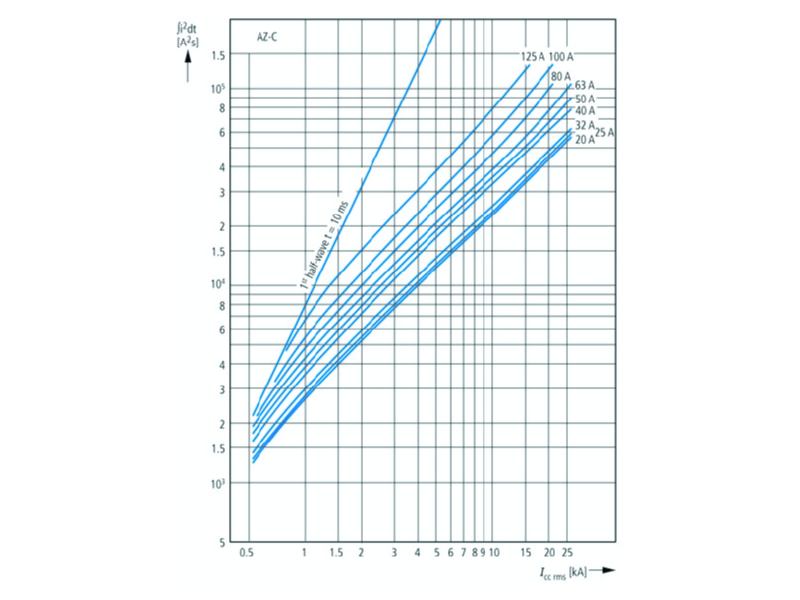

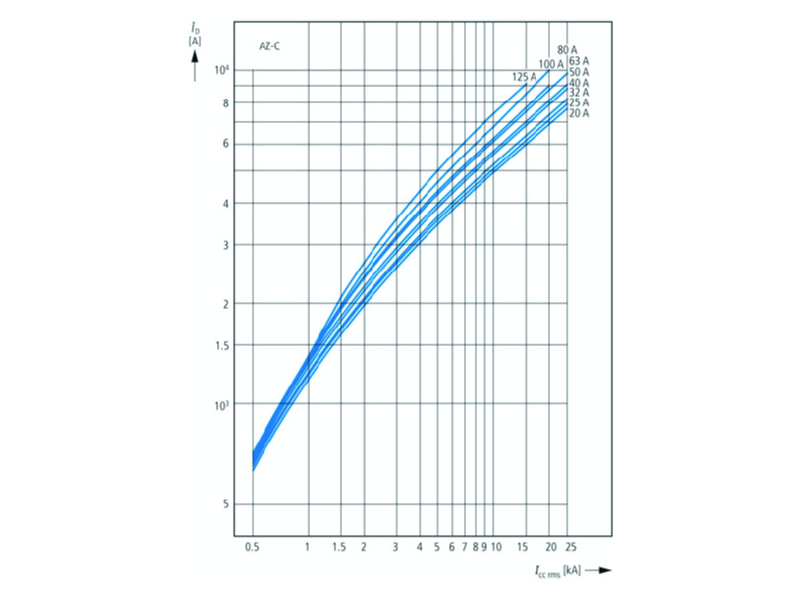

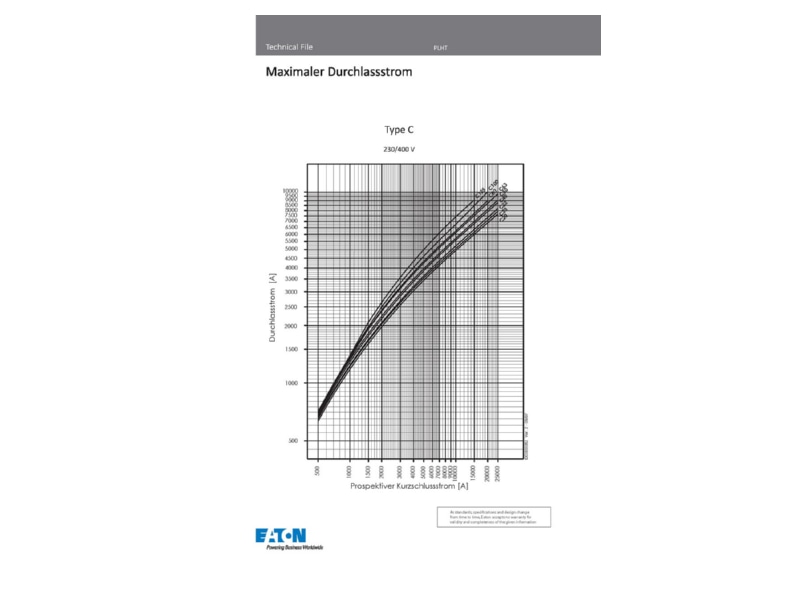

Flow chart 1 Eaton AZ C80 Miniature circuit breaker 1 p C80A
Flow chart 1

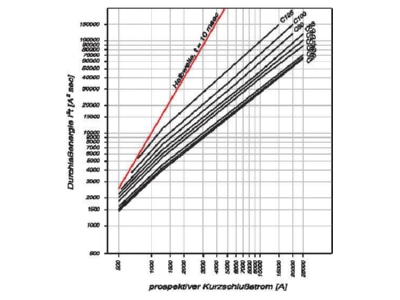

Flow chart 2 Eaton AZ C80 Miniature circuit breaker 1 p C80A
Flow chart 2

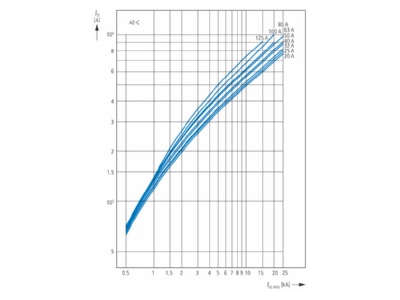

Flow chart 3 Eaton AZ C80 Miniature circuit breaker 1 p C80A
Flow chart 3
Flow chart 4 Eaton AZ C80 Miniature circuit breaker 1 p C80A
Flow chart 4

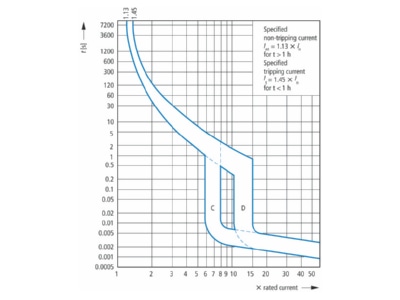

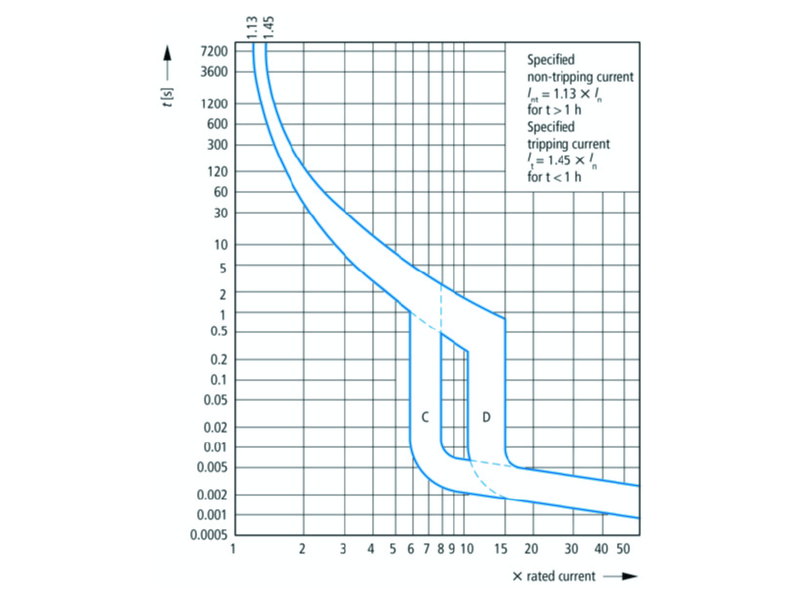

Flow chart 5 Eaton AZ C80 Miniature circuit breaker 1 p C80A
Flow chart 5
Flow chart 6 Eaton AZ C80 Miniature circuit breaker 1 p C80A
Flow chart 6

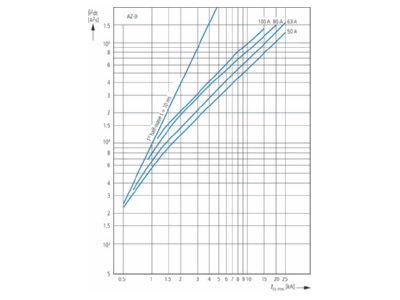

Flow chart 7 Eaton AZ C80 Miniature circuit breaker 1 p C80A
Flow chart 7
