Logic module 8 In / 4 Out EASY-E4-UC-12RCX1
Source photo:
Eaton
(fig. might be different or similar)

Logic module 8 In / 4 Out EASY-E4-UC-12RCX1

EAN/GTIN: 4015081939473
WEEE: DE 92318050
Manufacturer: Eaton
Manufacturer no.: EASY-E4-UC-12RCX1
Manufact.-SKU: 197212
Customs tariff no.: 85371091
Similar top items: Show now & compare
94,93 GBP Price incl. VAT (0,00 GBP)
plus shipping
Delivery time:
3-5 days [GB] Central warehouse item (regularly available) - live request to the central warehouse directly in the cart or click the link below the price >Quantity available?<
pce

We always deliver the latest available article version.
Minimum order value (UK): 150 EUR (Sub total)

Note:
The installation of electrical devices may only be carried out by an approved electrician and, in the case of high-voltage systems (> = 400V and country-specific nominal power), only with the consent of the respective electricity network operator.

Details

Accessory
bought
Useful
Interesting

Logic module 8 In / 4 Out Supply voltage AC 50 Hz 20,4 ... 28,8V, Supply voltage AC 60 Hz 20,4 ... 28,8V, Supply voltage DC 10,2 ... 28,8V, Voltage type of supply voltage AC/DC, Switching current 8A, Number of analogue inputs 4, Number of analogue outputs 0, Number of digital inputs 8, Number of digital outputs 4, With relay output, Number of HW-interfaces industrial Ethernet 1, Number of interfaces PROFINET 0, Number of HW-interfaces RS-232 0, Number of HW-interfaces RS-422 0, Number of HW-interfaces RS-485 0, Number of HW-interfaces serial TTY 0, Number of HW-interfaces USB 0, Number of HW-interfaces parallel 0, Number of HW-interfaces Wireless 0, Number of HW-interfaces other 1, Supporting protocol for TCP/IP, Supporting protocol for MODBUS, Degree of protection (IP) IP20, Basic device, Expandable, With timer, Rail mounting possible, Wall mounting/direct mounting, Front build in possible, SIL according to IEC 61508 None, Performance level acc. EN ISO 13849-1 None, Explosion safety category for gas None, Explosion safety category for dust None, Width 71,5mm, Height 90mm, Depth 58mm

More product images:

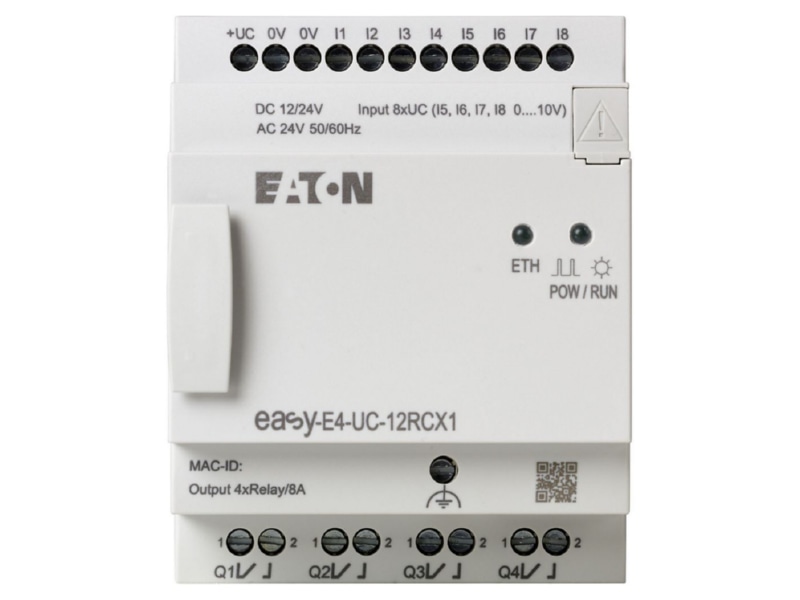

Product image Eaton EASY E4 UC 12RCX1 Logic module 8 In   4 Out
Product image

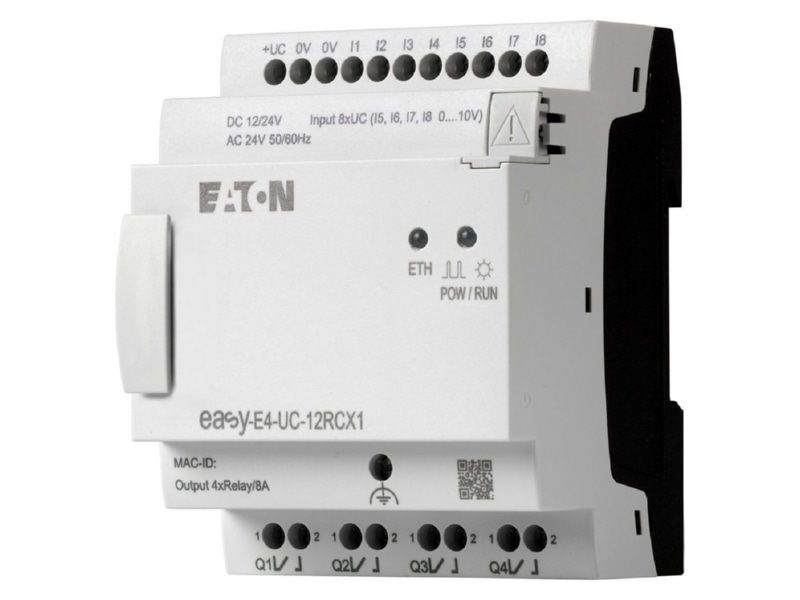

View left 1 Eaton EASY E4 UC 12RCX1 Logic module 8 In   4 Out
View left 1
View left 2 Eaton EASY E4 UC 12RCX1 Logic module 8 In   4 Out
View left 2
View right 1 Eaton EASY E4 UC 12RCX1 Logic module 8 In   4 Out
View right 1

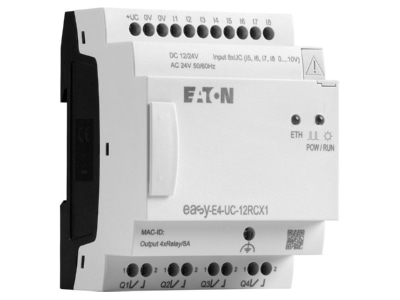

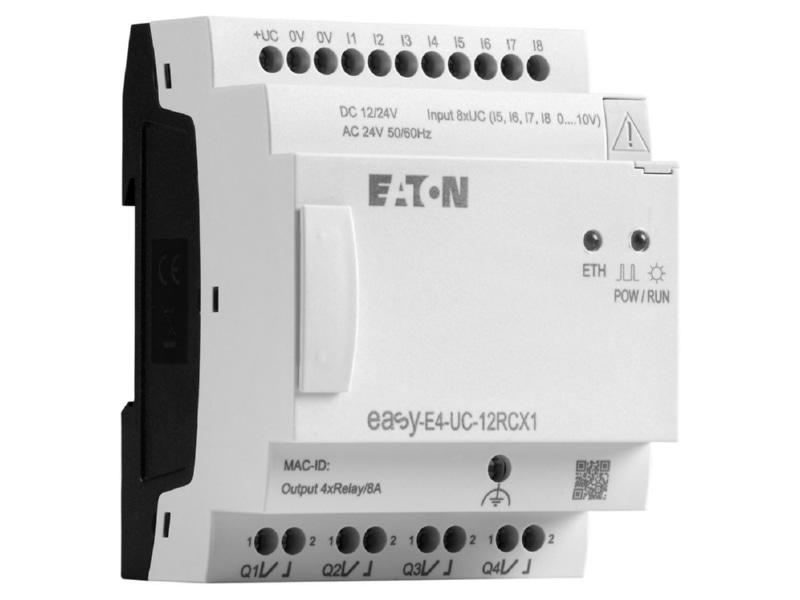

View right 2 Eaton EASY E4 UC 12RCX1 Logic module 8 In   4 Out
View right 2

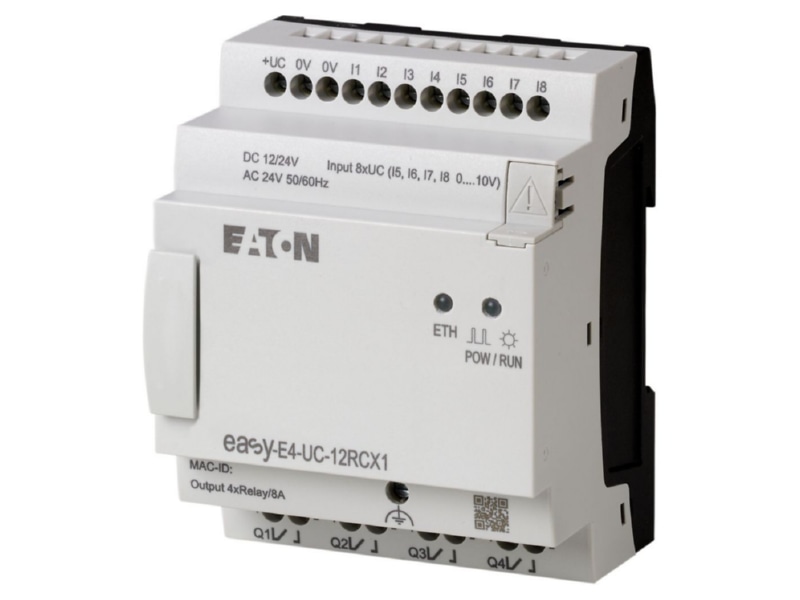

Top view 1 Eaton EASY E4 UC 12RCX1 Logic module 8 In   4 Out
Top view 1
Top view 2 Eaton EASY E4 UC 12RCX1 Logic module 8 In   4 Out
Top view 2
