Load shedding relay 15...32A Z-LAR32-O

EAN/GTIN: 4015082482589
WEEE: DE 92318050
Manufacturer: Eaton
Manufacturer no.: Z-LAR32-O
Manufact.-SKU: 248258
Customs tariff no.: 85364900
Similar top items: Show now & compare
84,63 GBP Price incl. VAT (0,00 GBP)
plus shipping
Delivery time:
13-15 days [GB] Items to be procured that can be ordered (no central warehouse item) - live request to the central warehouse directly in the cart or click the link below the price >Quantity available?<
pce

We always deliver the latest available article version.
Minimum order value (UK): 150 EUR (Sub total)

Note:
The installation of electrical devices may only be carried out by an approved electrician and, in the case of high-voltage systems (> = 400V and country-specific nominal power), only with the consent of the respective electricity network operator.

Details

bought
Useful
Interesting

Load shedding relay 15...32A Rated voltage 250V, Rated current Iu 15 ... 32A, Just-operate current 15 ... 32A, Max. time-delayed switch-off 0ms, Max. continuous current 32A, Number of contacts as normally open contact 0, Number of contacts as normally closed contact 1, Number of contacts as change-over contact 0, Rated current (control contacts) 1A, Max. switching voltage (control contacts) 250V, Max. switching power (control contacts) 7,36VA, Electrical lifespan (control contacts) 100000c (contacts), Mechanical lifetime (control contacts) 0c (contacts), Max. electrical switching cycles 3600c/h, Voltage type AC, Mounting method DIN rail, Width in number of modular spacings 1, Built-in depth 60mm, Degree of protection (IP) IP20

More product images:

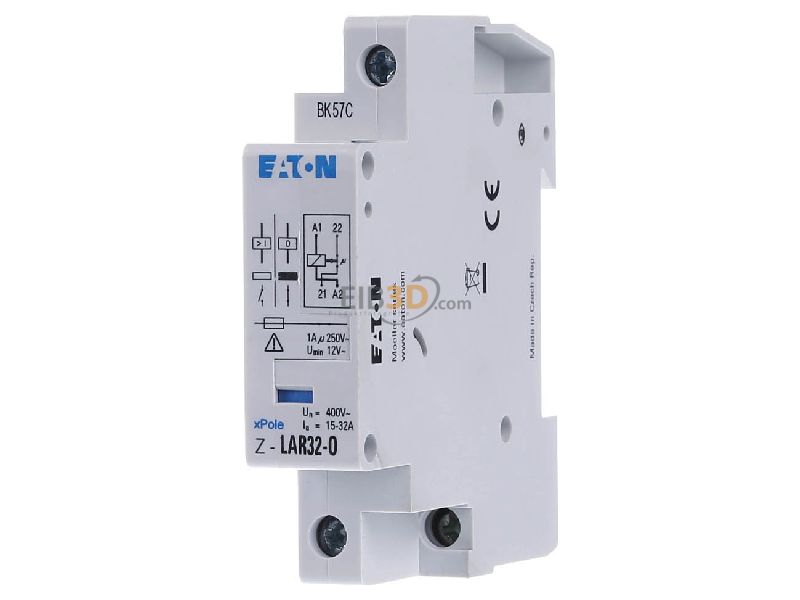

Front view Eaton Z-LAR32-O Load shedding relay 15...32A
Front view

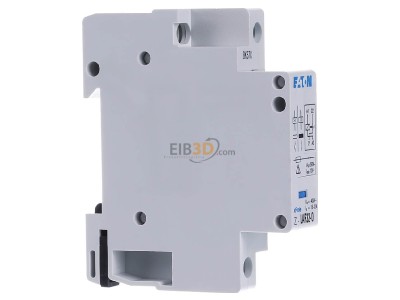

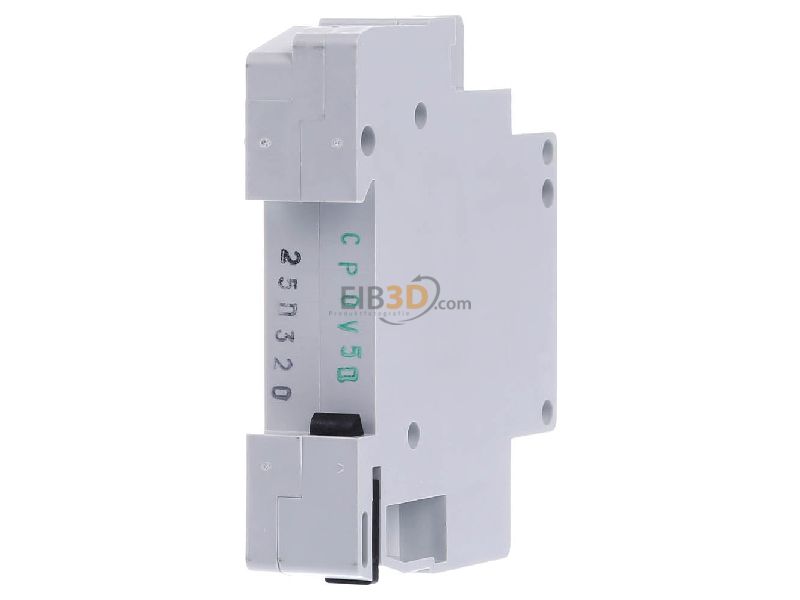

View on the left Eaton Z-LAR32-O Load shedding relay 15...32A
View on the left

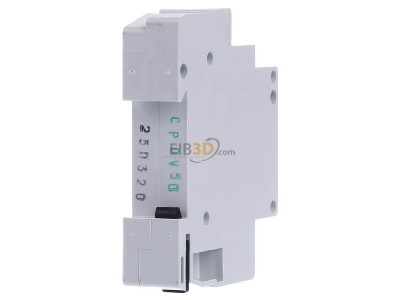

View on the right Eaton Z-LAR32-O Load shedding relay 15...32A
View on the right

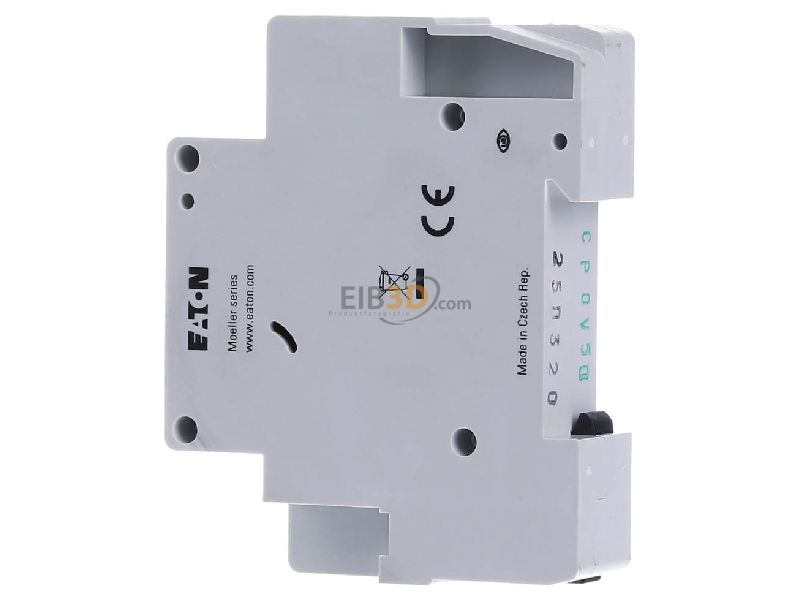

Back view Eaton Z-LAR32-O Load shedding relay 15...32A
Back view

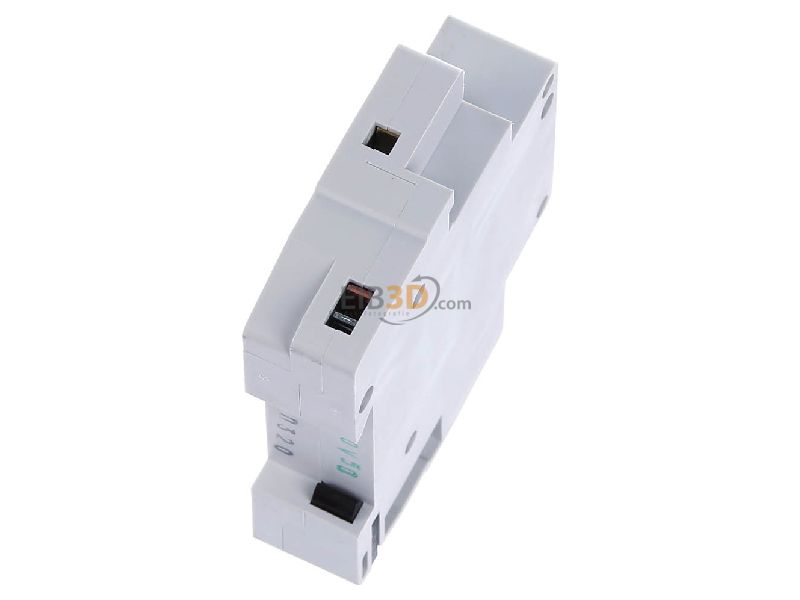

View up front Eaton Z-LAR32-O Load shedding relay 15...32A
View up front

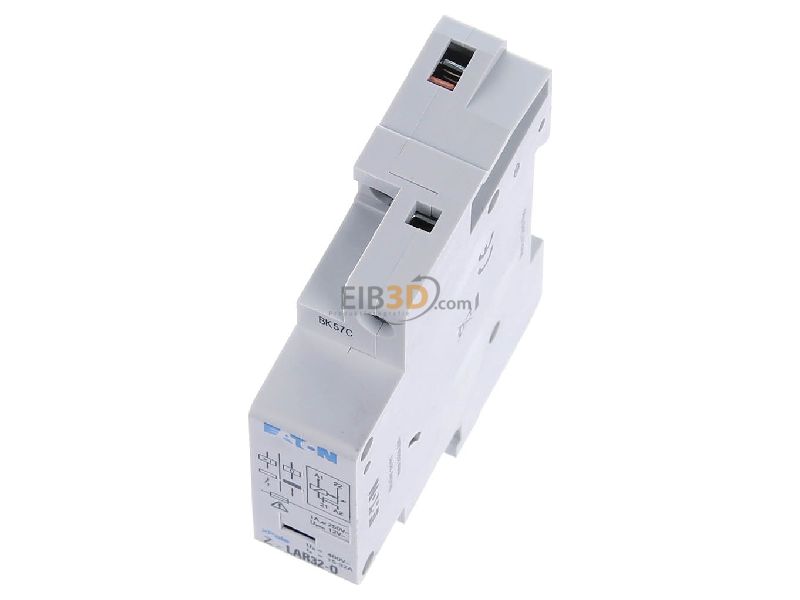

View top left Eaton Z-LAR32-O Load shedding relay 15...32A
View top left

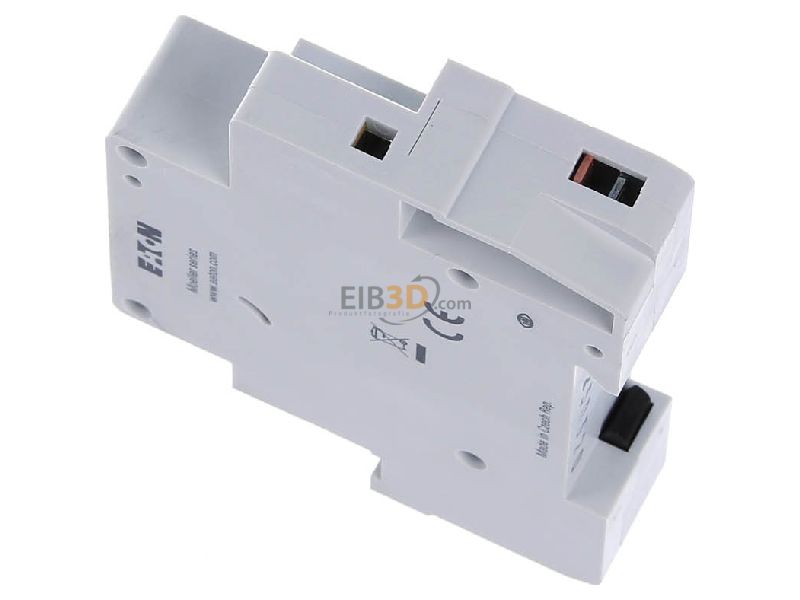

View top right Eaton Z-LAR32-O Load shedding relay 15...32A
View top right

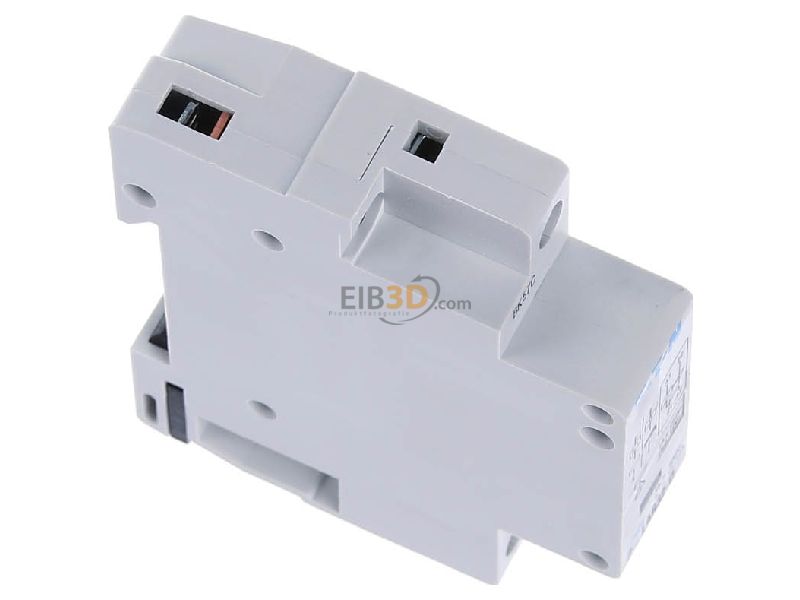

Top rear view Eaton Z-LAR32-O Load shedding relay 15...32A
Top rear view
