Earth leakage circuit breaker C32/0,03A FRBMM-C32/1N/003-G/A
Source photo:
Eaton
(fig. might be different or similar)

Earth leakage circuit breaker C32/0,03A FRBMM-C32/1N/003-G/A

EAN/GTIN: 4015081672172
WEEE: DE 92318050
Manufacturer: Eaton
Manufacturer no.: FRBMM-C32/1N/003-G/A
Manufact.-SKU: 170634
Customs tariff no.: 85362010
Similar top items: Show now & compare
79,20 GBP Price incl. VAT (0,00 GBP)
plus shipping
Delivery time:
13-15 days [GB] Items to be procured that can be ordered (no central warehouse item) - live request to the central warehouse directly in the cart or click the link below the price >Quantity available?<
pce

We always deliver the latest available article version.
Minimum order value (UK): 150 EUR (Sub total)

Note:
The installation of electrical devices may only be carried out by an approved electrician and, in the case of high-voltage systems (> = 400V and country-specific nominal power), only with the consent of the respective electricity network operator.

Details

bought
Useful
Interesting

Number of poles (total)=2, Number of protected poles=1, Rated voltage=240 V, Rated insulation voltage Ui=500 V, Rated impulse withstand voltage Uimp=4 kV, Rated current=32 A, Rated fault current=0,03 A, Leakage current type=A, Current limiting class=3, Rated short-circuit breaking capacity according to EN 61009=10 kA, Rated short-circuit breaking capacity according to IEC 60947-2=10 kA, Rated short-circuit breaking capacity Icn according to EN 61009-1=10 kA, Disconnection characteristic=Short-time delayed, Surge current capacity=3 kA, Voltage type=AC, Frequency=50 Hz, Release characteristic=C, Concurrently switching neutral conductor=yes, With interlocking device=no, Over voltage category=3, Pollution degree=2, Ambient temperature during operating=-25..40 °C, Width in number of modular spacings=2, Built-in depth=75,5 mm, Flush-mounted installation=no, Anti-nuisance tripping version=yes, Degree of protection (IP)=IP20, Connectable conductor cross section solid-core=1..25 mm², Connectable conductor cross section multi-wired=1..25 mm²

More product images:

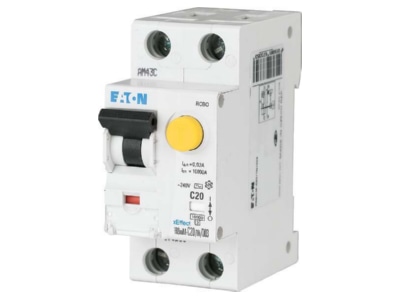

Product image 1 Eaton FRBMM C32 1N 003 G A Earth leakage circuit breaker C32 0 03A
Product image 1
Product image 2 Eaton FRBMM C32 1N 003 G A Earth leakage circuit breaker C32 0 03A
Product image 2
