Motion sensor complete 180...360° white MD 360/8 Basic ws

EAN/GTIN: 4015120430404
WEEE: DE 36503340
Manufacturer: ESYLUX
Manufacturer no.: MD 360/8 BASIC
Manufact.-SKU: EB10430404
Customs tariff no.: 85365080
Similar top items: Show now & compare
38,82 GBP Price incl. VAT (0,00 GBP)
plus shipping
Delivery time:
3-5 days [GB] Central warehouse item (regularly available) - live request to the central warehouse directly in the cart or click the link below the price >Quantity available?<
pce

We always deliver the latest available article version.
Minimum order value (UK): 150 EUR (Sub total)

Note:
The installation of electrical devices may only be carried out by an approved electrician and, in the case of high-voltage systems (> = 400V and country-specific nominal power), only with the consent of the respective electricity network operator.

Details

Accessory
bought
Useful
Interesting

Motion sensor complete 180...360° white Model Movement sensor, Sensor type Passive infrared, Forced switch on, Forced switch off, Scan angle 360°, Optimum mounting height 3m, Staircase monitoring, Max. transmission range sideways 4m, Max. transmission range frontally 2m, Diameter detection range on floor 8m, Response value luminosity adjustable, With signal unit, Suitable for ceiling mounting, Mounting method Surface mounted (plaster), Connection type Screwed terminal, Material Plastic, Material quality Thermoplastic, Halogen free, Surface protection Untreated, Surface finishing Matt, Colour White, RAL-number (akin) 9010, Degree of protection (IP) IP40, Voltage type AC, Frequency 50 ... 60Hz, Nominal voltage 230V, Min. switch-on time 5s, Max. duty cycle 30min, Switch-off delay 30s, Switching-on delay 0s, Detection angle horizontal 180 ... 360°, Pivoting range sensor, horizontal 0°, Pivoting range sensor, vertical 0°, Response value luminosity 5 ... 1000lx, Max. switching power 2300W, Temperature 0 ... 50°C, Number of switching zones 1, Max. starting current 78A, Control current 0mA, Substation input, Height 33mm, Diameter 99mm

More product images:

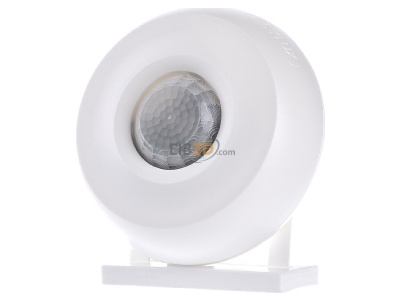

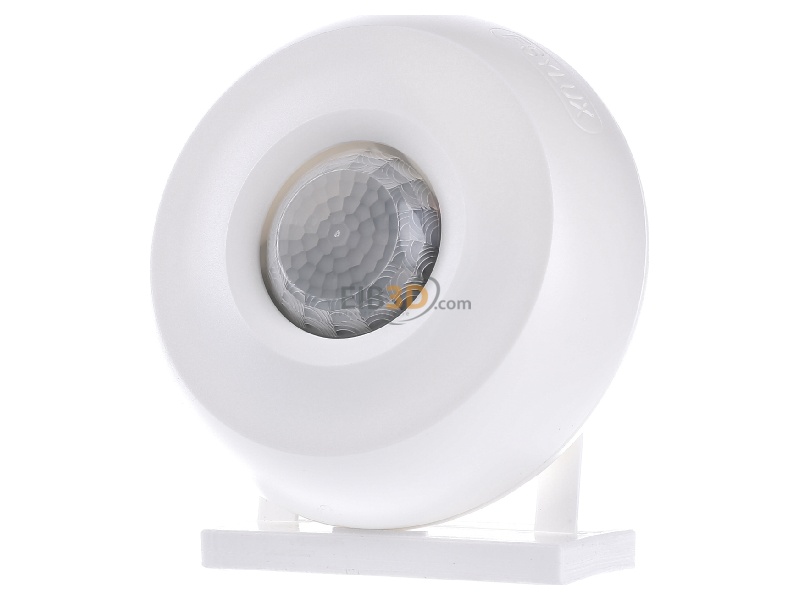

Front view ESYLUX MD 360/8 Basic ws Motion sensor complete 180...360° white
Front view

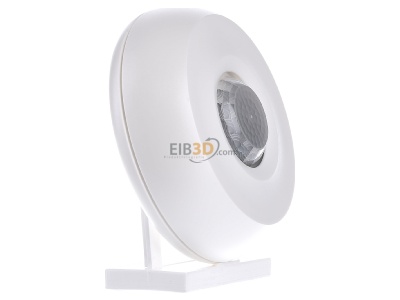

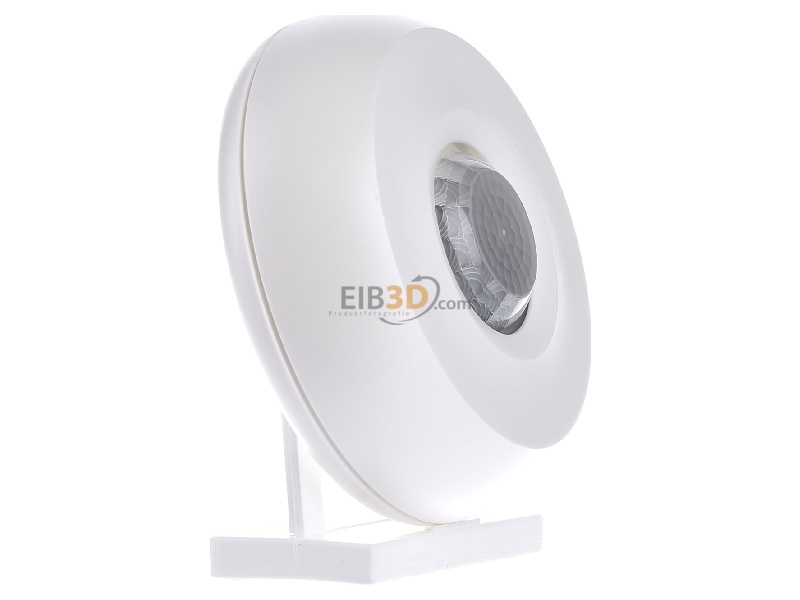

View on the left ESYLUX MD 360/8 Basic ws Motion sensor complete 180...360° white
View on the left

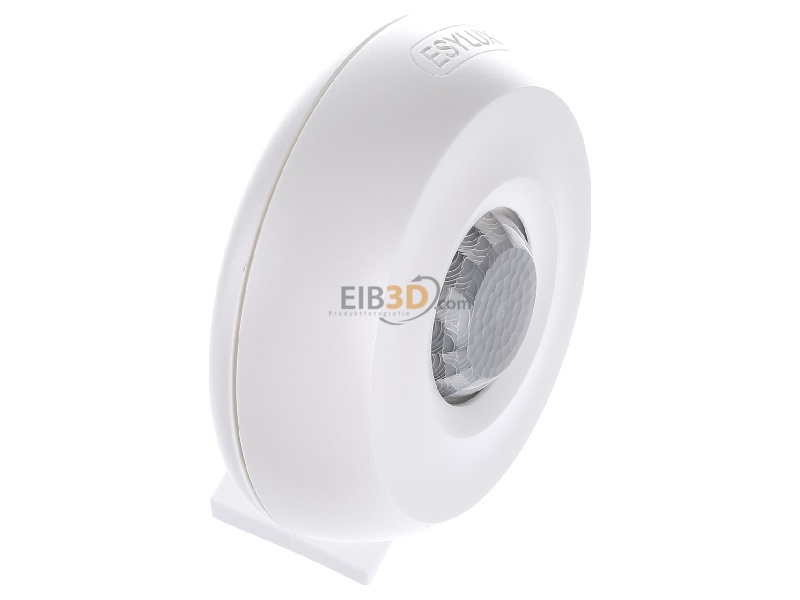

View on the right ESYLUX MD 360/8 Basic ws Motion sensor complete 180...360° white
View on the right

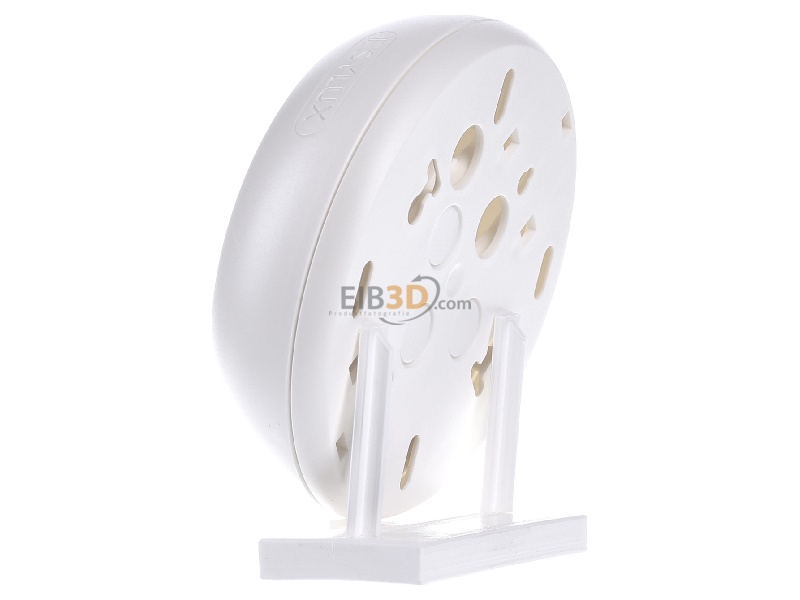

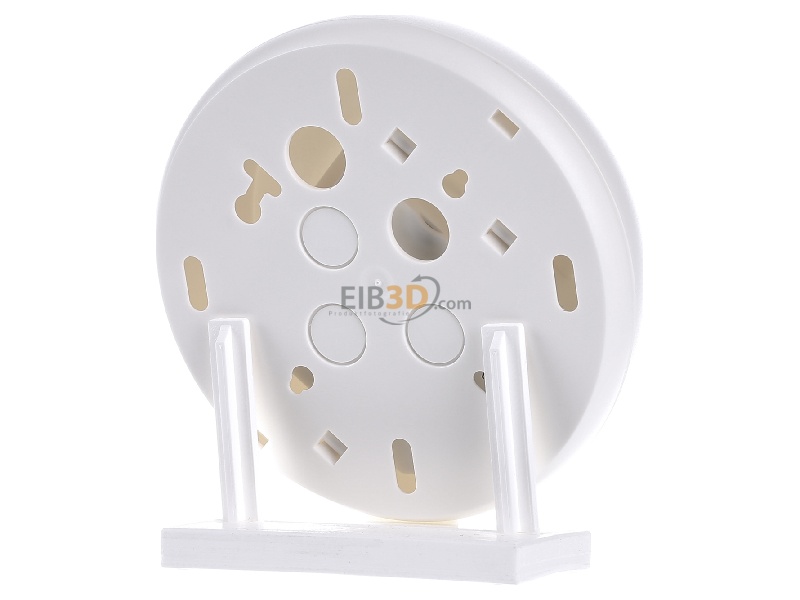

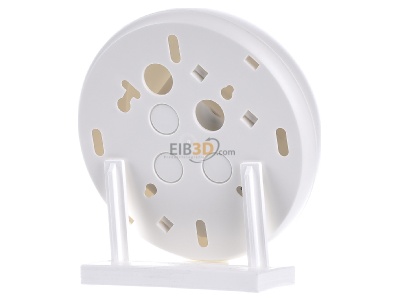

Back view ESYLUX MD 360/8 Basic ws Motion sensor complete 180...360° white
Back view

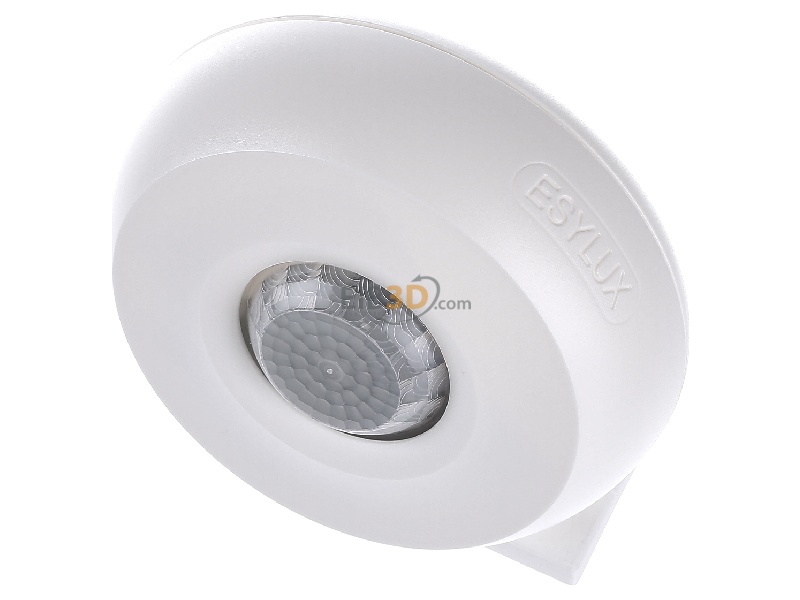

View up front ESYLUX MD 360/8 Basic ws Motion sensor complete 180...360° white
View up front
View top left ESYLUX MD 360/8 Basic ws Motion sensor complete 180...360° white
View top left

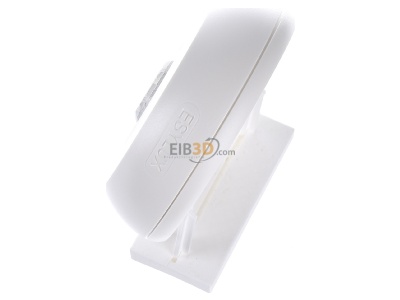

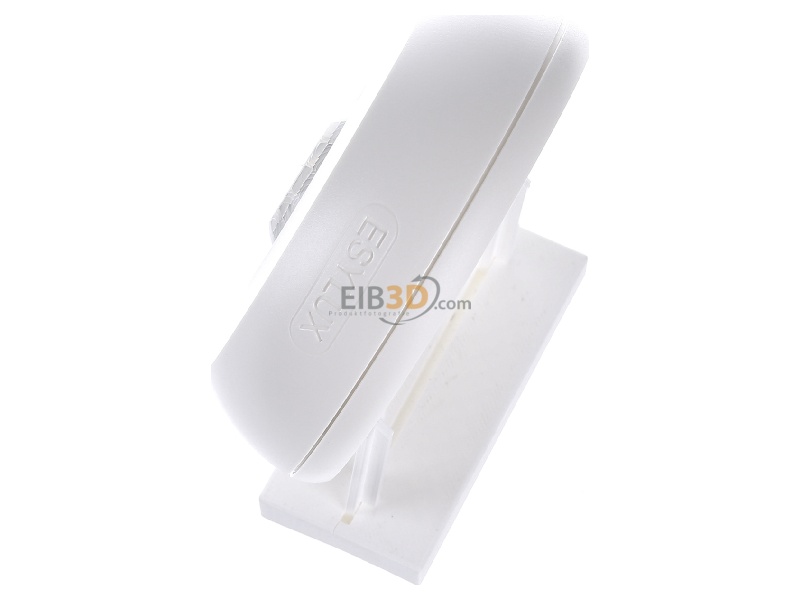

View top right ESYLUX MD 360/8 Basic ws Motion sensor complete 180...360° white
View top right

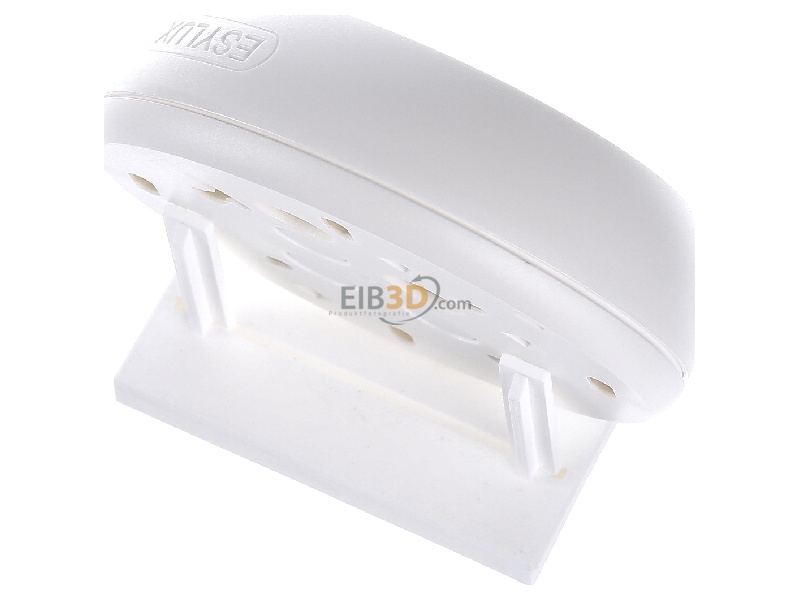

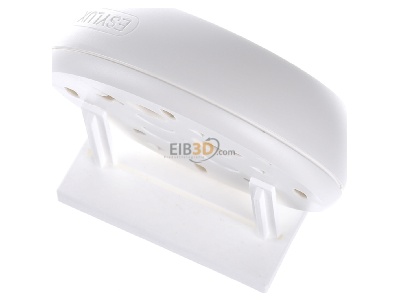

Top rear view ESYLUX MD 360/8 Basic ws Motion sensor complete 180...360° white
Top rear view
Product image ESYLUX MD 360 8 BASIC Motion sensor complete 180   360  white ws
Product image

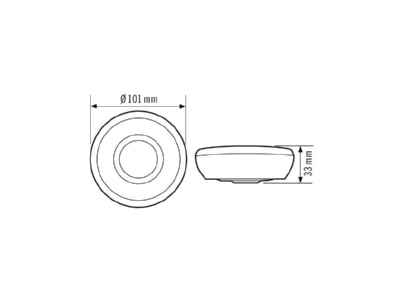

Dimensional drawing ESYLUX MD 360 8 BASIC Motion sensor complete 180   360  white ws
Dimensional drawing
