Residual current breaker 4-p DFS40634/030BSKSV500
Source photo:
(fig. might be different or similar)

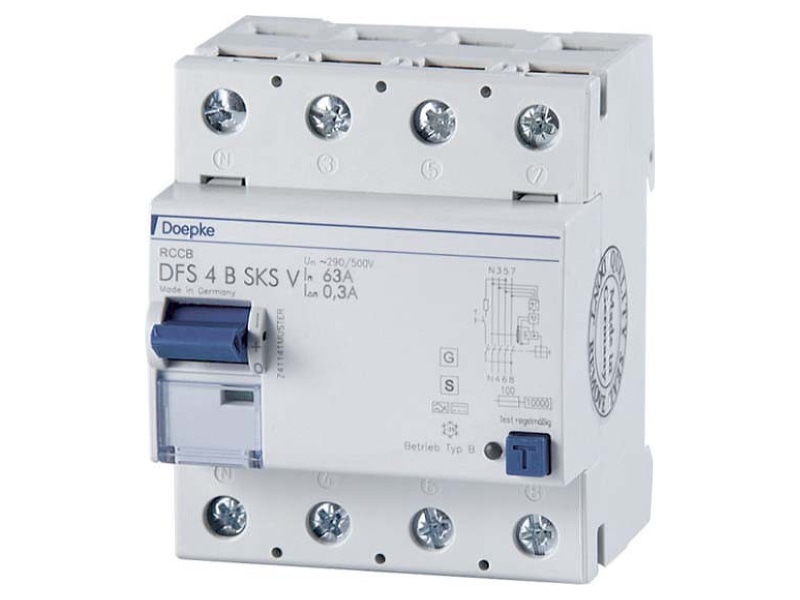

Residual current breaker 4-p DFS40634/030BSKSV500

EAN/GTIN: 4014712156753
WEEE: DE 85624250
Manufacturer: Doepke
Manufacturer no.: DFS40634/030BSKSV500
Manufact.-SKU: 09146982
Customs tariff no.: 85363030
Similar top items: Show now & compare
872,37 GBP Price incl. VAT (0,00 GBP)
plus shipping
Delivery time:
17-19 days [GB] Items to be procured that can be ordered (no central warehouse item) - live request to the central warehouse directly in the cart or click the link below the price >Quantity available?<

We always deliver the latest available article version.
Minimum order value (UK): 150 EUR (Sub total)

The installation of electrical devices may only be carried out by an approved electrician and, in the case of high-voltage systems (> = 400V and country-specific nominal power), only with the consent of the respective electricity network operator.



Residual current breaker 4-p Number of poles 4, Rated voltage 500V, Rated current 63A, Rated fault current 300mA, Rated insulation voltage Ui 500V, Rated impulse withstand voltage Uimp 4kV, Mounting method DIN rail, Leakage current type B, Selective protection, Short-circuit breaking capacity (Icw) 10kA, Surge current capacity 5kA, Frequency 50 Hz, Additional equipment possible, Degree of protection (IP) IP20, Width in number of modular spacings 4, Built-in depth 69mm, Ambient temperature during operating -25 ... 40°C, Pollution degree 2, Connectable conductor cross section multi-wired 1,5 ... 50mm˛, Connectable conductor cross section solid-core 1,5 ... 50mm˛
