Residual current breaker 2-p DFS2 080-2/0,50-F

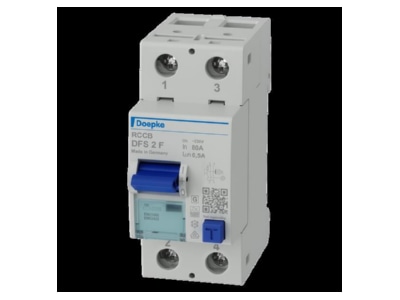

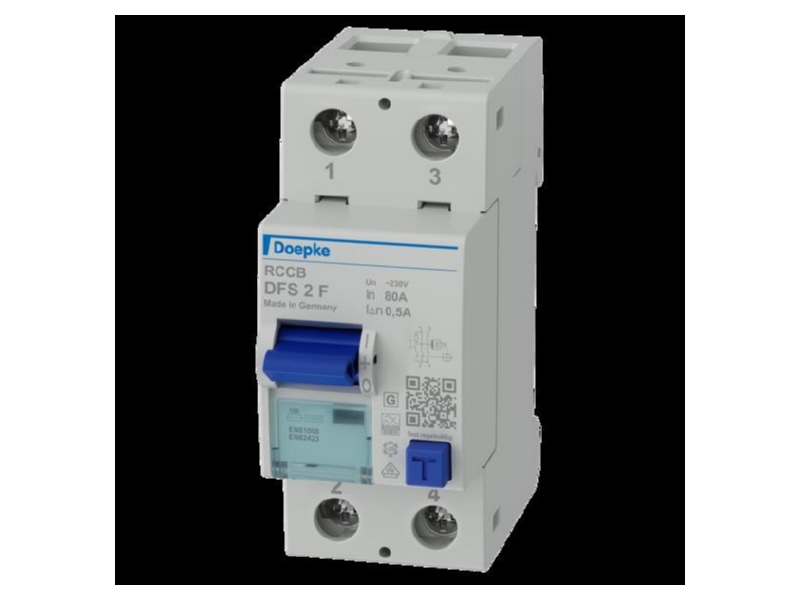

Source photo:
(fig. might be different or similar)

Residual current breaker 2-p DFS2 080-2/0,50-F

EAN/GTIN: 4014712212930
WEEE: DE 85624250
Manufacturer: Doepke
Manufacturer no.: DFS2 080-2/0,50-F
Manufact.-SKU: 09157020
Customs tariff no.: 85363030
Similar top items: Show now & compare
364,71 GBP Price incl. VAT (0,00 GBP)
plus shipping
Delivery time:
17-19 days [GB] Items to be procured that can be ordered (no central warehouse item) - live request to the central warehouse directly in the cart or click the link below the price >Quantity available?<

We always deliver the latest available article version.
Minimum order value (UK): 150 EUR (Sub total)

The installation of electrical devices may only be carried out by an approved electrician and, in the case of high-voltage systems (> = 400V and country-specific nominal power), only with the consent of the respective electricity network operator.



Residual current breaker 2-p Number of poles 2, Rated voltage 230V, Rated current 80A, Rated fault current 500mA, Rated insulation voltage Ui 400V, Rated impulse withstand voltage Uimp 4kV, Mounting method DIN rail, Leakage current type F, Short-time delayed tripping, Short-circuit breaking capacity (Icw) 10kA, Surge current capacity 3kA, Frequency 50 Hz, Additional equipment possible, Degree of protection (IP) IP20, Width in number of modular spacings 2, Built-in depth 69mm, Ambient temperature during operating -25 ... 40°C, Pollution degree 2, Connectable conductor cross section multi-wired 1,5 ... 50mm˛, Connectable conductor cross section solid-core 1,5 ... 50mm˛
