Phase busbar 3-p 10mm² 212mm EV-S G 3.12.120

EAN/GTIN: 4014712021600
WEEE: DE 85624250
Manufacturer: Doepke
Manufacturer no.: EV-S G 3.12.120
Manufact.-SKU: 09920119
Customs tariff no.: 85369095
Similar top items: Show now & compare
3,80 GBP Price incl. VAT (0,00 GBP)
plus shipping
Delivery time:
3-5 days [GB] Central warehouse item (regularly available) - live request to the central warehouse directly in the cart or click the link below the price >Quantity available?<
pce

We always deliver the latest available article version.
Minimum order value (UK): 150 EUR (Sub total)

Note:
The installation of electrical devices may only be carried out by an approved electrician and, in the case of high-voltage systems (> = 400V and country-specific nominal power), only with the consent of the respective electricity network operator.

Details

Accessory
bought
Useful
Interesting

Phase busbar 3-p 10mm² 212mm Number of phases 3, Number of poles 3, Suitable for number of devices 12, Pitch dimensions 17,5mm, Cross section 10mm², Length 212mm, Number of modular spacings 12, Rated permanent current Iu 120A, Type of electric connection Fork, Insulated, Rated surge voltage 4,5kV, Conditioned rated short-circuit current Iq 15kA, Max. rated operation voltage Ue 690V, Rated short-time withstand current lcw 15kA

More product images:

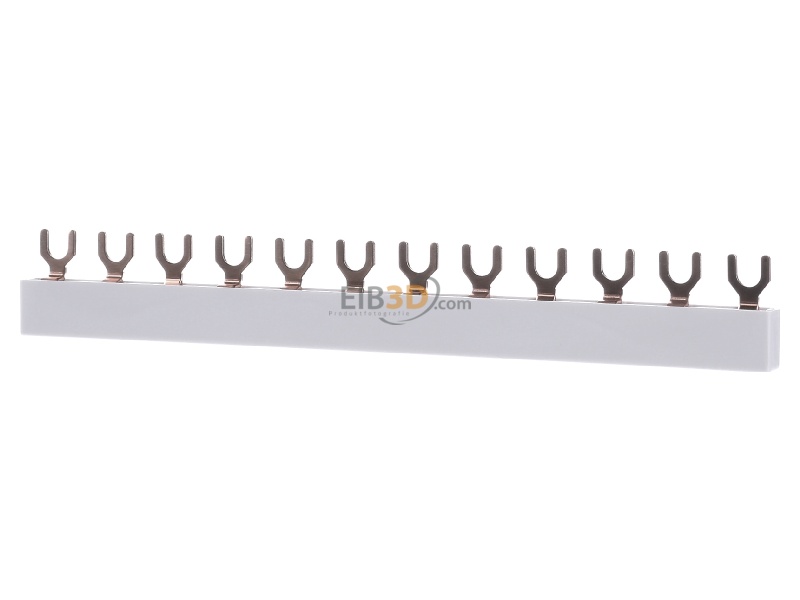

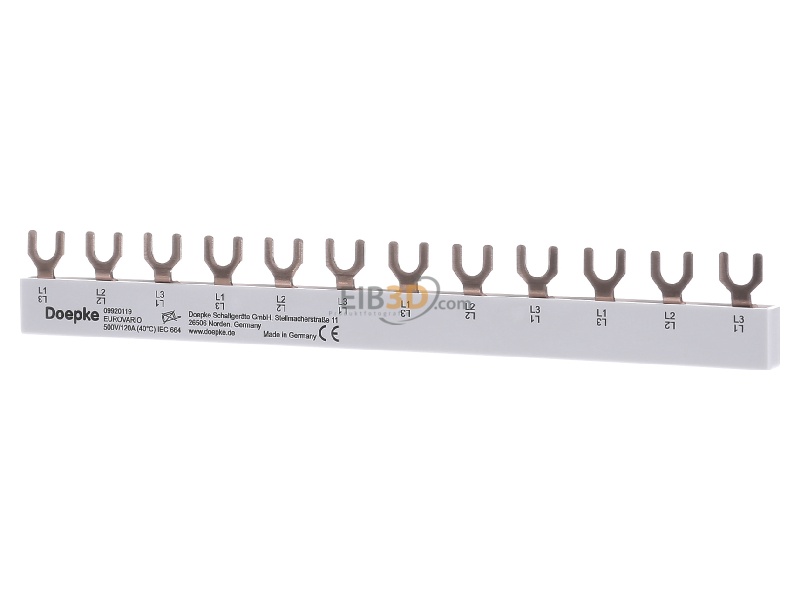

Front view Doepke EV-S G 3.12.120 Phase busbar 3-p 10mm² 212mm
Front view

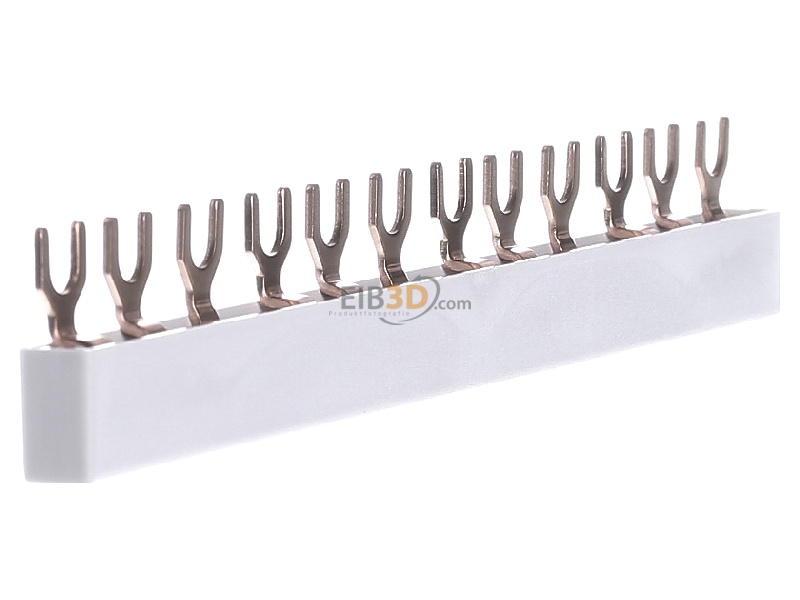

View on the left Doepke EV-S G 3.12.120 Phase busbar 3-p 10mm² 212mm
View on the left

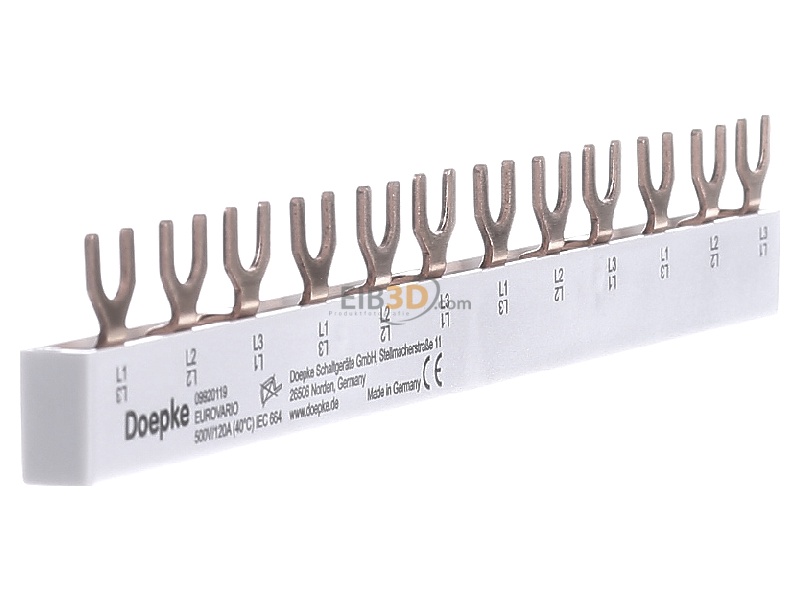

View on the right Doepke EV-S G 3.12.120 Phase busbar 3-p 10mm² 212mm
View on the right

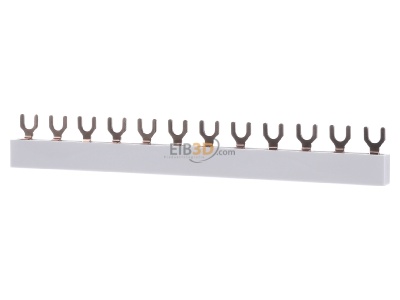

Back view Doepke EV-S G 3.12.120 Phase busbar 3-p 10mm² 212mm
Back view

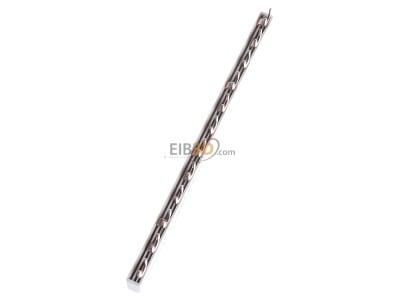

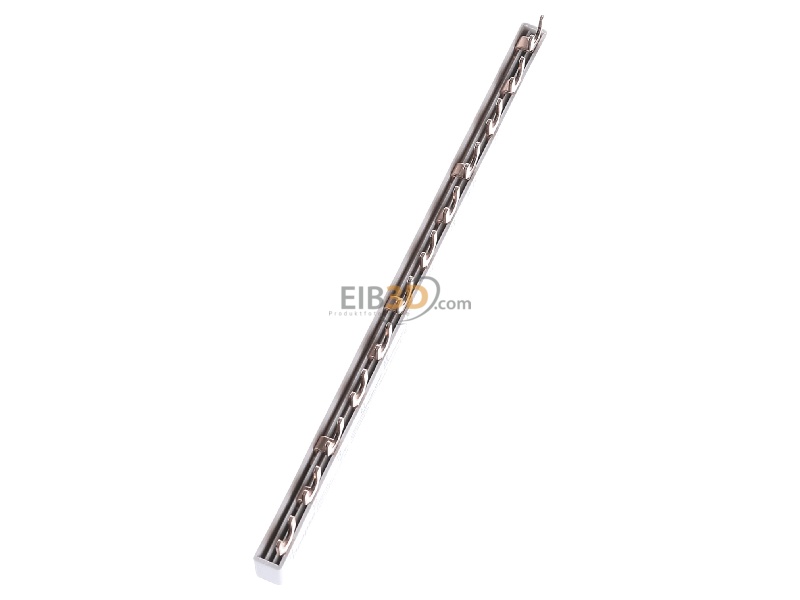

View up front Doepke EV-S G 3.12.120 Phase busbar 3-p 10mm² 212mm
View up front

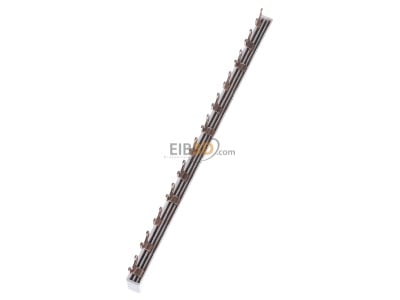

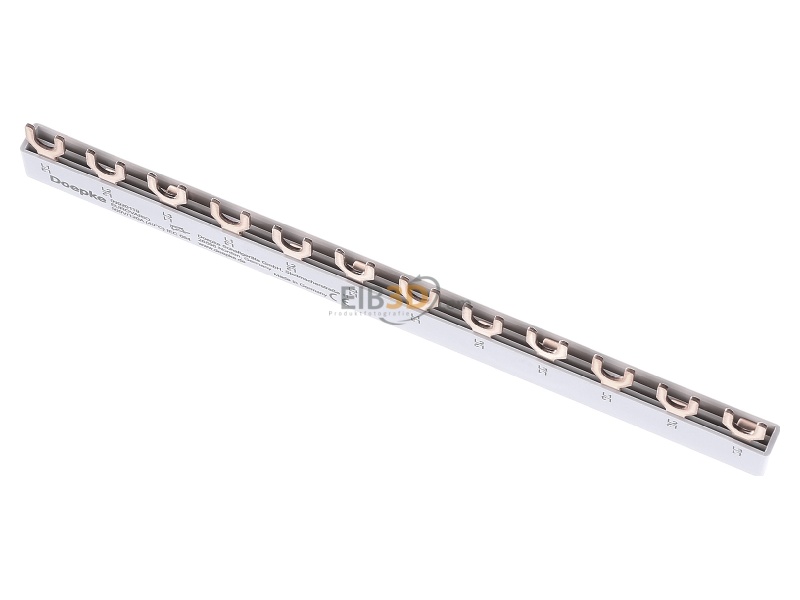

View top left Doepke EV-S G 3.12.120 Phase busbar 3-p 10mm² 212mm
View top left

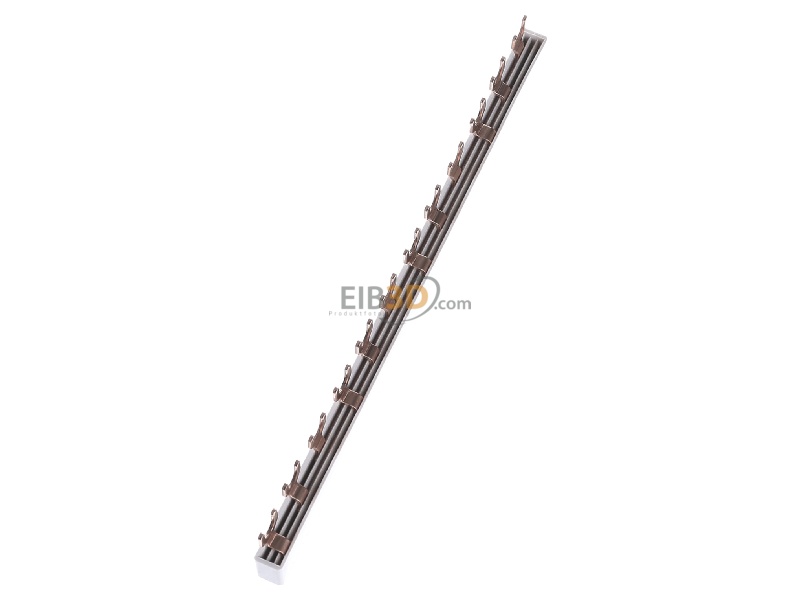

View top right Doepke EV-S G 3.12.120 Phase busbar 3-p 10mm² 212mm
View top right

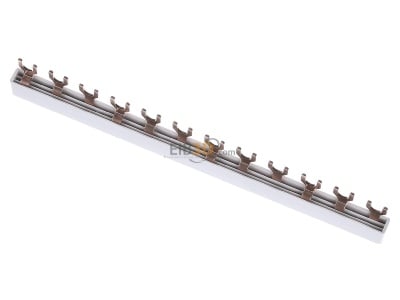

Top rear view Doepke EV-S G 3.12.120 Phase busbar 3-p 10mm² 212mm
Top rear view

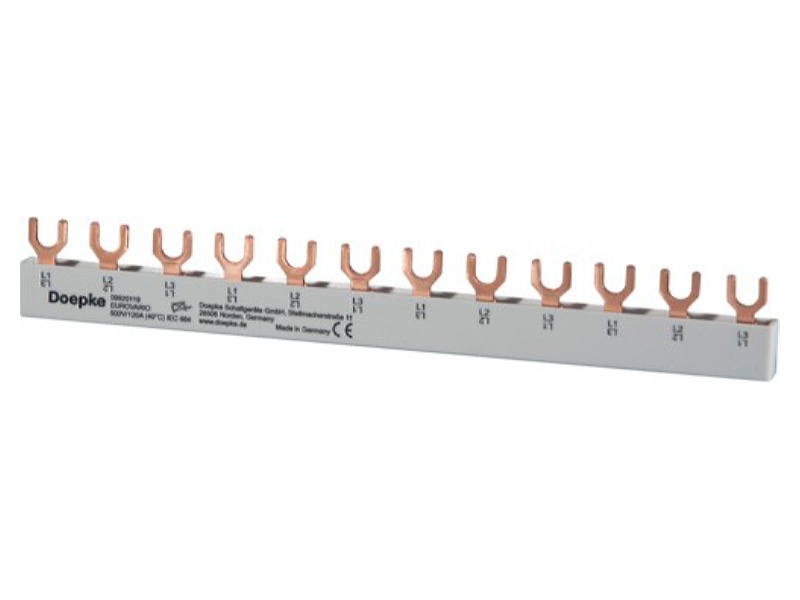

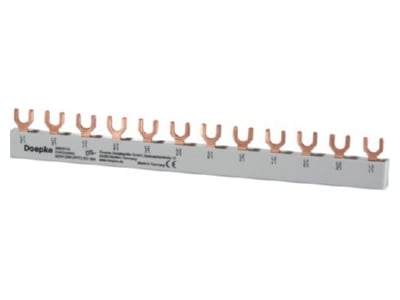

Product image Doepke EV S G 3 12 120 Phase busbar 3 p 10mm  212mm
Product image

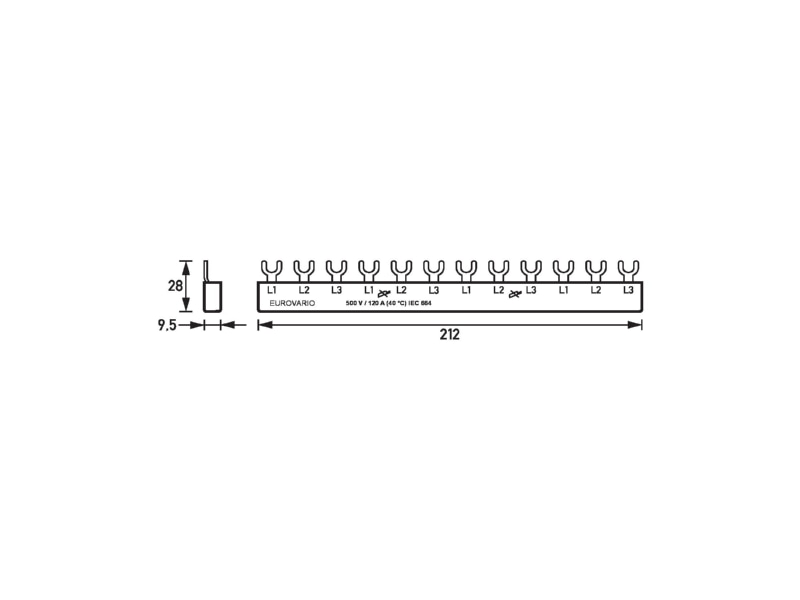

Dimensional drawing Doepke EV S G 3 12 120 Phase busbar 3 p 10mm  212mm
Dimensional drawing
